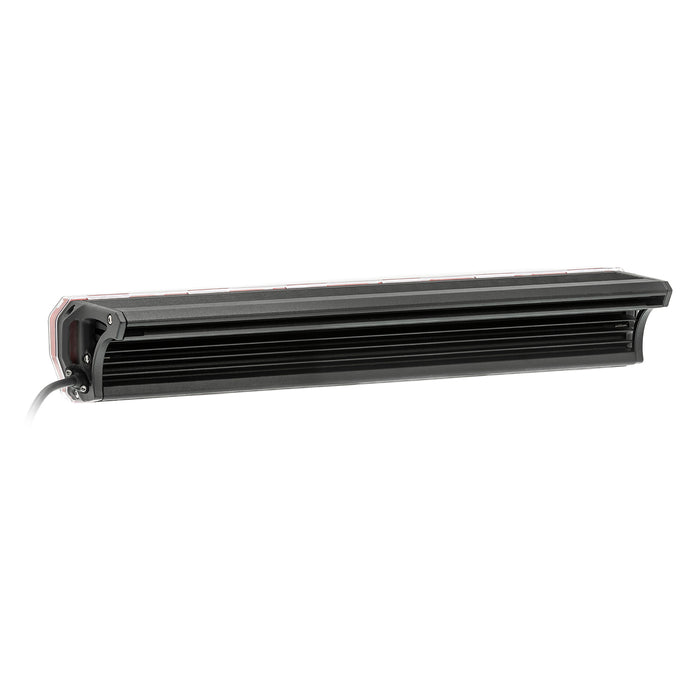

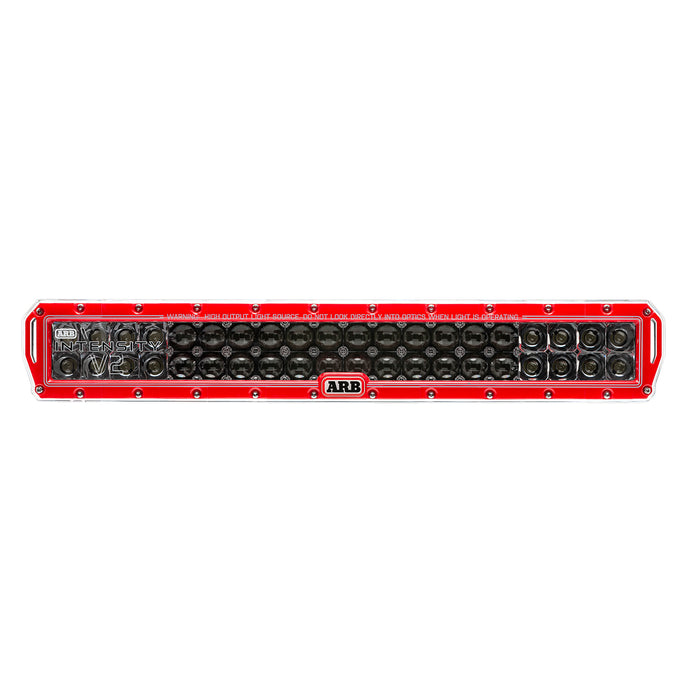

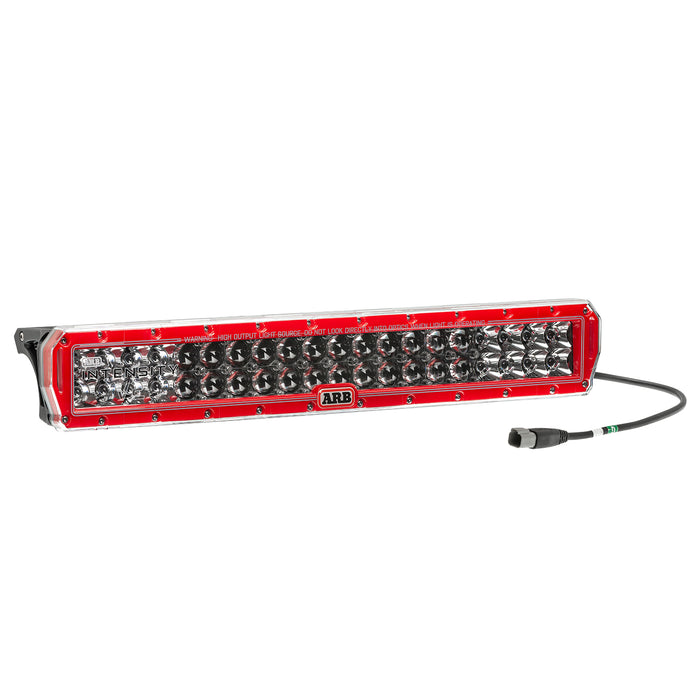

ARB AR40CV2 Intensity V2 Light Bar Kit; Combination Flood; And Spot Light Spread;

The ARB Intensity V2 Light bar is a substantial upgrade from its predecessor, the Iconic Australian lightbar. It produces clean crisp light with refined color temp on the led that helps reduce eye strain and fatigue for long-distance driving and reaches amazing distances down the road to improve safety. It is an excellent choice to provide good lighting for distance as well as width. The Intensity V2 light bar uses the same optimal chassis design of the previous Intensity light, yet incoporates the latest in LED technolgy using OSRAM GIANTS and advanced optics via the latest Hyperspot technology in our combo configuration, a further refined design for our flood confgurations to extend the floods ability to drive light further down the road, as well as spreading the light in front of the vehicle. This can only be achieved by dedicated flood and spot opitcs combined into one light bar. Hyperspot is a refined optic used to focus and intensify the light output and drive the LED OSRAM GIANTS at amazing distances down the road while keeping clarity in the beam and controlling the beam pattern to the correct area on the road without spilling light into areas not required or fore filled by the flood configuration. This configuration delivers 305W out of the new AR40CV2 and produces over 25,000 Lumens.

Resources

Installation Instructions

Description_ASM	V2 COMBO LIGHT BAR
Description_DEF	Light Bar
Description_DES	Intensity V2 Light Bar
Description_DES	Intensity V2 Light Bar Kit
Description_EXT	ARB Intensity V2 Light Bar with Combination Flood and Spot Light Spread
Description_EXT	Intensity V2 Light Bar Kit; Combination Flood; And Spot Light Spread;
Description_FAB	1 Lux @ 926m (3038ft)
Description_FAB	21A @ 14.4V (Requires new looms)
Description_FAB	25,080 Raw Lumens for the AR40CV2 Combo.
Description_FAB	25080 Raw Lumens For The AR40CV2 Combo
Description_FAB	305 Watts Of Power
Description_FAB	6 Degree Spread For Spot And 20 Degree Spread For Flood
Description_FAB	9-36 Volts Operating
Description_FAB	Dimensions - 560mm (22.1") x 91mm (3.6") x 125mm (4.9")
Description_FAB	High output OSRAM square LED's
Description_FAB	High Output OSRAM Square LEDÆs
Description_FAB	Input Cable Length ? 400mm (15.74 )
Description_FAB	Operating Temp -40C to 63C (-40?F to +145?F)
Description_FAB	Powder-Coated Aluminum Extruded Body
Description_FAB	Three-Year Warranty
Description_INV	ARB INTENSITY V2 40 LED COM LB
Description_INV	ARB Intensity V2 Light Bar
Description_MKT	The ARB Intensity V2 Light bar is a substantial upgrade from its predecessor, the Iconic Australian lightbar. It produces clean crisp light with refined color temp on the led that helps reduce eye strain and fatigue for long-distance driving and reaches amazing distances down the road to improve safety. It is an excellent choice to provide good lighting for distance as well as width. The Intensity V2 light bar uses the same optimal chassis design of the previous Intensity light, yet incoporates the latest in LED technolgy using OSRAM GIANTS and advanced optics via the latest Hyperspot technology in our combo configuration, a further refined design for our flood confgurations to extend the floods ability to drive light further down the road, as well as spreading the light in front of the vehicle. This can only be achieved by dedicated flood and spot opitcs combined into one light bar. Hyperspot is a refined optic used to focus and intensify the light output and drive the LED OSRAM GIANTS at amazing distances down the road while keeping clarity in the beam and controlling the beam pattern to the correct area on the road without spilling light into areas not required or fore filled by the flood configuration. This configuration delivers 305W out of the new AR40CV2 and produces over 25,000 Lumens.
Description_SHO	LED Light Bar
Description_SHO	Light Bar
height	6.0
length	24.0
LTL	N
weight	12.0
width	7.0
