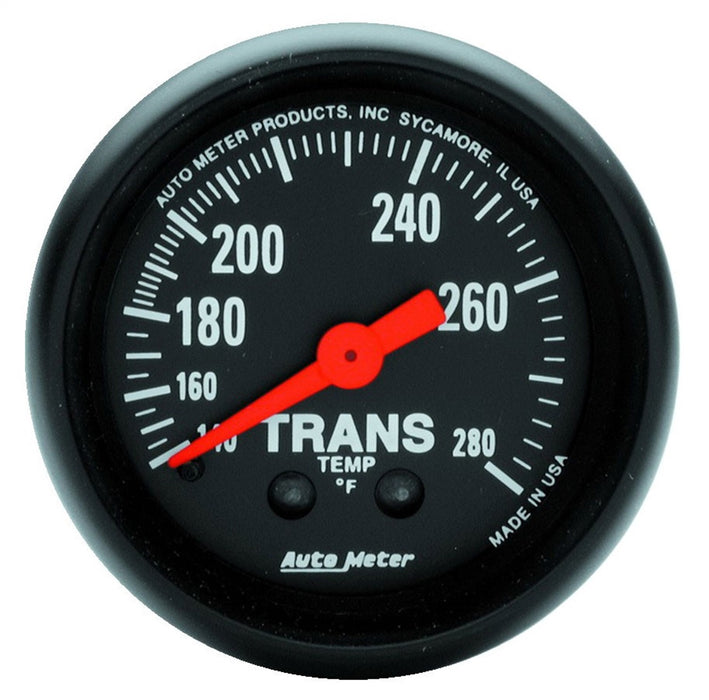

AutoMeter 2615 GAUGE; TRANSMISSION TEMP; 2 1/16in.; 140-280deg.F; MECHANICAL; 8FT.; Z-SERIES

Name: AutoMeter 2615 GAUGE; TRANSMISSION TEMP; 2 1/16in.; 140-280deg.F; MECHANICAL; 8FT.; Z-SERIES
Brand: AutoMeter
SKU: ds_BDHZ_2615
Price: 204.26 CAD
Availability: InStock

by AutoMeter

SKU ds_BDHZ_2615

Proudly Canadian

Albertan Owned

Secure Payments

Financing Available

Trusted Brands

Top-Quality Suppliers

$204.26 - $204.26

$204.26

$204.26 - $204.26

$204.26

Quantity

Description

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Mechanical Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. An 8' Capillary Tube with a 1/2" NPT mounting nut is included to be installed in your transmission pan. An optional trans cooler line manifold is available for another easy installation option.

Resources

Installation Instructions

Specifications

Adapters Included	Yes
Analog Or Digital	Analog
Anti-Glare Enclosure Included	No
Bezel Color	Black
Bezel Style	Super Bezel
Bulb and Socket Number	3220
Bulb Technology	Incandescent
Description_DES	GAUGE; TRANSMISSION TEMP; 2 1/16in.; 140-280deg.F; MECHANICAL; 8FT.; Z-SERIES
Description_EXT	2-1/16in. TRANSMISSION TEMPERATURE; 140-280 deg.F; Z-SERIES
Description_FAB	Incandescent Lighting Illuminates Around Perimeter Of Dial
Description_FAB	Incl. 1/2 in. NPT Adapter
Description_FAB	Incl. Bulb/Socket Assembly/Red And Green Bulb Covers
Description_FAB	Incl. Mounting Hardware/Instructions
Description_FAB	Mechanical Gauges Do Not Require 12V Power To Operate
Description_FAB	No Electrical System Required For Gauge Operation
Description_INV	2in. TRANS TEMP; 140-280`F 8ft. LINE; ME
Description_LAB	Made In Logo
Description_LAB	Proposition 65
Description_MKT	Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Mechanical Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. An 8' Capillary Tube with a 1/2" NPT mounting nut is included to be installed in your transmission pan. An optional trans cooler line manifold is available for another easy installation option.
Description_SHO	GA 2in. TRNS 280F M
Electric Or Mechanical	Mechanical
Face Color	Black
Fitting Type	0.500 in. NPT
Fittings Included	Yes
Font Color	White
Gauge Size	2.0625 in.
Gauge Size	52.4mm
Gauge Type	Transmission Temperature
height	6.25
Hole Size	0.0625 in.
Hole Size	52.4mm
length	6.25
Lens	Flat Clear
Light Covers Number	3244/3215
Lighting Color	White Incandescent
Lighting Type	Incandescent
LTL	N
Measurement	US
Mounting Bracket Number	2230
Movement Type	Mechanical
Number Color	White
Outer Bezel Diameter	2.250 in.
Pointer Color	Fluorescent Red
Size	2.3125 in.
Sweep	Full
Temperature	140-280° F
Type	Mechanical
Voltage	8-18 V
WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	Warning: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov.
weight	1.2
width	6.0
