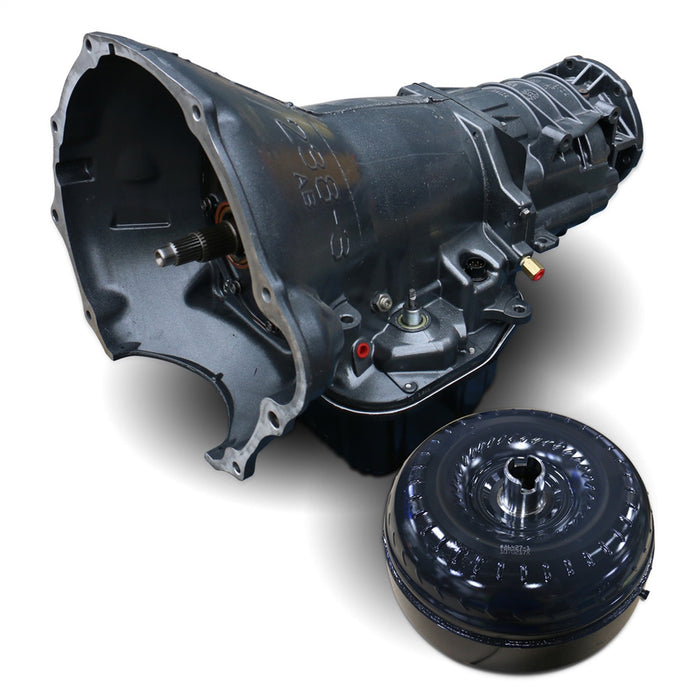

BD Diesel 1064184SS Auto Trans Assembly

Transmission-Upgraded Valvebody, Upgraded governor solenoid, Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock. Increased line pressure to 190-200psi. No shuttle shifting problems, Modified manual valve for lube in all positions. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 6, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp/energy Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the "snap" from rapid throttle and high horsepower. Billet "Big" fine spline input shaft. Drilled intermediate shaft for increased lubrication. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall. Torque Multiplying cast aluminum stators. Lower RPM Response than the stock converter. More efficient operation, less heat and better fuel economy. Stamp-forged steel front cover, furnace brazed fins, up to triple the mount of lockup clutch material. Warranty- 36 Month/150,000 Miles on Parts, 12 Month/24000 miles on Labor.

Description_DEF	Automatic Transmission Assembly
Description_DES	BD Dodge 47RE Transmission & Converter Stage 4 Package - 2000-2002 4wd
Description_DES	Transmission Kit
Description_EXT	BD Dodge 47RE Transmission & Converter Stage 4 Package - 2000-2002 4wd c/w Auxiliary Filter
Description_EXT	Transmission Kit; Complete Trans; Incl. Auxiliary Filter/2 QT Extra Capacity Pan; Incl. Complete Torque Converter; Enhanced Stall; Stage 4;
Description_FAB	Aluminum HD Pan
Description_FAB	BD auxiliary full flow filter kit for extra protection
Description_FAB	BD rigid aluminum heavy duty transmission pan
Description_FAB	Billet band lever
Description_FAB	Billet barrel strut
Description_FAB	Clutch Count: DIRECT 6
Description_FAB	Clutch Count: FORWARD 5
Description_FAB	Clutch Count: OD 6
Description_FAB	Clutch Count: OD DIRECT 10
Description_FAB	Cooler line case saver in every transmission
Description_FAB	Drilled intermediate shaft for increased lubrication
Description_FAB	Enhanced Stall - Street/Towing applications
Description_FAB	Every transmission is tested on a dyno
Description_FAB	Furnace Brazed Fins
Description_FAB	Furnace-brazed fins
Description_FAB	High temp/energy Raybestos band
Description_FAB	Increase the durability of your drivetrain
Description_FAB	Increased line pressure to 190-200psi
Description_FAB	Less heat and better fuel economy
Description_FAB	Lower rpm response than the stock converter
Description_FAB	Magnetic drain plug
Description_FAB	Modified manual valve for lube in all positions
Description_FAB	More Efficient Operation
Description_FAB	No Shuttle Shifting Problems
Description_FAB	Not warranted for Race or Sled Pull use
Description_FAB	Pan adds 2qt extra oil capacity
Description_FAB	Pan heat-dissipating fins keep temperature down
Description_FAB	Stamp-forged steel front cover
Description_FAB	Stamped Forged 1 Piece Cover
Description_FAB	Stock thrust bushings replaced with roller Torrington bearings
Description_FAB	Torque Convertor Enhanced Stall
Description_FAB	TORQUE CONVERTOR:
Description_FAB	Torque multiplying cast aluminum stators
Description_FAB	TRANSMISSION:
Description_FAB	Up to triple the amount of lock-up clutch material
Description_FAB	Upgraded 48RE sunshell
Description_FAB	Upgraded Governor Pressure Transducer
Description_FAB	Upgraded governor pressure transducer (47RE/48RE)
Description_FAB	Upgraded Governor Solenoid
Description_FAB	Upgraded governor solenoid - Twice the burst pressure than stock
Description_FAB	Upgraded Valve body
Description_FAB	Upgraded Valvebody
Description_INV	TRANS PACKAGE DODGE 2000-2002 47RE 4WD
Description_LAB	Proposition 65
Description_MKT	Transmission-Upgraded Valvebody, Upgraded governor solenoid, Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock. Increased line pressure to 190-200psi. No shuttle shifting problems, Modified manual valve for lube in all positions. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 6, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp/energy Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the "snap" from rapid throttle and high horsepower. Billet "Big" fine spline input shaft. Drilled intermediate shaft for increased lubrication. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall. Torque Multiplying cast aluminum stators. Lower RPM Response than the stock converter. More efficient operation, less heat and better fuel economy. Stamp-forged steel front cover, furnace brazed fins, up to triple the mount of lockup clutch material. Warranty- 36 Month/150,000 Miles on Parts, 12 Month/24000 miles on Labor.
Description_MKT	When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
Description_SHO	Auto Trans Assembly
Description_SHO	TRANS PKG STAGE 4
Engine	5.9L Cummins 98.5-02 24-Valve
height	27.3
length	23.5
LTL	N
Make	Dodge
Prop 65 (C, R or CR)	CR
Prop 65 - Short Label	bddiesel_prop65_warning.png
Prop 65 Warning	WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov
Prop 65 Yes/No	Yes
Title	BD Dodge 47RE Transmission & Converter Stage 4 Package - 2000-2002 4wd
Trans Model	Dodge- 47RE (Auto) 4 Speed
WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov
weight	329.0
width	44.5
