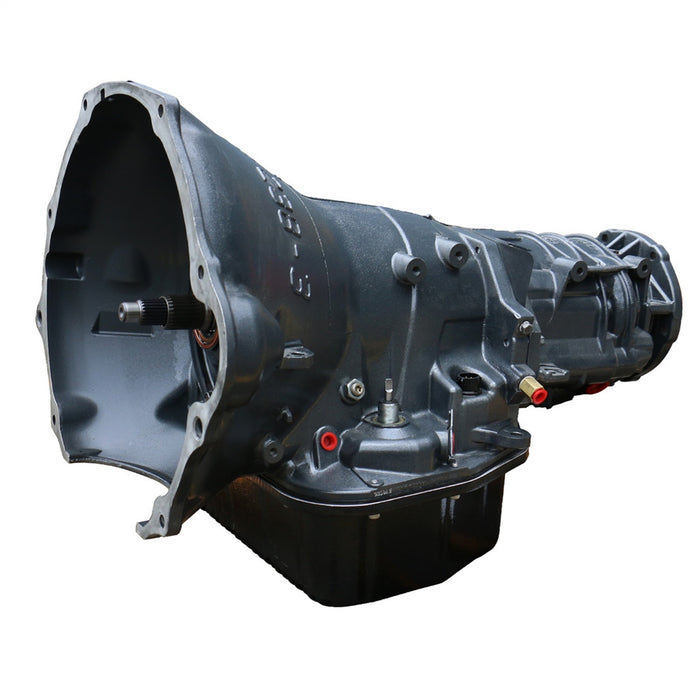

BD Diesel 1064232F Auto Trans Assembly
Description
Resources
Installation InstructionsSpecifications
Description_DEF | Automatic Transmission Assembly |
Description_DES | Transmission Kit |
Description_DES | Transmission Stage 4 Kit - 2005-2007 Dodge 48RE 2wd w/TVV Stepper Motor |
Description_EXT | Transmission Kit; Incl. Transmission Filter Kit; HD Transmission Pan; w/TVV -Thermal Vacuum Valve- Stepper Motor; Stage 4; |
Description_EXT | Transmission Stage 4 Kit - 2005-2007 Dodge 48RE 2wd w/TVV Stepper Motor |
Description_FAB | 36 Month/150000 Mile Limited Warranty |

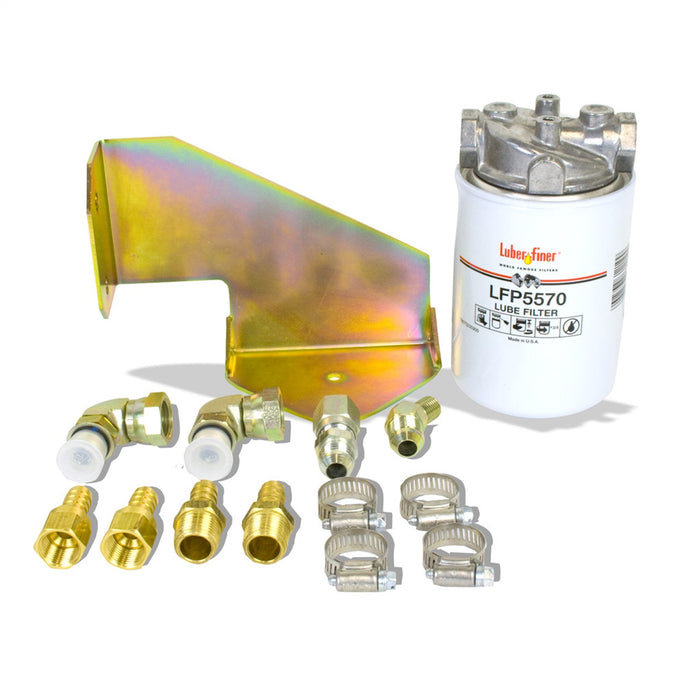

Description_FAB | BD auxiliary full flow filter kit for extra protection |
Description_FAB | BD rigid aluminum heavy duty transmission pan |
Description_FAB | Billet band lever |
Description_FAB | Billet band strut |
Description_FAB | Clutch Count: DIRECT 6 |
Description_FAB | Clutch Count: FORWARD 5 |
Description_FAB | Clutch Count: OD 6 |
Description_FAB | Clutch Count: OD DIRECT 10 |
Description_FAB | Cooler line case saver in every transmission |
Description_FAB | Drilled intermediate shaft for increased lubrication |
Description_FAB | Every transmission is tested on a dyno |
Description_FAB | Has Stronger Internals |
Description_FAB | High temp/energy Raybestos band |
Description_FAB | Increase the durability of your drivetrain |
Description_FAB | Increased line pressure to 190-200psi |
Description_FAB | Magnetic drain plug |
Description_FAB | Modified manual valve for lube in all positions |
Description_FAB | New Design Valve Body |
Description_FAB | No shuttle shifting problems |
Description_FAB | Not Warranted For Race Or Sled Pull Use |
Description_FAB | Pan Adds 1 Qt. Extra Oil Capacity |
Description_FAB | Pan adds 2qt extra oil capacity |
Description_FAB | Pan heat-dissipating fins keep temperature down |
Description_FAB | Revised Oil Circuits/Extra Clutches |
Description_FAB | Stock thrust bushings replaced with roller Torrington bearings |
Description_FAB | Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock |
Description_FAB | Upgraded governor solenoid |
Description_FAB | Upgraded Valvebody |
Description_INV | TRANSMISSION DODGE 2004.5-07 48RE 2WD |
Description_LAB | Proposition 65 |
Description_MKT | All new bushings; New design valve body; Stock thrust washers replaced with roller Torrington bearings saves governor solenoids and reduces friction; Drilled intermediate shaft for increased lube; Modified manual valve for lube in all positions; 47RE transmissions upgraded with more rugged 48RE components; Clutch Count: OD 6; Clutch Count: OD DIRECT 10; New input shafts and hub; Pan adds 1qt extra oil capacity; Up to 80% higher clutch apply pressures over the stock unit; Pressure increase starts at much lower engine rpm's and at lighter throttle pedal position movement; Light throttle shift firmness is also maintained; No shuttle shifting problems; Upgraded governor pressure transducer (47RE/48RE); Upgraded governor solenoid - Twice the burst pressure than stock; Cooler line case saver in every transmission; Added heavy-duty clutches with up to 25% more material than stock; Machined forward (rear) beveled pressure plate; Machined overdrive brake (front & rear) pressure plate; Machined direct clutch (front) piston; High temp/energy Raybestos band; Billet band strut & anchor; Billet dual ring accumulator piston; BD auxiliary full flow filter kit for extra protection; Clutch Count: FORWARD 5; Fully rollerized geartrain; Clutch Count: DIRECT 6; Increase the durability of your drivetrain; Revised oil circuits; Handles up to 300% more power and torque than the stock transmission; Extra clutches and stronger internals; BD rigid aluminum heavy duty transmission pan; Pan reduces case flex; Pan reduces internal oil leakage; Pan heat-dissipating fins keep temperature down; Pan magnetic drain plug |
Description_MKT | The stock transmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD transmission. All transmissions come with BD's heavy duty transmission pan and most packages come bundled with our auxiliary transmission filter kit for added protection! |
Description_SHO | Auto Trans Assembly |
Description_SHO | TRANSMISSION STAGE 4 |
height | 27.3 |
length | 23.5 |
LTL | N |
weight | 260.0 |
width | 44.5 |
