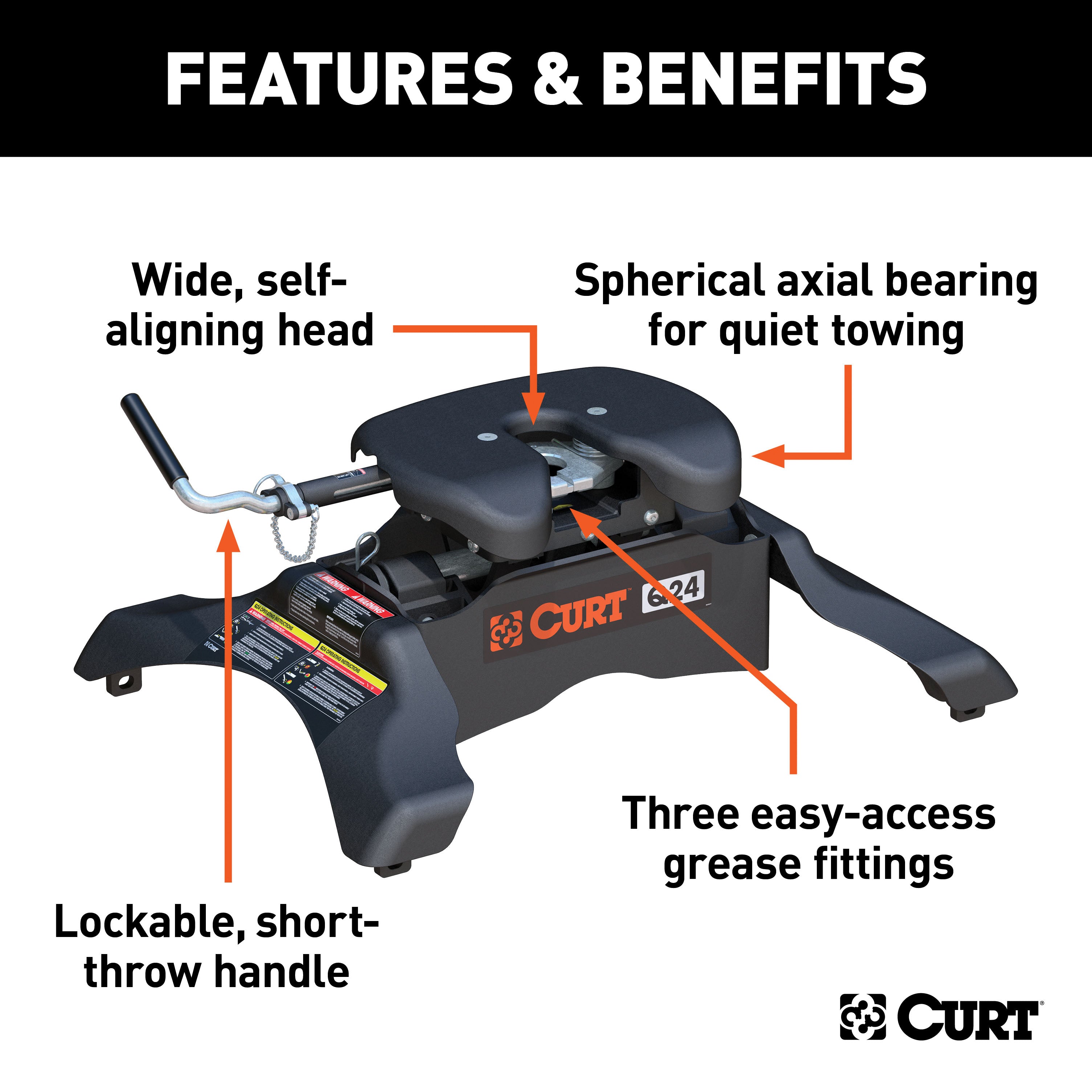

The CURT Q24 is the heavyweight champion of 5th wheel hitches. With a gross trailer weight capacity of 24,000 lbs. and a vertical load limit of 6,000 lbs., the Q24 is capable of handling the heaviest of 5th wheel trailers, including deluxe RV and oversize campers. Something that sets the Q24 5th wheel hitch apart from competitive models is its spherical axial bearing. Instead of having a set of rods on which the hitch head can pivot, the Q24 uses a spherical bearing to allow the hitch head to pivot in virtually any direction. This means smoother turns, a quieter ride and less strain on your towing equipment and truck. The CURT Q24 5th wheel trailer hitch also features dual-locking jaws, a self-aligning head, single-handle operation and a three-position coupling indicator. It comes with a durable carbide powder coat finish, a limited lifetime warranty and is tested in accordance with SAE J2638 for safety. This 24K 5th wheel hitch comes with a set of standard 5th wheel legs that are ready to mount into your truck bed with a pair 5th wheel rails and brackets (base rails and brackets sold separately). Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards. Please contact CURT Product Support for compatibility information.
Resources
Installation Instructions| Description_ABR | 24K |
| Description_ASC | Dual jaws fully wrap the kingpin to reduce chucking and increase security |
| Description_ASC | Includes a polyethylene lube plate to eliminate messy grease deposits |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year parts) |
| Description_ASC | Lockable, short-throw handle automatically engages with the kingpin |
| Description_ASC | Mounts to all industry-standard base rails |
| Description_ASC | Offers three height adjustment positions to adapt to each unique truck bed |
| Description_ASC | Protected by a highly durable carbide powder coat finish |
| Description_ASC | Q24 5th Wheel Hitch |
| Description_ASC | Spherical axial bearing tilts head in any direction for a smooth, quiet ride |
| Description_ASC | Tested for safety in accordance with SAE J2638 |

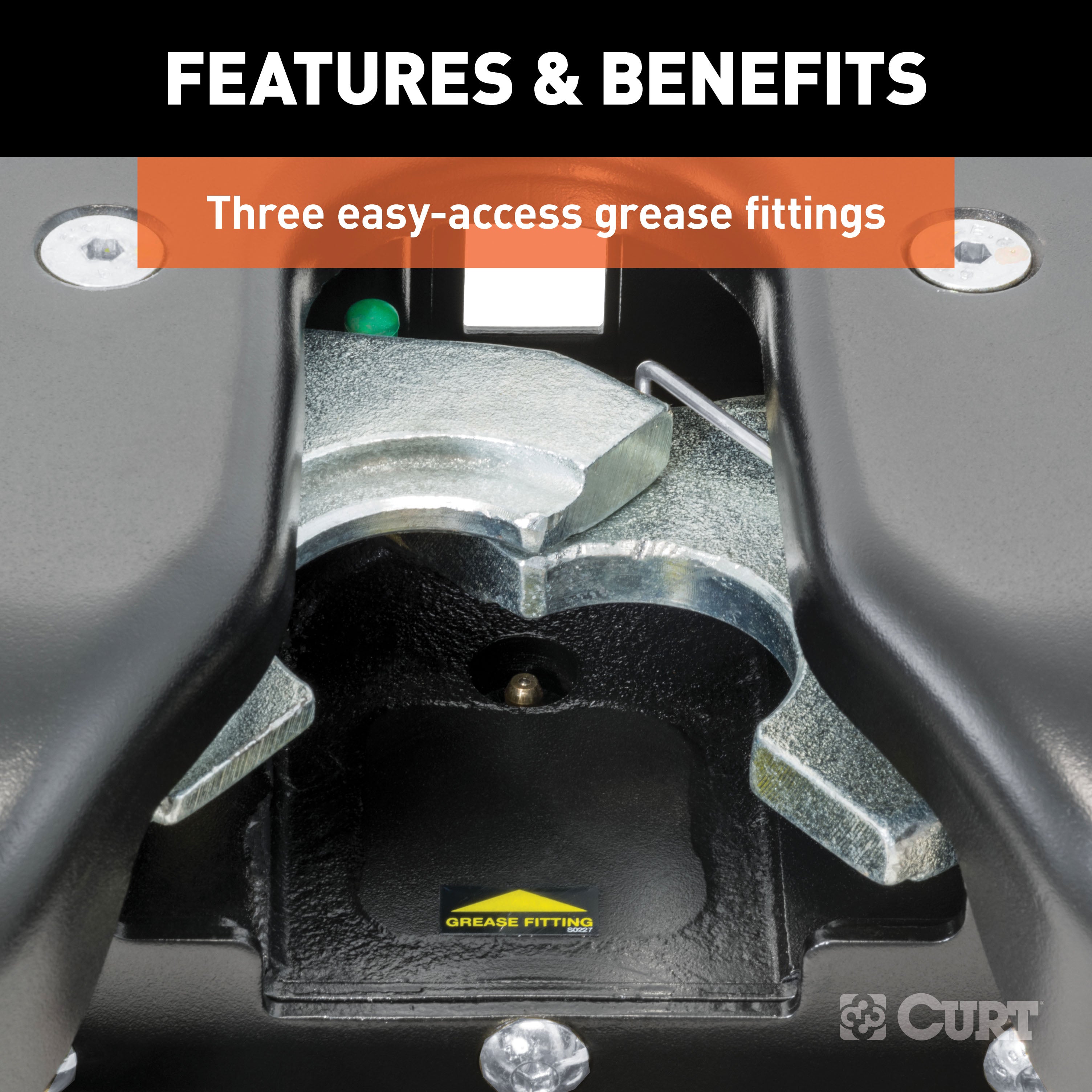

| Description_ASC | Three easy-access grease fittings for lubrication |
| Description_ASC | Three-position coupling indicator clearly shows coupling status |

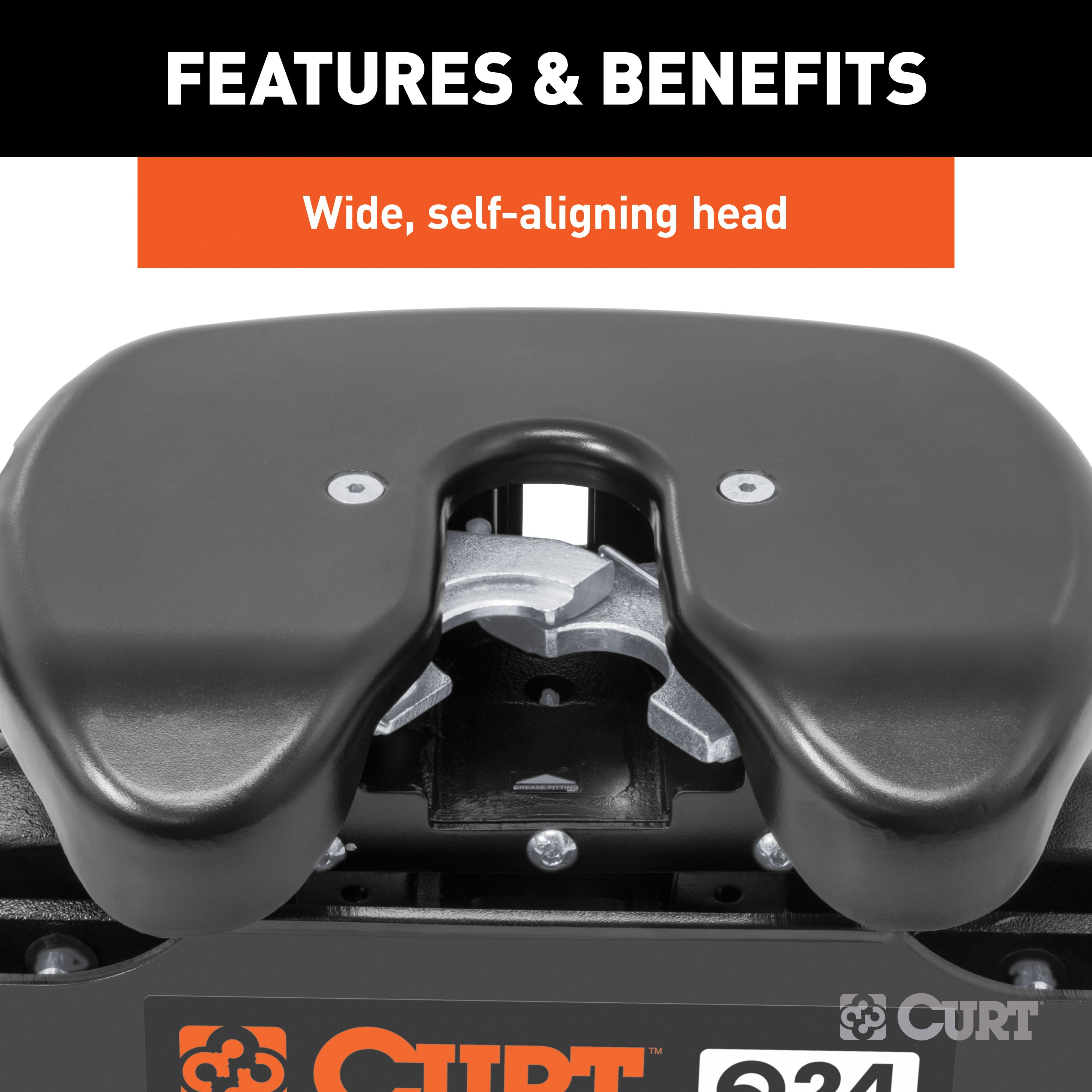

| Description_ASC | Wide, self-aligning head helps eliminate errors when backing up to the trailer |
| Description_ASM | CURT 16245 Q24 5th Wheel Hitch, 24,000 lbs |
| Description_DEF | Fifth Wheel Trailer Hitch |
| Description_DES | Q24 5th Wheel Hitch |
| Description_EXT | CURT 16245 Q24 5th Wheel Hitch, 24,000 lbs |
| Description_EXT | CURT 16245 Q24 5th Wheel Hitch; 24;000 lbs |
| Description_FAB | Backed By A 10-Year Limited Warranty |
| Description_FAB | Dual Jaws Provide 360-Degree Kingpin Contact |
| Description_FAB | Ideal For Towing 5Th Wheel Trailers Up To 24000 Lbs. |
| Description_FAB | Meets Proposed SEA J2638 Testing Standards |
| Description_FAB | Mounts To All Industry-Standard Base Rails |
| Description_FAB | Operates Using A Short Lockable Handle |
| Description_FAB | Protected By A Highly Durable Carbide Powder Coat Finish |
| Description_FAB | Self-Aligning Head Offers A Wide Opening For Easy Coupling |
| Description_FAB | Spherical Axial Bearing For Unimpeded Movement And Quiet Towing |
| Description_FAB | Three Grease Fittings For Easy Lubrication |
| Description_FAB | Three-Position Coupling Indicator Is Clearly Visible From Truck |
| Description_INV | Q24 5th Wheel Hitch |
| Description_KEY | fifth 5 system kingpin head receiver articulating cam trailer pivoting bushing factory tow wheels rv gooseneck release handle rails towing front hitches back 24000 |
| Description_MKT | The CURT Q24 is the heavyweight champion of 5th wheel hitches. With a gross trailer weight capacity of 24,000 lbs. and a vertical load limit of 6,000 lbs., the Q24 is capable of handling the heaviest of 5th wheel trailers, including deluxe RV and oversize campers. Something that sets the Q24 5th wheel hitch apart from competitive models is its spherical axial bearing. Instead of having a set of rods on which the hitch head can pivot, the Q24 uses a spherical bearing to allow the hitch head to pivot in virtually any direction. This means smoother turns, a quieter ride and less strain on your towing equipment and truck. The CURT Q24 5th wheel trailer hitch also features dual-locking jaws, a self-aligning head, single-handle operation and a three-position coupling indicator. It comes with a durable carbide powder coat finish, a limited lifetime warranty and is tested in accordance with SAE J2638 for safety. This 24K 5th wheel hitch comes with a set of standard 5th wheel legs that are ready to mount into your truck bed with a pair 5th wheel rails and brackets (base rails and brackets sold separately). Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards. Please contact CURT Product Support for compatibility information. |
| Description_SHO | Q24 5th Wheel Hitch |
| Description_SLA | The CURT Q24 is the heavyweight champion of 5th wheel hitches. With a gross trailer weight capacity of 24,000 lbs. and a vertical load limit of 6,000 lbs., the Q24 is capable of handling the heaviest of 5th wheel trailers, including deluxe RV and oversize campers. Something that sets the Q24 5th wheel hitch apart from competitive models is its spherical axial bearing. Instead of having a set of rods on which the hitch head can pivot, the Q24 uses a spherical bearing to allow the hitch head to pivot in virtually any direction. This means smoother turns, a quieter ride and less strain on your towing equipment and truck. The CURT Q24 5th wheel trailer hitch also features dual-locking jaws, a self-aligning head, single-handle operation and a three-position coupling indicator. It comes with a durable carbide powder coat finish, a limited lifetime warranty and is tested in accordance with SAE J2638 for safety. This 24K 5th wheel hitch comes with a set of standard 5th wheel legs that are ready to mount into your truck bed with a pair 5th wheel rails and brackets (base rails and brackets sold separately). Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards. Please contact CURT Product Support for compatibility information. |
| height | 15.0 |
| length | 30.0 |
| LTL | N |
| weight | 136.0 |
| width | 17.0 |
