The CURT Q24 is the heavyweight champion of 5th wheel hitches. With a gross trailer weight capacity of 24,000 lbs. and a vertical load limit of 6,000 lbs., the Q24 is capable of handling the heaviest of 5th wheel trailers, including deluxe RV and oversize campers. Something that sets the Q24 5th wheel hitch apart from competitive models is its spherical axial bearing. Instead of having a set of rods on which the hitch head can pivot, the Q24 uses a spherical bearing to allow the hitch head to pivot in virtually any direction. This means smoother turns, a quieter ride and less strain on your towing equipment and truck. The CURT Q24 5th wheel trailer hitch also features dual-locking jaws, a self-aligning head, single-handle operation and a three-position coupling indicator. It comes with a durable carbide powder coat finish, a limited lifetime warranty and is tested in accordance with SAE J2638 for safety. This 24K 5th wheel hitch head comes ready to be attached to the CURT R24 5th wheel roller or 5th wheel legs (includes head only). Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards. Please contact CURT Product Support for compatibility information.
Resources
Installation Instructions| Box Height in Inches - XA | 0 |
| Box Length in Inches - XA | 0 |
| Box Width in Inches - XA | 0 |
| capacity | 24000 lbs. |
| Class ID | 0 |
| Description_ABR | 24K |
| Description_ASC | Dual jaws fully wrap the kingpin to reduce chucking and increase security |

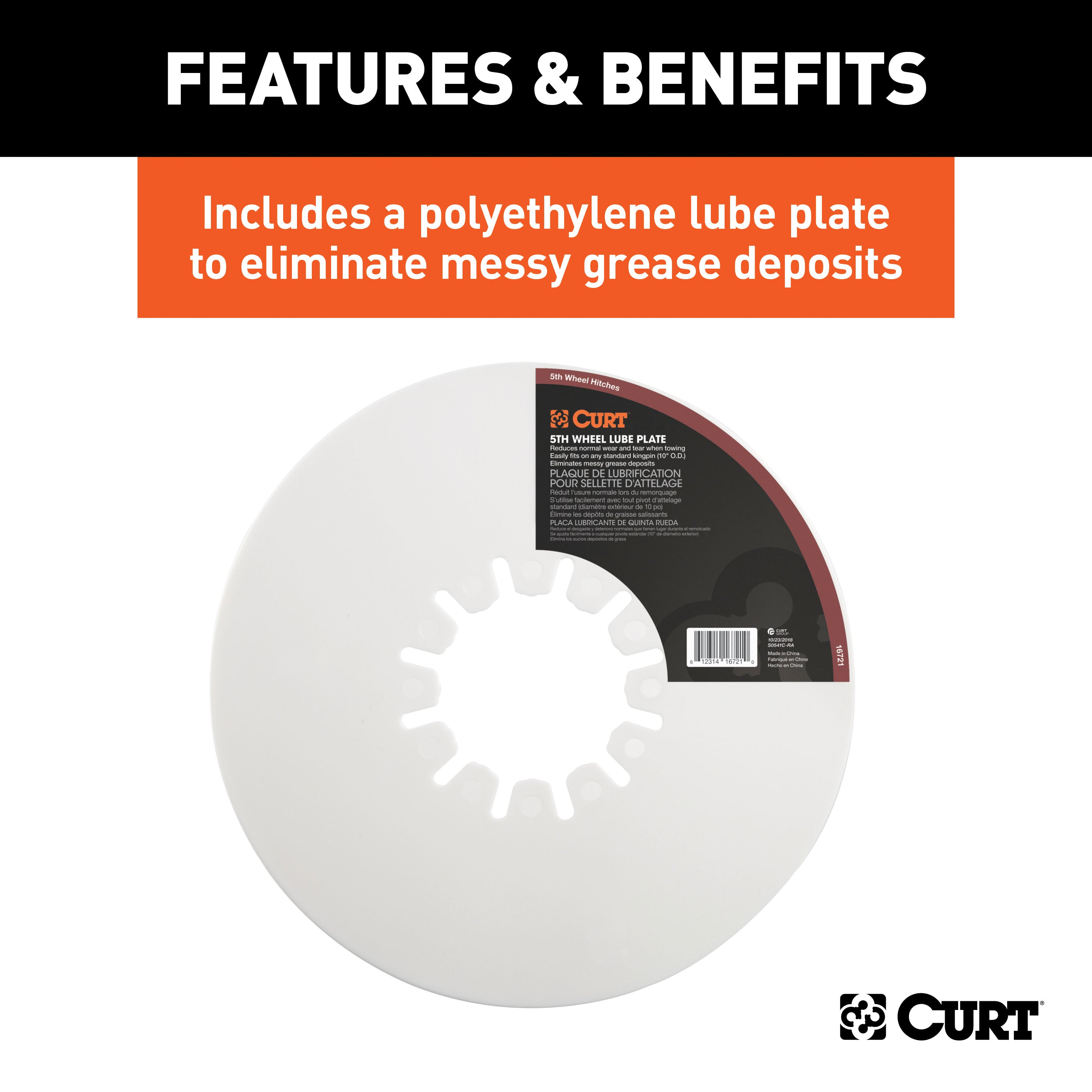

| Description_ASC | Includes a polyethylene lube plate to eliminate messy grease deposits |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year parts) |
| Description_ASC | Lockable, short-throw handle automatically engages with the kingpin |
| Description_ASC | Offers three height adjustment positions to adapt to each unique truck bed |
| Description_ASC | Protected by a highly durable carbide powder coat finish |
| Description_ASC | Q24 5th Wheel Hitch Head |

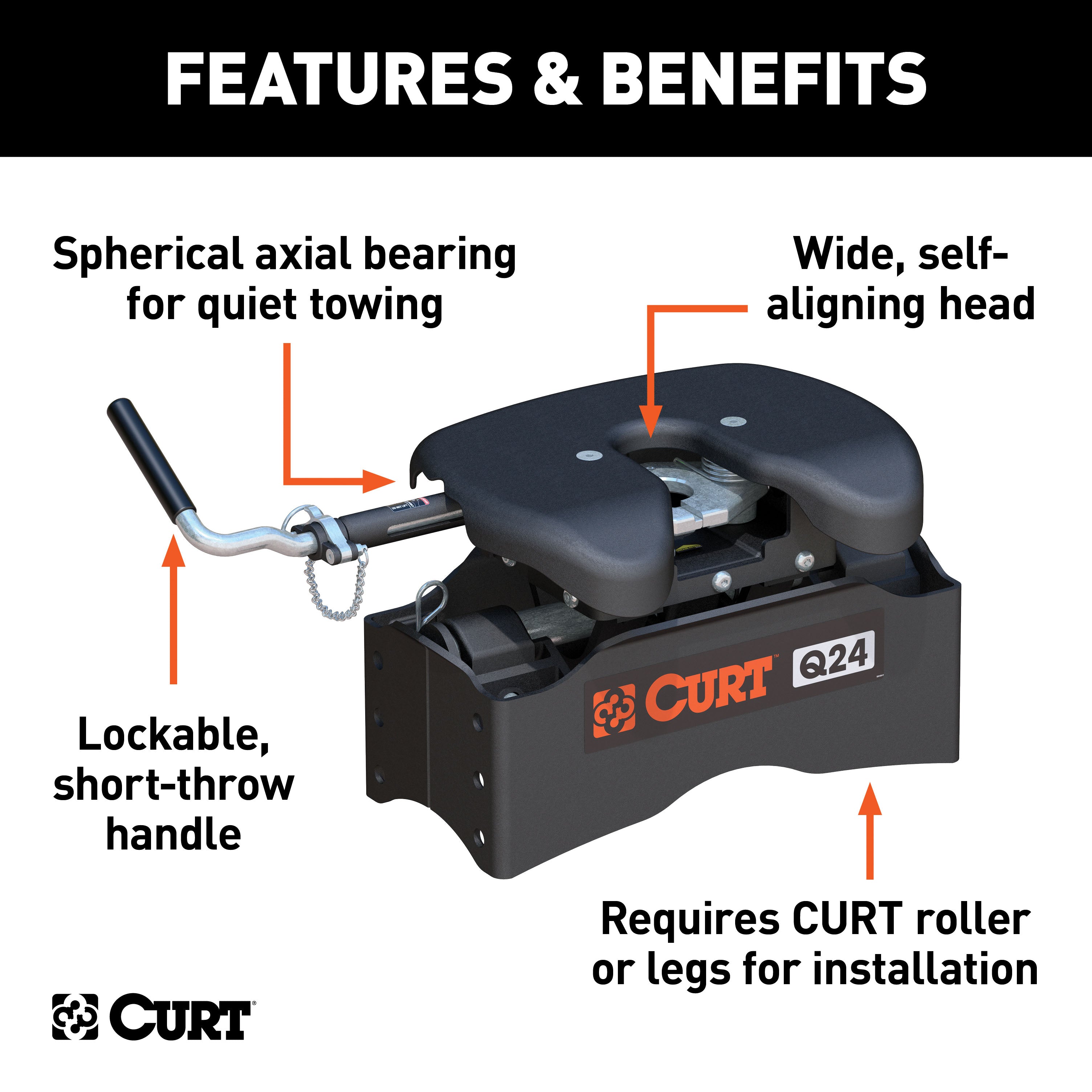

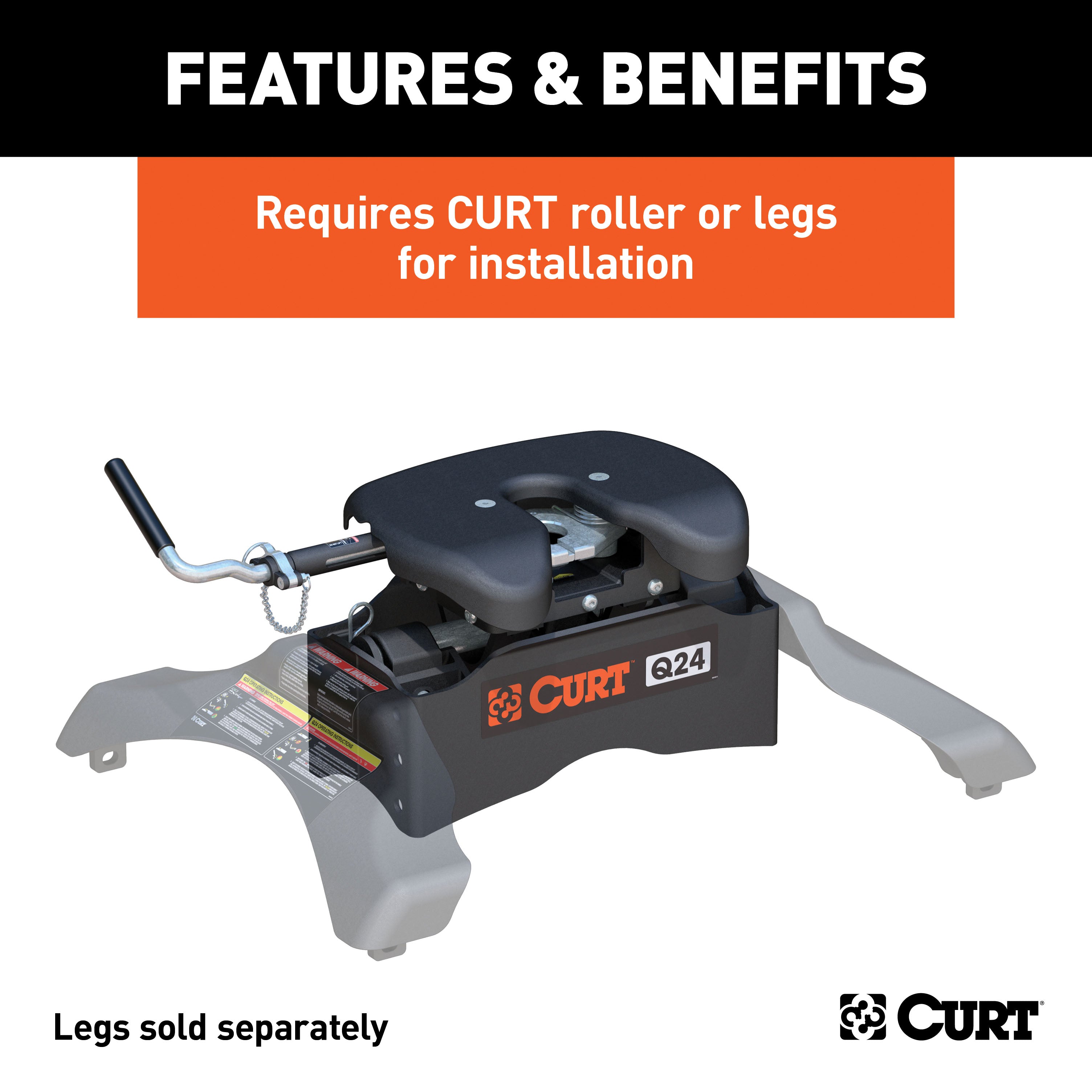

| Description_ASC | Requires CURT 5th wheel roller or legs for installation |

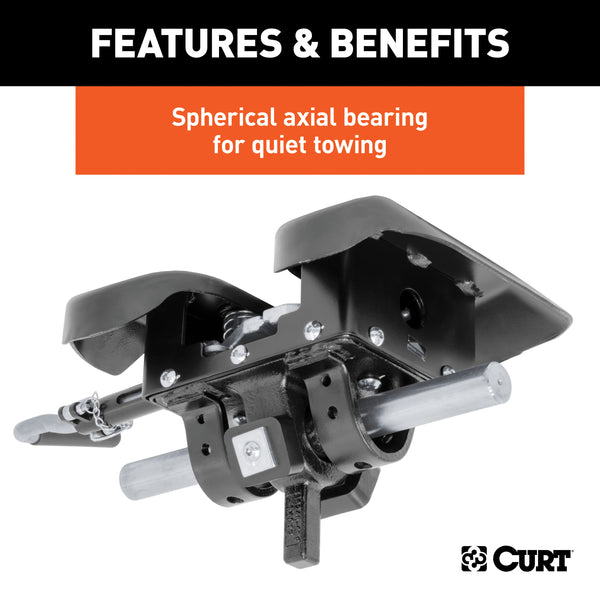

| Description_ASC | Spherical axial bearing tilts head in any direction for a smooth, quiet ride |
| Description_ASC | Tested for safety in accordance with SAE J2638 |

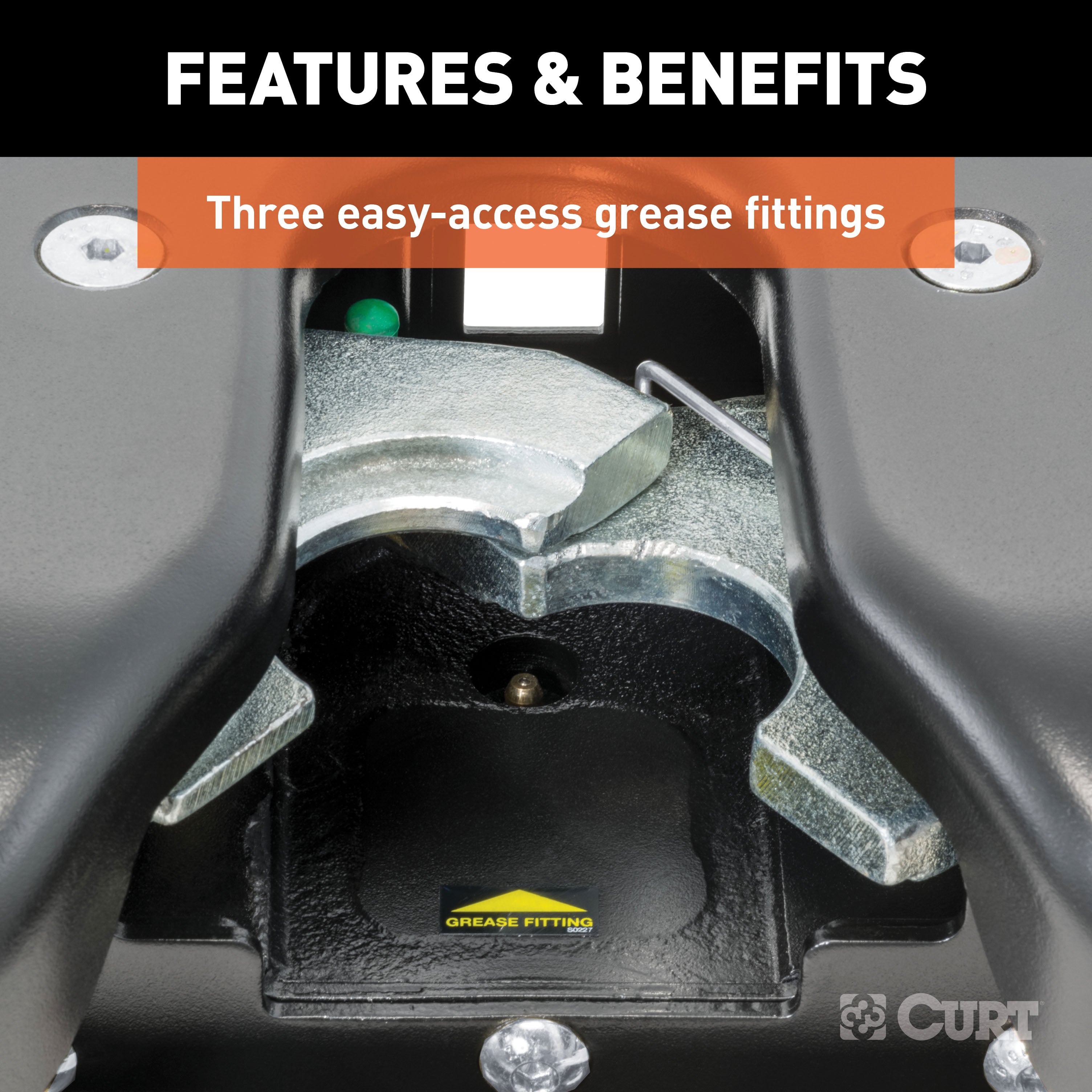

| Description_ASC | Three easy-access grease fittings for lubrication |

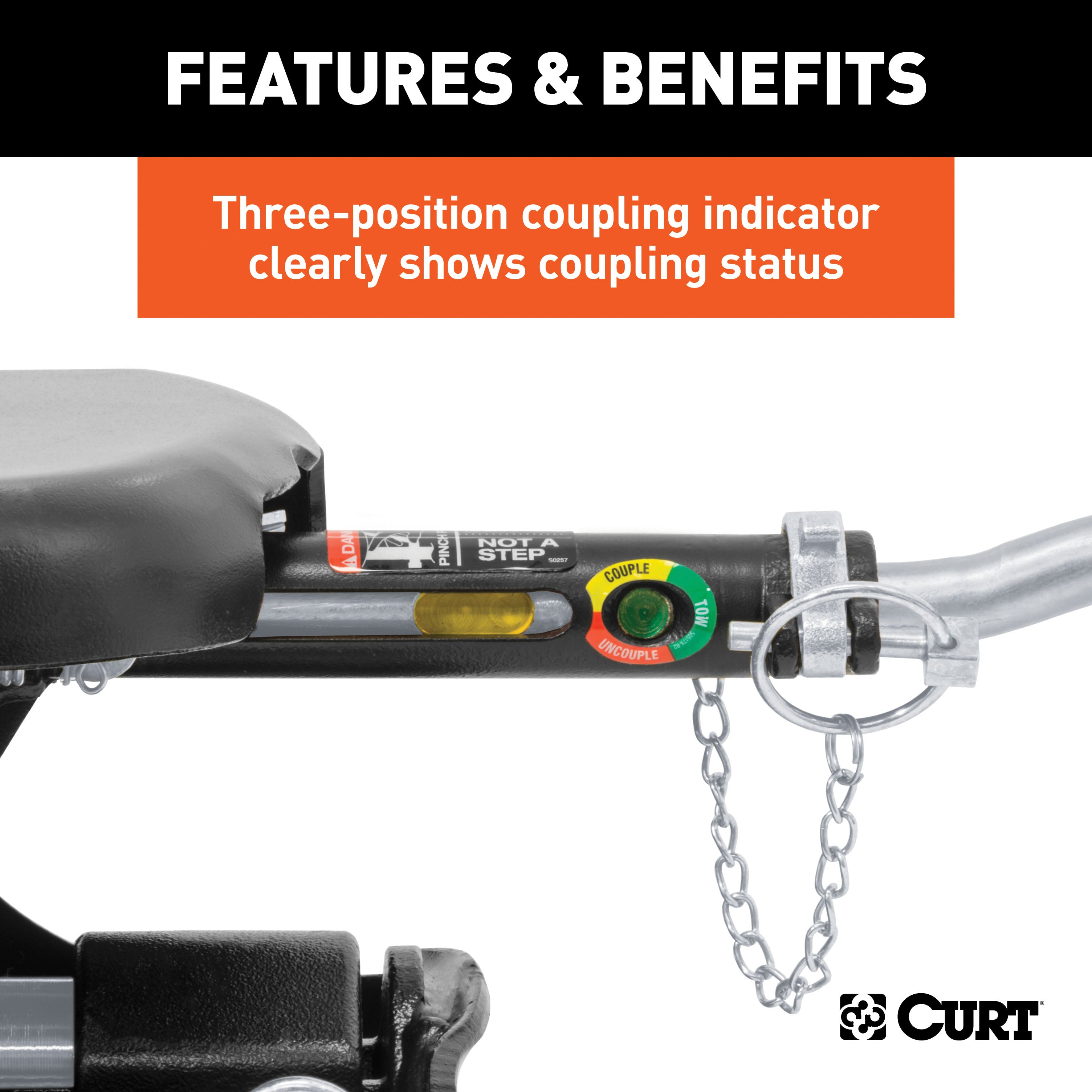

| Description_ASC | Three-position coupling indicator clearly shows coupling status |

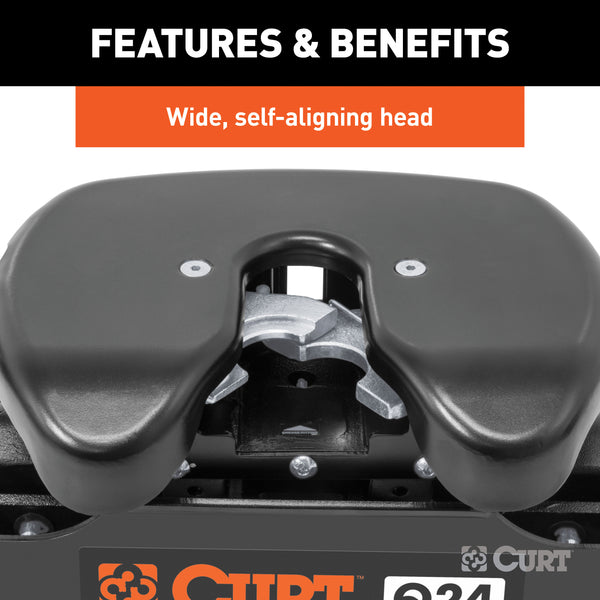

| Description_ASC | Wide, self-aligning head helps eliminate errors when backing up to the trailer |
| Description_ASM | CURT 16545 Q24 5th Wheel Hitch Head Only, Legs or Roller Required, 24,000 lbs |
| Description_DEF | Fifth Wheel Trailer Hitch Head Unit |
| Description_DES | Q24 5th Wheel Hitch Head |
| Description_EXT | CURT 16545 Q24 5th Wheel Hitch Head Only, Legs or Roller Required, 24,000 lbs |
| Description_EXT | CURT 16545 Q24 5th Wheel Hitch Head Only; Legs or Roller Required; 24;000 lbs |
| Description_FAB | Backed By A 10-Year Limited Warranty |
| Description_FAB | Dual Jaws Provide 360-Degree Kingpin Contact |
| Description_FAB | Incl. A Polyethylene Lube Plate To Eliminate Messy Grease Deposit |
| Description_FAB | Mounts On The R24 Roller PN[16570] And Tow Up To 24000 Lbs. |
| Description_FAB | Operates Using A Short Lockable Single-Throw Handle |
| Description_FAB | Protected By A Highly Durable Carbide Powder Coat Finish |
| Description_FAB | Self-Aligning Head Offers A Wide Opening For Easy Coupling |
| Description_FAB | Spherical Axial Bearing For Unimpeded Movement And Quiet Towing |
| Description_FAB | Three Grease Fittings For Easy Lubrication |
| Description_FAB | Three-Position Coupling Indicator Is Visible From Truck Cab |
| Description_INV | Q24 5th Wheel Hitch Head |
| Description_KEY | fifth 5 system kingpin head receiver articulating cam trailer pivoting bushing factory tow wheels rv gooseneck release handle rails towing front hitches back 24000 |
| Description_MKT | The CURT Q24 is the heavyweight champion of 5th wheel hitches. With a gross trailer weight capacity of 24,000 lbs. and a vertical load limit of 6,000 lbs., the Q24 is capable of handling the heaviest of 5th wheel trailers, including deluxe RV and oversize campers. Something that sets the Q24 5th wheel hitch apart from competitive models is its spherical axial bearing. Instead of having a set of rods on which the hitch head can pivot, the Q24 uses a spherical bearing to allow the hitch head to pivot in virtually any direction. This means smoother turns, a quieter ride and less strain on your towing equipment and truck. The CURT Q24 5th wheel trailer hitch also features dual-locking jaws, a self-aligning head, single-handle operation and a three-position coupling indicator. It comes with a durable carbide powder coat finish, a limited lifetime warranty and is tested in accordance with SAE J2638 for safety. This 24K 5th wheel hitch head comes ready to be attached to the CURT R24 5th wheel roller or 5th wheel legs (includes head only). Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards. Please contact CURT Product Support for compatibility information. |
| Description_SHO | Q24 5th Wheel Head |
| Description_SHO | Q24 5th Wheel Hitch |
| Description_SLA | The CURT Q24 is the heavyweight champion of 5th wheel hitches. With a gross trailer weight capacity of 24,000 lbs. and a vertical load limit of 6,000 lbs., the Q24 is capable of handling the heaviest of 5th wheel trailers, including deluxe RV and oversize campers. Something that sets the Q24 5th wheel hitch apart from competitive models is its spherical axial bearing. Instead of having a set of rods on which the hitch head can pivot, the Q24 uses a spherical bearing to allow the hitch head to pivot in virtually any direction. This means smoother turns, a quieter ride and less strain on your towing equipment and truck. The CURT Q24 5th wheel trailer hitch also features dual-locking jaws, a self-aligning head, single-handle operation and a three-position coupling indicator. It comes with a durable carbide powder coat finish, a limited lifetime warranty and is tested in accordance with SAE J2638 for safety. This 24K 5th wheel hitch head comes ready to be attached to the CURT R24 5th wheel roller or 5th wheel legs (includes head only). Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards. Please contact CURT Product Support for compatibility information. |
| finish | Carbide Black Powder Coat |
| Finish - XA | CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 24,000 LB |
| height | 15.0 |
| Item Class - XA | OBS |
| Item Height - XA | 0.000 |
| Item Length - XA | 0.000 |
| Item Width - XA | 0.000 |
| length | 28.0 |
| LTL | N |
| Parcel Allowed - XA | No |
| Product Weight - XA | 0.000 |
| Rate Class - XA | 70.0 |
| Retail Height - XA | 15.000 |
| Retail Length - XA | 28.000 |
| Retail Width - XA | 15.000 |
| Shipping Weight - XA | 111.200 |
| Tariff 301 - XA | Yes |
| Title | Q24 5th Wheel Hitch Head |
| Vertical Load | 6,000 LB |
| WARNING CA Proposition 65 | No |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| weight | 111.2 |
| width | 15.0 |
