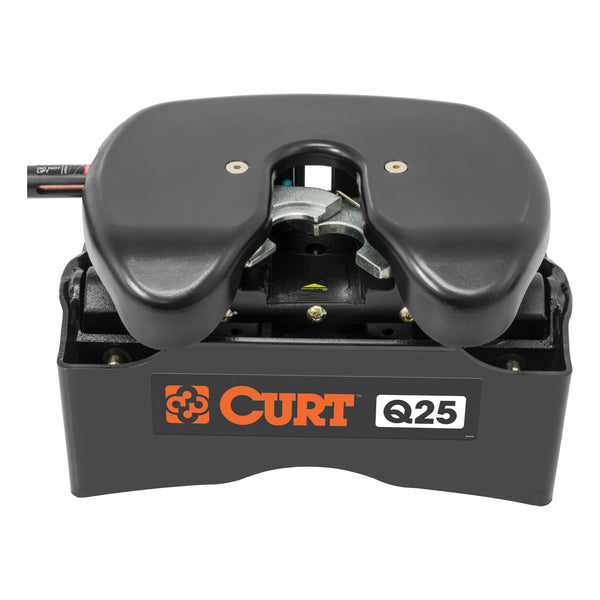

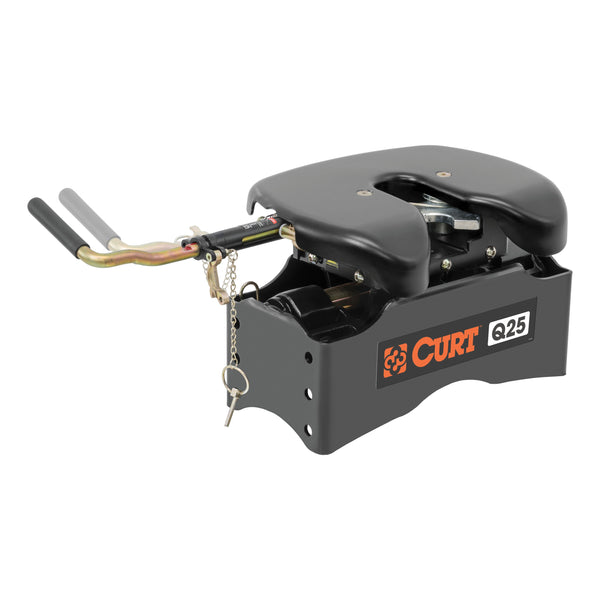

Wherever you find your open road, you need a 5th wheel hitch that is strong like the Rocky Mountains, smooth like the rolling hills of Iowa and quiet like the South Dakota Badlands. The CURT Q25 5th wheel hitch offers superior towing power and a quiet ride to be the ultimate in RV towing. The spherical axial bearing of the Q25 offers free movement of the head, allowing it to tilt in any direction. Once coupled to the kingpin, the head pivots and angles with your 5th wheel trailer. It also uses a pair of dual-locking jaws to completely wrap the kingpin and ensure a secure vehicle-trailer connection. To make the Q25 even quieter, it comes with three grease fittings and a polyethylene lube plate for optimum lubrication. This 5th wheel hitch comes with the CURT R24 slider to mount onto a set of 5th wheel rails in your truck bed (base rails and brackets sold separately). CURT 5th wheel sliders are true rolling units, meaning they roll on actual wheels that bear the weight of the trailer rather than simply sliding on hollow rods as used in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT sliders provide up to 12" of displacement, unlike the more common 10", to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn. Constructed from strong carbon steel and rigorously tested for safety in accordance with SAE J2638, the Q25 5th wheel hitch is the ideal extension for your full-size pickup truck. To ensure good functionality and a long life under the most strenuous towing conditions, the Q25 is coated in a black carbide powder coat finish, giving it highly durable protection against rust and wear. Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards.
Resources
Installation Instructions| capacity | 24000 lbs. |
| Description_ABR | 25K |
| Description_ASC | Dual jaws provide 360-degree kingpin contact |
| Description_ASC | Includes a polyethylene lube plate to eliminate messy grease deposits |
| Description_ASC | Includes Q25 5th wheel head #16565 and R24 slider #16570 |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year parts) |
| Description_ASC | Protected by a highly durable carbide powder coat finish |
| Description_ASC | Q25 Sliding 5th Wheel Hitch, 24,000 lbs. |
| Description_ASC | R24 5th wheel slider provides 12" of travel in the truck bed |
| Description_ASC | Rolls on wheels and solid, non-binding rods to be a true rolling unit |
| Description_ASC | Self-aligning head offers a wide opening for easy coupling |
| Description_ASC | Spherical axial bearing for unimpeded head movement and smooth, quiet towing |
| Description_ASC | Tested for safety in accordance with SAE J2638 |
| Description_ASC | Three grease fittings for easy lubrication |
| Description_ASC | Three-position coupling indicator is clearly visible from truck cab |
| Description_ASM | CURT 16566 Q25 5th Wheel Slider Hitch for Short Bed Trucks, 24,000 lbs |
| Description_DEF | Fifth Wheel Trailer Hitch Head Unit |
| Description_DES | Q25 Sliding 5th Wheel Hitch, 24,000 lbs. |
| Description_DES | Q25 Sliding 5th Wheel Hitch; 24;000 lbs. |
| Description_EXT | CURT 16566 Q25 5th Wheel Slider Hitch for Short Bed Trucks, 24,000 lbs |
| Description_EXT | CURT 16566 Q25 5th Wheel Slider Hitch for Short Bed Trucks; 24;000 lbs |
| Description_FAB | Backed By A 10-Year Limited Warranty |
| Description_FAB | Dual Jaws Provide 360-Degree Kingpin Contact |
| Description_FAB | Incl. Q25 5Th Wheel Head #16565 And R24 Roller #16570 |
| Description_FAB | Meets Proposed SEA J2638 Testing Protocols |
| Description_FAB | Protected By A Highly Durable Carbide Powder Coat Finish |
| Description_FAB | R24 5Th Wheel Roller Provides 12 In. Of Travel In The Truck Bed |
| Description_FAB | Rolls On Wheels And Solid Rods To Be A True Rolling Unit |
| Description_FAB | Self-Aligning Head Offers A Wide Opening For Easy Coupling |
| Description_FAB | Spherical Axial Bearing For Unimpeded Movement And Quiet Towing |
| Description_FAB | Three Grease Fittings For Easy Lubrication |
| Description_FAB | Three-Position Coupling Indicator Is Clearly Visible From Truck |
| Description_INV | Q25 Sliding 5th Wheel Hitch |
| Description_KEY | fifth 5 puck system kingpin head receiver articulating cam trailer pivoting bushing factory tow wheels rv gooseneck release handle rails towing hitches back heavy duty 25000 siding |
| Description_MKT | Wherever you find your open road, you need a 5th wheel hitch that is strong like the Rocky Mountains, smooth like the rolling hills of Iowa and quiet like the South Dakota Badlands. The CURT Q25 5th wheel hitch offers superior towing power and a quiet ride to be the ultimate in RV towing. The spherical axial bearing of the Q25 offers free movement of the head, allowing it to tilt in any direction. Once coupled to the kingpin, the head pivots and angles with your 5th wheel trailer. It also uses a pair of dual-locking jaws to completely wrap the kingpin and ensure a secure vehicle-trailer connection. To make the Q25 even quieter, it comes with three grease fittings and a polyethylene lube plate for optimum lubrication. This 5th wheel hitch comes with the CURT R24 slider to mount onto a set of 5th wheel rails in your truck bed (base rails and brackets sold separately). CURT 5th wheel sliders are true rolling units, meaning they roll on actual wheels that bear the weight of the trailer rather than simply sliding on hollow rods as used in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT sliders provide up to 12" of displacement, unlike the more common 10", to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn. Constructed from strong carbon steel and rigorously tested for safety in accordance with SAE J2638, the Q25 5th wheel hitch is the ideal extension for your full-size pickup truck. To ensure good functionality and a long life under the most strenuous towing conditions, the Q25 is coated in a black carbide powder coat finish, giving it highly durable protection against rust and wear. Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards. |
| Description_SHO | Q25 5th Wheel Hitch |
| Description_SHO | Q25 Sliding 5th Whee |
| Description_SLA | Wherever you find your open road, you need a 5th wheel hitch that is strong like the Rocky Mountains, smooth like the rolling hills of Iowa and quiet like the South Dakota Badlands. The CURT Q25 5th wheel hitch offers superior towing power and a quiet ride to be the ultimate in RV towing. The spherical axial bearing of the Q25 offers free movement of the head, allowing it to tilt in any direction. Once coupled to the kingpin, the head pivots and angles with your 5th wheel trailer. It also uses a pair of dual-locking jaws to completely wrap the kingpin and ensure a secure vehicle-trailer connection. To make the Q25 even quieter, it comes with three grease fittings and a polyethylene lube plate for optimum lubrication. This 5th wheel hitch comes with the CURT R24 slider to mount onto a set of 5th wheel rails in your truck bed (base rails and brackets sold separately). CURT 5th wheel sliders are true rolling units, meaning they roll on actual wheels that bear the weight of the trailer rather than simply sliding on hollow rods as used in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT sliders provide up to 12" of displacement, unlike the more common 10", to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn. Constructed from strong carbon steel and rigorously tested for safety in accordance with SAE J2638, the Q25 5th wheel hitch is the ideal extension for your full-size pickup truck. To ensure good functionality and a long life under the most strenuous towing conditions, the Q25 is coated in a black carbide powder coat finish, giving it highly durable protection against rust and wear. Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards. |
| finish | Carbide Black Powder Coat |
| Gross Trailer Weight | 24000 lbs. |
| height | 15.0 |
| length | 33.0 |
| Vertical Load | 6250 |
| WARNING CA Proposition 65 | No |
| weight | 255.658 |
| width | 18.13 |
