CURT class 1 ball mounts are designed for a variety of lightweight towing applications. For basic utility trailers, canoe haulers and other light-duty trailers, a class 1 ball mount gets the job done. CURT class 1 ball mounts are designed to complement our class 1 trailer hitches and come in several different styles, offering a range of shank lengths and drop and rise options. A class 1 ball mount is typically used on compact cars, full-size cars, minivans and crossover SUVs, but it can be used on virtually any trailer hitch with a 1-1/4" x 1-1/4" receiver tube (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This class 1 ball mount features a gross trailer weight capacity of 2,000 lbs. and a tongue weight capacity of 200 lbs. It has a length of 7-1/4", a drop of 3-1/4" and a rise of 2-5/8". CURT ball mounts, like our trailer hitches, are built to last. They are made from quality steel that is CNC-formed and robotically welded to be an exact fit for your receiver hitch. To protect our class 1 ball mounts from corrosion, UV damage and scratches, we coat each one in a powder coat of high-gloss black for a sharp finish.
| Box Height in Inches - XA | 0 |
| Box Length in Inches - XA | 0 |
| Box Width in Inches - XA | 0 |
| Class ID | 0 |
| Description_ABR | MOUNT |
| Description_ASC | 2-5/8" rise or 3-1/4" drop for precise trailer leveling |
| Description_ASC | Class 1 Ball Mount (1-1/4" Shank, 2,000 lbs., 3-1/4" Drop, 7-1/4" Long) |
| Description_ASC | CNC-formed, robotically welded and mechanically descaled for a perfect fit |

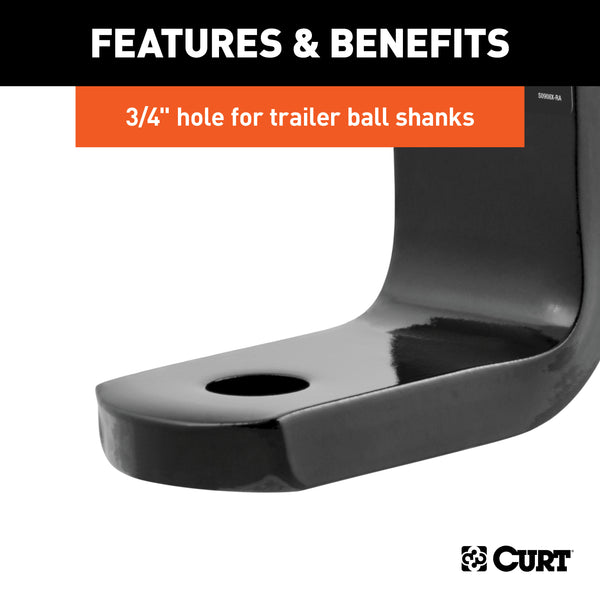

| Description_ASC | Equipped with a 3/4" hole to accept a trailer ball shank |

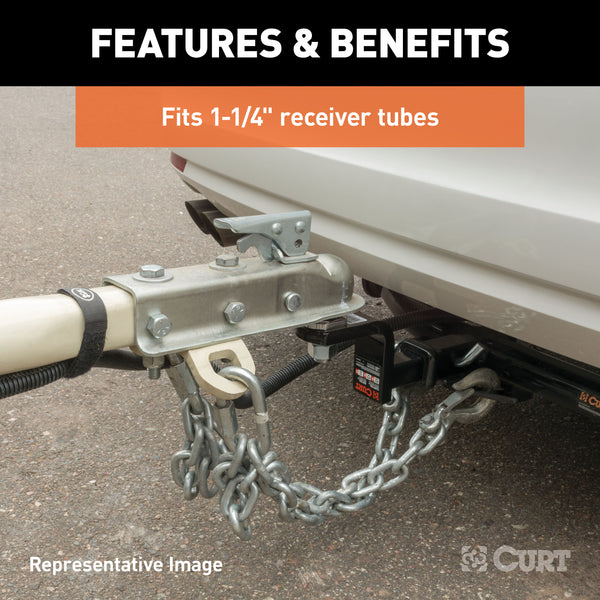

| Description_ASC | Fits trailer hitches with a 1-1/4" x 1-1/4" receiver tube opening |
| Description_ASC | Hollow shank weighs less and can be used with an anti-rattle kit |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year parts) |
| Description_ASC | Made in USA |
| Description_ASC | Protected by a durable powder coat finish |
| Description_ASM | CURT 45022 Class 1 Trailer Hitch Ball Mount, Fits 1-1/4-Inch Receiver, 2,000 lbs, 3/4-Inch Hole, 3-1/4-Inch Drop, 2-5/8-Inch Rise |
| Description_DEF | Trailer Hitch Ball Mount |
| Description_DES | Class 1 Ball Mount (1-1/4" Shank, 2,000 lbs., 3-1/4" Drop, 7-1/4" Long) |
| Description_DES | Class 1 Ball Mount (1-1/4in. Shank; 2;000 lbs.; 3-1/4in. Drop; 7-1/4in. Long) |
| Description_EXT | CURT 45022 Class 1 Trailer Hitch Ball Mount, Fits 1-1/4-Inch Receiver, 2,000 lbs, 3/4-Inch Hole, 3-1/4-Inch Drop, 2-5/8-Inch Rise |
| Description_EXT | CURT 45022 Class 1 Trailer Hitch Ball Mount; Fits 1-1/4-Inch Receiver; 2;000 lbs; 3/4-Inch Hole; 3-1/4-Inch Drop; 2-5/8-Inch Rise |
| Description_FAB | 2 5/8 In. Rise Or 3 1/4 In. Drop For Precise Trailer Leveling |
| Description_FAB | CNC-Formed Robotically Welded And Mechanically Descaled |
| Description_FAB | Equipped w/A 3/4 In. Hole To Accept A Trailer Ball Shank |
| Description_FAB | Fits Trailer Hitches w/A 1 1/4 In. X 1 1/4 In. Receiver Tube |
| Description_FAB | Hollow Shank Weighs Less And Can Be Used w/An Anti-Rattle Kit |
| Description_FAB | Made In USA |
| Description_FAB | Protected By A Durable Powder Coat Finish |
| Description_INV | Class 1 Ball Mount |
| Description_KEY | 1.25 inch 1-1/4in kit 1-1/4inch enganche para remolque i one lb hitxh moint parts multi size pound rv tube 1.25x1.25 ford reciver reciever tubing ballmount car draw bar extension multipurpose leveling interchangable raised universal auto 2000 2k |
| Description_LAB | Made In Logo |
| Description_MKT | CURT class 1 ball mounts are designed for a variety of lightweight towing applications. For basic utility trailers, canoe haulers and other light-duty trailers, a class 1 ball mount gets the job done. CURT class 1 ball mounts are designed to complement our class 1 trailer hitches and come in several different styles, offering a range of shank lengths and drop and rise options. A class 1 ball mount is typically used on compact cars, full-size cars, minivans and crossover SUVs, but it can be used on virtually any trailer hitch with a 1-1/4" x 1-1/4" receiver tube (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This class 1 ball mount features a gross trailer weight capacity of 2,000 lbs. and a tongue weight capacity of 200 lbs. It has a length of 7-1/4", a drop of 3-1/4" and a rise of 2-5/8". CURT ball mounts, like our trailer hitches, are built to last. They are made from quality steel that is CNC-formed and robotically welded to be an exact fit for your receiver hitch. To protect our class 1 ball mounts from corrosion, UV damage and scratches, we coat each one in a powder coat of high-gloss black for a sharp finish. |
| Description_SHO | Class 1 Ball Mount |
| Description_SHO | Class 1 Ball Mount ( |
| Description_SLA | CURT class 1 ball mounts are designed for a variety of lightweight towing applications. For basic utility trailers, canoe haulers and other light-duty trailers, a class 1 ball mount gets the job done. CURT class 1 ball mounts are designed to complement our class 1 trailer hitches and come in several different styles, offering a range of shank lengths and drop and rise options. A class 1 ball mount is typically used on compact cars, full-size cars, minivans and crossover SUVs, but it can be used on virtually any trailer hitch with a 1-1/4" x 1-1/4" receiver tube (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This class 1 ball mount features a gross trailer weight capacity of 2,000 lbs. and a tongue weight capacity of 200 lbs. It has a length of 7-1/4", a drop of 3-1/4" and a rise of 2-5/8". CURT ball mounts, like our trailer hitches, are built to last. They are made from quality steel that is CNC-formed and robotically welded to be an exact fit for your receiver hitch. To protect our class 1 ball mounts from corrosion, UV damage and scratches, we coat each one in a powder coat of high-gloss black for a sharp finish. |
| Drop | 3 1/4 IN |
| Drop | 3.250 in. |
| finish | Gloss Black Powder Coat |
| Finish - XA | Gloss Black Powder Coat |
| Gross Trailer Weight | 2000 lbs. |
| Gross Trailer Weight (GTW) | 2,000 LB |
| height | 2.0 |
| Hole Size | 3/4 IN |
| Item Class - XA | OMF |
| Item Height - XA | 0.000 |
| Item Length - XA | 0.000 |
| Item Width - XA | 0.000 |
| length | 10.0 |
| LTL | N |
| Overall Length | 7.250 in. |
| Parcel Allowed - XA | Yes |
| Product Weight - XA | 0.000 |
| Rate Class - XA | 70.0 |
| Receiver Tube Size | 1-1/4 IN |
| Receiver Tube Size | 1.250 in. |
| Retail Height - XA | 2.000 |
| Retail Length - XA | 10.000 |
| Retail Width - XA | 4.000 |
| Rise | 2 5/8 IN |
| Rise | 2.625 in. |
| Shipping Weight - XA | 3.300 |
| Style | Fixed |
| Tariff 301 - XA | No |
| Title | Class 1 Ball Mount (1-1/4" Shank, 2,000 lbs., 3-1/4" Drop, 7-1/4" Long) |
| Tongue Weight (TW) | 200 LB |
| WARNING CA Proposition 65 | No |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| weight | 3.3 |
| width | 4.0 |
