CURT 45460 Commercial Duty Forged Ball Mount (2-1/2in. Shank; 20;000 lbs.; 8in. Drop)

When it comes to towing on the job, there is no room for messing around. Either your equipment can get it done or it falls to the wayside. Give yourself the advantage with a CURT commercial-duty forged ball mount. Defying all preconceived ideas about heavy-duty towing, these solid steel monsters are packed with the strength necessary to tow virtually anything your commercial receiver trailer hitch can handle. The secret to their strength is their one-piece, zero-weld construction. Each CURT forged ball mount is designed to surpass other 2-1/2" options to accommodate the added stress of heavy-duty towing. Forged steel construction makes these ball mounts incredibly strong and able to tow up to 20,000 lbs. of gross trailer weight in the drop position (16,000 lbs. in rise position). This CURT forged ball mount can also handle trailer tongue weight up to 2,700 lbs. drop and 2,160 lbs. rise, giving it the added advantage it needs for towing the largest of trailers. It comes with a black carbide powder coat finish to provide the necessary protection against rust, scratches and UV damage so that it is able to face the challenges of hard, honest work. From the construction site, to the industrial park, to the farm, a forged ball mount is the obvious choice, giving you the power you need for towing dump trailers, car haulers, toy haulers, livestock trailers, chopper boxes, gravity boxes, dual-axle utility trailers, RVs, small yachts and much more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).All CURT forged ball mounts feature a 2-1/2" x 2-1/2" shank, allowing them to fit into any trailer hitch with the same size receiver tube. The CURT class 5 Commercial-Duty hitch is an ideal counterpart for one of our forged ball mounts. With their especially high towing capacity, forged ball mounts are frequently used on full-size pickups, SUVs, flatbeds and other commercial trucks.

Box Height in Inches - XA	0
Box Length in Inches - XA	0
Box Width in Inches - XA	0
Class ID	0
Description_ABR	MOUNT

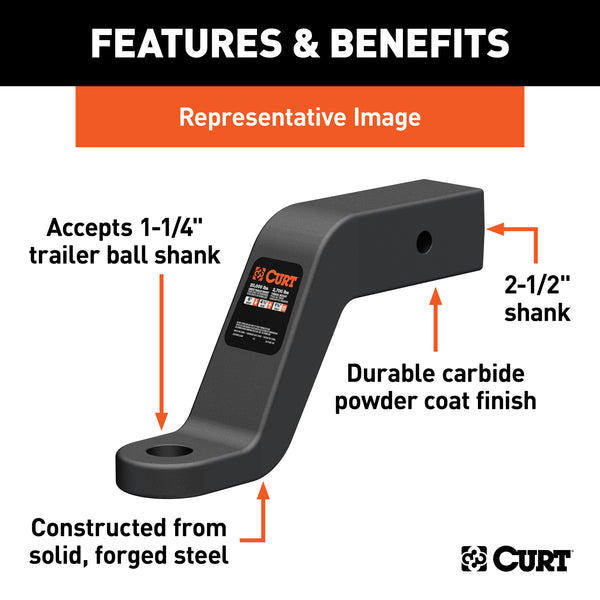

Description_ASC	6-1/2" rise or 8" drop for precise trailer leveling
Description_ASC	Commercial Duty Forged Ball Mount (2-1/2" Shank, 20,000 lbs., 8" Drop)
Description_ASC	Constructed from solid, forged steel for superior strength

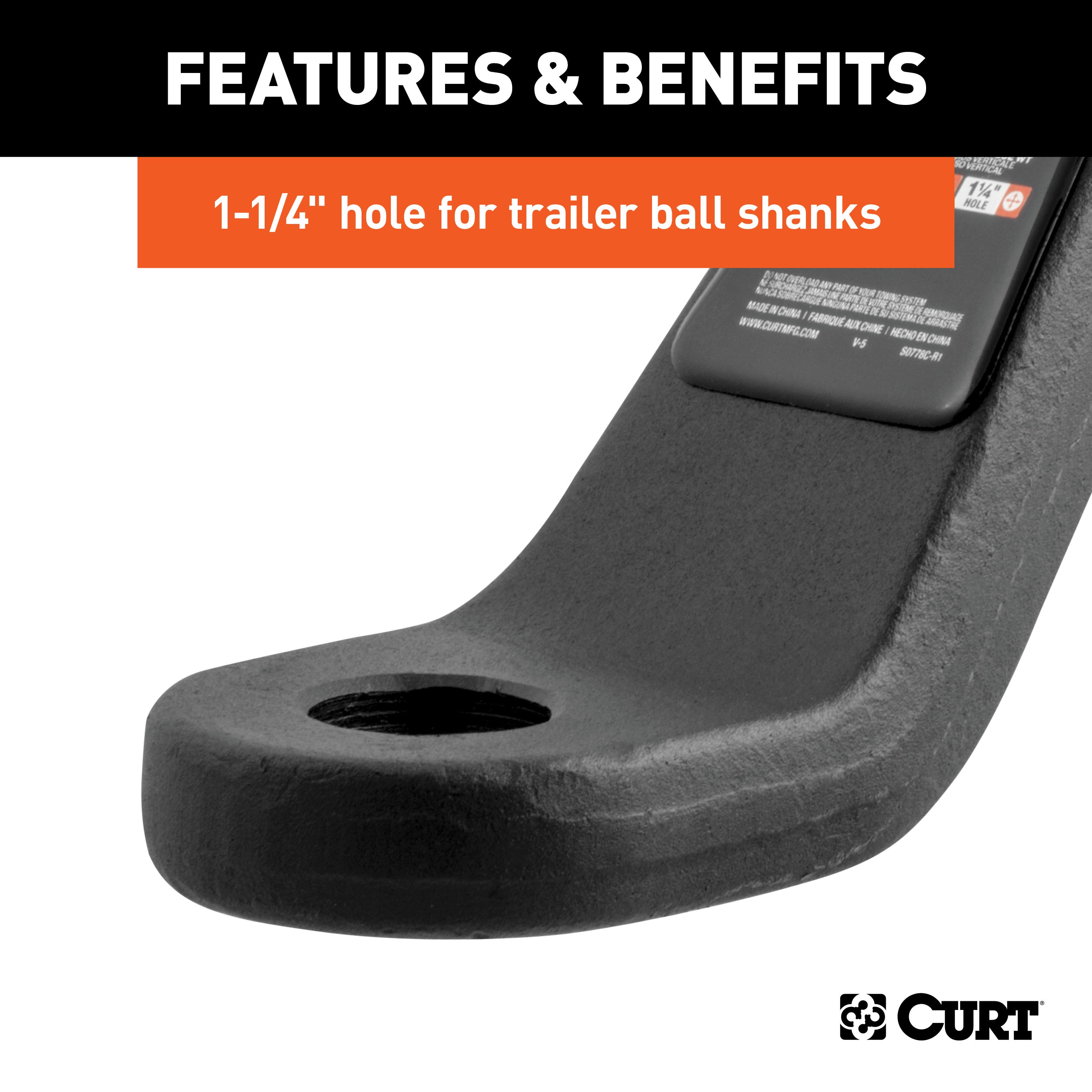

Description_ASC	Equipped with a 1-1/4" hole to accept a trailer ball shank
Description_ASC	Fits trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening
Description_ASC	Limited lifetime warranty (one-year finish, one-year parts)
Description_ASC	Protected by a highly durable carbide powder coat finish
Description_ASM	CURT 45460 Commercial Duty Forged Trailer Hitch Ball Mount, 2-1/2-Inch Receiver, 20,000 lbs, 1-1/4-Inch Hole, 8-Inch Drop
Description_DEF	Trailer Hitch Ball Mount
Description_DES	Commercial Duty Forged Ball Mount (2-1/2" Shank, 20,000 lbs., 8" Drop)
Description_DES	Commercial Duty Forged Ball Mount (2-1/2in. Shank; 20;000 lbs.; 8in. Drop)
Description_EXT	CURT 45460 Commercial Duty Forged Trailer Hitch Ball Mount, 2-1/2-Inch Receiver, 20,000 lbs, 1-1/4-Inch Hole, 8-Inch Drop
Description_EXT	CURT 45460 Commercial Duty Forged Trailer Hitch Ball Mount; 2-1/2-Inch Receiver; 20;000 lbs; 1-1/4-Inch Hole; 8-Inch Drop
Description_FAB	Commercial Duty Ball Mount
Description_INV	Commercial Duty Forged Ball Mount
Description_KEY	class 5 v hitches drop receiver inch heavy duty v-5 kit class5 2.5 oversize tow towing insert clas forged draw bar adapter lb hd v-class tongue 20000 20k 2.5in 2.5inch 2.5"
Description_MKT	When it comes to towing on the job, there is no room for messing around. Either your equipment can get it done or it falls to the wayside. Give yourself the advantage with a CURT commercial-duty forged ball mount. Defying all preconceived ideas about heavy-duty towing, these solid steel monsters are packed with the strength necessary to tow virtually anything your commercial receiver trailer hitch can handle. The secret to their strength is their one-piece, zero-weld construction. Each CURT forged ball mount is designed to surpass other 2-1/2" options to accommodate the added stress of heavy-duty towing. Forged steel construction makes these ball mounts incredibly strong and able to tow up to 20,000 lbs. of gross trailer weight in the drop position (16,000 lbs. in rise position). This CURT forged ball mount can also handle trailer tongue weight up to 2,700 lbs. drop and 2,160 lbs. rise, giving it the added advantage it needs for towing the largest of trailers. It comes with a black carbide powder coat finish to provide the necessary protection against rust, scratches and UV damage so that it is able to face the challenges of hard, honest work. From the construction site, to the industrial park, to the farm, a forged ball mount is the obvious choice, giving you the power you need for towing dump trailers, car haulers, toy haulers, livestock trailers, chopper boxes, gravity boxes, dual-axle utility trailers, RVs, small yachts and much more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).All CURT forged ball mounts feature a 2-1/2" x 2-1/2" shank, allowing them to fit into any trailer hitch with the same size receiver tube. The CURT class 5 Commercial-Duty hitch is an ideal counterpart for one of our forged ball mounts. With their especially high towing capacity, forged ball mounts are frequently used on full-size pickups, SUVs, flatbeds and other commercial trucks.
Description_SHO	Commercial Duty Forg
Description_SHO	Forged Ball Mount
Description_SLA	When it comes to towing on the job, there is no room for messing around. Either your equipment can get it done or it falls to the wayside. Give yourself the advantage with a CURT commercial-duty forged ball mount. Defying all preconceived ideas about heavy-duty towing, these solid steel monsters are packed with the strength necessary to tow virtually anything your commercial receiver trailer hitch can handle. The secret to their strength is their one-piece, zero-weld construction. Each CURT forged ball mount is designed to surpass other 2-1/2" options to accommodate the added stress of heavy-duty towing. Forged steel construction makes these ball mounts incredibly strong and able to tow up to 20,000 lbs. of gross trailer weight in the drop position (16,000 lbs. in rise position). This CURT forged ball mount can also handle trailer tongue weight up to 2,700 lbs. drop and 2,160 lbs. rise, giving it the added advantage it needs for towing the largest of trailers. It comes with a black carbide powder coat finish to provide the necessary protection against rust, scratches and UV damage so that it is able to face the challenges of hard, honest work. From the construction site, to the industrial park, to the farm, a forged ball mount is the obvious choice, giving you the power you need for towing dump trailers, car haulers, toy haulers, livestock trailers, chopper boxes, gravity boxes, dual-axle utility trailers, RVs, small yachts and much more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).All CURT forged ball mounts feature a 2-1/2" x 2-1/2" shank, allowing them to fit into any trailer hitch with the same size receiver tube. The CURT class 5 Commercial-Duty hitch is an ideal counterpart for one of our forged ball mounts. With their especially high towing capacity, forged ball mounts are frequently used on full-size pickups, SUVs, flatbeds and other commercial trucks.
Drop	8 IN
Finish - XA	CARBIDE BLACK POWDER COAT
Gross Trailer Weight (GTW)	20,000 LB
height	4.0
Hole Size	1.25
Item Class - XA	OBS
Item Height - XA	0.000
Item Length - XA	0.000
Item Width - XA	0.000
length	17.5
LTL	N
Parcel Allowed - XA	Yes
Product Weight - XA	0.000
Rate Class - XA	70.0
Receiver Tube Size	2-1/2 IN
Retail Height - XA	4.000
Retail Length - XA	17.500
Retail Width - XA	6.000
Rise	6 1/2 IN
Shipping Weight - XA	23.500
Tariff 301 - XA	Yes
Title	Commercial Duty Forged Ball Mount (2-1/2" Shank, 20,000 lbs., 8" Drop)
Tongue Weight (TW)	2,700 LB
Warranty	Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
weight	23.5
width	6.0
