The TriFlex proportion-based brake controller features a compact size, a digital display and the ability to manage up to eight brakes at a time. The feature that sets the TriFlex apart from many others is its triple-axis motion-sensing accelerometer. This integrated circuit component allows the TriFlex to detect every motion of your vehicle and trailer with exact precision and to then apply the perfect amount of braking power for every situation. The TriFlex also automatically adjusts brake output when going up or down a hill and is compatible with anti-lock brakes and cruise control. It comes with a mounting bracket and hardware and can be mounted at various angles on your vehicles dash. Best of all, like other CURT brake controllers, the TriFlex is protected by a limited lifetime warranty. This CURT trailer brake controller is designed to work with quick plugs so it can readily plug into your vehicles original equipment socket. It also includes a mounting bracket and hardware for easy installation. A brake controller should be mounted somewhere on the dash of your vehicle, and we recommend putting it below the steering wheel, either on the right or left side of the steering column. This way the control will not block your view when driving, but it will remain accessible and visible when adjustment is needed.
Resources
Installation Instructions| Activation | Inertia Accelerometer |
| Axles | 1-4 |
| Box Height in Inches - XA | 0 |
| Box Length in Inches - XA | 0 |
| Box Width in Inches - XA | 0 |
| Class ID | 0 |
| Description_ABR | CNTRL |
| Description_ASC | Auto sleep mode prevents battery drain after five minutes of idle time |
| Description_ASC | Automatic leveling and calibration eliminate setup requirements |
| Description_ASC | Built-in reverse-polarity and short-circuit protection |
| Description_ASC | Compatible with low-volt, PWM, ABS, cruise control and electric over hydraulic |

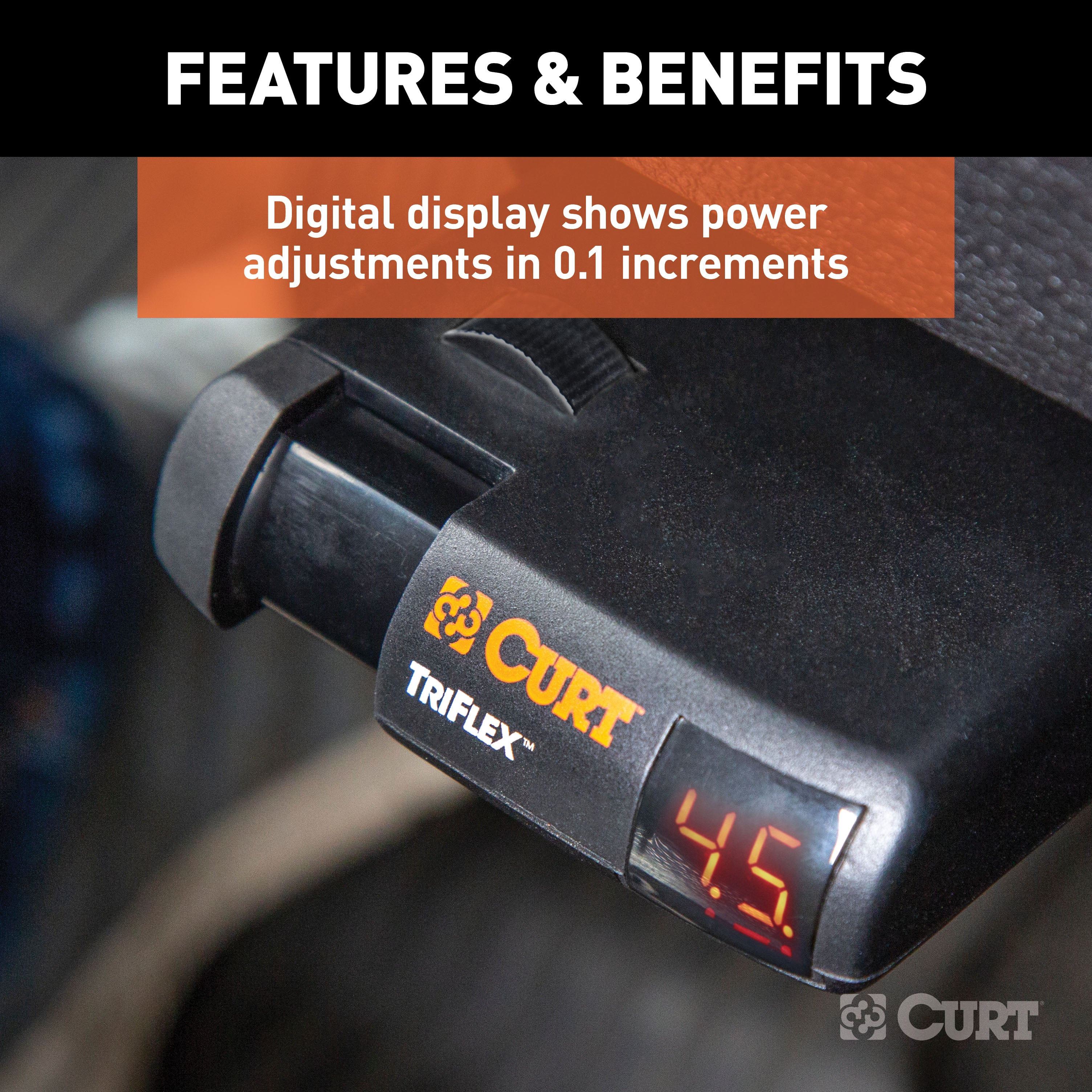

| Description_ASC | Digital display shows power adjustments in 0.1 increments |
| Description_ASC | Limited lifetime warranty |
| Description_ASC | Mounts at various angles, above or below the dash, to increase usability |
| Description_ASC | Nine levels of sensitivity adjustment for varying loads or driving conditions |
| Description_ASC | Plug-and-play install with vehicle-specific quick plug harness (sold separately) |
| Description_ASC | Third axis provides dynamic power adjustments when going up or down a hill |
| Description_ASC | Tow vehicle 'low voltage' and trailer disconnect indicators |
| Description_ASC | TriFlex Proportional Trailer Brake Controller |
| Description_ASC | Triple-axis, motion-sensing accelerometer for highly responsive, smooth stops |
| Description_ASC | User-selectable power output and trailer brake light activation |
| Description_ASM | CURT 51140 TriFlex Electric Trailer Brake Controller, Proportional |
| Description_DEF | Trailer Brake Control |
| Description_DES | TriFlex Proportional Trailer Brake Controller |
| Description_EXT | CURT 51140 TriFlex Electric Trailer Brake Controller, Proportional |
| Description_EXT | CURT 51140 TriFlex Electric Trailer Brake Controller; Proportional |
| Description_FAB | Auto Sleep Mode Prevents Battery Drain After Five Minutes Idle |
| Description_FAB | Automatic Leveling And Calibration Eliminate Setup Requirements |
| Description_FAB | Built-In Dual-Polarity And Short-Circuit Protection |
| Description_FAB | Digital Display Shows Power Adjustments In 0.1 Increments |
| Description_FAB | Equipped w/A Quick Plug For Fast Easy Installation |
| Description_FAB | Mounts At Various Angles To The Dash To Increase Usability |
| Description_FAB | Nine Levels Of Sensitivity Adj. For Varying Loads |
| Description_FAB | Third Axis Provides Dynamic Power Adj. When Going Up/Down A Hill |
| Description_FAB | Tow Vehicle ft. Low Voltage ft. And Trailer Disconnect Indicators |
| Description_FAB | Triple-Axis Motion-Sensing Accelerometer For Smooth Stops |
| Description_FAB | User-Selectable Power Output And Trailer Brake Light Activation |
| Description_INV | TriFlex Trailer Brake Controller |
| Description_KEY | axle parts camper wire kit kits towing farming pickup truck electronic e ram wiring ford tow module break electronics battery box actuator pro dodge system hydraulic aftermarket mopar drive alert tek pod assist gm controls custom user mechanism |
| Description_LAB | Proposition 65 |
| Description_MKT | The TriFlex proportion-based brake controller features a compact size, a digital display and the ability to manage up to eight brakes at a time. The feature that sets the TriFlex apart from many others is its triple-axis motion-sensing accelerometer. This integrated circuit component allows the TriFlex to detect every motion of your vehicle and trailer with exact precision and to then apply the perfect amount of braking power for every situation. The TriFlex also automatically adjusts brake output when going up or down a hill and is compatible with anti-lock brakes and cruise control. It comes with a mounting bracket and hardware and can be mounted at various angles on your vehicle's dash. Best of all, like other CURT brake controllers, the TriFlex is protected by a limited lifetime warranty. This CURT trailer brake controller is designed to work with quick plugs so it can readily plug into your vehicle's original equipment socket. It also includes a mounting bracket and hardware for easy installation. A brake controller should be mounted somewhere on the dash of your vehicle, and we recommend putting it below the steering wheel, either on the right or left side of the steering column. This way the control will not block your view when driving, but it will remain accessible and visible when adjustment is needed. |
| Description_MKT | The TriFlex proportion-based brake controller features a compact size, a digital display and the ability to manage up to eight brakes at a time. The feature that sets the TriFlex apart from many others is its triple-axis motion-sensing accelerometer. This integrated circuit component allows the TriFlex to detect every motion of your vehicle and trailer with exact precision and to then apply the perfect amount of braking power for every situation. The TriFlex also automatically adjusts brake output when going up or down a hill and is compatible with anti-lock brakes and cruise control. It comes with a mounting bracket and hardware and can be mounted at various angles on your vehicles dash. Best of all, like other CURT brake controllers, the TriFlex is protected by a limited lifetime warranty. This CURT trailer brake controller is designed to work with quick plugs so it can readily plug into your vehicles original equipment socket. It also includes a mounting bracket and hardware for easy installation. A brake controller should be mounted somewhere on the dash of your vehicle, and we recommend putting it below the steering wheel, either on the right or left side of the steering column. This way the control will not block your view when driving, but it will remain accessible and visible when adjustment is needed. |
| Description_SHO | TriFlex |
| Description_SHO | TriFlex Proportional |
| Description_SLA | The TriFlex proportion-based brake controller features a compact size, a digital display and the ability to manage up to eight brakes at a time. The feature that sets the TriFlex apart from many others is its triple-axis motion-sensing accelerometer. This integrated circuit component allows the TriFlex to detect every motion of your vehicle and trailer with exact precision and to then apply the perfect amount of braking power for every situation. The TriFlex also automatically adjusts brake output when going up or down a hill and is compatible with anti-lock brakes and cruise control. It comes with a mounting bracket and hardware and can be mounted at various angles on your vehicle's dash. Best of all, like other CURT brake controllers, the TriFlex is protected by a limited lifetime warranty. This CURT trailer brake controller is designed to work with quick plugs so it can readily plug into your vehicle's original equipment socket. It also includes a mounting bracket and hardware for easy installation. A brake controller should be mounted somewhere on the dash of your vehicle, and we recommend putting it below the steering wheel, either on the right or left side of the steering column. This way the control will not block your view when driving, but it will remain accessible and visible when adjustment is needed. |
| Finish - XA | N/A |
| height | 2.63 |
| Item Class - XA | CME |
| Item Height - XA | 0.000 |
| Item Length - XA | 0.000 |
| Item Width - XA | 0.000 |
| length | 7.0 |
| Level Adjust | Auto |
| LTL | N |
| Mount Angles | Various |
| Parcel Allowed - XA | Yes |
| Product Weight - XA | 0.000 |
| Rate Class - XA | 70.0 |
| Retail Height - XA | 2.630 |
| Retail Length - XA | 7.000 |
| Retail Width - XA | 5.000 |
| Shipping Weight - XA | 0.550 |
| Tariff 301 - XA | No |
| Title | TriFlex Proportional Trailer Brake Controller |
| Warranty | Limited Lifetime |
| weight | 0.55 |
| width | 5.0 |
