Edelbrock 1154 Edelbrock 94 Carburetor Rebuild Kit
by Edelbrock
SKU ds_BDVJ_1154
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$98.04
-
Original price
$98.04
Original price
$98.04
$98.04
$98.04
-
$98.04
Current price
$98.04
Description

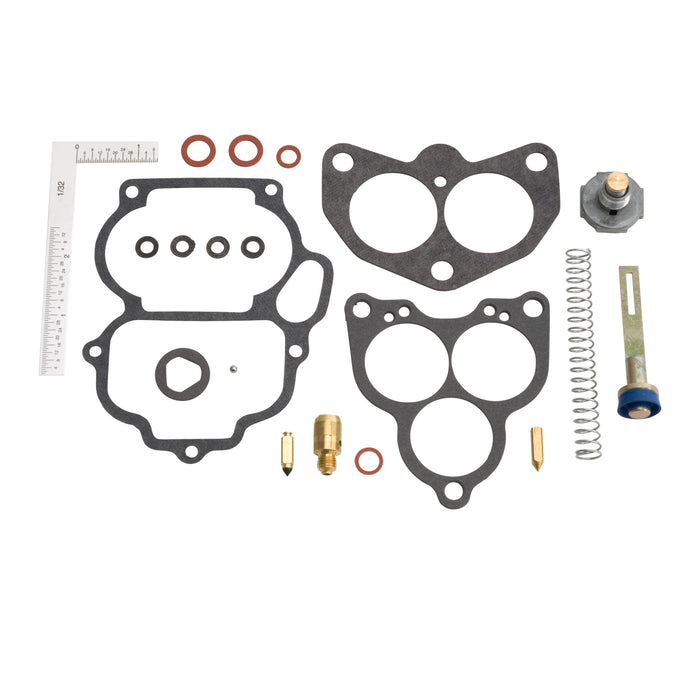

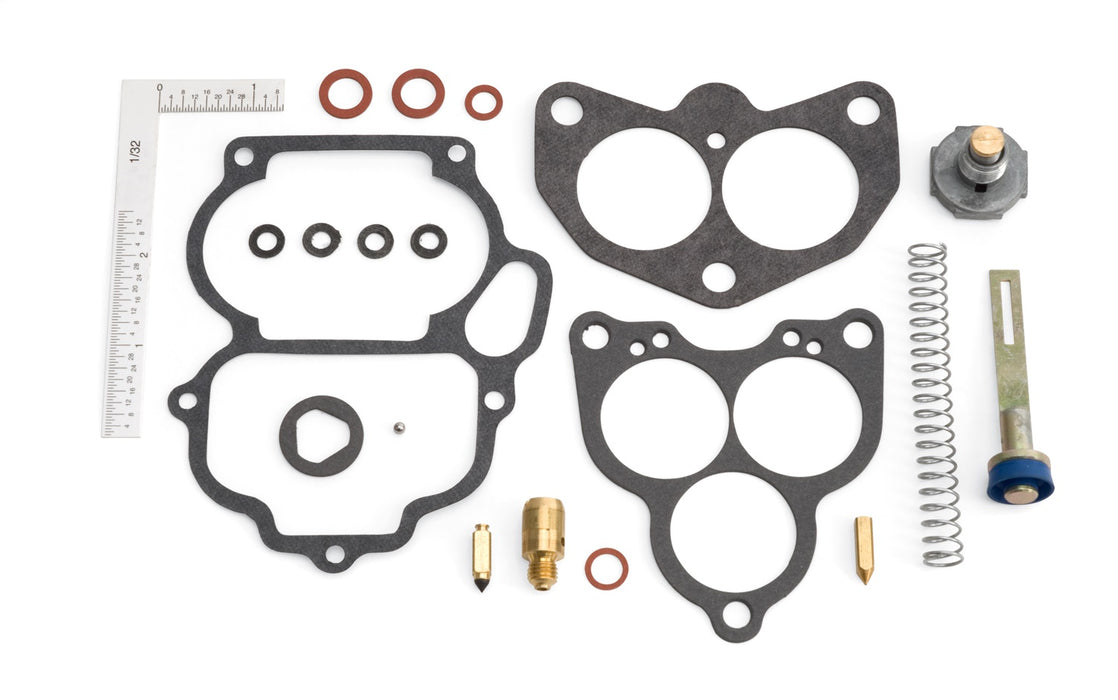

The Edelbrock #1154 Rebuild kit has everything needed to rebuild any Edelbrock 94 carburetor. Includes fuel inlet seat, fuel inlet needle, accelerator pump assembly, accelerator pump spring, accelerator check ball, check ball retainer, power valve assembly, float gauge and all necessary gaskets
Specifications
| Barrel Quantity | 2 |
| Description_ABR | CARB KIT |
| Description_DEF | Carburetor Repair Kit |
| Description_DES | CARB REBUILD KIT |
| Description_EXT | Edelbrock 94 Carburetor Rebuild Kit |
| Description_FAB | All Necessary Gaskets Are Included |
| Description_FAB | Everything Needed To Rebuild Your Edelbrock 94 Carb |
| Description_INV | Carb Rebuild Kit |
| Description_KEY | 1154; Edelbrock; 94 carb; 94 carburetor; rebuild kit; rebuild 94; 2-Barrel; gaskets; Float Gauge; Needle Seat Gasket; Needle Valve; Pump Discharge; Gasket Pump Discharge Nozzle; Gasket Nozzle Assembly; Gasket Main Jet Plug; Gasket Nozzle Air Bleed; Gaske |
| Description_LAB | Carburetor Rebuild Kit for Edelbrock 94 Carburetors |
| Description_MKT | The Edelbrock #1154 Rebuild kit has everything needed to rebuild any Edelbrock 94 carburetor. Includes fuel inlet seat, fuel inlet needle, accelerator pump assembly, accelerator pump spring, accelerator check ball, check ball retainer, power valve assembly, float gauge and all necessary gaskets |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | 1-3/4" between the bottom of the float and the bowl cover gasket surface. To adjust, bend the tab on float lever |
| Description_TRA | FLOAT DROP |
| Description_TRA | FLOAT LEVEL |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage |
| Description_TRA | With the air horn assembly inverted and the weight of the float resting on a fully seated needle, there should be roughly 1-13/32" between the bottom of the float and the bowl cover gasket surface (not the gasket itself). To adjust, bend the float lever. CAUTION! DO NOT PRESS NEEDLE INTO SEAT WHEN ADJUSTING FLOAT LEVER. |
| Description_TRA | With the air horn held in an upright position, adjust the stop tab on the float bracket to achieve approximately |
| Description_TRA | • FLOAT LEVEL With the air horn assembly inverted and the weight of the float resting on a fully seated needle; there should be roughly 1-13/32in. between the bottom of the float and the bowl cover gasket surface (not the gasket itself). To adjust; bend the float lever. CAUTION! DO NOT PRESS NEEDLE INTO SEAT WHEN ADJUSTING FLOAT LEVER. • FLOAT DROP With the air horn held in an upright position; adjust the stop tab on the float bracket to achieve approximately 1-3/4in. between the bottom of the float and the bowl cover gasket surface. To adjust; bend the tab on float lever • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage |
| height | 1.5 |
| length | 7.5 |
| LTL | N |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| weight | 0.29 |
| width | 6.5 |
