Description

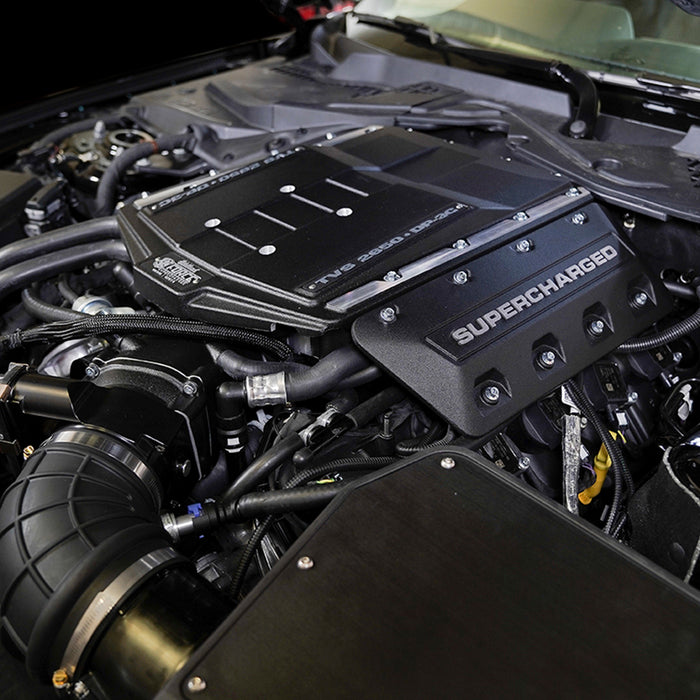

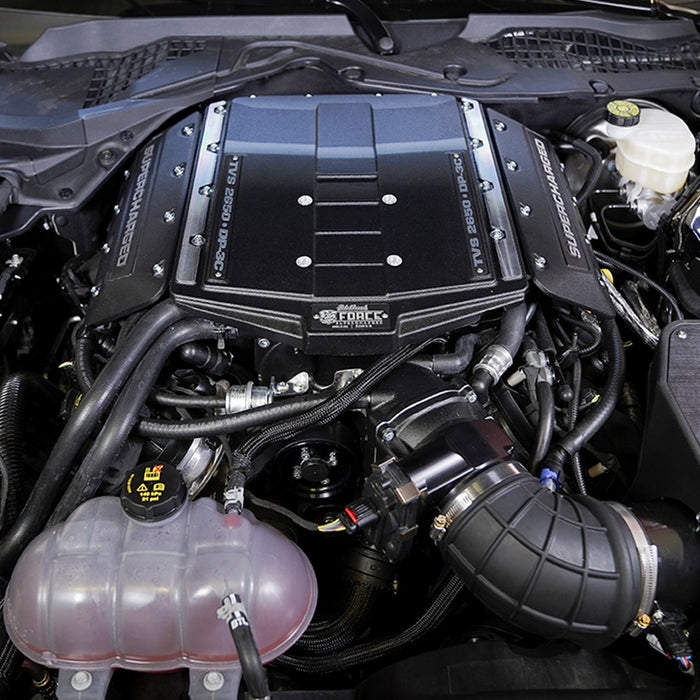

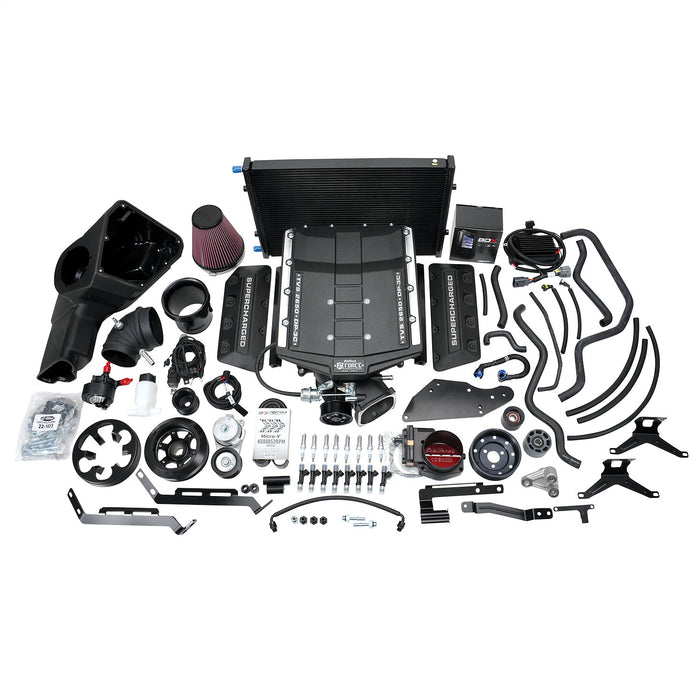

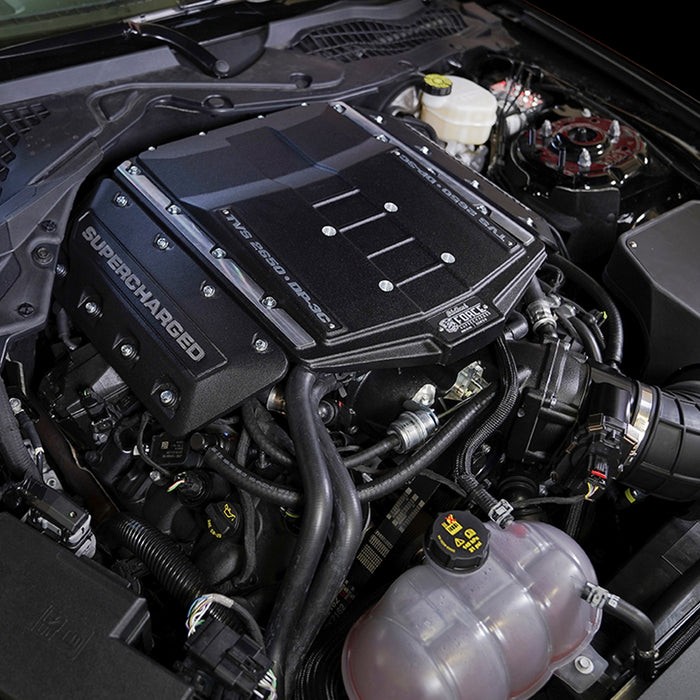

Edelbrock's highest horsepower, supercharger system is now available for owners of late-model Ford Mustangs with the 5.0L engine. The new Edelbrock Stage II Supercharger #15388 for the 2018-2020 Mustang is a complete kit that takes full advantage of the improved Gen 3 DI/PI Coyote engine. At the heart of this system is the highly efficient R2650 TVS rotor assembly with an integrated high-capacity DP3C (dual-pass, three-core) air-to-water intercooler for lower inlet air temperatures and increased power potential. New 170-degree high-twist lobes, bigger bearings and beefier timing gears ensure unparalleled reliability with smooth acceleration throughout the powerband. To support the additional Stage II power increase, the fuel system components are upgraded to include larger 50 lb/hr direct-port fuel injectors along with a Fuel Pump Voltage Booster. A dramatic increase in airflow over the Stage I kit comes from a new 103mm billet aluminum throttle body (23mm larger than Stage I) and high-flow air intake system with 113mm MAF housing. Edelbrock's 8-Rib Drive Belt upgrade minimizes slippage to maintain consistent boost pressure under full throttle. Each supercharger comes finished with a durable black powder-coating that blends nicely into the Mustang engine compartment and includes a preformed hose kit, hardware and a full-color step-by-step instruction manual to streamline the installation process. This is a true bolt-on that installs cleanly with no modifications to the hood or body. This potent Stage II system for the new Mustang is backed by Edelbrock's industry-leading 3-Year/36,000-mile Powertrain Warranty and is 50-state emissions legal.
Specifications
| Air Filter Included | Yes |
| Calibration | Yes |
| Description_ABR | SuperchrgrKt |
| Description_DEF | Supercharger Kit |
| Description_DES | Edelbrock Stg 2 Complete Supercharger #15388 For 18-21 Ford Mustang 5.0L W/ Tune |
| Description_DES | SUPERCHARGER |
| Description_EXT | The new Edelbrock Stage II Supercharger System #15388 is now available for owners of 2018-2020 Ford Mustangs with the 5.0L engine. This is Edelbrock s highest horsepower 50-state-legal system and is backed by a 3-year/36;000-mile warranty. |
| Description_EXT | The new Edelbrock Stage II Supercharger System #15388 is now available for owners of 2018-2021 Ford Mustangs with the 5.0L engine. This is Edelbrock's highest horsepower 50-state-legal system and is backed by a 3-year/36,000-mile warranty. |
| Description_FAB | E-Force Stage II Supercharger Kit |
| Description_INV | Edelbrock Stage II Supercharger #15388 |
| Description_KEY | Edelbrock; Supercharger; Blower; Forced Induction; Turbochargers; Engine; Boost; Underhood blower; Underhood supercharger; street-legal mods; street-legal superchargers; Ford; Ford Performance; Mustang; Mustang 5.0L engine; Coyote engine; Procharger; Vort |
| Description_LAB | Edelbrock Stg 2 Complete Supercharger #15388 For 18-20 Ford Mustang 5.0L W/Tune |
| Description_LAB | Edelbrock Stg 2 Complete Supercharger #15388 For 18-21 Ford Mustang 5.0L W/ Tune |
| Description_MKT | Edelbrock's highest horsepower, supercharger system is now available for owners of late-model Ford Mustangs with the 5.0L engine. The new Edelbrock Stage II Supercharger #15388 for the 2018-2020 Mustang is a complete kit that takes full advantage of the improved Gen 3 DI/PI Coyote engine. At the heart of this system is the highly efficient R2650 TVS rotor assembly with an integrated high-capacity DP3C (dual-pass, three-core) air-to-water intercooler for lower inlet air temperatures and increased power potential. New 170-degree high-twist lobes, bigger bearings and beefier timing gears ensure unparalleled reliability with smooth acceleration throughout the powerband. To support the additional Stage II power increase, the fuel system components are upgraded to include larger 50 lb/hr direct-port fuel injectors along with a Fuel Pump Voltage Booster. A dramatic increase in airflow over the Stage I kit comes from a new 103mm billet aluminum throttle body (23mm larger than Stage I) and high-flow air intake system with 113mm MAF housing. Edelbrock's 8-Rib Drive Belt upgrade minimizes slippage to maintain consistent boost pressure under full throttle. Each supercharger comes finished with a durable black powder-coating that blends nicely into the Mustang engine compartment and includes a preformed hose kit, hardware and a full-color step-by-step instruction manual to streamline the installation process. This is a true bolt-on that installs cleanly with no modifications to the hood or body. This potent Stage II system for the new Mustang is backed by Edelbrock's industry-leading 3-Year/36,000-mile Powertrain Warranty and is 50-state emissions legal. |
| Description_MKT | Edelbrock's highest horsepower, supercharger system is now available for owners of late-model Ford Mustangs with the 5.0L engine. The new Edelbrock Stage II Supercharger #15388 for the 2018-2021 Mustang is a complete kit that takes full advantage of the improved Gen 3 DI/PI Coyote engine. At the heart of this system is the highly efficient R2650 TVS rotor assembly with an integrated high-capacity DP3C (dual-pass, three-core) air-to-water intercooler for lower inlet air temperatures and increased power potential. New 170-degree high-twist lobes, bigger bearings and beefier timing gears ensure unparalleled reliability with smooth acceleration throughout the powerband. To support the additional Stage II power increase, the fuel system components are upgraded to include larger 50 lb/hr direct-port fuel injectors along with a Fuel Pump Voltage Booster. A dramatic increase in airflow over the Stage I kit comes from a new 103mm billet aluminum throttle body (23mm larger than Stage I) and high-flow air intake system with 113mm MAF housing. Edelbrock's 8-Rib Drive Belt upgrade minimizes slippage to maintain consistent boost pressure under full throttle. Each supercharger comes finished with a durable black powder-coating that blends nicely into the Mustang engine compartment and includes a preformed hose kit, hardware and a full-color step-by-step instruction manual to streamline the installation process. This is a true bolt-on that installs cleanly with no modifications to the hood or body. This potent Stage II system for the new Mustang is backed by Edelbrock's industry-leading 3-Year/36,000-mile Powertrain Warranty and is 50-state emissions legal. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | None |
| Description_SHP | { eo : 1in.; eo_carb_number : D-215-115in.; eo_carb_link : https:/ww3.arb.ca.gov/msprog/aftermkt/devices/eo/d-215-115.pdf } |
| Description_SLA | Our highest horsepower; 50-state legal supercharger system is now available for owners of late-model Ford Mustangs with the 5.0L engine. The new Edelbrock Stage II Supercharger #15388 for the 2018-2020 Mustang is a complete kit that takes full advantage of the improved Gen 3 DI/PI Coyote engine. At the heart of this system is the highly efficient R2650 TVS rotor assembly with an integrated high-capacity DP3C (dual-pass; three-core) air-to-water intercooler for lower inlet air temperatures and increased power potential. New 170-degree high-twist lobes; bigger bearings and beefier timing gears ensure unparalleled reliability with smooth acceleration throughout the powerband. To support the additional Stage II power increase; we have upgraded the fuel system components to include larger 50 lb/hr direct-port fuel injectors along with our Fuel Pump Voltage Booster. A dramatic increase in airflow over the Stage I kit comes from a new 103mm billet aluminum throttle body (23mm larger than Stage I) and high-flow air intake system with 113mm MAF housing. Our wider 8-Rib Drive Belt upgrade minimizes slippage to maintain consistent boost pressure under full throttle. Each supercharger comes finished with a durable black powder-coating that blends nicely into the Mustang engine compartment and includes a preformed hose kit; hardware and a full-color step-by-step instruction manual to streamline the installation process. This is a true bolt-on that installs cleanly with no modifications to the hood or body. The potent Edelbrock Stage II system for the new Mustang is backed by our industry-leading 3-Year/36;000-mile Powertrain Warranty and is 50-state emissions legal. |
| Description_TRA | Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Description_TRA | Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA | Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety; the Edelbrock program retains the factory vehicle speed limiter setting. |
| finish | Black Powder Coated |
| Fuel Injector Type | 50 |
| Fuel Pump Included | Yes |
| Harmonic Balancer Diameter | 7.75 |
| height | 26.0 |
| Hose Included | Yes |
| length | 44.0 |
| LTL | N |
| Maximum Boost Pressure | 16.3 |

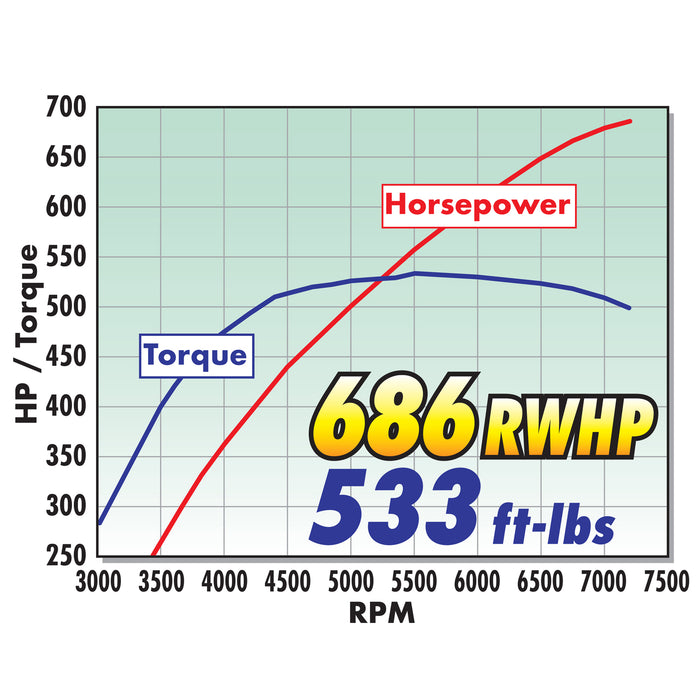

| Maximum Horsepower | 686RW |
| Maximum Pressure Reading | 16.3 |
| Maximum Torque | 533RW |
| Outside Pulley Diameter | 3.5 |
| Pulley Belt Width | 8-Rib |
| Quantity | Kit |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rotor Type | Eaton TVS 2650 |
| Spark Plugs Included | Yes |
| System Type | Stage 2 - Street/Strip System |
| Vehicle Model | Mustang |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 178.0 |
| width | 44.0 |
