Edelbrock 2040 MANIFOLD INSTALL KIT
by Edelbrock
SKU ds_BDVJ_2040
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$448.02
-
Original price
$448.02
Original price
$448.02
$448.02
$448.02
-
$448.02
Current price
$448.02
Description

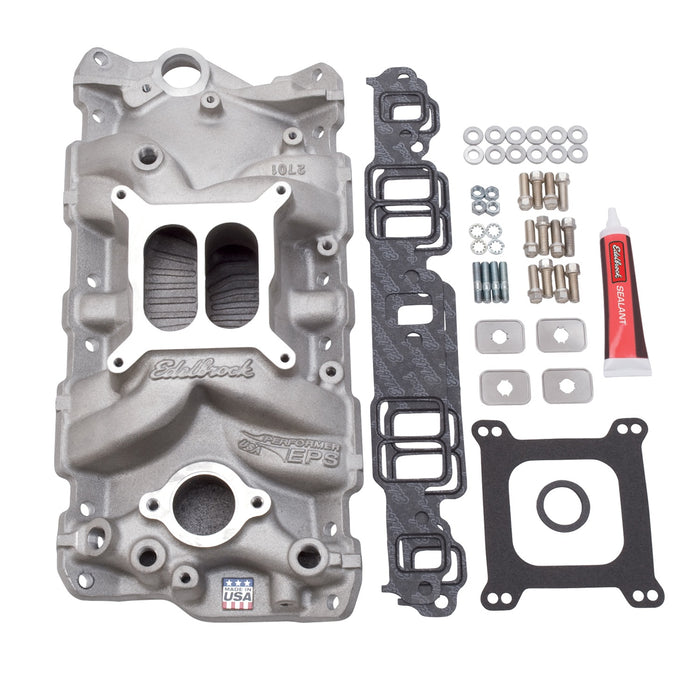

Edelbrock part #2040 Manifold Installation kit will simplify the process of adding more power and efficiency to your street rod or muscle car. It combines all the necessary components to replace your stock iron intake manifold with an Edelbrock aluminum intake manifold. Kit includes: Performer EPS intake manifold #2701, intake gasket set, carburetor base gasket, RTV sealant, intake bolts and carb studs.
Specifications
| Angle | (Carb) 3 |
| Basic Operating RPM Range | Idle-5500 |
| Bolts Or Studs Included | Yes |
| Carburetor Quantity | One |
| Center Maximum Height | (Carb Pad) 4.27 |
| CNC Ported | No |
| Description_ABR | Mn Instl Kit |
| Description_ASM | Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Intake Manifold Installation Kit |
| Description_DES | MANIFOLD INSTALL KIT |
| Description_EXT | Edelbrock Manifold Installation kit PN 2040 includes all the necessary components to replace your existing intake: PN 2701 Performer EPS intake manifold, intake gasket set, carburetor base gasket, RTV sealant, intake bolts & carb studs. |
| Description_EXT | Edelbrock Manifold Installation kit PN 2040 includes all the necessary components to replace your existing intake: PN 2701 Performer EPS intake manifold; intake gasket set; carburetor base gasket; RTV sealant; intake bolts carb studs. |
| Description_FAB | Clean Positive Seal |
| Description_FAB | Embossed Silicone Bead Surrounding The Port |
| Description_FAB | Matched To Manifolds And Cylinder Heads |
| Description_INV | 2701 Chev SB Perf Man w/Full Install Kit |
| Description_KEY | 2040; Chevy; Chevrolet; SBC; Small Block Chevy; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; intake gasket; RTV; Intake Bolts; carb studs |
| Description_LAB | Edelbrock Chevrolet SB Performer EPS Manifold w/ Gaskets, Bolts, Studs |
| Description_LAB | Edelbrock Chevrolet SB Performer EPS Manifold w/Gaskets; Bolts; Studs |
| Description_MKT | Edelbrock part #2040 Manifold Installation kit will simplify the process of adding more power and efficiency to your street rod or muscle car. It combines all the necessary components to replace your stock iron intake manifold with an Edelbrock aluminum intake manifold. Kit includes: Performer EPS intake manifold #2701, intake gasket set, carburetor base gasket, RTV sealant, intake bolts and carb studs. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 7in.} |
| Description_TRA | Carb pad height: 4.27" |
| Description_TRA | DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA | Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold ht: A-3.74", B-4.80" |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | Port exit dimensions: 1.15" x 1.87". |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Will not fit under stock Corvette hood. |
| Description_TRA | • Manifold ht: A-3.74in.; B-4.80in. • Carb pad height: 4.27in. • Port exit dimensions: 1.15in. x 1.87in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant #1076; DO NOT USE END SEALS GASKETS. • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. • DO NOT OVERTIGHTEN NPT/Pipe fittings; this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. • Will not fit under stock Corvette hood. • Even though manifolds are compatible with EGR systems; this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| EGR Port | No |
| Family | Performer |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | (A) 4.45 |
| Gasket Or Seal Included | Yes |
| Hardware Included | Yes |
| height | 7.5 |
| Intake Manifold Type | Part #2701 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Mounting Hole Diameter | (Carb Bolt) 5/16-18 UNC |
| Mounting Hole Quantity | (Carb Bolt) 4 |
| Quantity | Kit |
| Rear Maximum Height | (B) (Measured To Engine Block) 4.80 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Chevrolet |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 22.05 |
| width | 14.75 |
