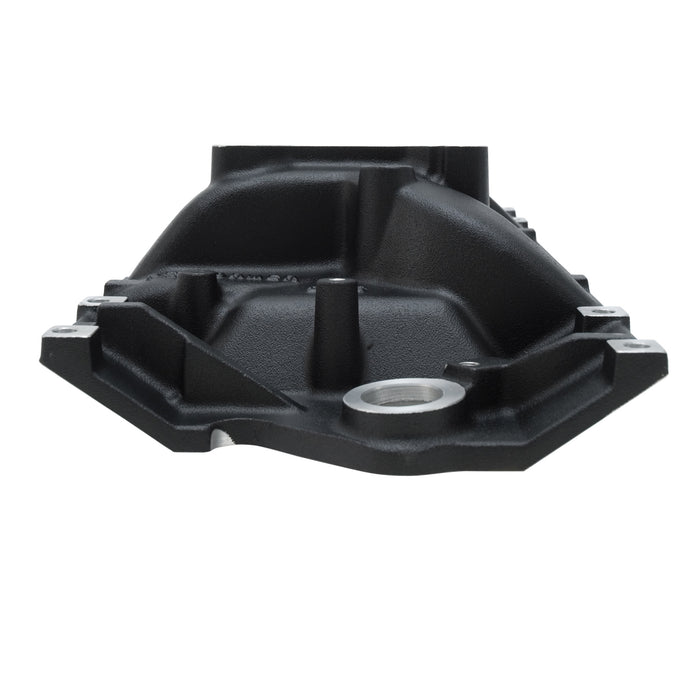

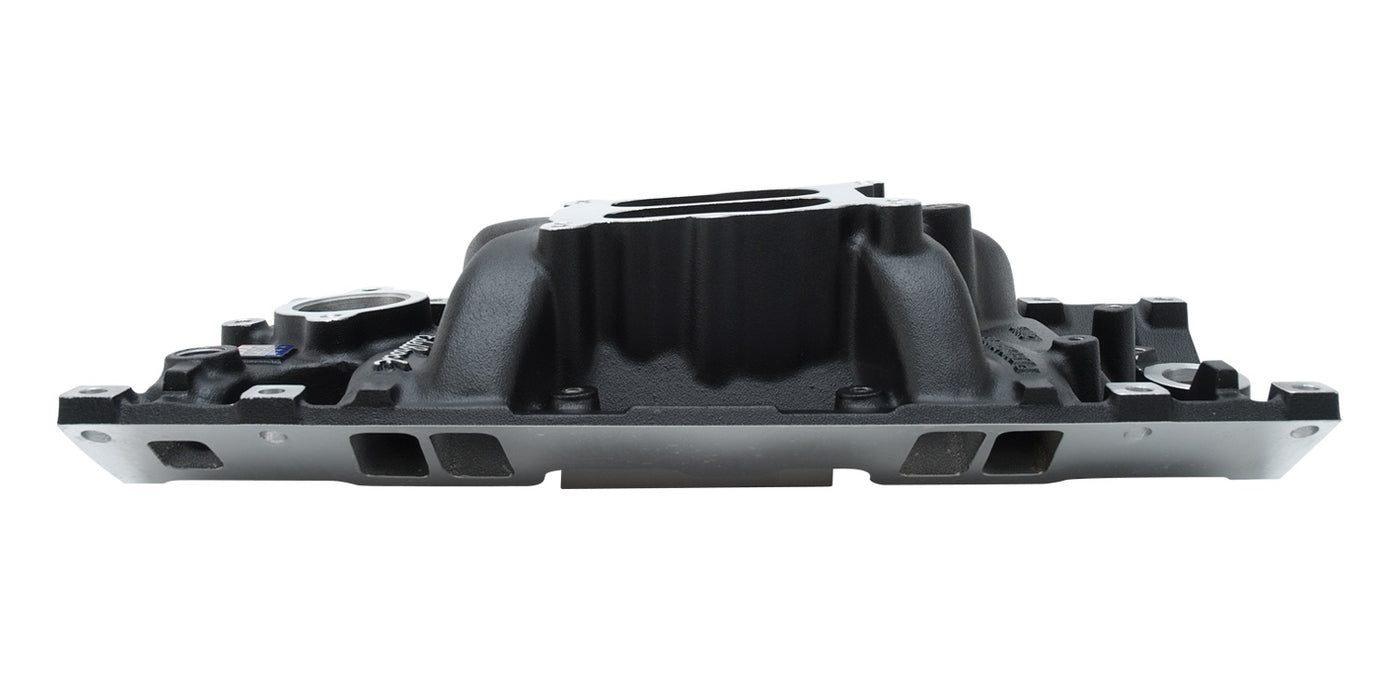

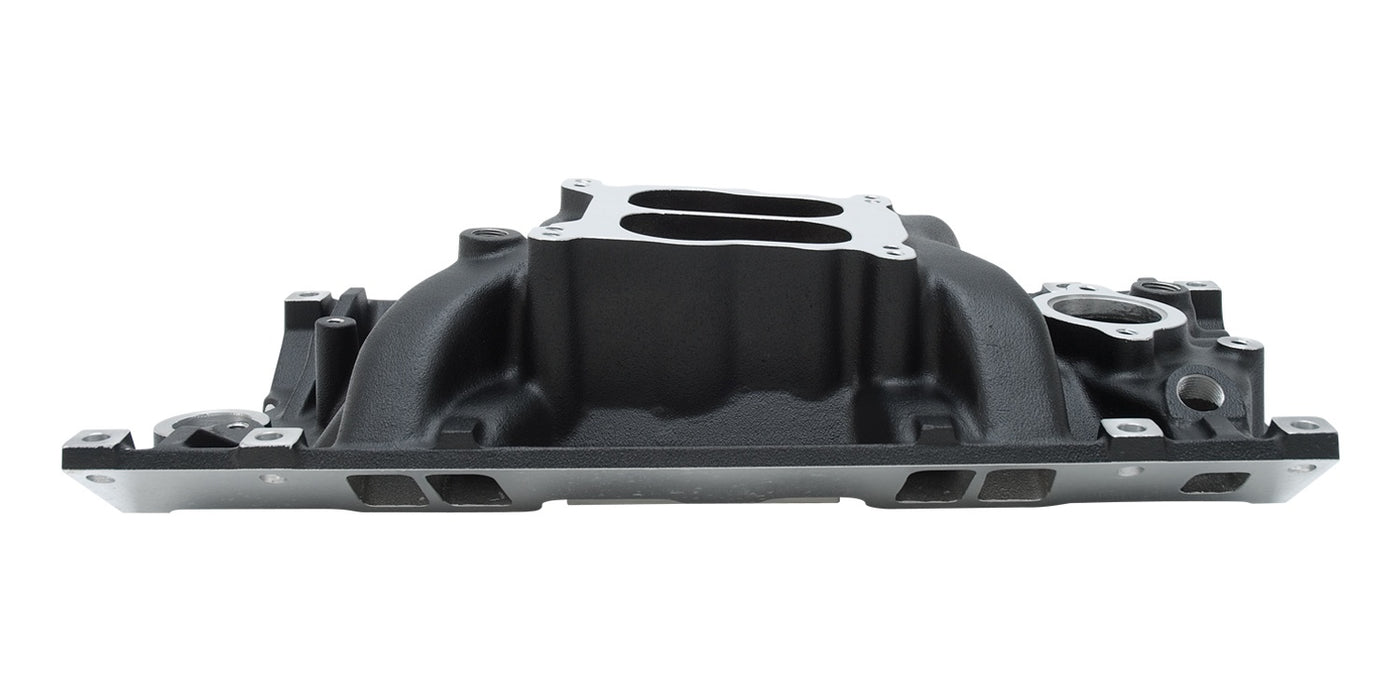

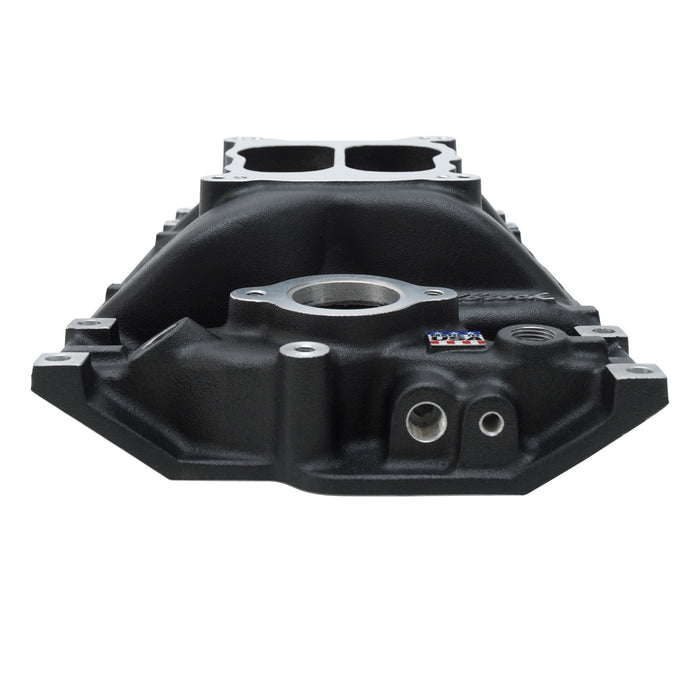

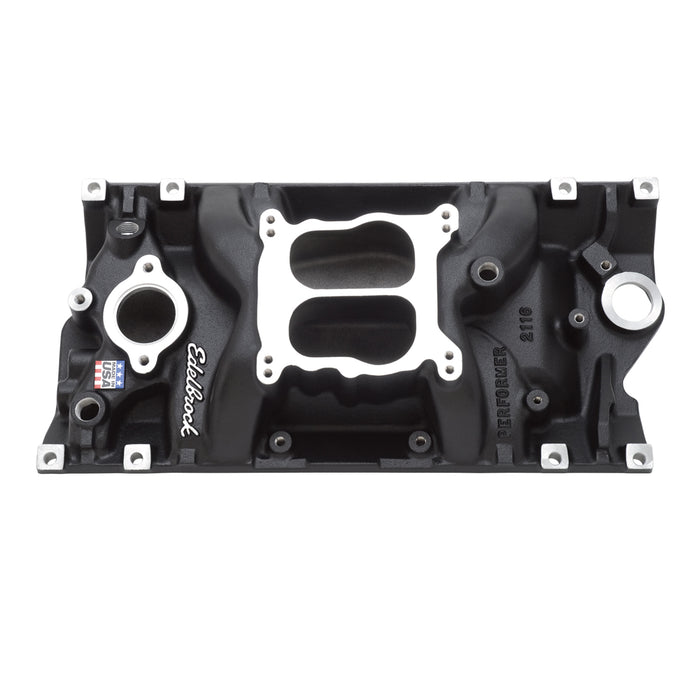

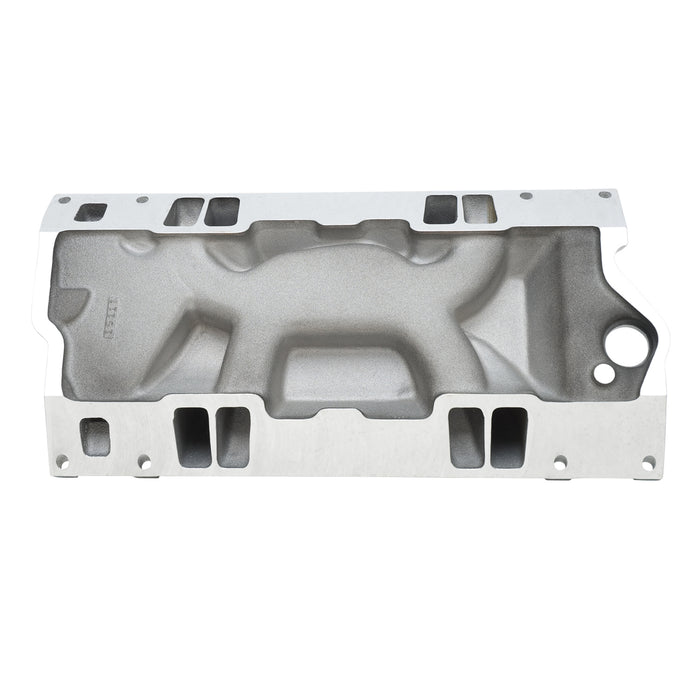

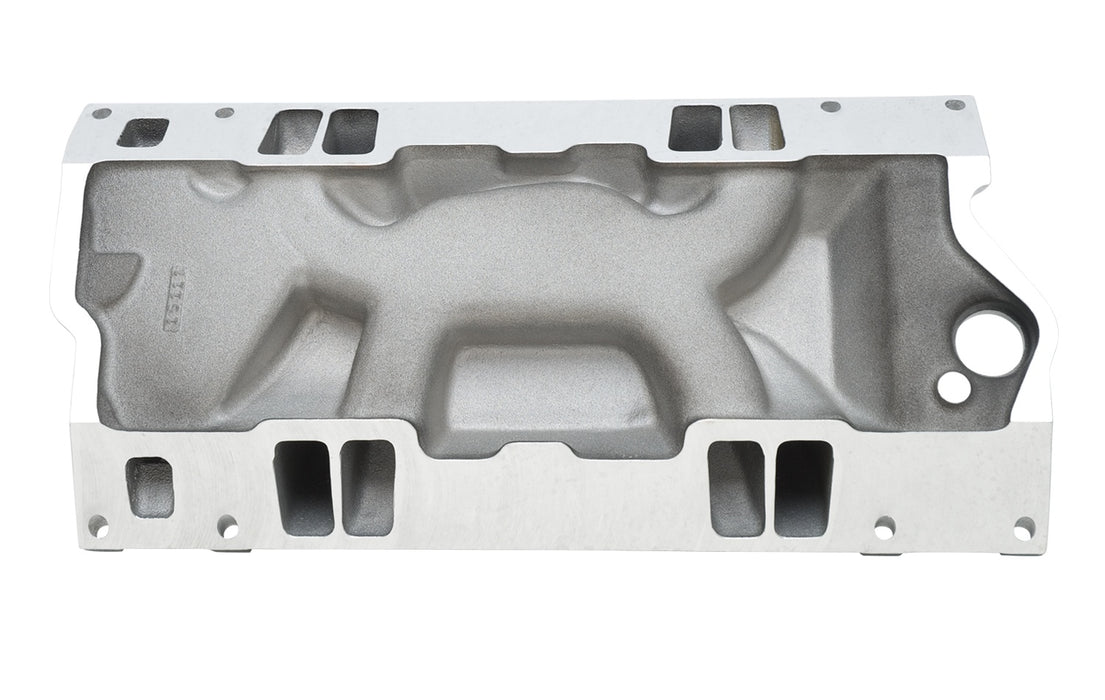

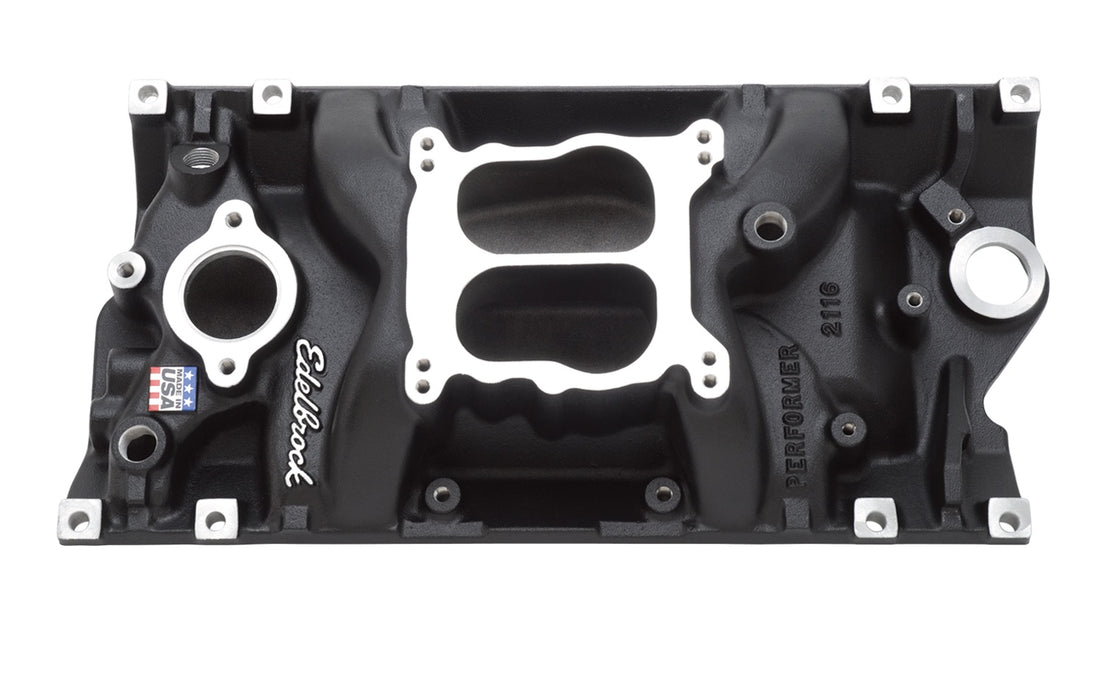

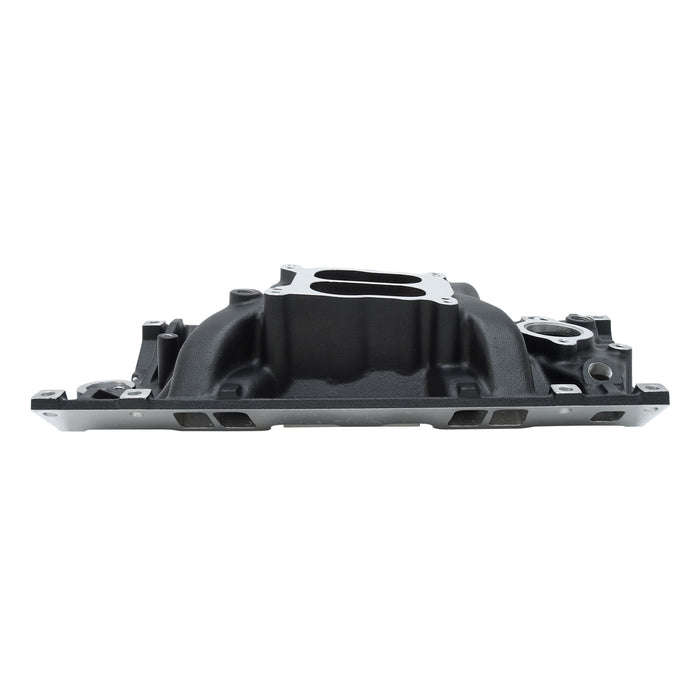

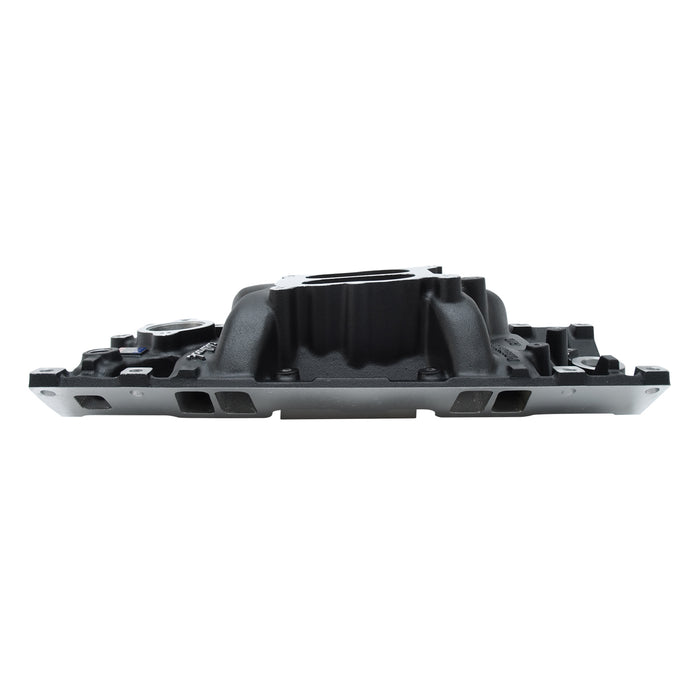

Edelbrock 21163 Edelbrock Performer Vortec Intake Manifold For Chevrolet 262-400 Small-Block V8
by Edelbrock
SKU ds_BDVJ_21163
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$617.59
-
Original price
$617.59
Original price
$617.59
$617.59
$617.59
-
$617.59
Current price
$617.59
Description
Edelbrock part #21163 Performer Vortec intake manifold is based on the popular and powerful Edelbrock #2101. This dual-plane intake is designed for the street rod, industrial and engine swap market utilizing 262-400 c.i.d. Chevy V8's with 1996 and later Vortec (L31) cast iron or the Edelbrock E-Tec aluminum heads. Manifold has provisions for external water bypass and may be used on either Vortec blocks or 1995 and earlier blocks. No provision for exhaust heated chokes. This manifold offers a polished finish for a brilliant shine and classic look.
Specifications
| Basic Operating RPM Range | Idle-5500 |
| Center Maximum Height | 4.570 |
| CNC Ported | No |
| Cylinder Head Type | GM Vortec/Edelbrock E-TEC |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen I Vortec:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer Vortec Intake Manifold For Chevrolet 262-400 Small-Block V8 |
| Description_FAB | Accepts Late Model Water Neck-Alternators-HEI-A/C |
| Description_FAB | Designed for Engine Swaps Using GM Vortec Heads |
| Description_FAB | Dual-Plane Low-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Excellent Throttle Response and Mid-Range Power |
| Description_FAB | For Idle to 5500 RPM Street-Driven Performance |
| Description_FAB | Patented Runner Design Ensures Broad Torque Curve |
| Description_FAB | Works on Both Vortec and 1995 and Earlier Blocks |
| Description_INV | Black Vortec SBC Intake Mnfld 1996 Later |
| Description_KEY | 21163; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Black Powder Coated |
| Description_LAB | Performer Intake Manifold for Small-Block Chevy w/Vortec Heads, Black Finish |
| Description_LAB | Performer Intake Manifold for Small-Block Chevy w/Vortec Heads; Black Finish |
| Description_MKT | Edelbrock part #21163 Performer Vortec intake manifold is based on the popular and powerful Edelbrock #2101. This dual-plane intake is designed for the street rod, industrial and engine swap market utilizing 262-400 c.i.d. Chevy V8's with 1996 and later Vortec (L31) cast iron or the Edelbrock E-Tec aluminum heads. Manifold has provisions for external water bypass and may be used on either Vortec blocks or 1995 and earlier blocks. No provision for exhaust heated chokes. This manifold offers a polished finish for a brilliant shine and classic look. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 3in.} |
| Description_TRA | Carb pad height: 4.57" |
| Description_TRA | Carb recommendations: OEM 4-Bbl (pre-1981, electric choke only) . Use #8032 throttle bracket. Edelbrock AVS2 or Performer Series 500-650 cfm. |
| Description_TRA | DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold ht: A-3.87", B-5.28" |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | Port exit dimensions: 2.05" tall with slanted side walls |
| Description_TRA | Recommended intake gasket: Edelbrock #7235 |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | Stock brackets will require modification to fit the upright manifold bolt holes. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Will not fit under stock Corvette hood. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7235 • Manifold ht: A-3.87in.; B-5.28in. • Carb pad height: 4.57in. • Carb recommendations: OEM 4-Bbl (pre-1981; electric choke only) . Use # 8032 throttle bracket. Edelbrock AVS2 or Performer Series 500-650 cfm. • Port exit dimensions: 2.05in. tall with slanted side walls • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. • DO NOT OVERTIGHTEN NPT/Pipe fittings; this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. • Stock brackets will require modification to fit the upright manifold bolt holes. • Will not fit under stock Corvette hood. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Chevy Small Block (262-400) |
| finish | Black Powder Coated |
| Flange Type | 4150 |
| Front Maximum Height | 3.870 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 5.280 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | Idle -5500 |
| Series | Performer |
| Single Or Dual Plane Type | Dual |
| Usage | Street/Hi-Performance |
| Vehicle Model | Chevrolet |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 17.35 |
| width | 14.75 |
