Description

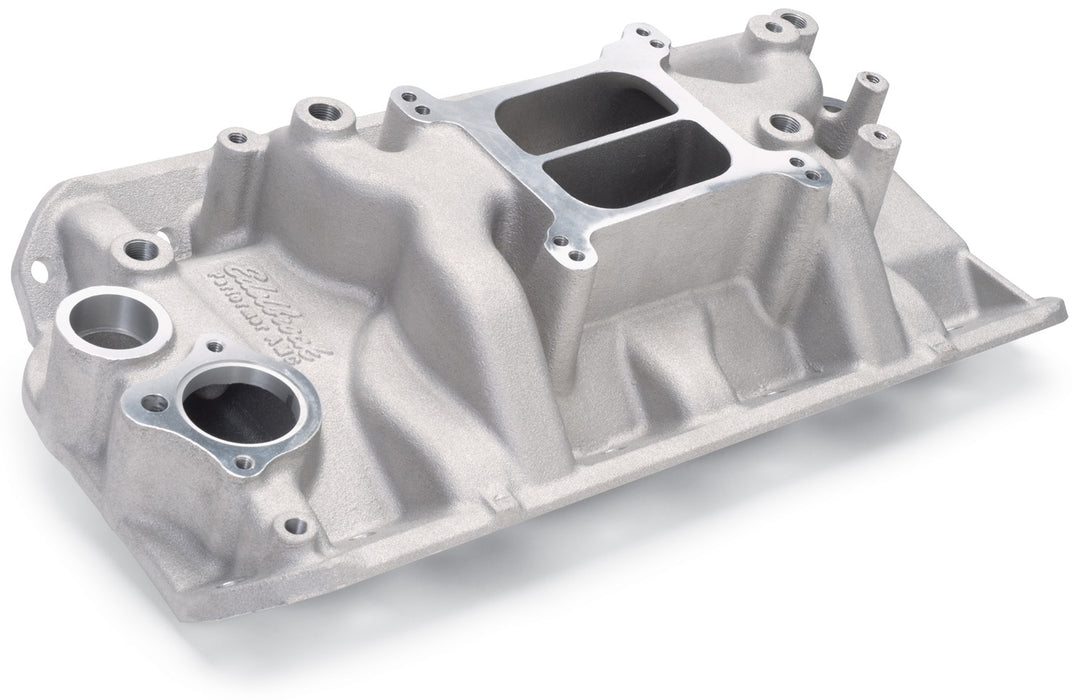

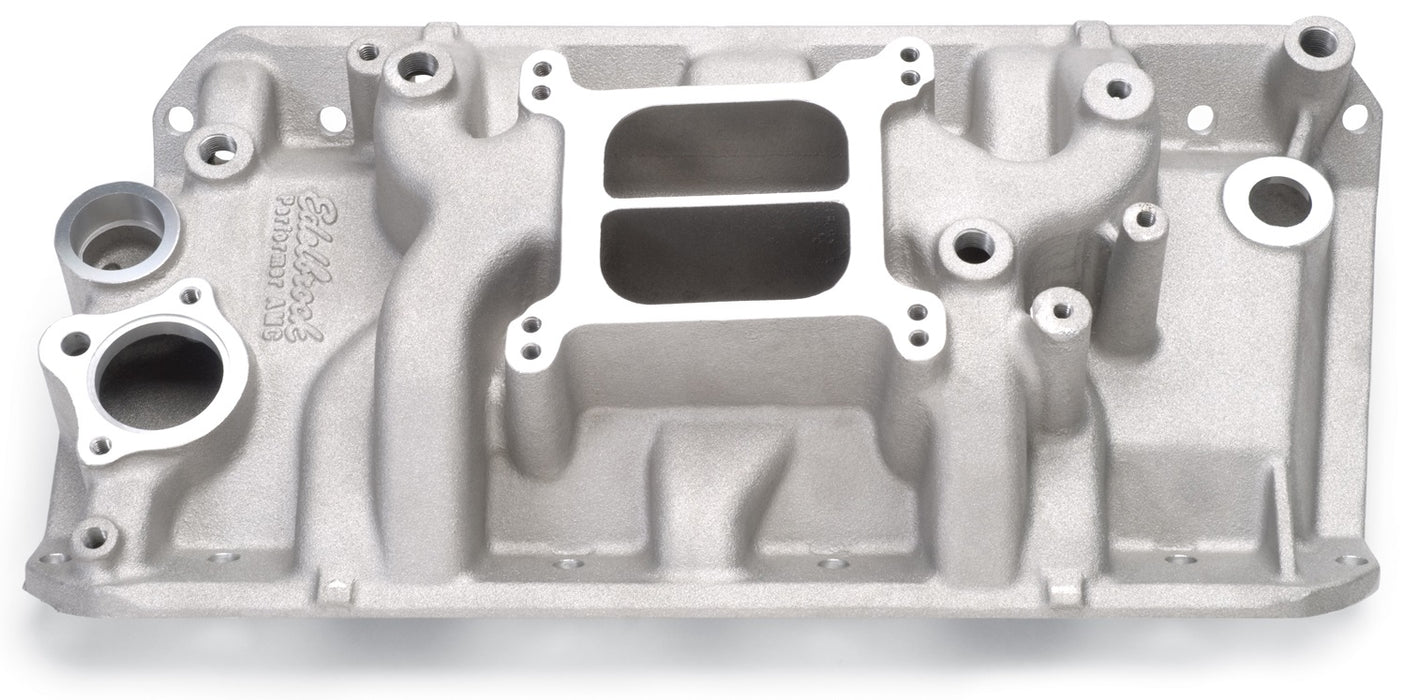

Edelbrock part #2131 Performer AMC intake manifold is designed for 1970-91 street 304-360-401 c.i.d. V8 engines. Will not accept stock Motorcraft spread-bore carburetor. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. The Performer intake manifolds are ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs.
Specifications
| Basic Operating RPM Range | Idle-5500 |
| Center Maximum Height | 4.850 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | AMC:Small-Block:304 (5.0L)/360 (5.9L)/401 (6.6L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer AMC Intake Manifold for 1970 and Later 304-401 c.i.d. AMC V8 Engines is Designed for use with 4150-Style Square-Bore Carburetors. (Will not accept stock Motorcraft Carburetor). Non-EGR |
| Description_FAB | 50-State Street Legal if Correct Carburetor Used |
| Description_FAB | Dual-Plane Low-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Excellent Throttle Response and Mid-Range Power |
| Description_FAB | For Idle to 5500 RPM Street-Driven Performance |
| Description_FAB | Not for Stock Motorcraft Spread Bore Carburetor |
| Description_FAB | Patented Runner Design Ensures Broad Torque Curve |
| Description_FAB | Two Center Bolt Holes are Offset |
| Description_INV | Perf AMC Intake Manifold 1970-91 290-401 |
| Description_KEY | 2131; AMC; Jeep; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Satin |
| Description_LAB | Performer Intake Manifold for 1970-91 AMC, Non-EGR, Satin Finish |
| Description_LAB | Performer Intake Manifold for 1970-91 AMC; Non-EGR; Satin Finish |
| Description_MKT | Edelbrock part #2131 Performer AMC intake manifold is designed for 1970-91 street 304-360-401 c.i.d. V8 engines. Will not accept stock Motorcraft spread-bore carburetor. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. The Performer intake manifolds are ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | #2131 must use factory style metal valley tray. |
| Description_TRA | Car recommendations: OEM 4-Bbl . Non-EGR square-bore Edelbrock AVS2 or Performer Series 500-650cfm. |
| Description_TRA | Carb pad height: 4.85" |
| Description_TRA | Edelbrock bracket #8034 required for 1979 and later vehicles. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-4.20", B-5.50" |
| Description_TRA | Manifold will not accept factory Motorcraft spread-bore carburetors. |
| Description_TRA | Manifolds have two center bolt holes offset. |
| Description_TRA | Must use factory style metal valley tray |
| Description_TRA | Port exit dimensions: 1.03" x 2.07" |
| Description_TRA | Recommended intake gasket: Edelbrock #7213 Fel-Pro MS96011 |
| Description_TRA | Requires #8008 or #8024 Stud, nut and washer kit. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7213 Fel-Pro MS96011 • Must use factory style metal valley tray • Manifold height: A-4.20in.; B-5.50in. • Carb pad height: 4.85in. • Requires # 8008 or # 8024 Stud; nut and washer kit. • Car recommendations: OEM 4-Bbl . Non-EGR square-bore Edelbrock AVS2 or Performer Series 500-650cfm. • Port exit dimensions: 1.03in. x 2.07in. • #2131 must use factory style metal valley tray. • Manifolds have two center bolt holes offset. • Edelbrock bracket #8034 required for 1979 and later vehicles. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. • Manifold will not accept factory Motorcraft spread-bore carburetors. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | AMC 290-401 |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 4.200 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 5.500 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | Idle -5500 |
| Series | Performer |
| Single Or Dual Plane Type | Dual |
| Usage | Street/Hi-Performance |
| Vehicle Model | AMC/Jeep |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 20.2 |
| width | 14.75 |
