Description

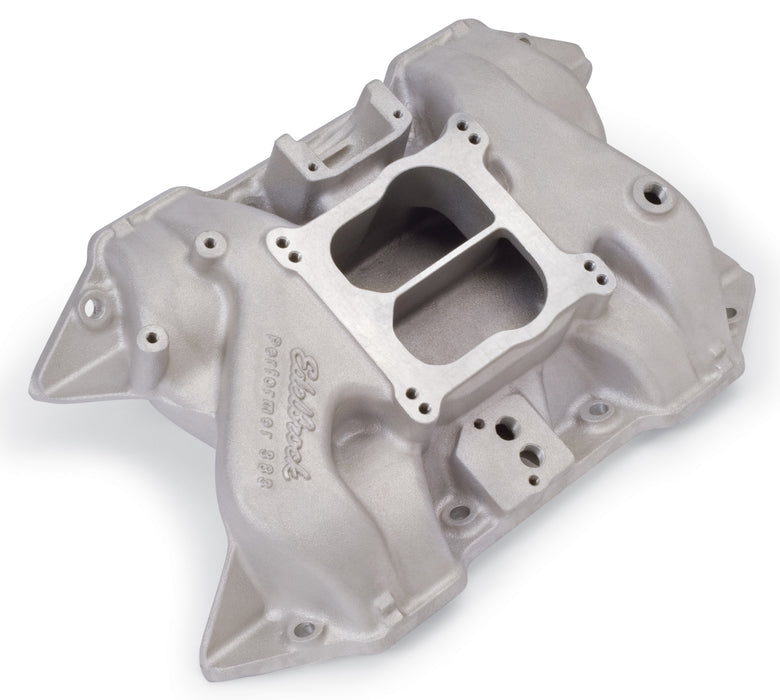

Edelbrock part #2186 Performer 383 intake manifold is designed for street 361-383-400 c.i.d. Chrysler V8's that measure 7.75" across block. May be used with OEM or aftermarket carbs. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs.
Specifications
| Basic Operating RPM Range | Idle-5500 |
| Center Maximum Height | 4.000 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chrysler:Big-Block B-Series:361 (5.9L)/383 (6.3L)/400 (6.6L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer 383 Intake Manifold for 1966-72 Chrysler "B" Block V8 Engines is Designed for 361-383-400 c.i.d. Accepts OEM 4-bbl or 4150-Style Square-Bore Carburetors |
| Description_EXT | Edelbrock Performer 383 Intake Manifold for 1966-72 Chrysler B Block V8 Engines is Designed for 361-383-400 c.i.d. Accepts OEM 4-bbl or 4150-Style Square-Bore Carburetors; Non-EGR. Works with EGR for 1972-78 400cid w/OEM 4-bbl. carb. |
| Description_EXT | Non-EGR. Works with EGR for 1972-78 400cid w/ OEM 4-bbl. carb. |
| Description_FAB | 50-State Street Legal if Correct Carburetor Used |
| Description_FAB | Dual-Plane Low-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Excellent Throttle Response and Mid-Range Power |
| Description_FAB | For Idle to 5500 RPM Street-Driven Performance |
| Description_FAB | Patented Runner Design Ensures Broad Torque Curve |
| Description_INV | Performer Chrysler 361-400 Intake Manfld |
| Description_KEY | 2186; Chrysler; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Satin |
| Description_LAB | Performer 383 Intake Manifold for 1958-1979 Chrysler, B Series Engines |
| Description_LAB | Performer 383 Intake Manifold for 1958-1979 Chrysler; B Series Engines |
| Description_MKT | Edelbrock part #2186 Performer 383 intake manifold is designed for street 361-383-400 c.i.d. Chrysler V8's that measure 7.75" across block. May be used with OEM or aftermarket carbs. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Carb pad height: 4.00" |
| Description_TRA | Carb recommendations: OEM 4-Bbl, Edelbrock Thunder AVS or Performer Series 600-800cfm.Use #1481 or #1483 throttle/transmission lever kit. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-3.65", B-4.35", measured to engine block |
| Description_TRA | Port exit dimensions: 1.14" x 2.12" |
| Description_TRA | Recommended intake gasket: Edelbrock #7225 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7225 • Manifold height: A-3.65in.; B-4.35in.; measured to engine block • Carb pad height: 4.00in. • Carb recommendations: OEM 4-Bbl; Edelbrock Thunder AVS or Performer Series 600-800cfm.Use # 1481 or # 1483 throttle/transmission lever kit. • Port exit dimensions: 1.14in. x 2.12in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | With Or Without |
| Emission | With EGR |
| Emission | Without EGR |
| Engine Make/Size | Mopar 361-400 |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 3.650 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 4.350 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | Idle -5500 |
| Series | Performer |
| Single Or Dual Plane Type | Dual |
| Usage | Street/Hi-Performance |
| Vehicle Model | Chrysler |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 19.55 |
| width | 14.75 |
