Availability:
4+ in stock
Edelbrock 2191 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_2191
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$515.71
-
Original price
$515.71
Original price
$515.71
$515.71
$515.71
-
$515.71
Current price
$515.71
Description

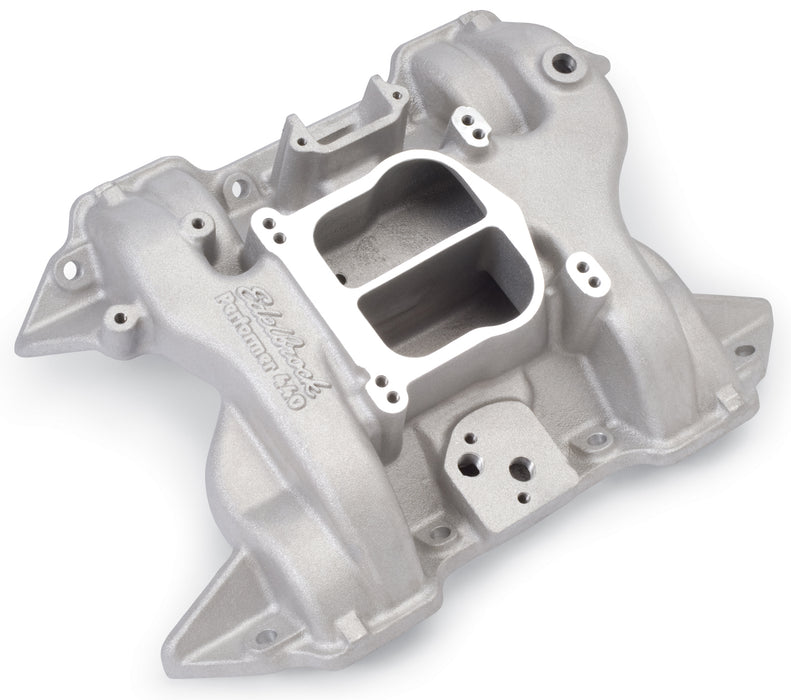

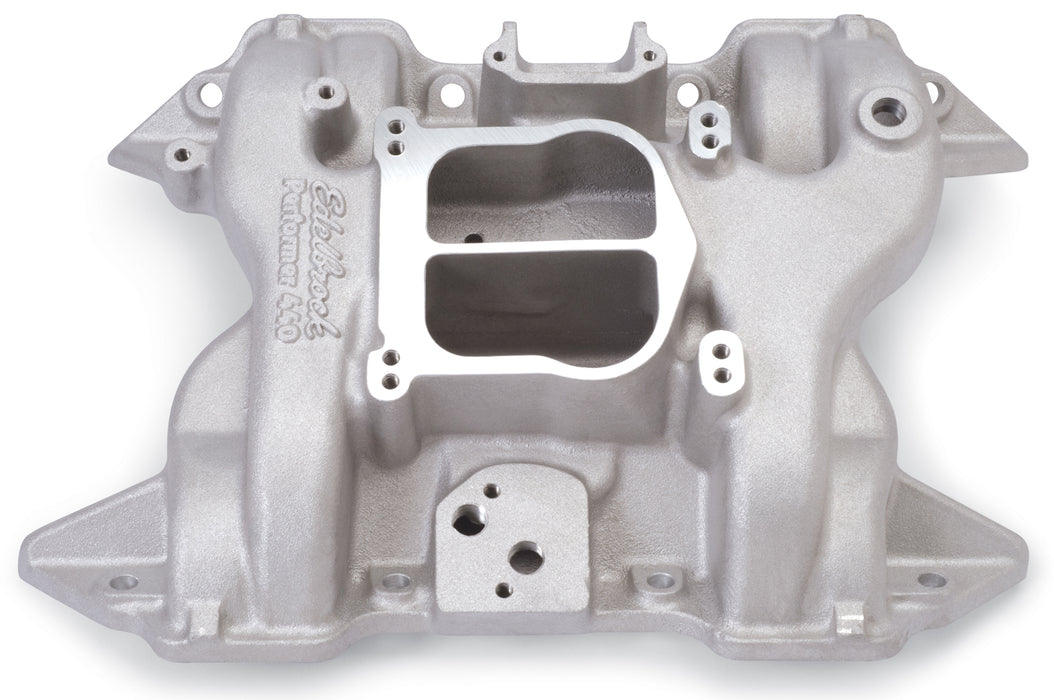

Edelbrock part #2191 Performer 440 intake manifold is designed for street 413-426-440 c.i.d. Chrysler V8's that measure 8.75" across block. Will not fit 1962-64 Max Wedge heads. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs.
Specifications
| Basic Operating RPM Range | Idle-5500 |
| Center Maximum Height | 4.300 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer 440 Intake Manifold for Chrysler "RB" 413-426-440 V8's. Accepts OEM 4-bbl or 4150-Style Square-Bore Carburetors |
| Description_EXT | Edelbrock Performer 440 Intake Manifold for Chrysler RB 413-426-440 V8ft.s. Accepts OEM 4-bbl or 4150-Style Square-Bore Carburetors; Non-EGR. Works with EGR for 1972-79 440 V8s with OEM 4-bbl. carb. Will not fit 1962-64 Max Wedge Heads |
| Description_EXT | Non-EGR. Works with EGR for 1972-79 440 V8s with OEM 4-bbl. carb. Will not fit 1962-64 Max Wedge Heads |
| Description_FAB | 50-State Street Legal if Correct Carburetor Used |
| Description_FAB | Dual-Plane Low-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Excellent Throttle Response and Mid-Range Power |
| Description_FAB | For Idle to 5500 RPM Street-Driven Performance |
| Description_FAB | Patented Runner Design Ensures Broad Torque Curve |
| Description_INV | Performer Chrysler 413-440 Intake Manfld |
| Description_KEY | 2191; Chrysler; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Satin |
| Description_LAB | Performer 440 Intake Manifold for Chrysler, RB Series 413-440 Engines |
| Description_LAB | Performer 440 Intake Manifold for Chrysler; RB Series 413-440 Engines |
| Description_MKT | Edelbrock part #2191 Performer 440 intake manifold is designed for street 413-426-440 c.i.d. Chrysler V8's that measure 8.75" across block. Will not fit 1962-64 Max Wedge heads. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Carb pad height: 4.30" |
| Description_TRA | Carb recommendations: OEM 4-Bbl, Edelbrock AVS2 or Performer Series 650-800 cfm. Use #1481 or #1483 throttle/transmission lever kit. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-3.80", B-4.80", measured to engine block |
| Description_TRA | May require different EGR valve, see installation instructions |
| Description_TRA | Port exit dimensions: 1.12" x 2.14" |
| Description_TRA | Recommended intake gasket: #7225 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: # 7225 • Manifold height: A-3.80in.; B-4.80in.; measured to engine block • Carb pad height: 4.30in. • Carb recommendations: OEM 4-Bbl; Edelbrock AVS2 or Performer Series 650-800 cfm. Use # 1481 or # 1483 throttle/transmission lever kit. • Port exit dimensions: 1.12in. x 2.14in. • May require different EGR valve; see installation instructions • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | With Or Without |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 3.800 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 4.800 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Chrysler |
| weight | 20.0 |
| width | 14.75 |
