Availability:
Out of stock
Edelbrock 22745 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_22745
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$125.17
-
Original price
$125.17
Original price
$125.17
$125.17
$125.17
-
$125.17
Current price
$125.17
Description

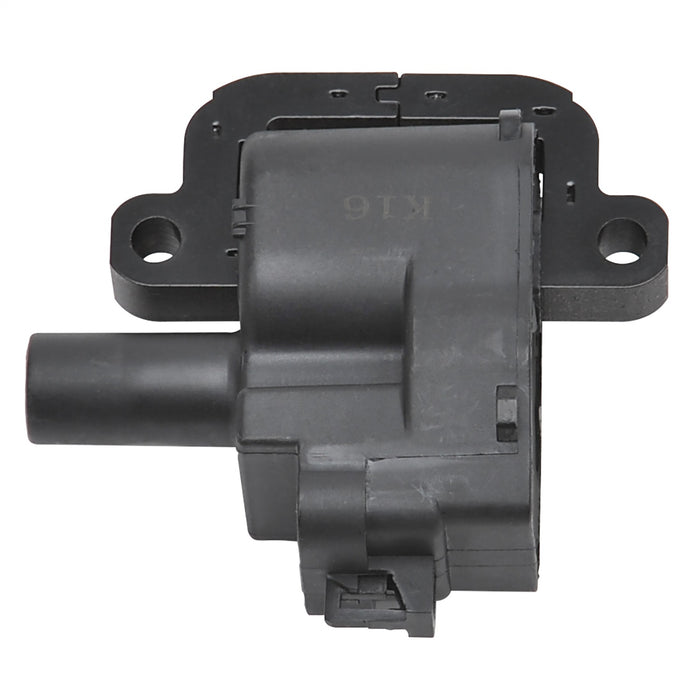

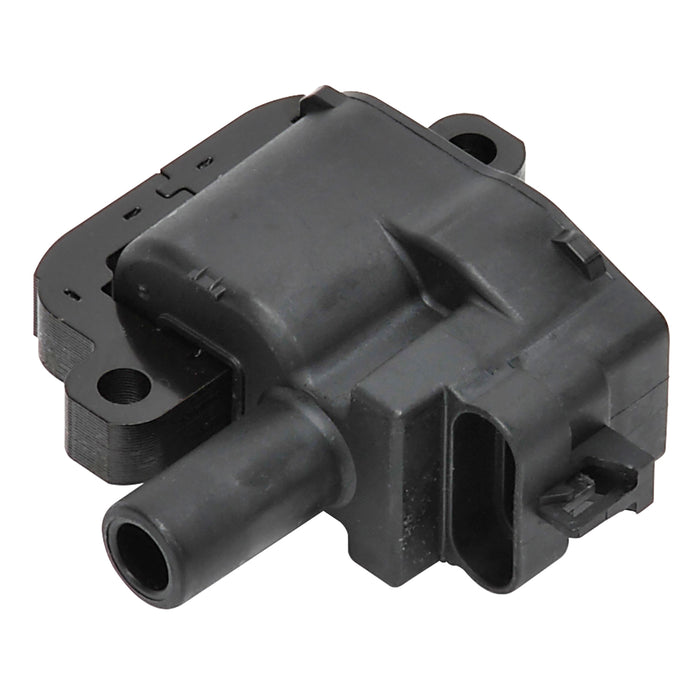

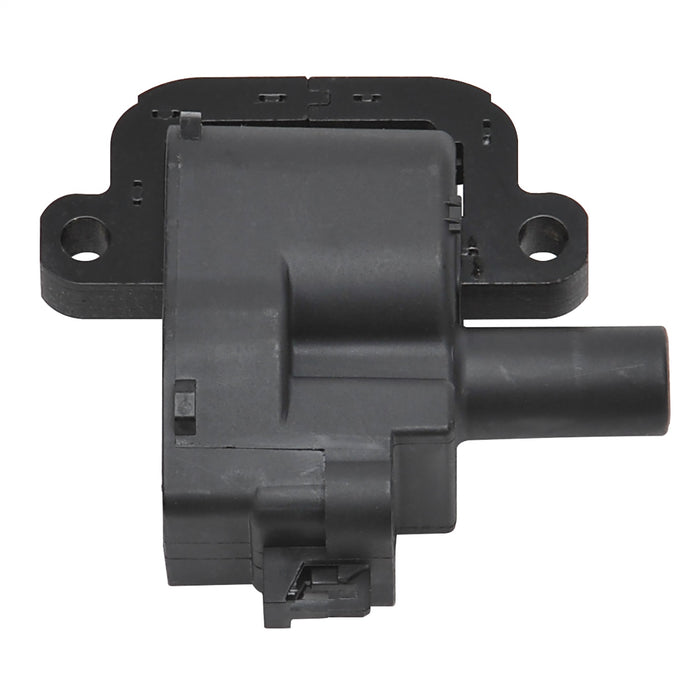

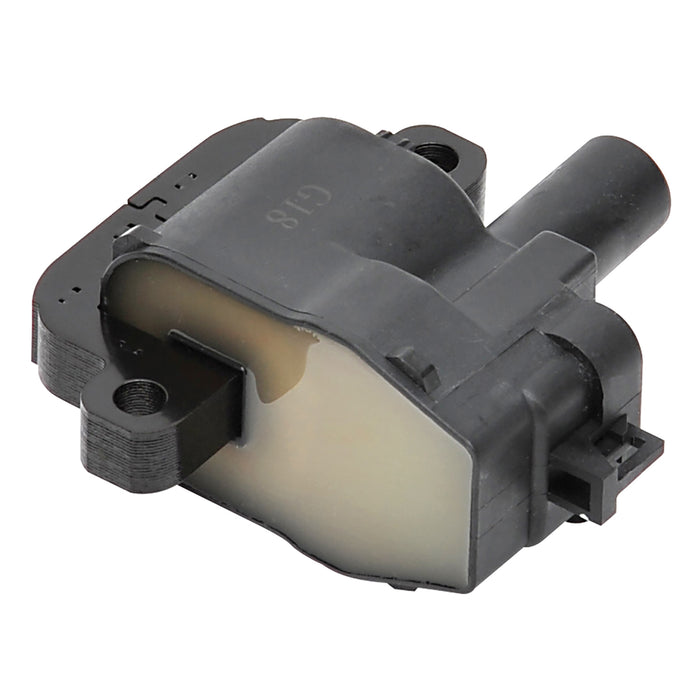

Edelbrock part #22745 Max-Fire LS Coil Pack is designed for use with 1997-2013 GM Gen III & IV LS engines. It features a high output design that delivers up to 11% more voltage and 19% more energy over a stock coil. It's ideal for use with supercharged, turbo, nitrous or E85 fueled engines. Edelbrock Max-Fire Coil On Plug ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. The coils are sealed with a high temperature epoxy for shock and vibration resistance?as well as excellent thermal conductivity. The spark plug spring contact is made from stainless steel, with a ferrite lug to reduce EMI/RFI noise; while the boots are molded from a high temperature silicone compound for superior heat resistance up to 550 degrees F. Order the direct bolt-on OEM coil pack best suited for your vehicle. Be sure to check your stock coils on your truck or van to make sure they physically match. GM offered several styles of LS1 coils that are not all compatible with each other. Sold individually.
Specifications
| Coil Shape | Rectangular |
| Coil Type | Ignition Coils |
| Coil Wire Included | No |
| Connector Gender | Female |
| Description_ABR | Igntion Coil |
| Description_ASM | Chevrolet:Small-Block Gen III LS1:346 (5.7L) |
| Description_ASM | Chevrolet:Small-Block Gen III LS1:346 (5.7L);Chevrolet:Small-Block Gen III LS2:364 (6.0L) |
| Description_ASM | Chevrolet:Small-Block Gen III LS2:364 (6.0L) |
| Description_DEF | Ignition Coil |
| Description_DES | IGNITION COIL |
| Description_EXT | Edelbrock part #22745 Max-Fire LS Coil Pack is designed for use with 1997-2013 GM Gen III & IV LS engines. It features a high output design that delivers up to 11% more voltage and 19% more energy over a stock coil |
| Description_EXT | Edelbrock part #22745 Max-Fire LS Coil Pack is designed for use with 1997-2013 GM Gen III IV LS engines. It features a high output design that delivers up to 11% more voltage and 19% more energy over a stock coil |
| Description_FAB | Delivers Up To 11 Percent More Voltage Over Stock Coil |
| Description_FAB | Delivers Up To 19 Percent More Energy Over Stock Coil |
| Description_FAB | High Output Design |
| Description_INV | LS Ignition Coil Pack 22745 |
| Description_KEY | Edelbrock; Max Fire; Coil; Coil on plug; Ignition Coil; coil pack style; socket; epoxy; black; rectangular; Cadillac; Chevy; gmc; each; 22745; LS1 |
| Description_LAB | Edelbrock Max-Fire LS Coil Pack for Gen III & IV LS engines |
| Description_LAB | Edelbrock Max-Fire LS Coil Pack for Gen III IV LS engines |
| Description_MKT | Edelbrock part #22745 Max-Fire LS Coil Pack is designed for use with 1997-2013 GM Gen III & IV LS engines. It features a high output design that delivers up to 11% more voltage and 19% more energy over a stock coil. It's ideal for use with supercharged, turbo, nitrous or E85 fueled engines. Edelbrock Max-Fire Coil On Plug ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. The coils are sealed with a high temperature epoxy for shock and vibration resistance as well as excellent thermal conductivity. The spark plug spring contact is made from stainless steel, with a ferrite lug to reduce EMI/RFI noise |
| Description_MKT | Edelbrock part #22745 Max-Fire LS Coil Pack is designed for use with 1997-2013 GM Gen III & IV LS engines. It features a high output design that delivers up to 11% more voltage and 19% more energy over a stock coil. It's ideal for use with supercharged, turbo, nitrous or E85 fueled engines. Edelbrock Max-Fire Coil On Plug ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. The coils are sealed with a high temperature epoxy for shock and vibration resistance?as well as excellent thermal conductivity. The spark plug spring contact is made from stainless steel, with a ferrite lug to reduce EMI/RFI noise; while the boots are molded from a high temperature silicone compound for superior heat resistance up to 550 degrees F. Order the direct bolt-on OEM coil pack best suited for your vehicle. Be sure to check your stock coils on your truck or van to make sure they physically match. GM offered several styles of LS1 coils that are not all compatible with each other. Sold individually. |
| Description_MKT | while the boots are molded from a high temperature silicone compound for superior heat resistance up to 550 degrees F. Order the direct bolt-on OEM coil pack best suited for your vehicle. Be sure to check your stock coils on your truck or van to make sure they physically match. GM offered several styles of LS1 coils that are not all compatible with each other. Sold individually. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 9in.} |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_TRA | • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| height | 3.75 |
| height | 4.88 |
| Ignition Type | Distributorless |
| length | 3.75 |
| length | 4.12 |
| LTL | N |
| Mount Type | Plug |
| Mounting Bracket Included | No |
| Mounting Position | Cylinder Head |
| Oil Filled | No |
| Overall Height | 3.75 |
| Requires External Resistor | No |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Terminal Gender | Female |
| Terminal Quantity | 1 |
| Terminal Type | Blade Pin |
| Voltage | 12 |
| weight | 1.7 |
| width | 1.5 |
| width | 3.12 |
| Wire Quantity | 2 |
