Edelbrock 2561 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_2561
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$1,079.07
-
Original price
$1,079.07
Original price
$1,079.07
$1,079.07
$1,079.07
-
$1,079.07
Current price
$1,079.07
Description

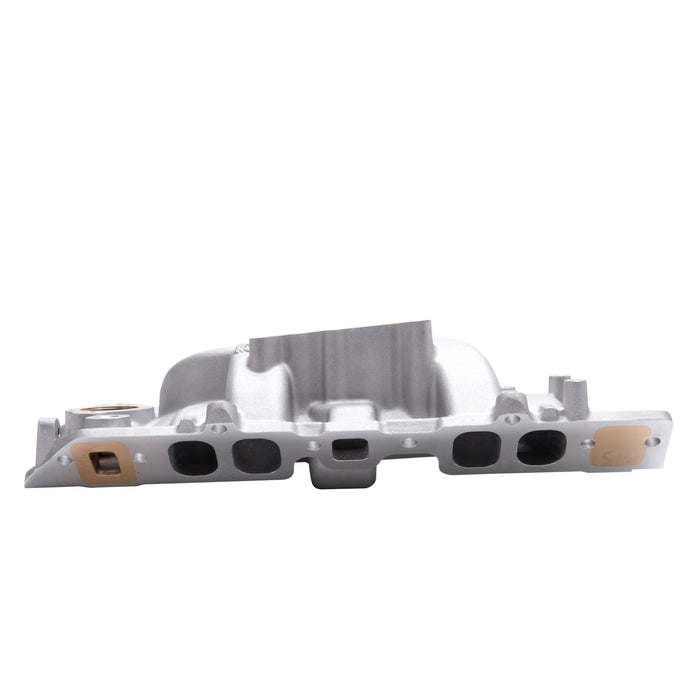

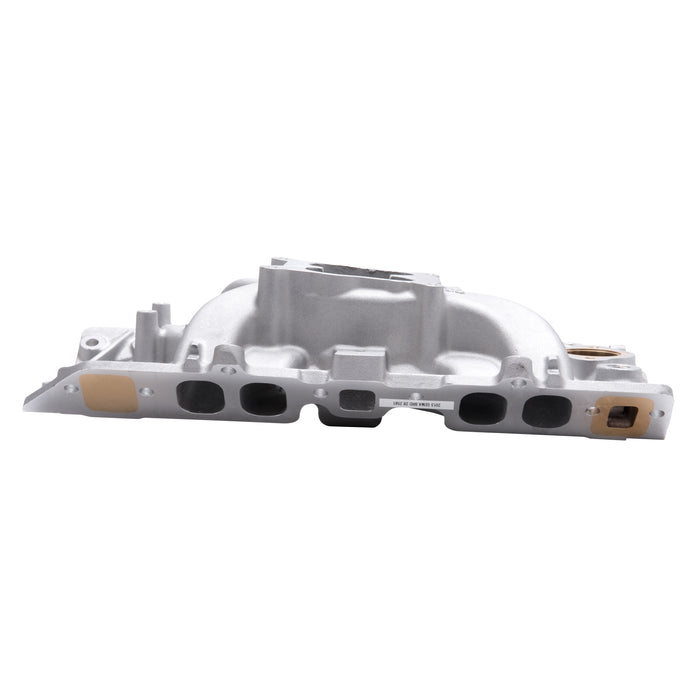

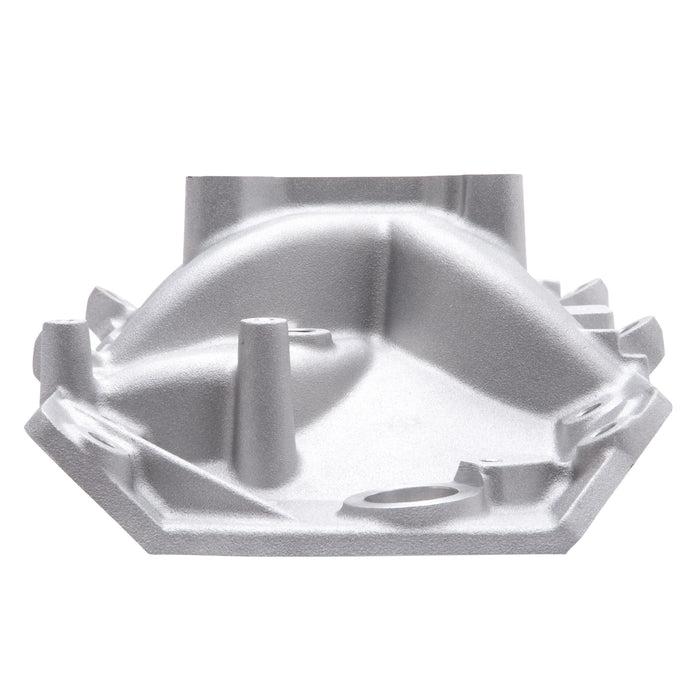

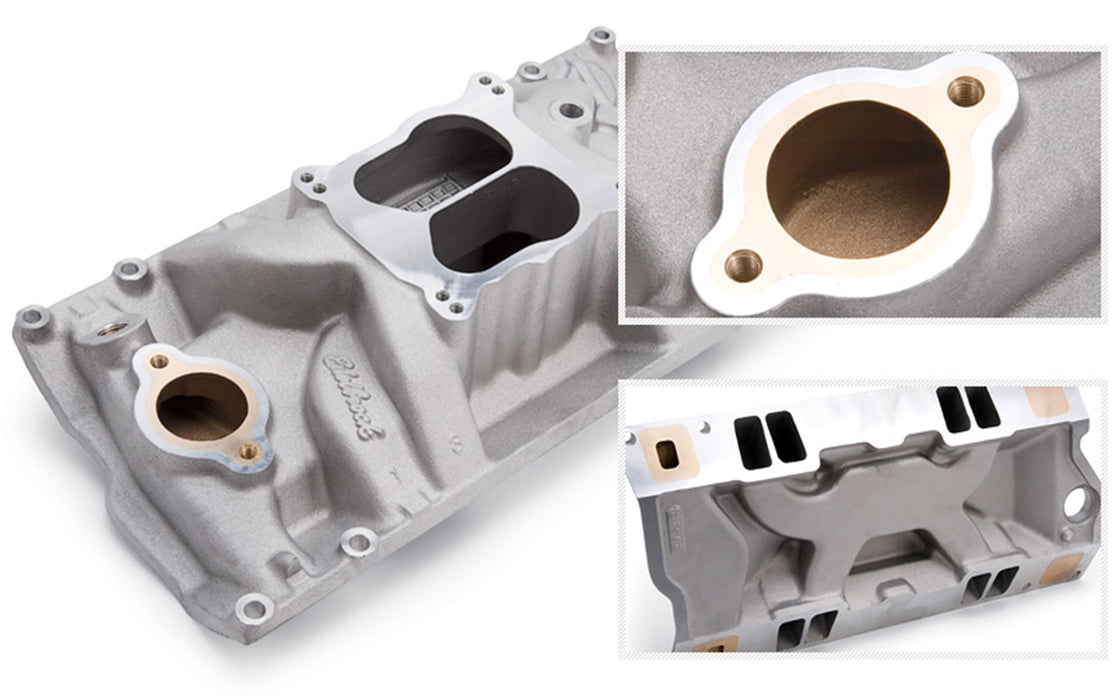

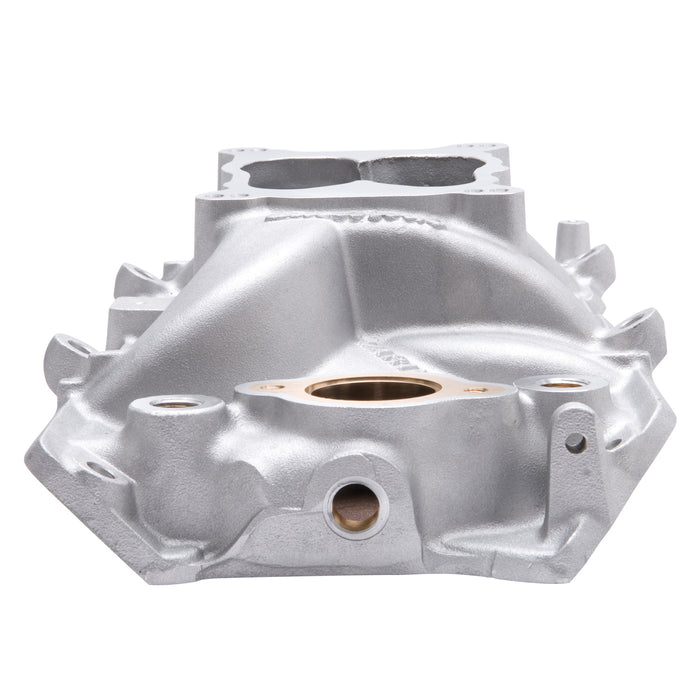

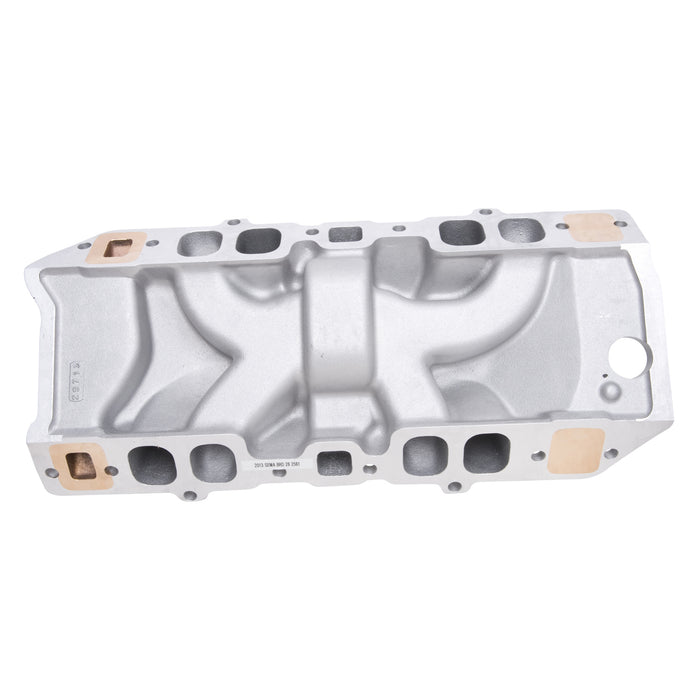

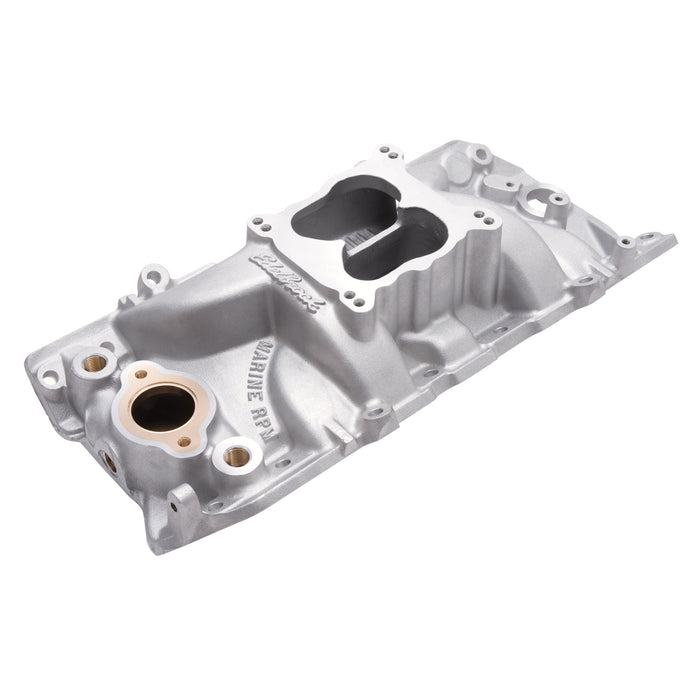

Edelbrock part #2561 Performer RPM Q-Jet marine intake manifold is designed for spread-bore carbs but also works with Edelbrock square-bore carbs without adapter on street 396-502 c.i.d. Chevy V8's with large oval-port (1975 and earlier) heads. This marine intake features brass lined water passage and brass flange inserts to cover rear water openings. No provisions for hot air style chokes. Accepts divorced choke, late-model waterneck, air-conditioning, alternator and HEI equipment.
Specifications
| Basic Operating RPM Range | 1500-6500 |
| Center Maximum Height | 5.220 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer RPM Marine Q-Jet Intake Manifold for 396-502 Big-Block Chevrolet w/Oval Port Heads. All Cooling Water Passages are Lined with Brass to Prevent Corrosion. Accepts Q-jet or 4150-Style Square-Bore Marine Carburetor. Non-EGR |
| Description_FAB | Broad Powerband |
| Description_FAB | Cast Aluminum |
| Description_INV | Marine BBC Oval Port Intake Manifold |
| Description_KEY | 2561; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Satin |
| Description_LAB | Performer RPM 4V/Q-JET Marine Intake Manifold for Big-Block Chevy-Oval port |
| Description_MKT | Edelbrock part #2561 Performer RPM Q-Jet marine intake manifold is designed for spread-bore carbs but also works with Edelbrock square-bore carbs without adapter on street 396-502 c.i.d. Chevy V8's with large oval-port (1975 and earlier) heads. This marine intake features brass lined water passage and brass flange inserts to cover rear water openings. No provisions for hot air style chokes. Accepts divorced choke, late-model waterneck, air-conditioning, alternator and HEI equipment. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 7in.} |
| Description_TRA | Carb pad height: 5.22" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-4.45", B-6.0" |
| Description_TRA | Port exit dimensions: 1.60"w x 1.94"t |
| Description_TRA | Recommended intake gasket: Edelbrock #7203 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Will not fit under stock hood of Corvette, 1964-67 Chevelle, or 1967-81 Camaro. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7203 • Will not fit under stock hood of Corvette; 1964-67 Chevelle; or 1967-81 Camaro. • Manifold height: A-4.45in.; B-6.0in. • Carb pad height: 5.22in. • Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm • Port exit dimensions: 1.60in.w x 1.94in.t • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No - For Oval Port |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 4.450 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 12.0 |
| length | 24.0 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 6.000 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer RPM |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Chevrolet |
| weight | 24.0 |
| width | 6.75 |
