Description

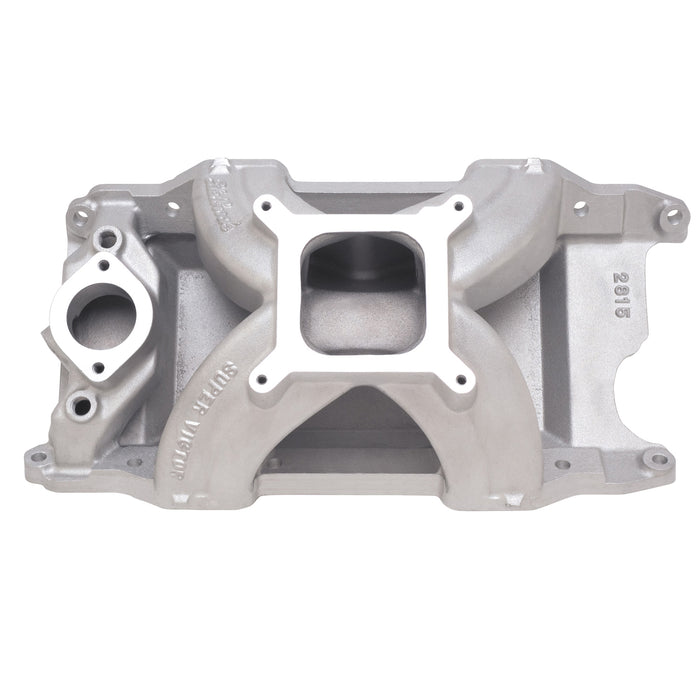

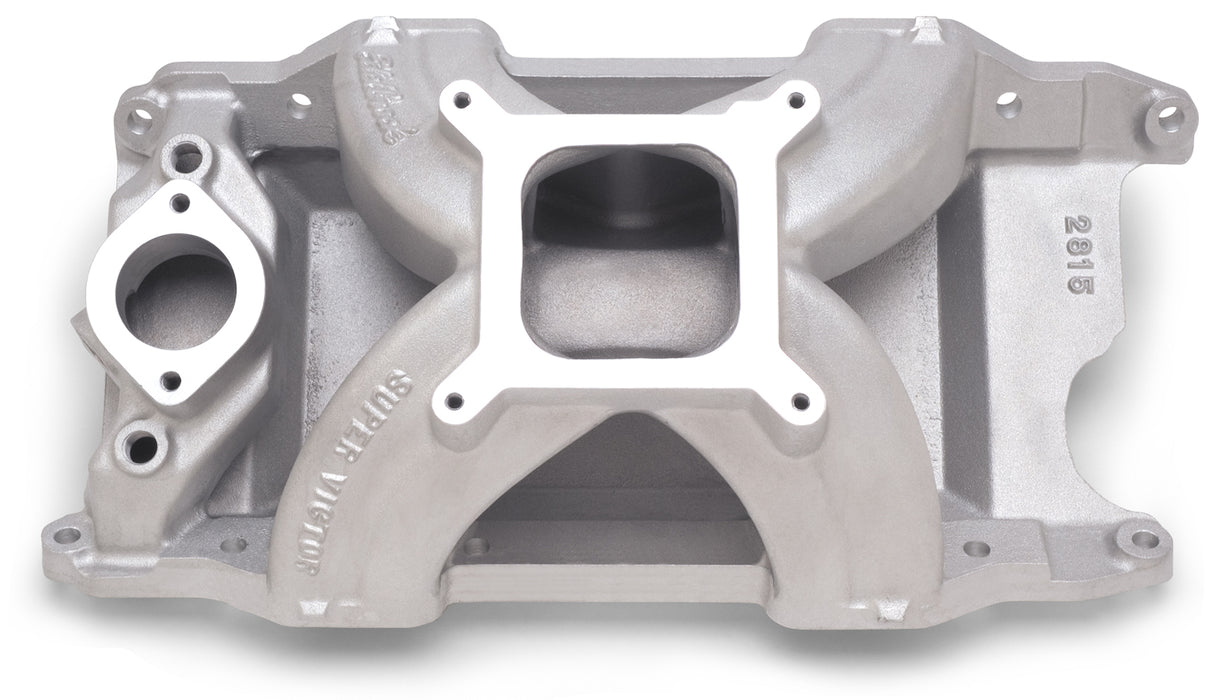

Edelbrock part #2815 Super Victor intake manifold is designed for small-block Chrysler engines with conventional rectangular port heads like Edelbrock Performer RPM cylinder heads or Victor heads, this single-plane Air-Gap style manifold operates from 3500 to 8000 rpm. Testing has shown substantial mid-range gains over the current designs. The runners have been cast in such a way to insure enough metal thickness to allow for gasket matching and porting. Accepts 1975 and earlier waterneck only.
Specifications
| Basic Operating RPM Range | 3500-8000 |
| Center Maximum Height | 6.300 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chrysler:Small-Block LA-Series:340 (5.6L)/360 (5.9L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Super Victor Intake Manifold for 318-340-360 Small-Block Chrysler "LA" Engines is Designed for high-performance's street & Competition Applications. Accepts a 4150-Style Square-Bore Carburetor. Non-EGR. |
| Description_EXT | Edelbrock Super Victor Intake Manifold for 318-340-360 Small-Block Chrysler LA Engines is Designed for high-performance s street Competition Applications. Accepts a 4150-Style Square-Bore Carburetor. Non-EGR. |
| Description_FAB | Extended Constant Cross-Section of Runners |
| Description_FAB | For 3500 to 8000 RPM High-Performance Engines |
| Description_FAB | Single-Plane Air-Gap Style Manifold |
| Description_FAB | Substantial Mid Range Gains |
| Description_INV | Super Victor 340/360 Intake Manifold |
| Description_KEY | 2815; Chrysler; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Super Victor; Satin |
| Description_LAB | Super Victor Intake Manifold for Small-Block Chrysler LA Engines |
| Description_MKT | Edelbrock part #2815 Super Victor intake manifold is designed for small-block Chrysler engines with conventional rectangular port heads like Edelbrock Performer RPM cylinder heads or Victor heads, this single-plane Air-Gap style manifold operates from 3500 to 8000 rpm. Testing has shown substantial mid-range gains over the current designs. The runners have been cast in such a way to insure enough metal thickness to allow for gasket matching and porting. Accepts 1975 and earlier waterneck only. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Carb recommendations: Use appropriate racing carburetor |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold ht.: A-6.30", B-6.30" |
| Description_TRA | Port exit dimensions .98"x 2.15" |
| Description_TRA | Recommended intake gasket: Edelbrock #7276. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7276. • Manifold ht.: A-6.30in.; B-6.30in. • Carb recommendations: Use appropriate racing carburetor • Port exit dimensions .98in.x 2.15in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 6.300 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 6.300 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Chrysler |
| weight | 23.1 |
| width | 14.75 |
