Description

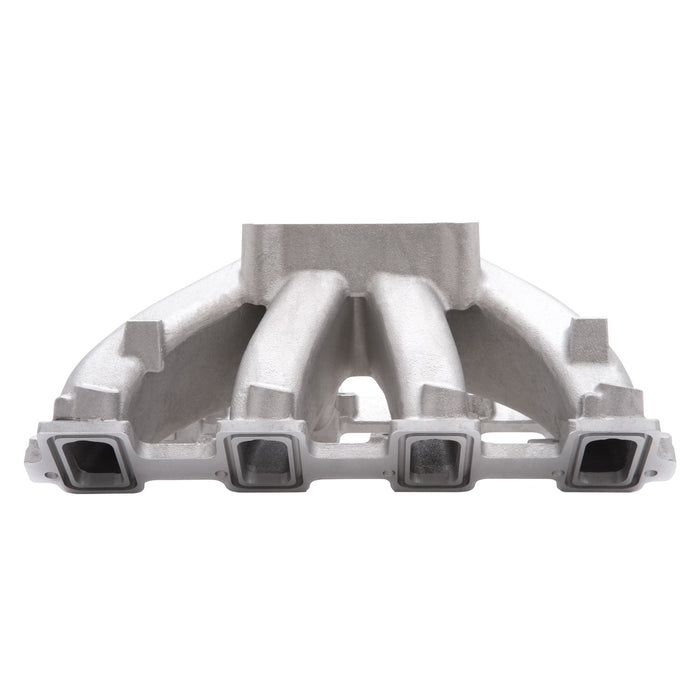

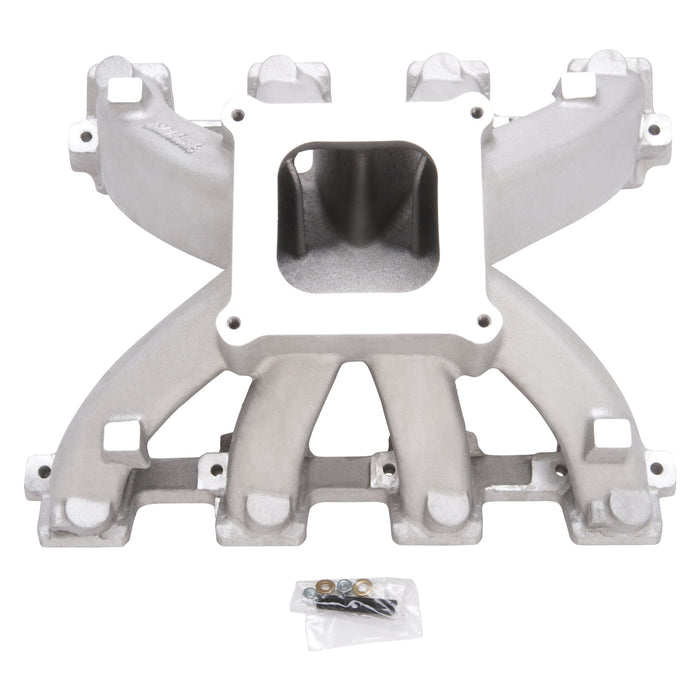

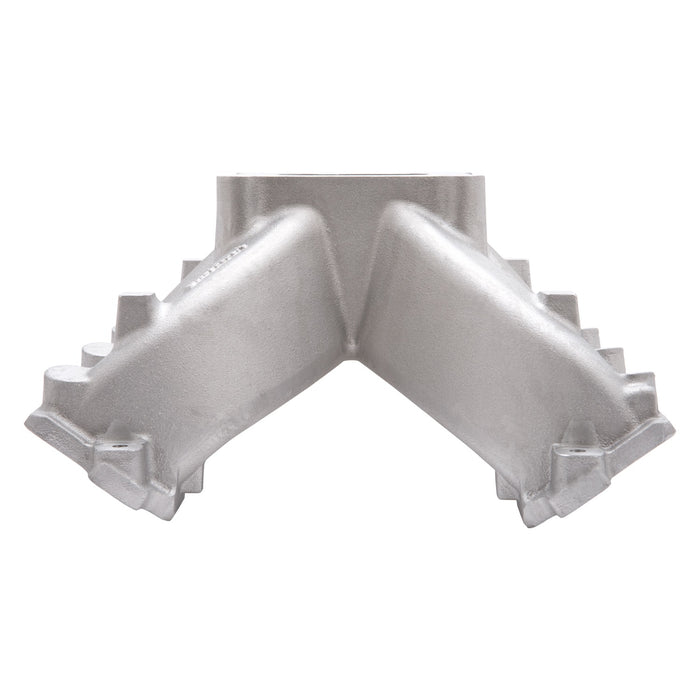

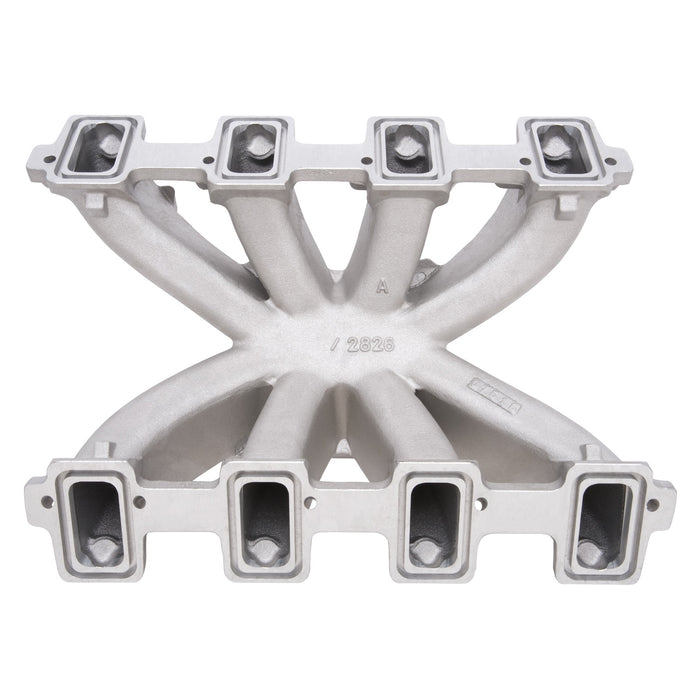

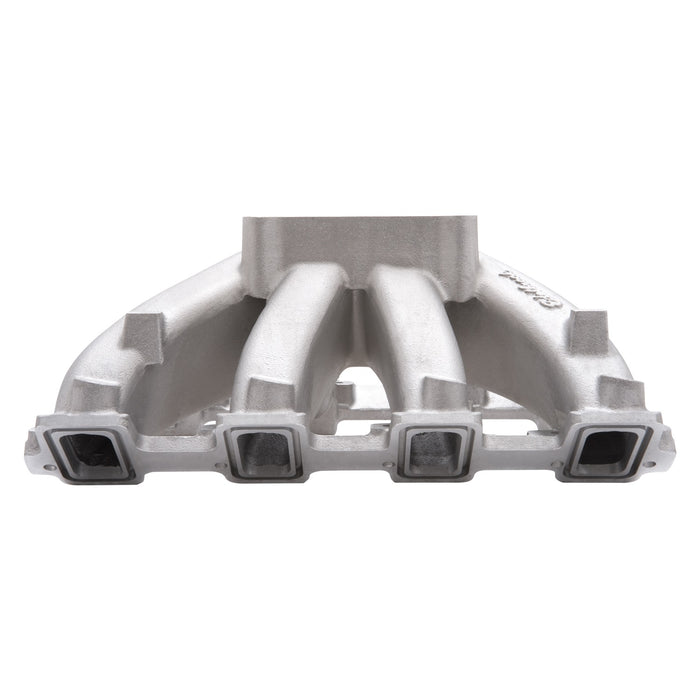

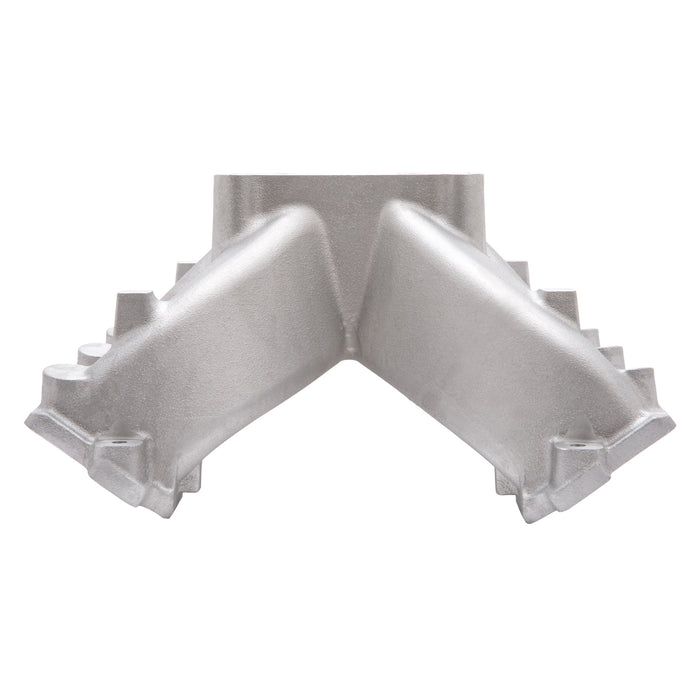

Edelbrock part #2826 Super Victor LS3 carbureted intake manifold is designed for Gen IV LS engines equipped with LS3 cylinder heads. This new Super Victor intake manifold is ideal for anyone building a 700+ hp 4150 series carbureted large displacement racing engine operating between 3,500 - 7,500 rpm. This new Super Victor intake manifold is designed with 24% larger runners than our Victor Jr. #28457 along with a larger 4500 style plenum. The large plenum makes this intake manifold ideal for nitrous and forced induction applications. This intake manifold also features tapered runners for increased flow at high rpm. A carburetor mounted style throttle bracket is recommended.
Specifications
| Basic Operating RPM Range | 3500-7500 |
| Center Maximum Height | 7.670 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen IV L76:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L76:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV L92:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV L99:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV LS3:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L92:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L99:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV LS3:364 (6.0L)/376 (6.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Super Victor LS3 Carbureted Intake Manifold for Small-Block Chevrolet Gen IV Engines with LS3, L92, & L76 Rectangle Port Cylinder Heads. Accepts 4150-Series Carburetor. Non-EGR. |
| Description_EXT | Edelbrock Super Victor LS3 Carbureted Intake Manifold for Small-Block Chevrolet Gen IV Engines with LS3; L92; L76 Rectangle Port Cylinder Heads. Accepts 4150-Series Carburetor. Non-EGR. |
| Description_FAB | For 3500 to 7500 RPM High-Performance Engines |
| Description_FAB | Ideal For Drag Racing Or Marine Applications |
| Description_FAB | Use For Any Application Requiring Maximum Power |
| Description_INV | Super Victor LS3 4150 Carburetor Intake |
| Description_KEY | 2826; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Super Victor; Victor; Satin |
| Description_LAB | Super Victor Small-Block Chevy LS3 4150 Carburetor Intake manifold |
| Description_MKT | Edelbrock part #2826 Super Victor LS3 carbureted intake manifold is designed for Gen IV LS engines equipped with LS3 cylinder heads. This new Super Victor intake manifold is ideal for anyone building a 700+ hp 4150 series carbureted large displacement racing engine operating between 3,500 - 7,500 rpm. This new Super Victor intake manifold is designed with 24% larger runners than our Victor Jr. #28457 along with a larger 4500 style plenum. The large plenum makes this intake manifold ideal for nitrous and forced induction applications. This intake manifold also features tapered runners for increased flow at high rpm. A carburetor mounted style throttle bracket is recommended. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Carb height (CH) for this manifold is measured from the valley cover flange to the carb pad. |
| Description_TRA | Carb pad height: 7.67" |
| Description_TRA | Carb recommendations: Use appropriate 4150/4500 Series racing carburetor |
| Description_TRA | dimensions machine matched: 1.27" x 2.58" |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-7.67", B-7.67" |
| Description_TRA | Port exit |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Uses LS3/L76/LS92 style individual port o-ring seals GM PN19256623 |
| Description_TRA | • Uses LS3/L76/LS92 style individual port o-ring seals GM PN19256623 • Manifold height: A-7.67in.; B-7.67in. • Carb pad height: 7.67in. • Carb height (CH) for this manifold is measured from the valley cover flange to the carb pad. • Carb recommendations: Use appropriate 4150/4500 Series racing carburetor • Port exit • dimensions machine matched: 1.27in. x 2.58in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 7.670 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 10.0 |
| length | 22.0 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 7.670 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Chevrolet |
| weight | 23.4 |
| width | 17.0 |
