Description

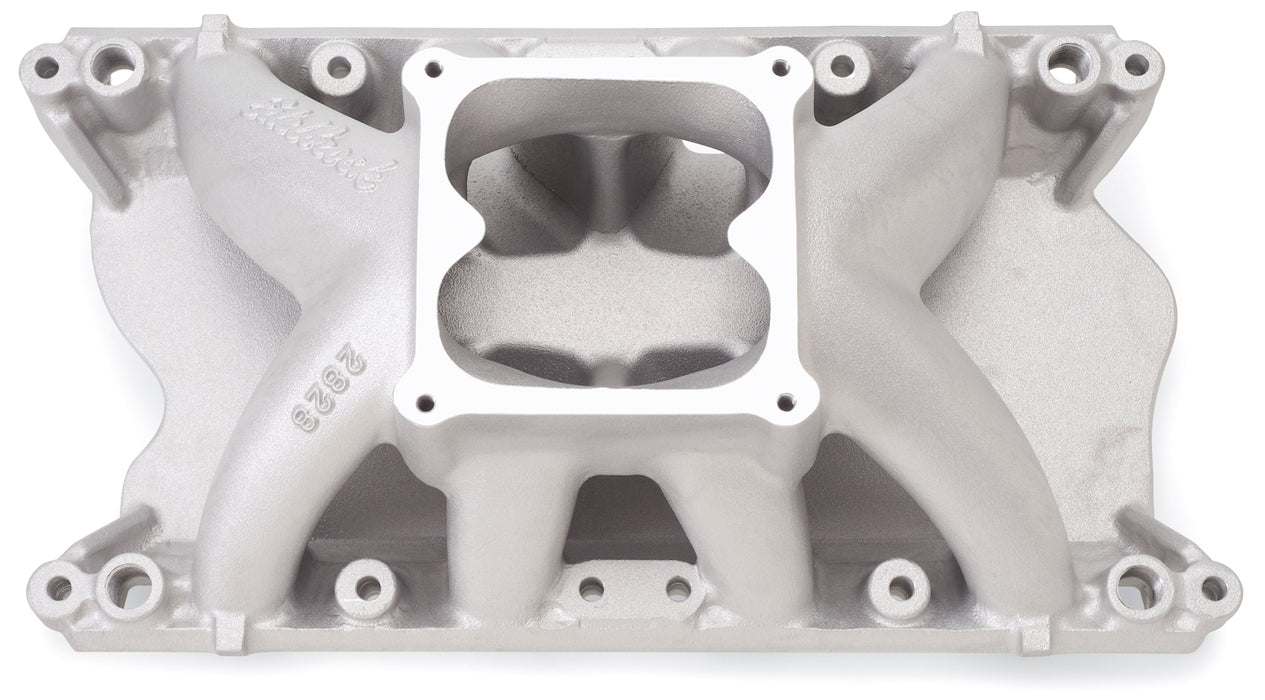

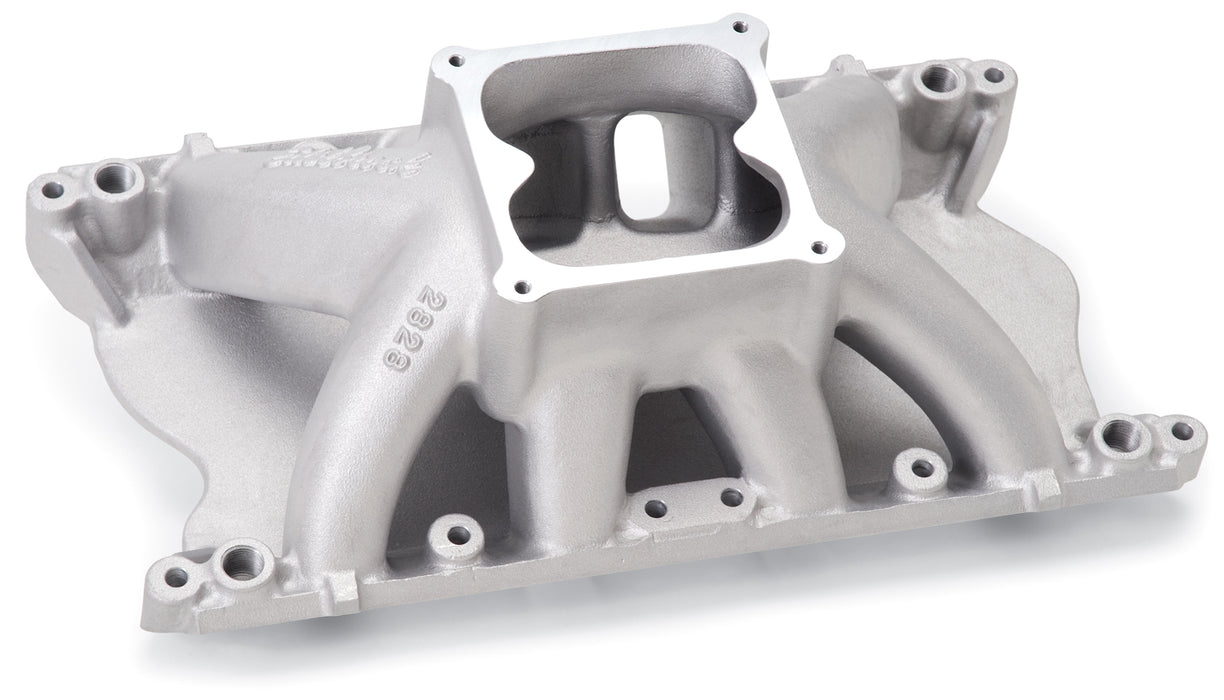

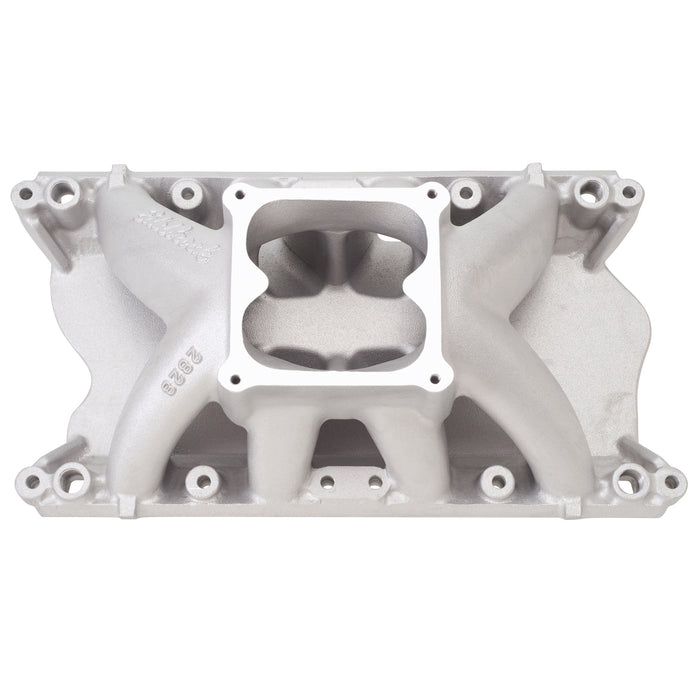

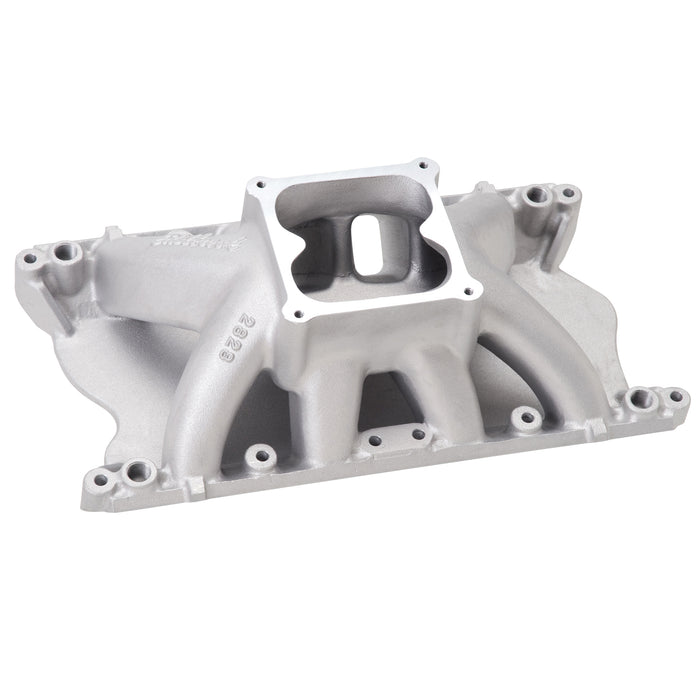

Edelbrock part #2828 Glidden Victor 351W intake manifold is developed in conjunction with noted Ford drag racer Billy Glidden, this manifold is a larger version of our popular Super Victor 351W. Featuring a 4500 series carb pad, it is intended for high rpm and large displacement Windsor headed small-block Fords with a 9.5" deck height. The runner area has been enlarged to 3.6 square inches and the plenum has been increased to produce more high rpm power. To maintain optimum runner shape and location, the front water cross-over has been eliminated, but water fittings have been provided on the intake flange for external plumbing of a thermostat if desired. The carburetor pad height on this manifold is only 0.620" taller than the #2924, making it ideal for single-carb all-out drag racing vehicles.
Specifications
| Basic Operating RPM Range | 5000-9000 |
| Center Maximum Height | 7.080 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Ford:Small-Block Windsor:351 (5.8L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Gidden Victor 351W Intake Manifold for Small-Block Ford 351-427 Windsor V8 is Designed to fit Windsor Cylinder Heads on a 9.5" Deck Block for Large Cubic Inch & High Horsepower Applications. Accepts 4500-Series Carburetor. Non-EGR |
| Description_EXT | Edelbrock Gidden Victor 351W Intake Manifold for Small-Block Ford 351-427 Windsor V8 is Designed to fit Windsor Cylinder Heads on a 9.5in. Deck Block for Large Cubic Inch High Horsepower Applications. Accepts 4500-Series Carburetor. Non-EGR |
| Description_FAB | Carburetor Mounting Flange For 4500-Series Carb |
| Description_FAB | Designed with Drag Racer Billy Glidden |
| Description_FAB | For 5000 to 9000 RPM High-Performance Engines |
| Description_FAB | For Windsor Headed Small Block Ford |
| Description_FAB | Use with 9.5 in. Deck Height |
| Description_FAB | Uses Large 3.6 sq in. Runners |
| Description_INV | Victor Gildden Ford 351W 9.5 |
| Description_KEY | 2828; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Victor; Satin |
| Description_LAB | Victor Gildden 351W 9.5 Intake Manifold Small-Block Ford |
| Description_MKT | Edelbrock part #2828 Glidden Victor 351W intake manifold is developed in conjunction with noted Ford drag racer Billy Glidden, this manifold is a larger version of our popular Super Victor 351W. Featuring a 4500 series carb pad, it is intended for high rpm and large displacement Windsor headed small-block Fords with a 9.5" deck height. The runner area has been enlarged to 3.6 square inches and the plenum has been increased to produce more high rpm power. To maintain optimum runner shape and location, the front water cross-over has been eliminated, but water fittings have been provided on the intake flange for external plumbing of a thermostat if desired. The carburetor pad height on this manifold is only 0.620" taller than the #2924, making it ideal for single-carb all-out drag racing vehicles. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Carb recommendations: Any size or type class allows |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-6.97", B-6.97" |
| Description_TRA | Recommended intake gasket: Fel-Pro #1262 or #1262R. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Fel-Pro # 1262 or # 1262R. • Manifold height: A-6.97in.; B-6.97in. • Carb recommendations: Any size or type class allows • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4500 |
| Front Maximum Height | 7.080 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 9.5 |
| length | 24.25 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 7.080 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Ford |
| weight | 23.65 |
| width | 16.5 |
