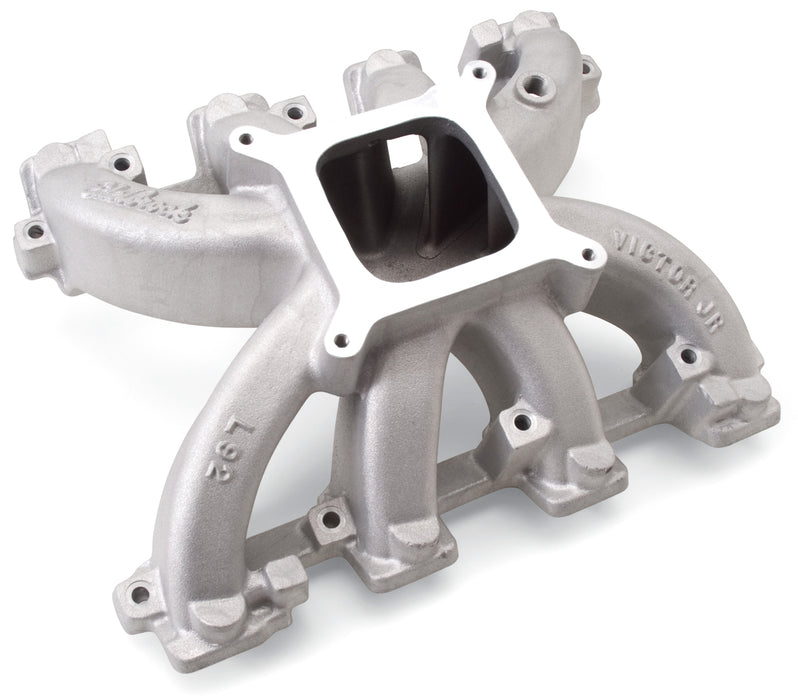

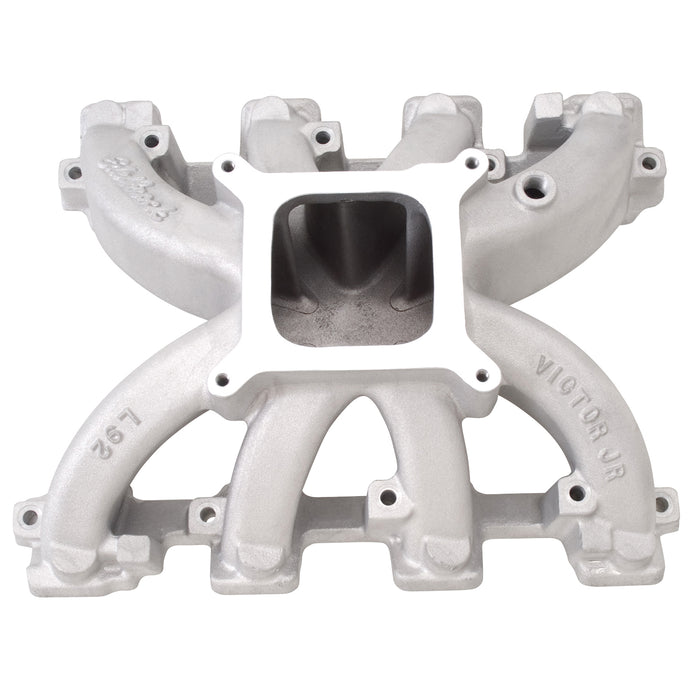

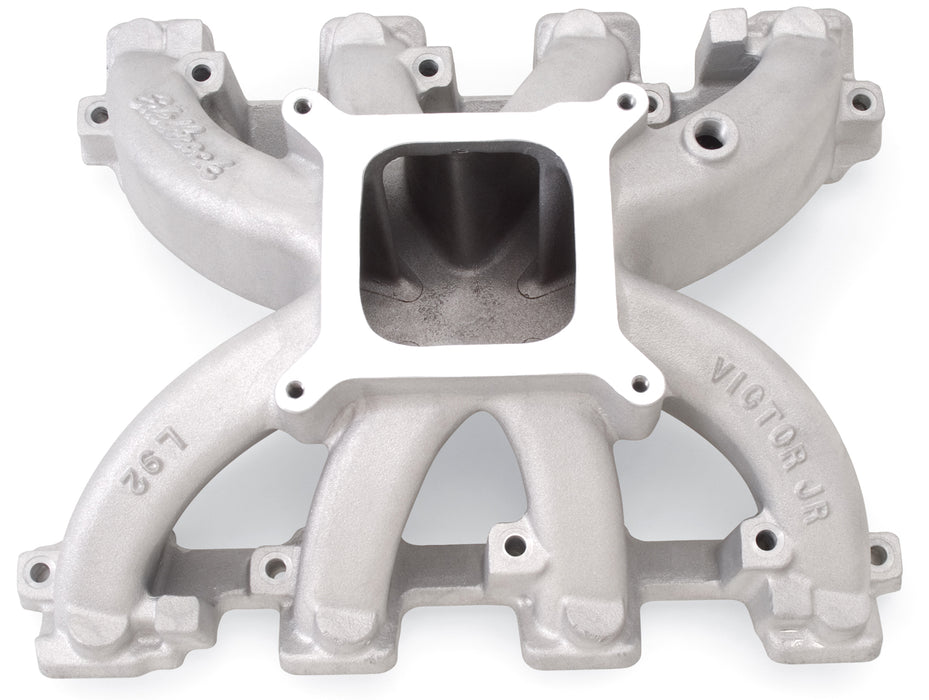

Edelbrock 28457 Edelbrock Victor Jr Carburetor LS3/L92/L76 Intake Manifold GM LS Engines
by Edelbrock
SKU ds_BDVJ_28457
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$613.22
-
Original price
$613.22
Original price
$613.22
$613.22
$613.22
-
$613.22
Current price
$613.22
Description
Edelbrock part #28457 Victor JR. LS3 intake manifold is designed for Gen IV LS engines equipped with LS3, L92 and L76 cylinder heads. This manifold is for carbureted racing applications operating between 3500-7500 rpm. This manifold uses a standard square bore carb flange that is compatible. The LS3, L92 and L76 all use the same cylinder head.
Specifications
| Basic Operating RPM Range | 3500-7500 |
| Center Maximum Height | 7.400 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen IV L76:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L76:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV L92:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV L99:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV LS3:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L92:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L99:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV LS3:364 (6.0L)/376 (6.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Victor Jr Carburetor LS3/L92/L76 Intake Manifold GM LS Engines |
| Description_FAB | Designed For 3500 To 1500 RPM Performance |
| Description_FAB | Gen IV LS Engines With L92 Heads |
| Description_FAB | Single-Plane Maximizes Torque And Horsepower |
| Description_INV | Victor Jr Carburetor LS3/L92/L76 |
| Description_KEY | 28457; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Victor JR.; Satin |
| Description_LAB | Victor Jr Small Block Chevy LS3/L92/L76 Intake Manifold Carburetor |
| Description_MKT | Edelbrock part #28457 Victor JR. LS3 intake manifold is designed for Gen IV LS engines equipped with LS3, L92 and L76 cylinder heads. This manifold is for carbureted racing applications operating between 3500-7500 rpm. This manifold uses a standard square bore carb flange that is compatible. The LS3, L92 and L76 all use the same cylinder head. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 6in.} |
| Description_TRA | 4150 Carb flange |
| Description_TRA | L92 heads are intended for 4.00" bores and will not work with 5.7L blocks without valve reliefs |
| Description_TRA | Manifold Dimensions: Roof to bolt centerline-1.85", Floor to bolt centerline -0.57", Hieght-2.42", Carb pad height 7.40" |
| Description_TRA | Throttle body recommendations: Edelbrock #38783 |
| Description_TRA | Uses LS3/L76/L92 style individual port O-ring seals GM PN19256623 |
| Description_TRA | • Uses LS3/L76/L92 style individual port O-ring seals GM PN19256623 • 4150 Carb flange • Throttle body recommendations: Edelbrock # 38783 • L92 heads are intended for 4.00in. bores and will not work with 5.7L blocks without valve reliefs • Manifold Dimensions: Roof to bolt centerline-1.85in.; Floor to bolt centerline-0.57in.; Hieght-2.42in.; Carb pad height 7.40in. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 7.400 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.3 |
| length | 24.0 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 7.400 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Chevrolet |
| weight | 18.95 |
| width | 14.5 |
