Description

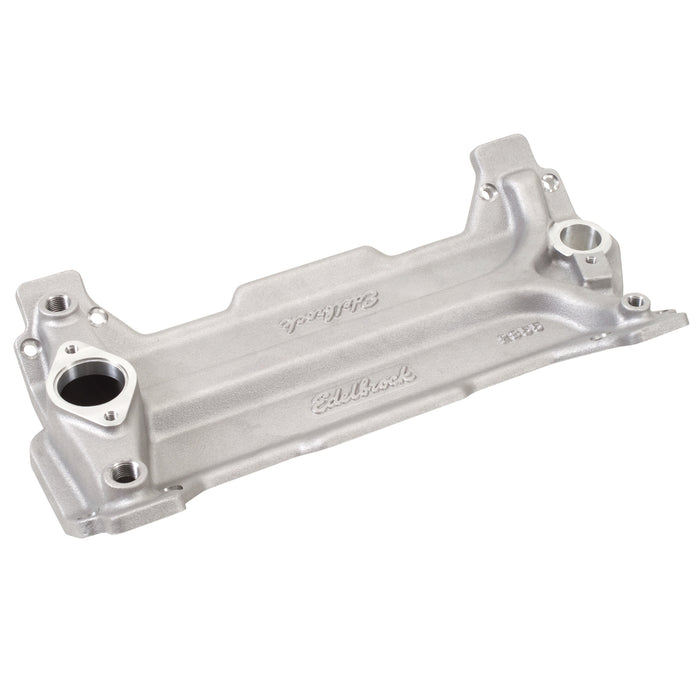

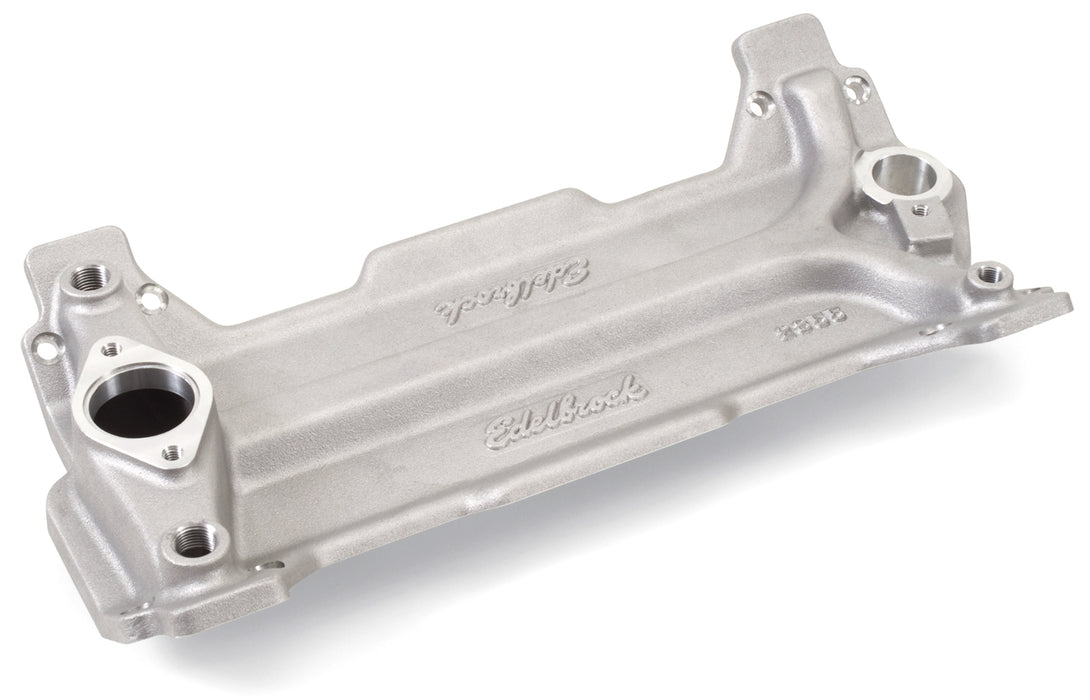

Edelbrock part #2855 Valley Plate is the bedding plate portion of a two-piece (valley plate and spider) manifold system. It is intended for use with Raised Port SBC heads on a standard deck engine block. Key feature of plate is a cast-in water passage simplifying plumbing by eliminating the need for external previsions. Flanges measure .436" thick and distributor pad is machined with standard angle.
Specifications
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen I Race |
| Description_DES | VALLEY PLATE |
| Description_EXT | Edelbrock part #2855 Valley Plate is the bedding plate portion of a two-piece (valley plate and spider) manifold system. It is intended for use with Raised Port SBC heads on a standard deck engine block. |
| Description_FAB | Advance/Retard Cam To 10 Deg. |
| Description_FAB | Allows For Custom Machining On Tall Deck Apps |
| Description_FAB | Can Only Be Used With Spider-Style Manifolds |
| Description_FAB | Designed With An Integrated Water Passage |
| Description_FAB | Eliminates The Need For Spacers |
| Description_FAB | Great Way To Manage Water Distribution |
| Description_INV | Valley Plate for SBC 18d Standard deck |
| Description_KEY | 2855; Edelbrock; Valley plate; Chevy; SBC; small block Chevy; raised port |
| Description_LAB | Spider Intake Manifold Lifter Valley Coolant Plate Small-Block Chevy |
| Description_MKT | Edelbrock part #2855 Valley Plate is the bedding plate portion of a two-piece (valley plate and spider) manifold system. It is intended for use with Raised Port SBC heads on a standard deck engine block. Key feature of plate is a cast-in water passage simplifying plumbing by eliminating the need for external previsions. Flanges measure .436" thick and distributor pad is machined with standard angle. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | • Maximum deck height: 9.080in. • Conventional 18 Degree applications will require additional machining or manifold and valley plate for desired clearance when using valley plate # 2855 Valley plate # 2992 can also be used when less machining is desired. • When using thick flange manifolds; machining of backside of flange is recommended for weight reduction. • Recommended valley plate gaskets: Fel-Pro # 1254-1 (0.030 thickness) or Fel-Pro # 1254 (0.060 thickness). |
| height | 6.5 |
| length | 22.75 |
| weight | 11.65 |
| width | 11.75 |
