Description

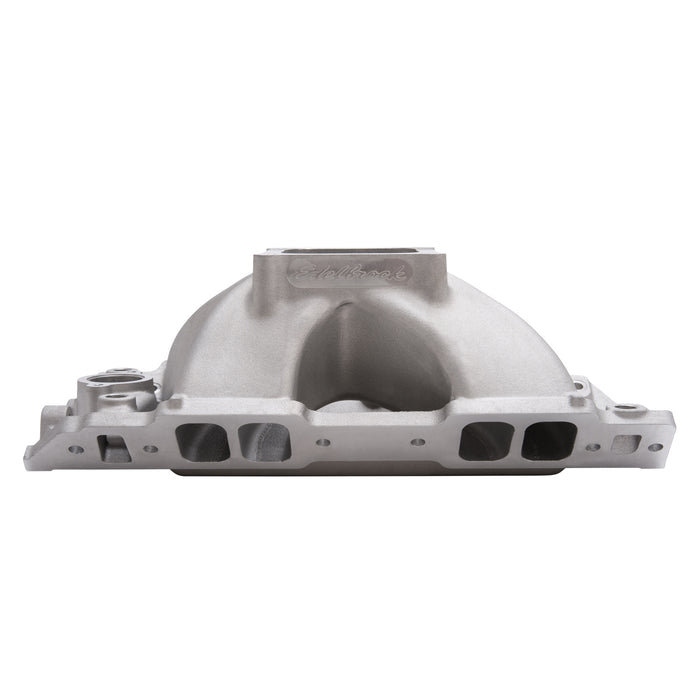

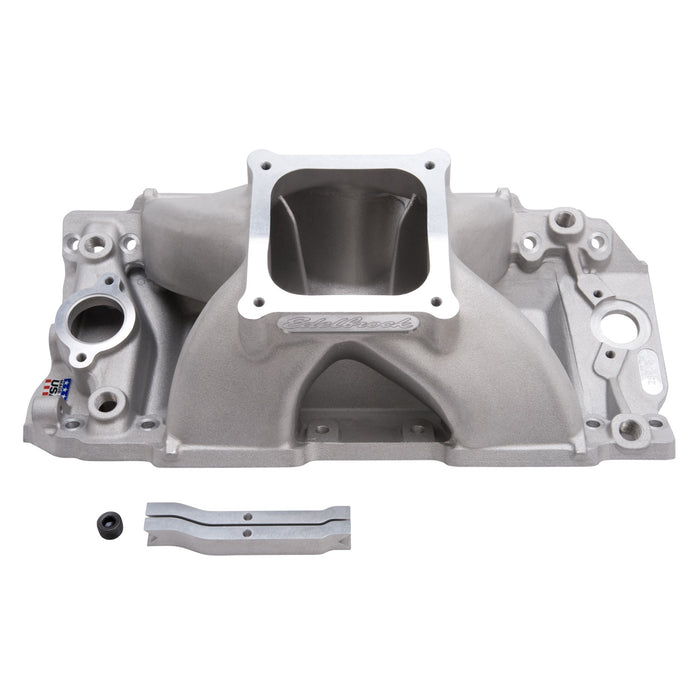

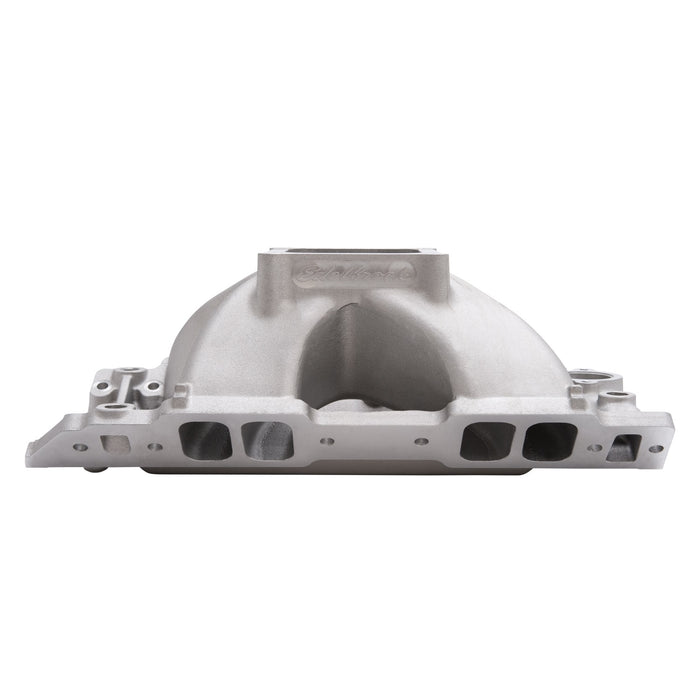

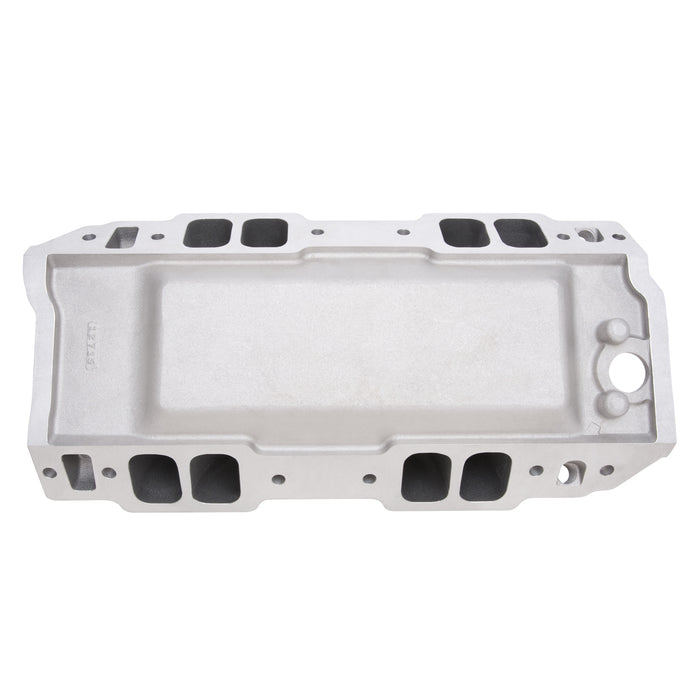

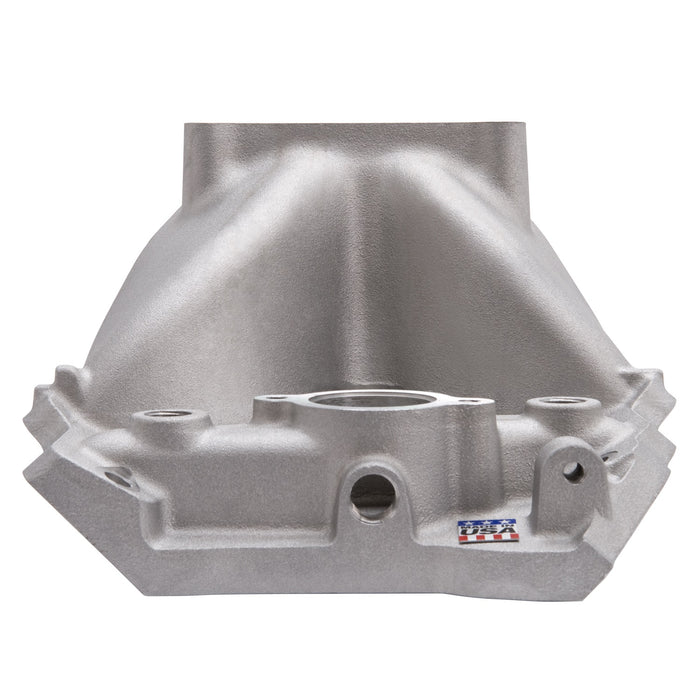

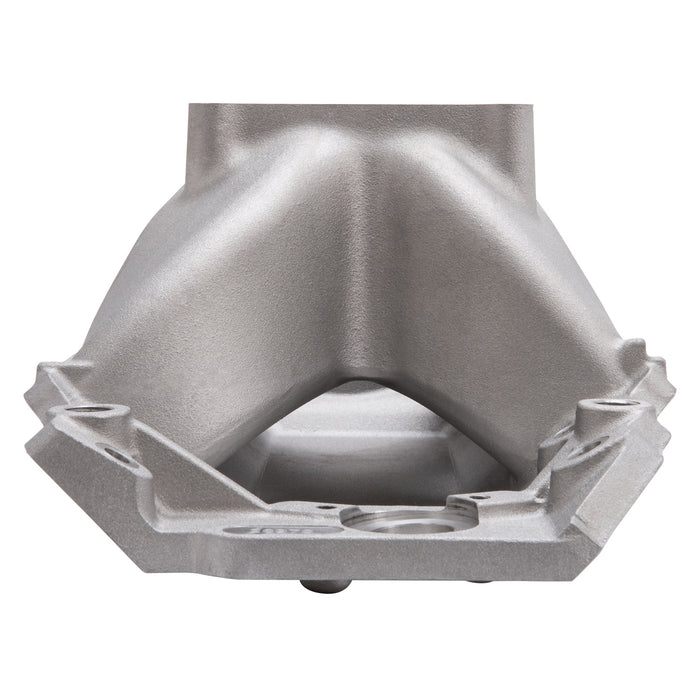

Edelbrock part #28978 Super Victor II intake manifold is designed for use with large cubic inch big-block Chevy Tall-Deck engines using the latest design conventional rectangular port heads. This single-plane intake manifold is ideal for any 1,000+ horsepower drag race engine with high air flow requirements. The Super Victor II intake manifold is machined for use on tall-deck (10.2") blocks with Brodix SR20 cylinder heads with no modifications out of the box. Accepts standard height distributors. All manifolds have an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops.
Specifications
| Basic Operating RPM Range | 3500-8500 |
| Center Maximum Height | 7.280 |
| CNC Ported | No |
| Cylinder Head Type | Rectangular Port |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Race |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Super Victor II Tall Deck Intake Manifold for use with Brodix SR20 Heads for Chevrolet Big-Block V8 |
| Description_FAB | Excellent For Large Displacement Drag Racing Eng. |
| Description_FAB | Extended Constant Cross-Section of Runners |
| Description_FAB | For 3500 to 8500 RPM High-Performance Engines |
| Description_INV | Super Victor 2 10.2 Deck Brodix SR20 |
| Description_KEY | 28978; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Super Victor 2; Satin |
| Description_LAB | Super Victor II Intake Manifold for BBC 10.2" Tall Deck with SR20 Heads |
| Description_LAB | Super Victor II Intake Manifold for BBC 10.2in. Tall Deck with SR20 Heads |
| Description_MKT | Edelbrock part #28978 Super Victor II intake manifold is designed for use with large cubic inch big-block Chevy Tall-Deck engines using the latest design conventional rectangular port heads. This single-plane intake manifold is ideal for any 1,000+ horsepower drag race engine with high air flow requirements. The Super Victor II intake manifold is machined for use on tall-deck (10.2") blocks with Brodix SR20 cylinder heads with no modifications out of the box. Accepts standard height distributors. All manifolds have an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Bolt centerline to floor: .91" |
| Description_TRA | Bolt centerline to roof: 1.53" |
| Description_TRA | Designed for tall deck block |
| Description_TRA | Designed for use with Brodix SR20 Heads |
| Description_TRA | Recommended intake gasket: Brodix MG 2021 |
| Description_TRA | • Recommended intake gasket: Brodix MG 2021 • Designed for tall deck block • Bolt centerline to floor: .91in. • Bolt centerline to roof: 1.53in. • Designed for use with Brodix SR20 Heads |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Chevy Big Block (396-502) |
| finish | Satin |
| Flange Type | 4500 |
| Front Maximum Height | 7.280 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 9.25 |
| length | 23.0 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 7.280 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 3500-8500 |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Usage | Racing |
| Vehicle Model | Chevrolet |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 27.95 |
| width | 16.12 |
