Edelbrock 29021 Edelbrock Victor Jr. 454-R Intake Manifold For Chevrolet 396-502 Big-Block V8
by Edelbrock
SKU ds_BDVJ_29021
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$1,175.83
-
Original price
$1,175.83
Original price
$1,175.83
$1,175.83
$1,175.83
-
$1,175.83
Current price
$1,175.83
Description

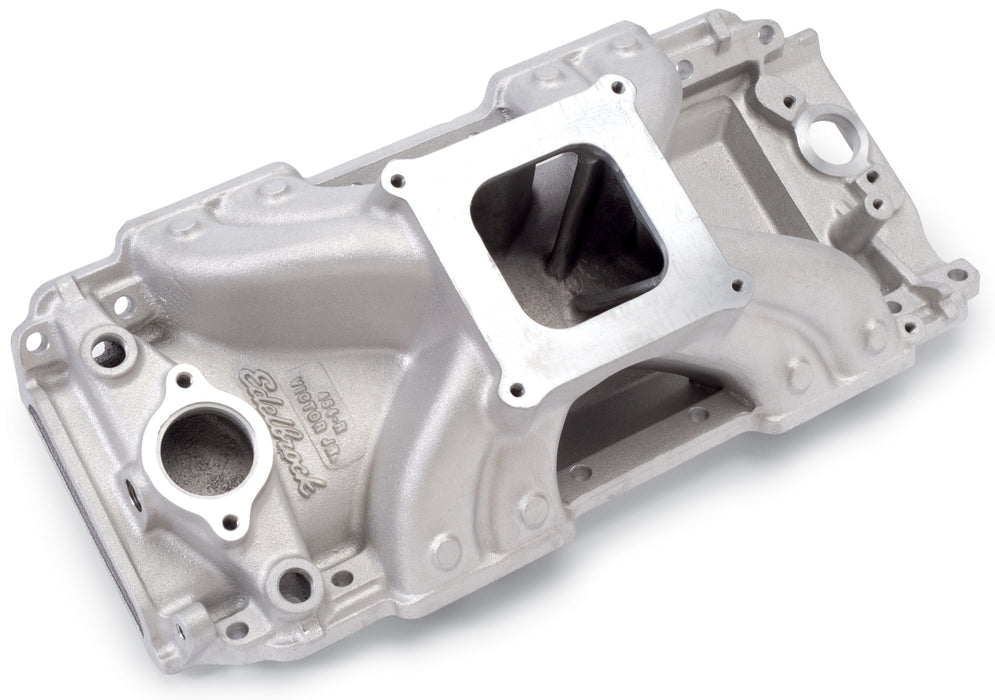

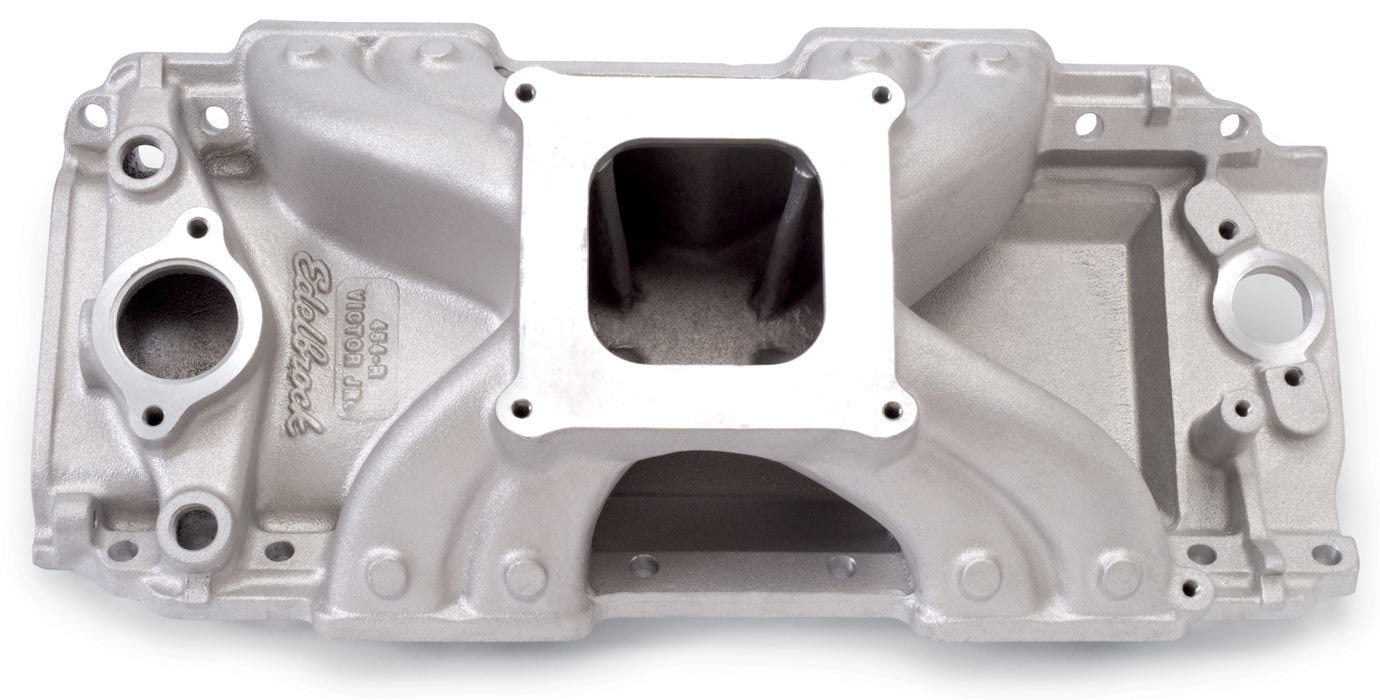

Edelbrock part #29021 Victor Jr. 454-R intake manifold is designed for competition 396-502 big-block Chevys with rectangular-port heads. This intake is designed to optimize the flow characteristics of an 850 cfm standard flange carb. Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 c.i.d. and smaller competition engines. The Victor Jr. 454-R will fit Edelbrock Victor race heads #77609 and Victor 24-degree #77409, #77459, #77429, #77479 and #77485. This manifold offers a polished finish for a brilliant shine and classic look.
Specifications
| Basic Operating RPM Range | 3500-7500 |
| Center Maximum Height | 5.960 |
| CNC Ported | No |
| Cylinder Head Type | Rectangular Port |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Victor Jr. 454-R Intake Manifold For Chevrolet 396-502 Big-Block V8 |
| Description_FAB | For Performance in 3500 to 7500 RPM Range |
| Description_FAB | Ideal for 502 cid and Smaller Competition Engines |
| Description_FAB | Race-Winning Design For All Types Of Competition |
| Description_FAB | Runners Feature Extra Material for Custom Porting |
| Description_FAB | Sold Complete |
| Description_INV | Polished Victor Jr BBC Rectangular Port |
| Description_KEY | 29021; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Victor JR.; Polished |
| Description_LAB | Victor Jr. Big Block Chevy 454-R Intake Manifold |
| Description_MKT | Edelbrock part #29021 Victor Jr. 454-R intake manifold is designed for competition 396-502 big-block Chevys with rectangular-port heads. This intake is designed to optimize the flow characteristics of an 850 cfm standard flange carb. Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 c.i.d. and smaller competition engines. The Victor Jr. 454-R will fit Edelbrock Victor race heads #77609 and Victor 24-degree #77409, #77459, #77429, #77479 and #77485. This manifold offers a polished finish for a brilliant shine and classic look. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Carb recommendations: Use appropriate racing carburetor |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-5.90" & B-5.90" |
| Description_TRA | Recommended intake gasket: Edelbrock #7208 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7208 • Manifold height: A-5.90in. B-5.90in. • Carb recommendations: Use appropriate racing carburetor • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Emission | N/A |
| Engine Make/Size | Chevy Big Block (396-502) |
| finish | Polished |
| Flange Type | 4150 |
| Front Maximum Height | 5.960 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 5.960 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 3500-7500 |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Usage | Racing |
| Vehicle Model | Chevrolet |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 21.45 |
| width | 14.75 |
