Description

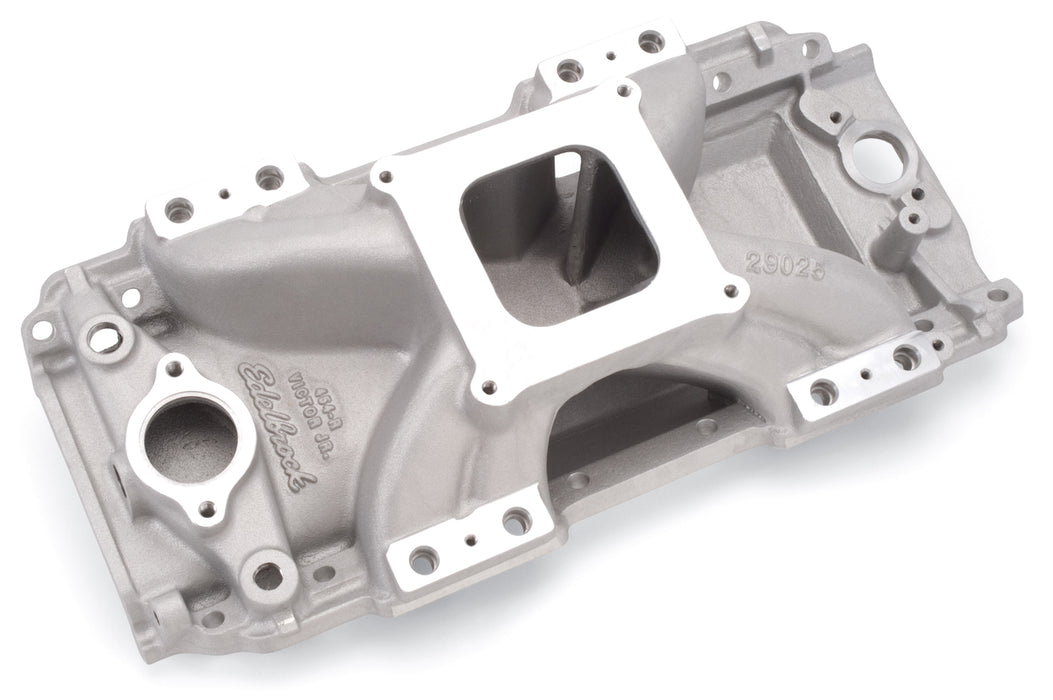

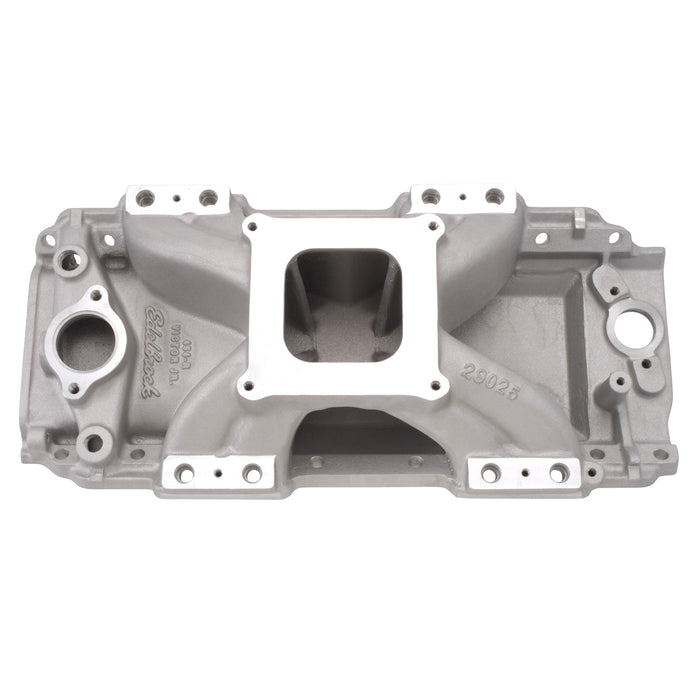

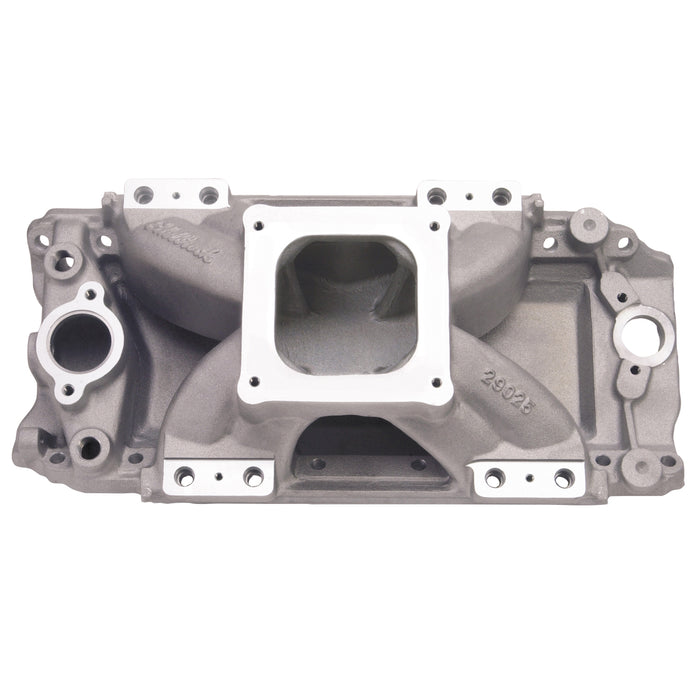

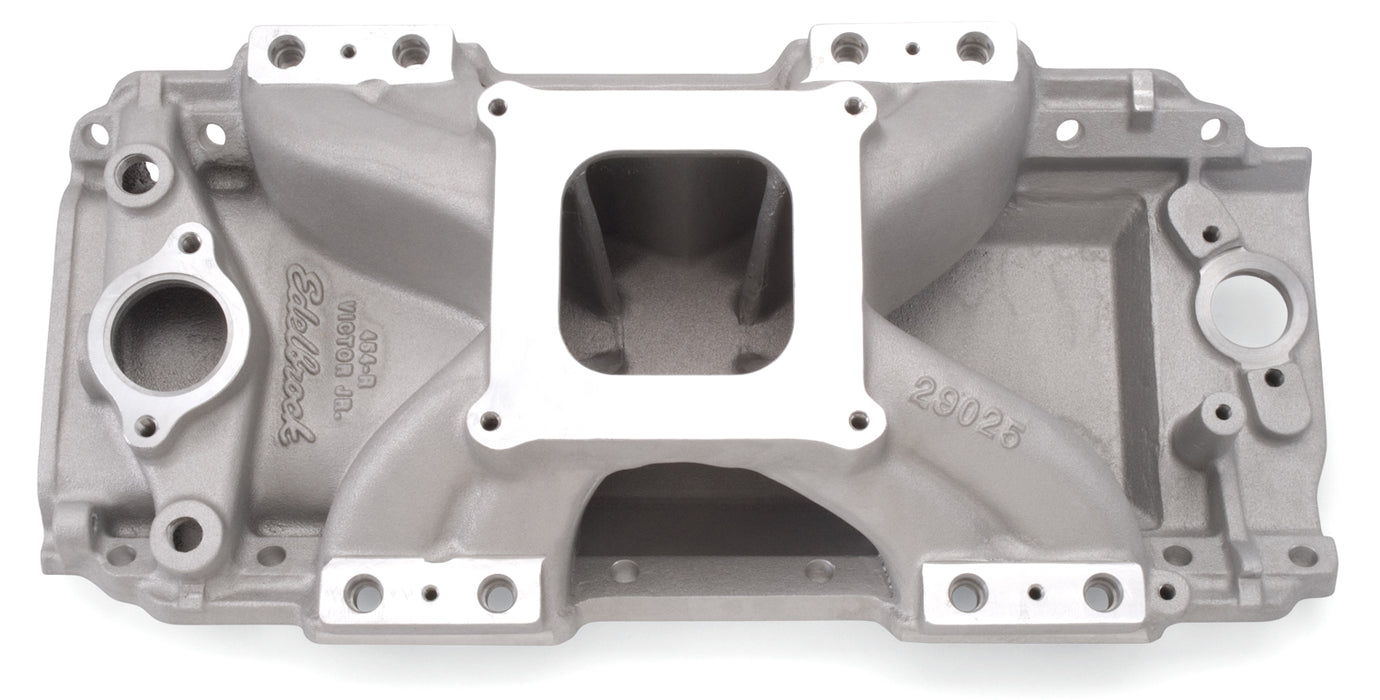

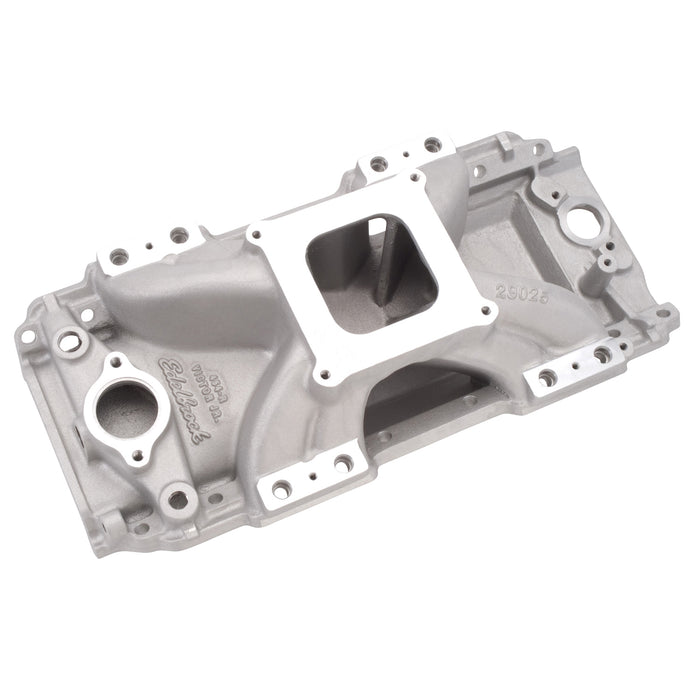

Edelbrock part #29025 Victor Jr. 454-R EFI intake manifold is designed for competition 396-502 big-block Chevy engines with rectangular-port cylinder heads. It features extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. These intake manifolds are especially suited to 502 c.i.d. and smaller competition engines. The Edelbrock Victor Jr. 454-R EFI intake manifold will fit Edelbrock Victor race cylinder heads #77609 and Victor 24 degree #77409, #77459, #77429, #77479 and #77489.
Specifications
| Basic Operating RPM Range | 3500-7500 |
| Center Maximum Height | 5.960 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Victor Jr. 454-R EFI Intake Manifold For Chevrolet 396-502 Big-Block V8 |
| Description_FAB | For Performance in 3500 to 7500 RPM Range |
| Description_FAB | Ideal for 502 cid and Smaller Competition Engines |
| Description_FAB | Race-Winning Design For All Types Of Competition |
| Description_FAB | Runners Feature Extra Material for Custom Porting |
| Description_FAB | Single-Plane Maximizes Torque And Horsepower |
| Description_INV | EFI Victor Jr BBC Rectangular Port |
| Description_KEY | 29025; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Victor JR.; EFI; Satin |
| Description_LAB | Victor Jr. Big Block Chevy 454-R EFI Intake Manifold |
| Description_MKT | Edelbrock part #29025 Victor Jr. 454-R EFI intake manifold is designed for competition 396-502 big-block Chevy engines with rectangular-port cylinder heads. It features extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. These intake manifolds are especially suited to 502 c.i.d. and smaller competition engines. The Edelbrock Victor Jr. 454-R EFI intake manifold will fit Edelbrock Victor race cylinder heads #77609 and Victor 24 degree #77409, #77459, #77429, #77479 and #77489. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Manifold height: A-5.90" & B-5.90" |
| Description_TRA | Recommended intake gasket: Edelbrock #7208 |
| Description_TRA | Throttle Body Recommendations: Use #3878 4V series or #3849 EFI elbow and #3869 90mm throttle body. |
| Description_TRA | • Throttle Body Recommendations: Use # 3878 4V series or # 3849 EFI elbow and # 3869 90mm throttle body. • Recommended intake gasket: Edelbrock # 7208 • Manifold height: A-5.90in. B-5.90in. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 5.960 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 5.960 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Chevrolet |
| weight | 22.6 |
| width | 14.75 |
