Description

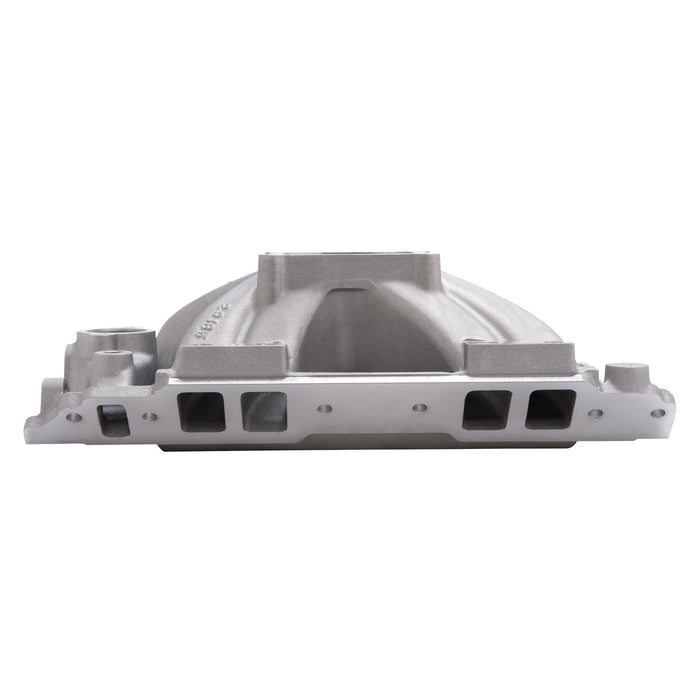

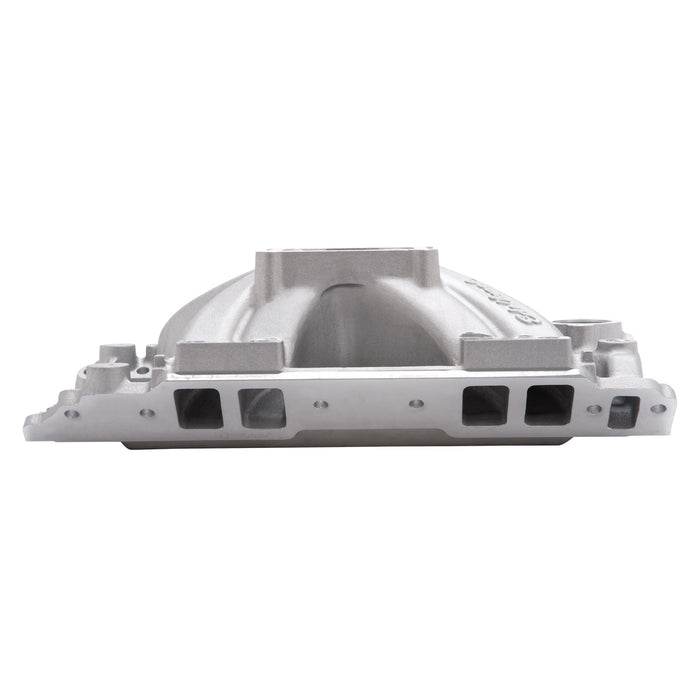

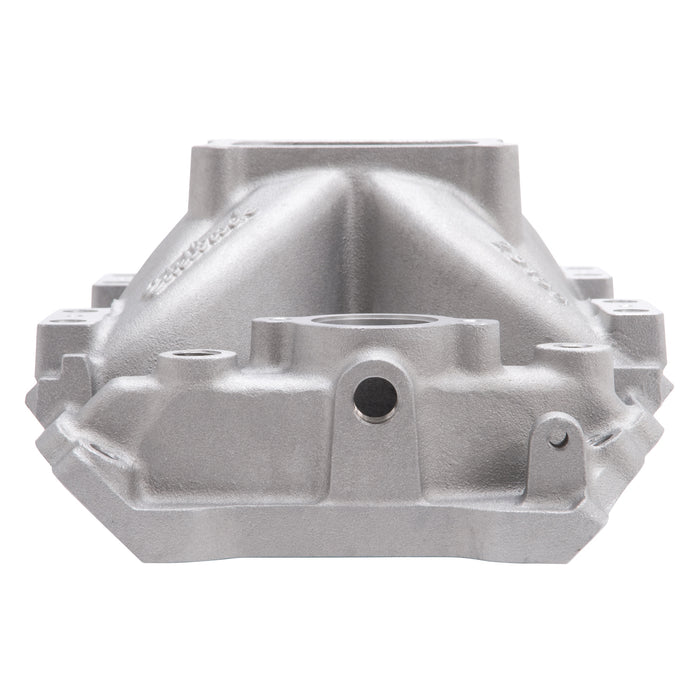

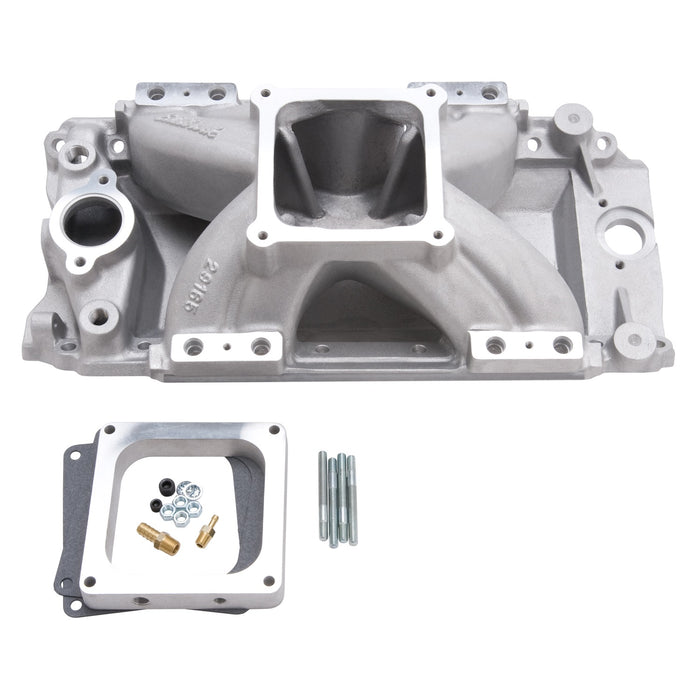

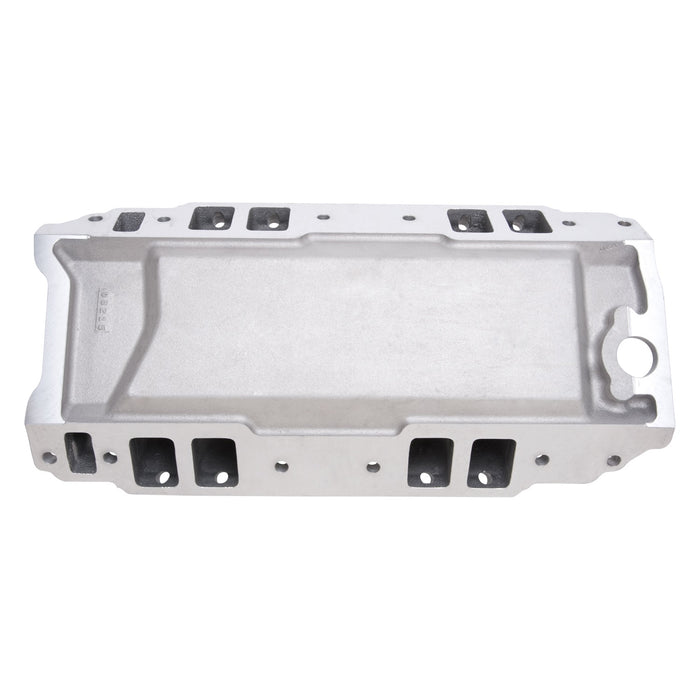

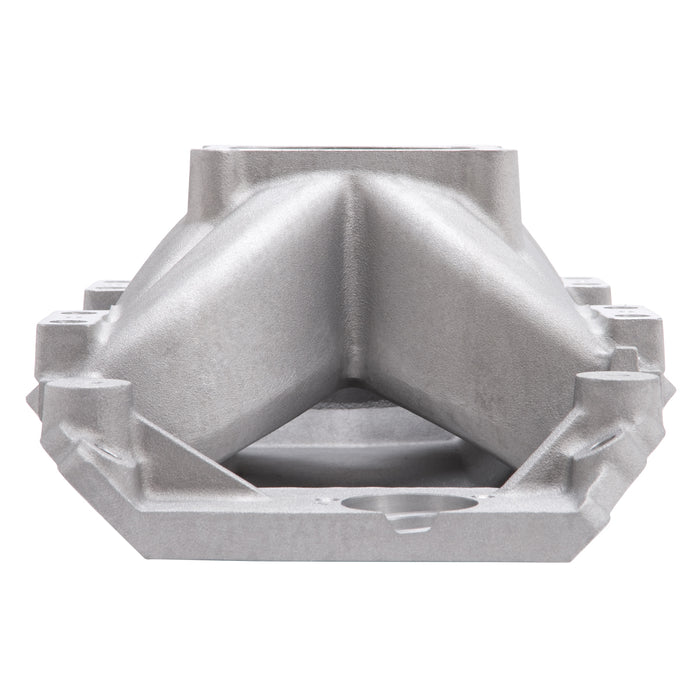

Edelbrock part #29165 Super Victor BBC #29165 Tall-Deck EFI intake manifold is designed for Chevy big-blocks with rectangular port cylinder heads. This single-plane design is ideal for 500+ cubic-inches or any big-block drag race engine with high air flow requirements. In dyno testing, Super Victor #29165 Tall-Deck EFI outperformed the competition out-of-the-box with just a port match and minor blending of critical surfaces.
Specifications
| Basic Operating RPM Range | 3500-8500 |
| Center Maximum Height | 6.950 |
| CNC Ported | No |
| Cylinder Head Type | Rectangular Port |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Super Victor EFI Tall Deck Intake Manifold For Chevrolet 500+ Ci. Big-Block V8 |
| Description_EXT | Edelbrock Super Victor EFI Tall Deck Intake Manifold For Chevrolet 500+Ci. Big-Block V8 |
| Description_FAB | For Up To 8000 RPM High-Performance Engines |
| Description_FAB | Ideal For 500+ cid Engines |
| Description_FAB | Ideal For Big Block Drag Eng. w/High Flow Req. |
| Description_INV | EFI Super Victor Tall Deck 10.2 Intake |
| Description_KEY | 29165; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Super Victor; Satin |
| Description_LAB | Super Victor EFI Tall Deck Big Block Chevy Intake Manifold |
| Description_MKT | Edelbrock part #29165 Super Victor BBC #29165 Tall-Deck EFI intake manifold is designed for Chevy big-blocks with rectangular port cylinder heads. This single-plane design is ideal for 500+ cubic-inches or any big-block drag race engine with high air flow requirements. In dyno testing, Super Victor #29165 Tall-Deck EFI outperformed the competition out-of-the-box with just a port match and minor blending of critical surfaces. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-6.20", B-6.20" |
| Description_TRA | Recommended intake gasket: Edelbrock #7208, Fel-Pro #1275 |
| Description_TRA | Throttle body recommendations: Edelbrock #3879 4500 style or #3814 EFI elbow and #3869 90mm throttle body. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7208; Fel-Pro # 1275 • Manifold height: A-6.20in.; B-6.20in. • Throttle body recommendations: Edelbrock # 3879 4500 style or # 3814 EFI elbow and # 3869 90mm throttle body. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Chevy Big Block (396-502) |
| finish | Satin |
| Flange Type | 4500 |
| Front Maximum Height | 6.950 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 9.0 |
| length | 22.06 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | None; For Fuel Injection |
| Position | N/A |
| Rear Maximum Height | 6.950 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 3500-8500 |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Usage | Racing |
| Vehicle Model | Chevrolet |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 26.4 |
| width | 15.75 |
