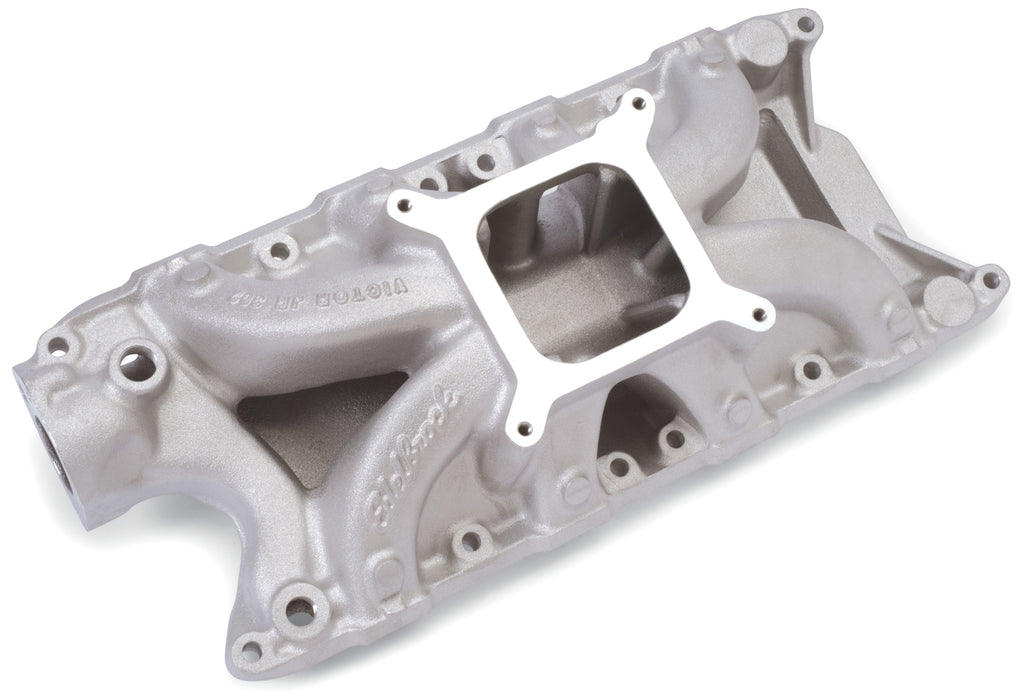

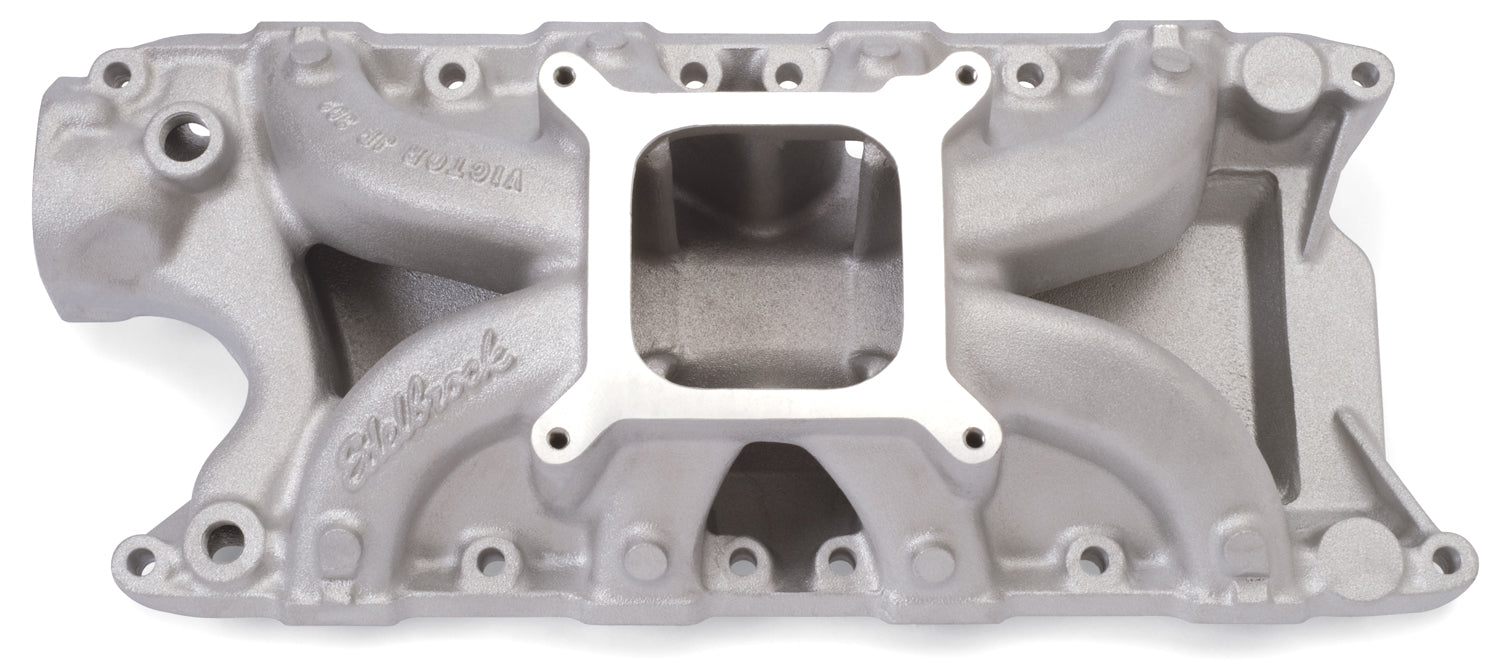

Edelbrock 2921 Edelbrock Victor Jr. 302 Intake Manifold for Ford 289-347 Small-Block V8
by Edelbrock
SKU ds_BDVJ_2921
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$644.62
-
Original price
$644.62
Original price
$644.62
$644.62
$644.62
-
$644.62
Current price
$644.62
Description
Edelbrock part #2921 Victor Jr. 302 intake manifold is designed for Ford 289-302 competition engines using modified stock cast iron or aftermarket Windsor-style cylinder heads such as Edelbrock #60259 and #77169 or equivalent. This intake manifold has bosses for rear water crossover. Port exit size at cylinder head is 1.08" x 1.90" with extra material to accommodate a 1.18" x 2.10" opening. This Victor Jr. is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.
Specifications
| Basic Operating RPM Range | 3500-8000 |
| Center Maximum Height | 5.500 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Ford:Small-Block Windsor:260 (4.3L)/289 (4.7L)/302 (5.0L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Victor Jr. 302 Intake Manifold for Ford 289-347 Small-Block V8 |
| Description_FAB | For Modified OE or Aftermarket Windsor Alum Heads |
| Description_FAB | For Performance in 3500 to 7500 RPM Range |
| Description_FAB | Match with Edelbrock Heads for Max Performance |
| Description_FAB | Port Exits Can be Opened to 2.10 x 1.18 in. |
| Description_FAB | Race-Winning Design For All Types Of Competition |
| Description_FAB | Runners Feature Extra Material for Custom Porting |
| Description_FAB | Single-Plane Maximizes Torque And Horsepower |
| Description_INV | Victor Jr Ford 8.2 Deck Intake Manifold |
| Description_KEY | 2921; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Victor JR.; Satin |
| Description_LAB | Victor Jr. 302 Intake Manifold Small-Block Ford |
| Description_MKT | Edelbrock part #2921 Victor Jr. 302 intake manifold is designed for Ford 289-302 competition engines using modified stock cast iron or aftermarket Windsor-style cylinder heads such as Edelbrock #60259 and #77169 or equivalent. This intake manifold has bosses for rear water crossover. Port exit size at cylinder head is 1.08" x 1.90" with extra material to accommodate a 1.18" x 2.10" opening. This Victor Jr. is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Carb recommendations: Use appropriate racing carburetor |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-5.50", B-5.50" |
| Description_TRA | Recommended intake gasket: Edelbrock #7220 or Fel-Pro #1250 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7220 or Fel-Pro # 1250 • Manifold height: A-5.50in.; B-5.50in. • Carb recommendations: Use appropriate racing carburetor • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Ford 260-302 |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 5.500 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 5.500 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 3500-8000 |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Usage | Racing |
| Vehicle Model | Ford |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 18.8 |
| width | 14.75 |
