Description

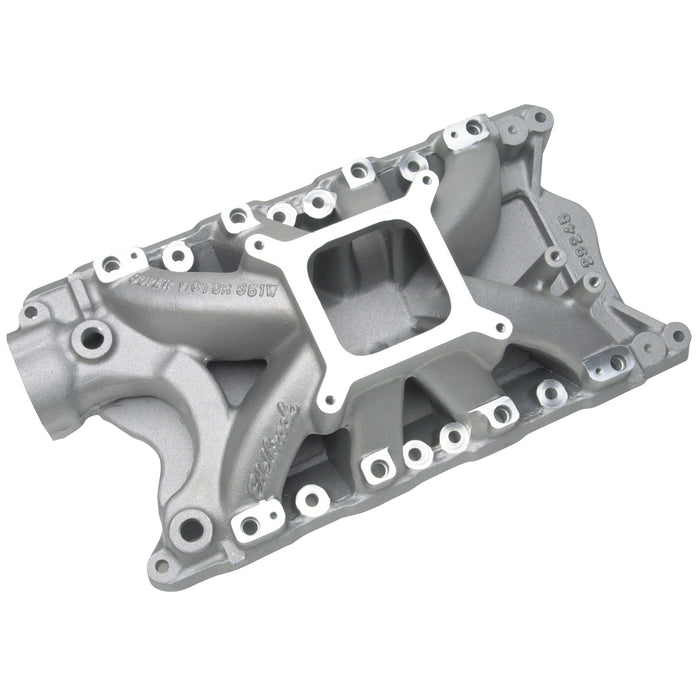

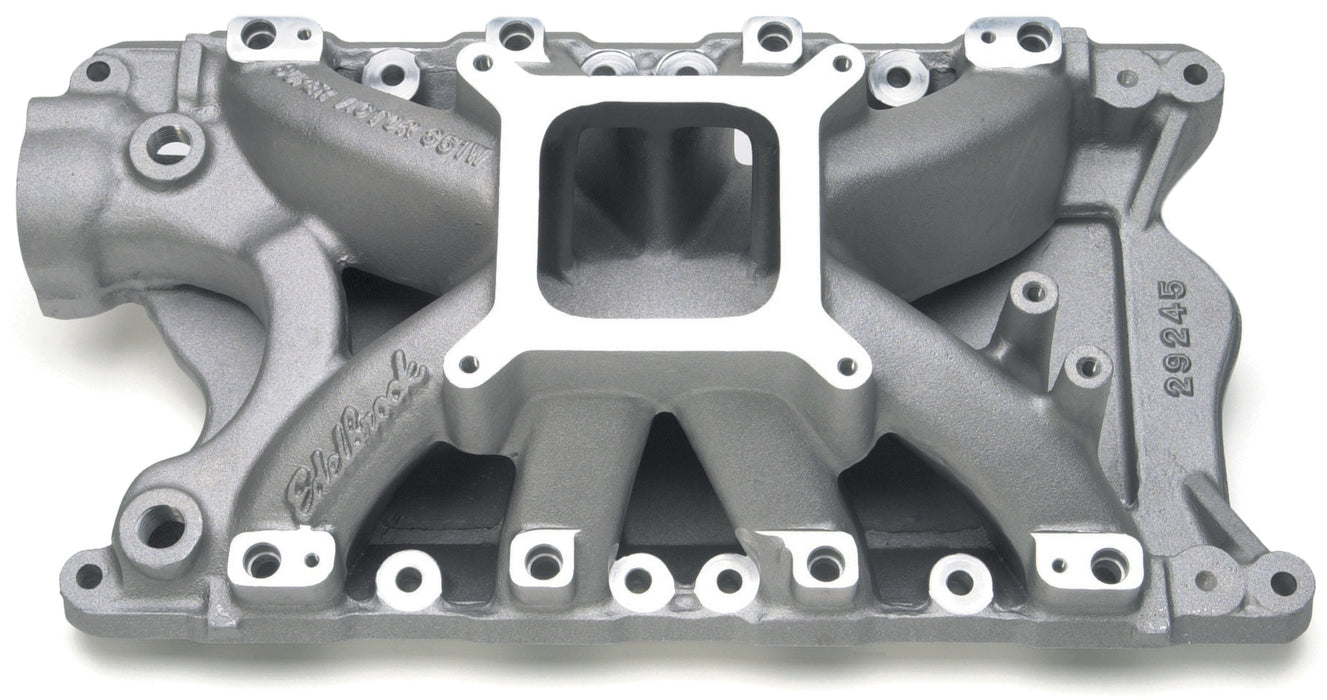

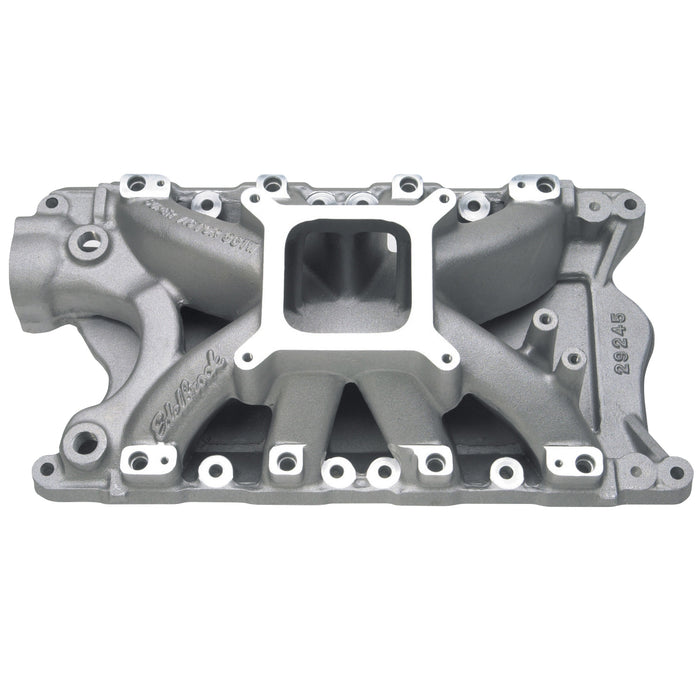

Edelbrock part #29245 Super Victor 351W EFI intake manifold is designed for high rpm or large displacement competition 351 Windsor Ford V8's with a deck height of 9.5". It's ideal for drag racing or oval track engines operating between 4500 and 8500 rpm. This intake manifold can be used with ported factory cast iron heads, however aftermarket aluminum heads are recommended, such as Edelbrock Victor Jr. #77169 or Victor heads #77219 for ultra high-horsepower. Runners have a 3.20 square-inch cross sectional area.
Specifications
| Basic Operating RPM Range | 4500-8500 |
| Center Maximum Height | 6.250 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Ford:Small-Block Windsor:351 (5.8L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Super Victor EFI 351W (9.5" deck) Intake Manifold for Ford 351-427 Small-Block Windsor V8 |
| Description_EXT | Edelbrock Super Victor EFI 351W (9.5in. deck) Intake Manifold for Ford 351-427 Small-Block Windsor V8 |
| Description_FAB | Direct Line of Sight Flow Path Maximizes Flow |
| Description_FAB | Extended Constant Cross-Section of Runners |
| Description_FAB | Features Precision Machined Injector Bosses |
| Description_FAB | For Up To 8000 RPM High-Performance Engines |
| Description_FAB | Great Mid-Range Torque For Short Track Power |
| Description_FAB | Improved Throttle Response For 60 ft. Times |
| Description_FAB | Makes it Simple to Convert To EFI |
| Description_INV | EFI Super Victor 351W Intake Manifold |
| Description_KEY | 29245; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Super Victor; Satin |
| Description_LAB | Super Victor EFI Small Block Ford 351W Intake Manifold |
| Description_MKT | Edelbrock part #29245 Super Victor 351W EFI intake manifold is designed for high rpm or large displacement competition 351 Windsor Ford V8's with a deck height of 9.5". It's ideal for drag racing or oval track engines operating between 4500 and 8500 rpm. This intake manifold can be used with ported factory cast iron heads, however aftermarket aluminum heads are recommended, such as Edelbrock Victor Jr. #77169 or Victor heads #77219 for ultra high-horsepower. Runners have a 3.20 square-inch cross sectional area. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Fuel rail kit: Edelbrock #3620 |
| Description_TRA | Manifold height: A-6.25", B-6.25" |
| Description_TRA | MSD distributor #8578 must be used to clear the front water crossover. |
| Description_TRA | or use #3849 EFI elbow and Ford style single 90mm throttle body #3818 |
| Description_TRA | Recommended intake gasket: Fel-Pro #1262 or #1262R. |
| Description_TRA | Throttle body recommendations: Edelbrock #38783 4150 style 4V |
| Description_TRA | • Recommended intake gasket: Fel-Pro # 1262 or # 1262R. • Throttle body recommendations: Edelbrock # 38783 4150 style 4V; or use # 3849 EFI elbow and Ford style single 90mm throttle body # 3818 • Fuel rail kit: Edelbrock # 3620 • MSD distributor # 8578 must be used to clear the front water crossover. • Manifold height: A-6.25in.; B-6.25in. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Ford 5.8L/351W |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 6.250 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | None; For Fuel Injection |
| Position | N/A |
| Rear Maximum Height | 6.250 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 4500-8500 |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Usage | Racing |
| Vehicle Model | Ford |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 26.0 |
| width | 14.75 |
