Description

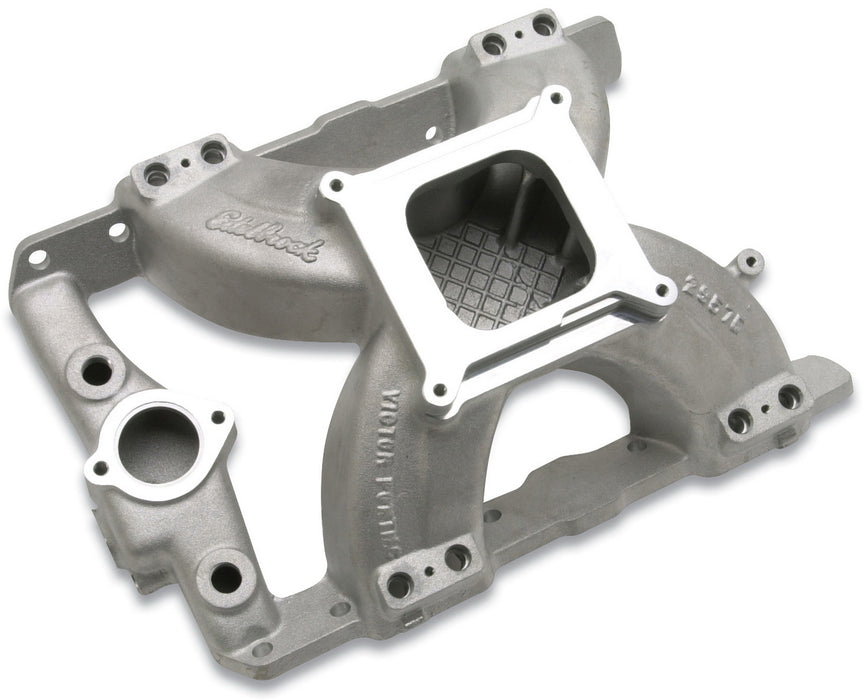

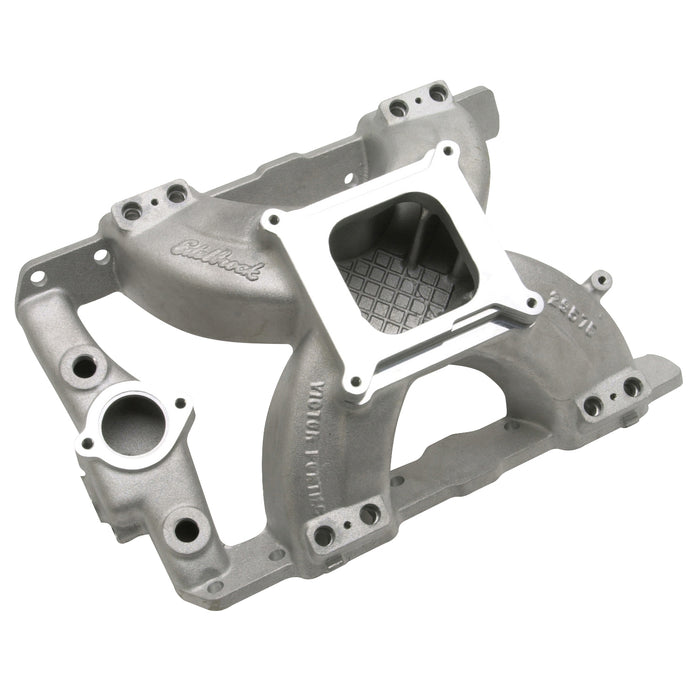

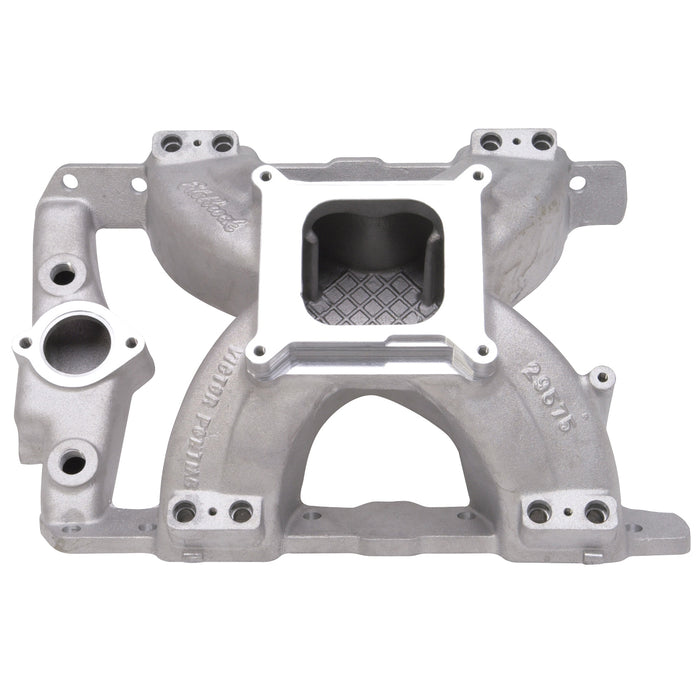

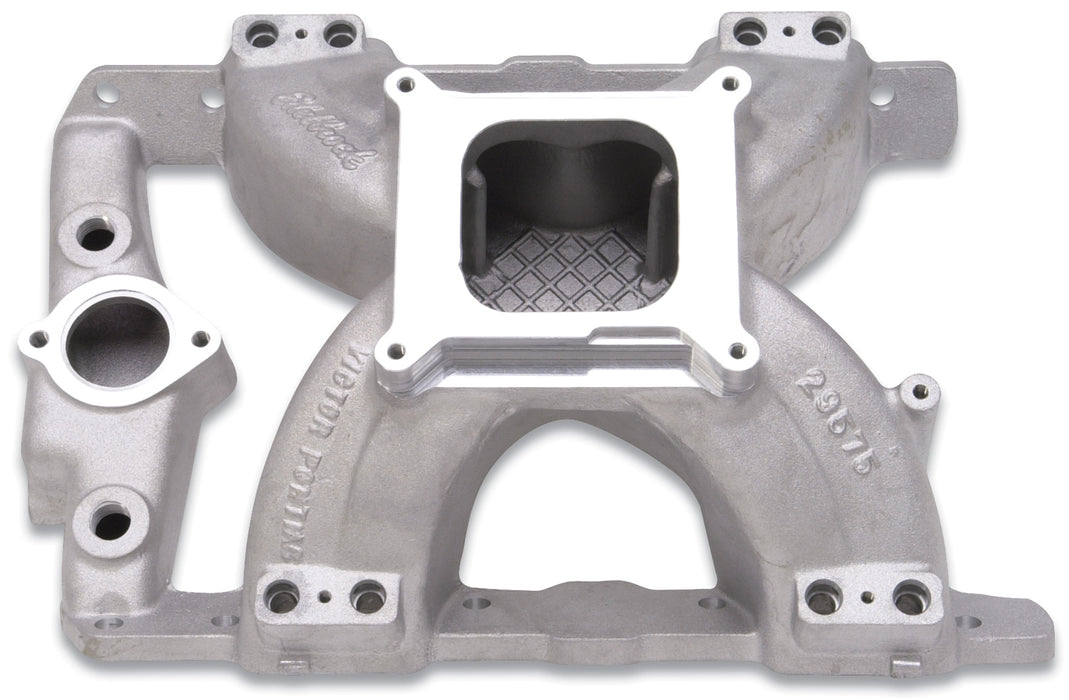

Edelbrock part #29575 Victor Pontiac EFI intake manifold is designed for use with 389-455 EFI competition engines. It is ideal for drag racing (Super Stock, Super Gas, Super Comp, Brackets, etc.), marine or any application requiring maximum power up to 7500 rpm. Compatible with standard Pontiac cast iron heads, or use with Edelbrock Performer RPM Pontiac aluminum heads for maximum power. Port exit size at head is 1.08" x 2.10" with enough material to open it up to larger port openings. This intake manifold is machined for use with 4150 series carburetors and throttle bodies.
Specifications
| Basic Operating RPM Range | 3500-7500 |
| Center Maximum Height | 7.700 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Super Victor EFI Pontiac Intake Manifold for 4150 Series Throttle Bodies for Pontiac 326-455 V8 |
| Description_FAB | For 3500 to 7500 RPM High-Performance Engines |
| Description_FAB | Ideal For Drag Racing Or Marine Applications |
| Description_FAB | Use For Any Application Requiring Maximum Power |
| Description_INV | EFI Super Vic Pontiac STD Flange Intake |
| Description_KEY | 29575; Pontiac; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Super Victor; Satin |
| Description_LAB | Super Victor EFI Pontiac Intake Manifold for 4150 Series Throttle Body |
| Description_MKT | Edelbrock part #29575 Victor Pontiac EFI intake manifold is designed for use with 389-455 EFI competition engines. It is ideal for drag racing (Super Stock, Super Gas, Super Comp, Brackets, etc.), marine or any application requiring maximum power up to 7500 rpm. Compatible with standard Pontiac cast iron heads, or use with Edelbrock Performer RPM Pontiac aluminum heads for maximum power. Port exit size at head is 1.08" x 2.10" with enough material to open it up to larger port openings. This intake manifold is machined for use with 4150 series carburetors and throttle bodies. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-7.70", B-7.70" measured to engine block |
| Description_TRA | Recommended intake gasket: Edelbrock #7280 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7280 • Manifold height: A-7.70in.; B-7.70in. measured to engine block • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 7.700 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 10.0 |
| length | 22.06 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 7.700 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Pontiac |
| weight | 22.05 |
| width | 17.0 |
