Edelbrock 357800 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_357800
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$2,958.03
-
Original price
$2,958.03
Original price
$2,958.03
$2,958.03
$2,958.03
-
$2,958.03
Current price
$2,958.03
Description

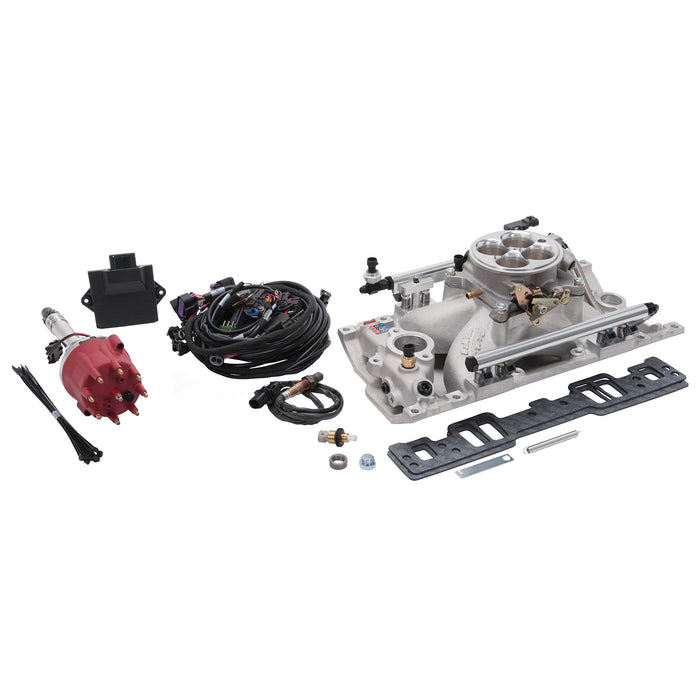

The Edelbrock Pro-Flo 4 EFI Kit #357800 W/O Tablet for Small-Block Chevy engines with Vortec/E-Tec cylinder heads is a fully sequential multi-port injection system designed with a fuel injector strategically positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Victor-style single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors are included along with wire harnesses, ECU and Android-based tablet with E-Tuner Calibration app pre-installed. The Victor manifold is designed with a larger cross-sectional area in the plenum and larger runners for high-horsepower and/or large cubic-inch applications. The manifold is also 0.75 inch taller than the standard LS3 version to promote smoother airflow into the rectangular-port heads. This kit uses 29 lb/hr injectors and is rated for 450 horsepower at 58 PSI of fuel pressure. Calibration of the Pro-Flo 4 is a simple process with a Setup Wizard providing guidance through the E-Tuner's initial programming. Once provided with basic information such as type of engine, cubic inches, firing order, and cam profile, the E-Tuner then selects the most appropriate base calibration. Once the base calibration is set, the self-learning E-Tuner takes over to continually maximize the fuel map for your specific engine configuration, even compensating for changes in altitude and weather. The E-Tuner provides more advanced tuning options that allow precise control over cold starts and acceleration while retaining the simplicity that Pro-Flo systems are known for. No laptop tuning is required.
Specifications
| Bore Diameter | 1.75 |
| Cylinder Head Type | GM Vortec/Edelbrock E-TEC |
| Description_ABR | EFI System |
| Description_ASM | Chevrolet:Small-Block Gen I Vortec:283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Fuel Injection System |
| Description_DES | FUEL INJECTION |
| Description_EXT | Edelbrock Pro-Flo 4 EFI kit for Small-Block Chevy with Vortec/E-Tec Cylinder heads. The EFI kit comes with a satin 4150-Style single plane intake & 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. No Tablet Included. |
| Description_EXT | Edelbrock Pro-Flo 4 EFI kit for Small-Block Chevy with Vortec/E-Tec Cylinder heads. The EFI kit comes with a satin 4150-Style single plane intake 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. No Tablet Included. |
| Description_FAB | Complete Engineered System For The Ultimate In Performance |
| Description_FAB | New ECU Preloaded w/80 Dyno-Tuned Calibrations |
| Description_FAB | Self Learning EFI System |
| Description_INV | Edelbrock Pro-Flo 4 EFI System #357800 |
| Description_KEY | Edelbrock; EFI; Pro-Flo; Pro-Flo XT; EFI; Fuel Injection; Electronic Fuel Injection; Chevy; Chevrolet; Small-Block; Vortec; E-Tec; 357800; Holley EFI; FiTech EFI; FAST Fuel Air Spark Technology EFI; MSD EFI; TBI EFI; Throttle Body EFI |
| Description_LAB | Pro-Flo 4 EFI 4150-Style #357800 For Chevy SB W/ Vortec/E-Tec Heads W/O Tablet |
| Description_LAB | Pro-Flo 4 EFI 4150-Style #357800 For Chevy SB W/Vortec/E-Tec Heads W/O Tablet |
| Description_MKT | The Edelbrock Pro-Flo 4 EFI Kit #357800 W/O Tablet for Small-Block Chevy engines with Vortec/E-Tec cylinder heads is a fully sequential multi-port injection system designed with a fuel injector strategically positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Victor-style single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors are included along with wire harnesses, ECU and Android-based tablet with E-Tuner Calibration app pre-installed. The Victor manifold is designed with a larger cross-sectional area in the plenum and larger runners for high-horsepower and/or large cubic-inch applications. The manifold is also 0.75 inch taller than the standard LS3 version to promote smoother airflow into the rectangular-port heads. This kit uses 29 lb/hr injectors and is rated for 450 horsepower at 58 PSI of fuel pressure. Calibration of the Pro-Flo 4 is a simple process with a Setup Wizard providing guidance through the E-Tuner's initial programming. Once provided with basic information such as type of engine, cubic inches, firing order, and cam profile, the E-Tuner then selects the most appropriate base calibration. Once the base calibration is set, the self-learning E-Tuner takes over to continually maximize the fuel map for your specific engine configuration, even compensating for changes in altitude and weather. The E-Tuner provides more advanced tuning options that allow precise control over cold starts and acceleration while retaining the simplicity that Pro-Flo systems are known for. No laptop tuning is required. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Pro-Flo 4 EFI system #357800 for the Chevy SB with Vortec/E Tec Cylinder Heads requires a high-pressure, EFI-compatible fuel delivery system. Edelbrock fuel delivery kits are available and sold separately for this application. Visit edelbrock.com to choose the right kit for your installation. Manifolds height for Pro-Flo 4 #357800 is 4.63 inches. |
| Description_TRA | Pro-Flo 4 EFI system #357800 for the Chevy SB with Vortec/E Tec Cylinder Heads requires a high-pressure; EFI-compatible fuel delivery system. Edelbrock fuel delivery kits are available and sold separately for this application. Visit edelbrock.com to choose the right kit for your installation. Manifolds height for Pro-Flo 4 #357800 is 4.63 inches. |
| Distributor Cap Included | Yes |
| Engine Make/Size | Chevy Small Block (262-400) |
| finish | Satin |
| Flange Type | 4150 |
| Fuel Injector Type | 29 lb/hr |
| Fuel Pressure Port | 1/8-27 NPT |
| Fuel Rate | 29 lbs./hr |
| Gasket Or Seal Included | Yes |
| height | 10.5 |
| length | 30.12 |
| Manifold Height | 4.58 |
| Maximum Horsepower | 450 |
| Quantity | Kit |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| System Type | Traditional 4150-Style Kit |
| Throttle Body Type | 4 Barrel |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 34.0 |
| width | 25.12 |
| Wire Harness Included | Yes |
| Wiring Harness Included | Yes |
