Edelbrock 3764 Edelbrock Performer 454 T.B.I. Intake Manifold For Chevrolet 454 Big-Block V8
by Edelbrock
SKU ds_BDVJ_3764
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$756.34
-
Original price
$756.34
Original price
$756.34
$756.34
$756.34
-
$756.34
Current price
$756.34
Description

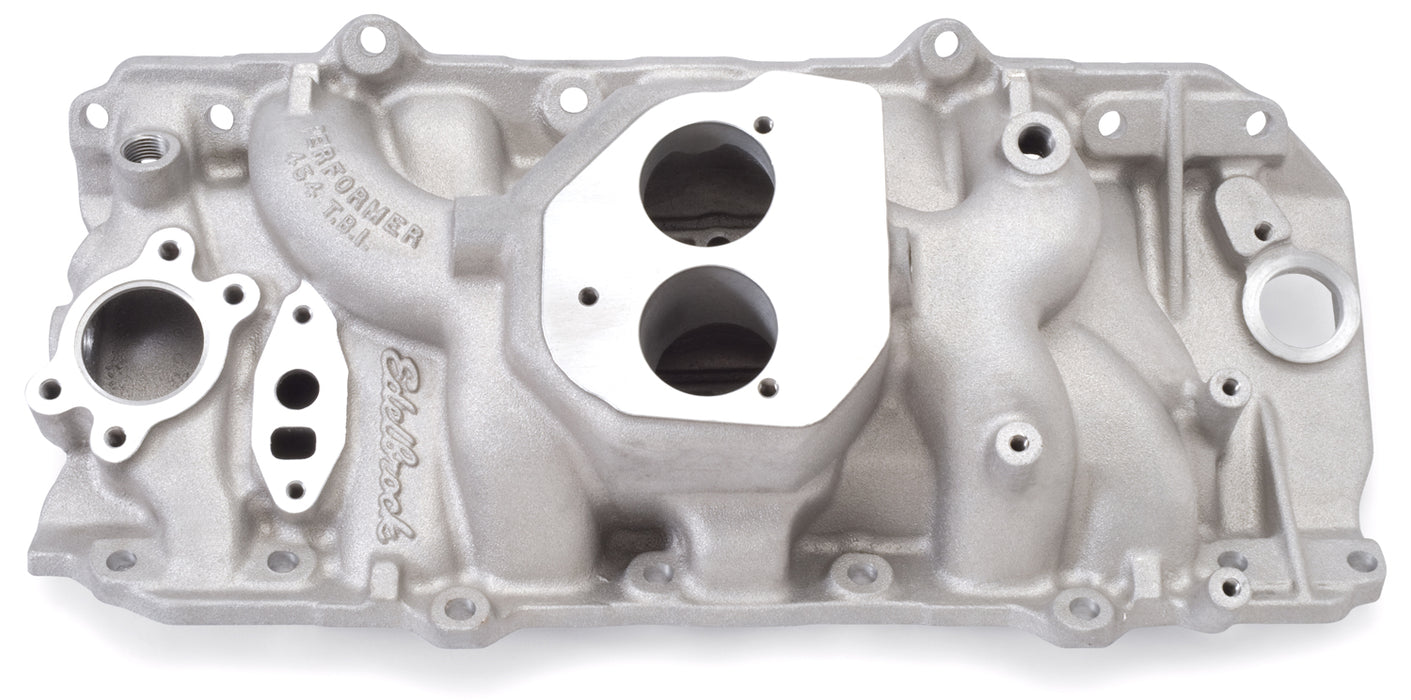

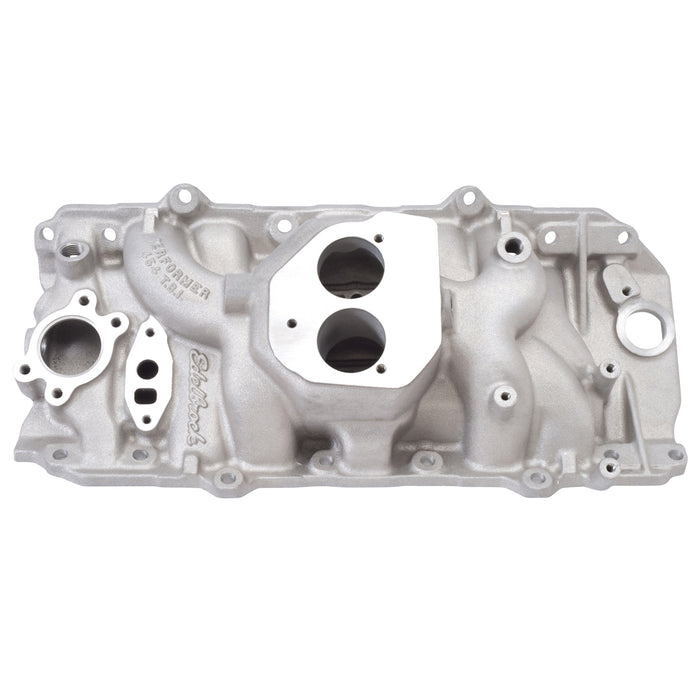

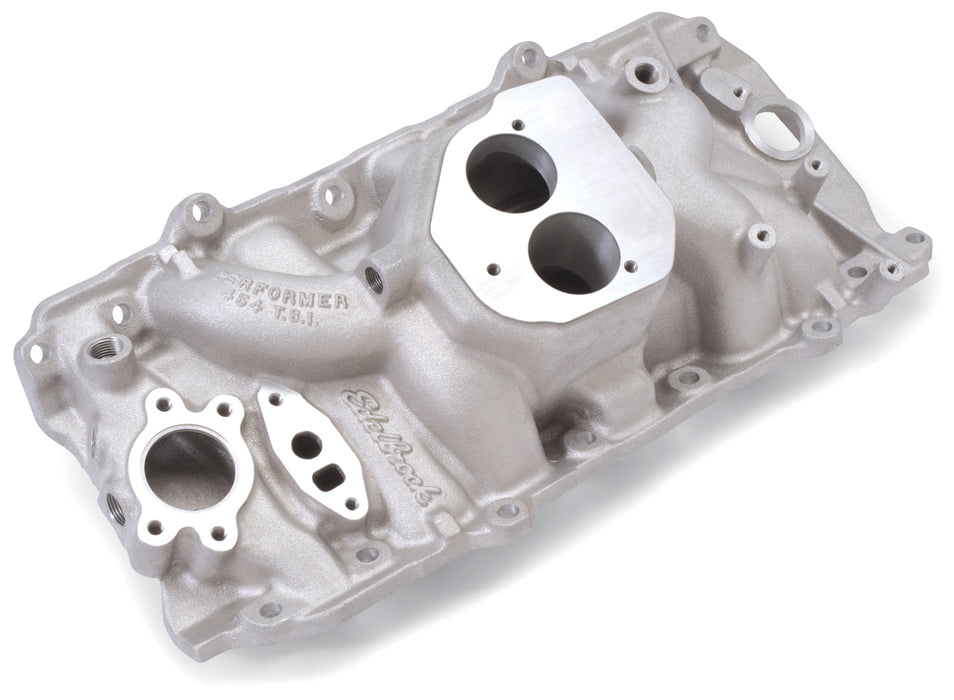

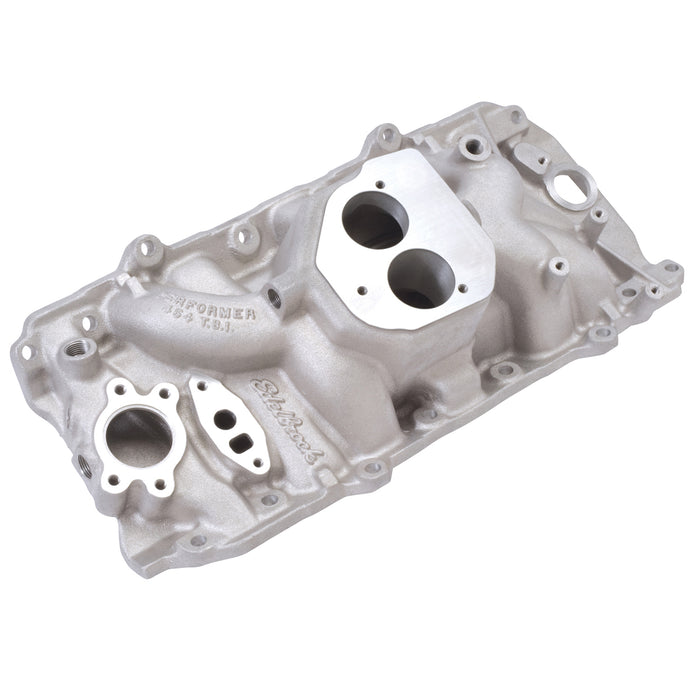

Edelbrock part #3764 Performer 454 T.B.I. intake manifold is designed for street 454 c.i.d. Chevy V8's. Add our Performer High-Compression heads #60499 for even greater power gains. Features EGR in stock location. Manifolds will not fit 1991-95 vehicles.
Specifications
| Basic Operating RPM Range | Idle-5500 |
| Center Maximum Height | 5.370 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Gen V:454 (7.4L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer 454 T.B.I. Intake Manifold For Chevrolet 454 Big-Block V8 |
| Description_FAB | 50-State Street Legal for 1987-90GM Trucks |
| Description_FAB | Accepts Stock Throttle Body EFI and EGR |
| Description_FAB | Dual-Plane Low-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Engine Swaps |
| Description_FAB | Excellent Throttle Response and Mid-Range Power |
| Description_FAB | For Idle to 5500 RPM Street-Driven Performance |
| Description_FAB | Match w/Camshaft PN[2162] and Head PN[60499] |
| Description_FAB | Package improves 0-60 mph times by 1.70 seconds |
| Description_FAB | Patented Runner Design Ensures Broad Torque Curve |
| Description_INV | Performer BBC TBI Intake Manifold |
| Description_KEY | 3764; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Satin |
| Description_LAB | Performer 454 T.B.I. Intake Manifold Big-Block Chevy |
| Description_MKT | Edelbrock part #3764 Performer 454 T.B.I. intake manifold is designed for street 454 c.i.d. Chevy V8's. Add our Performer High-Compression heads #60499 for even greater power gains. Features EGR in stock location. Manifolds will not fit 1991-95 vehicles. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | 1987-90 Chevy 454 trucks require Edelbrock GM T.B.I. throttle bracket #8019 |
| Description_TRA | Carb pad height: 5.37" |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-4.30", B-6.45" same as stock |
| Description_TRA | Port exit dimensions: 1.41"w x 1.59"t |
| Description_TRA | Recommended intake gasket: GM #10181398. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Use stock Throttle Body Injection unit |
| Description_TRA | • Use stock Throttle Body Injection unit • Recommended intake gasket: GM # 10181398. • Manifold height: A-4.30in.; B-6.45in. same as stock • Carb pad height: 5.37in. • Port exit dimensions: 1.41in.w x 1.59in.t • 1987-90 Chevy 454 trucks require Edelbrock GM T.B.I. throttle bracket # 8019 • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | Yes - For 1987-90 |
| finish | Satin |
| Flange Type | Factory T.B.I. |
| Front Maximum Height | 4.300 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 6.450 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Chevrolet |
| weight | 23.55 |
| width | 14.75 |
