Availability:
4+ in stock
Edelbrock 38493 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_38493
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$279.14
-
Original price
$279.14
Original price
$279.14
$279.14
$279.14
-
$279.14
Current price
$279.14
Description

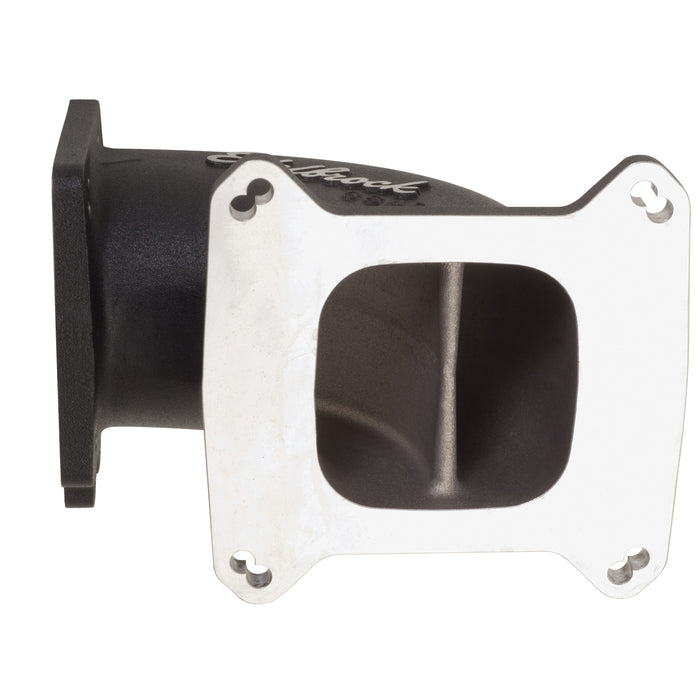

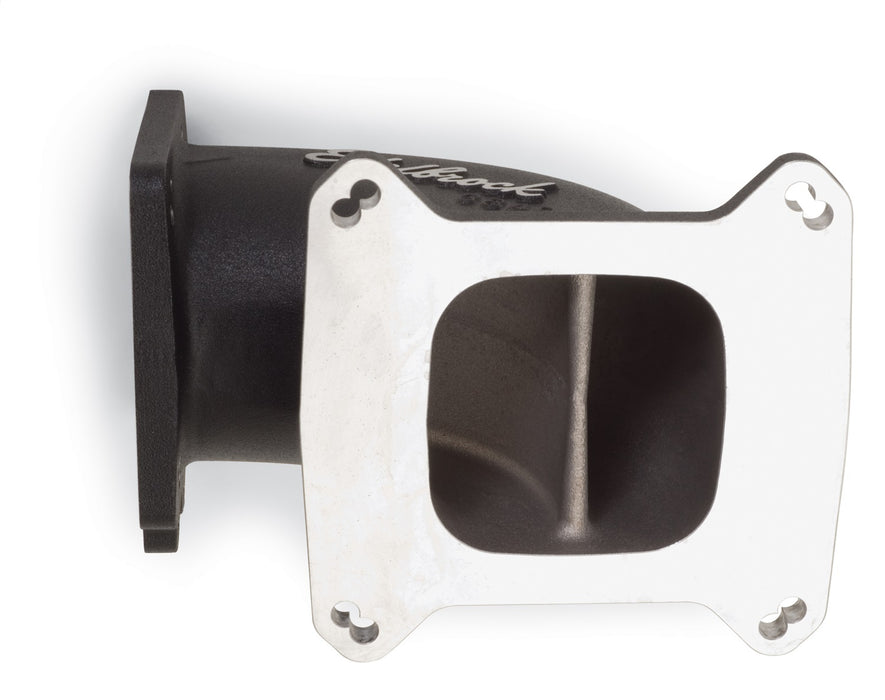

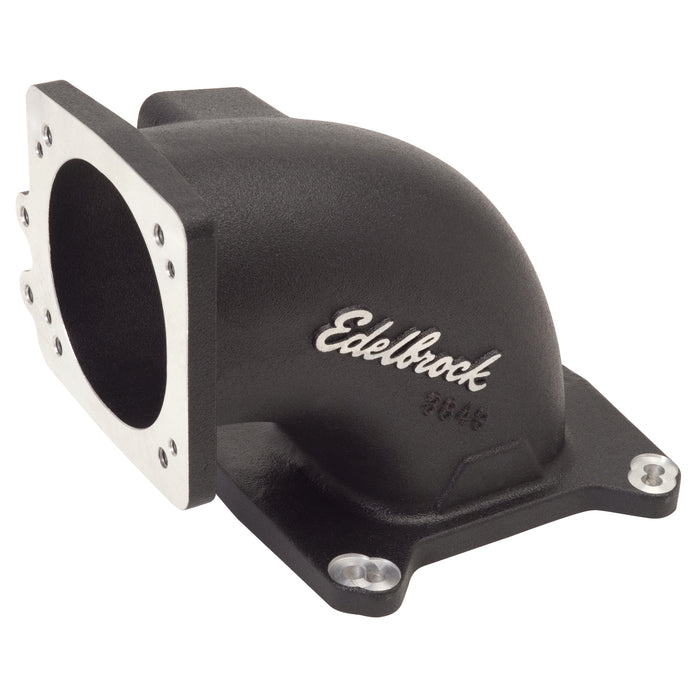

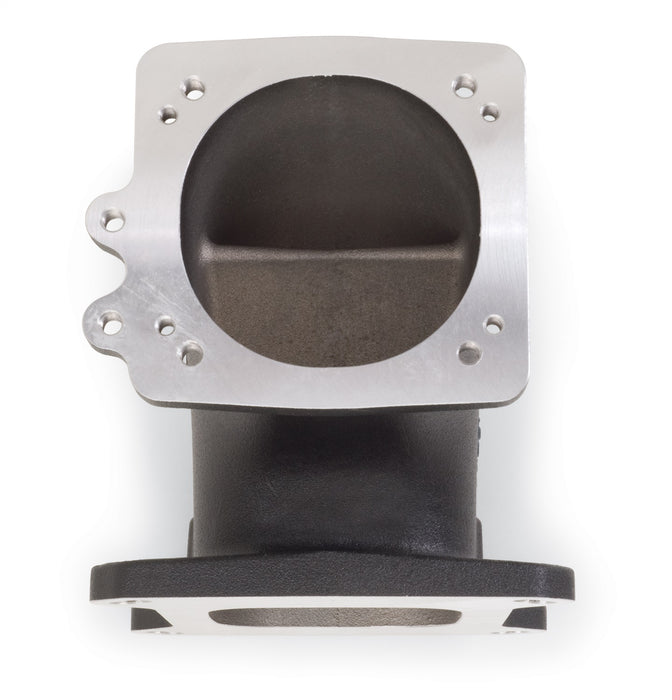

The Edelbrock 38493 Intake elbow was developed by the Edelbrock engineering team using the latest in Computational Fluid Dynamic (CFD) software. Edelbrock Throttle Body Elbows are the best way to adapt LS1, LS2 and Ford 5.0L-based throttle bodies to EFI manifolds with traditional square-bore mounting pads. An internal divider optimizes flow quantity and distribution into the manifold and they can be mounted forward, backward, or sideways on Victor EFI square-bore manifolds. Three versions allow EFI tuners to position the throttle body low for hood clearance or higher for maximum airflow. Available in black powder coated finish. All Edelbrock Throttle Body Elbows include a universal throttle cable bracket.
Specifications
| Description_ABR | Intake Elbow |
| Description_DEF | Engine Air Intake Deceleration Elbow |
| Description_DES | INTAKE ELBOW |
| Description_EXT | The Edelbrock 38493 Intake elbow was developed by the Edelbrock engineering team. High Flow Intake Elbow (up to 95mm Throttle Body). This version is powder coated with a black mini-texture prior to being machined. |
| Description_FAB | 90mm Throttle Body To Square Bore Flange |
| Description_FAB | Black Finish |
| Description_FAB | High Flow |
| Description_FAB | Internal Divider |
| Description_INV | Edelbrock Throttle Body Intake Elbows |
| Description_KEY | Edelbrock; EFI; Edelbrock EFI; Intake; Intake Elbow; Throttle Body; Throttle Body Intake Elbow; LS; Chevrolet; Chevy; EFI intake Elbow; 38493; High Flow; elbow |
| Description_LAB | Throttle Body Intake Elbow #38493 High Flow, 90mm Opening, Black Powder Coated |
| Description_LAB | Throttle Body Intake Elbow #38493 High Flow; 90mm Opening; Black Powder Coated |
| Description_MKT | The Edelbrock 38493 Intake elbow was developed by the Edelbrock engineering team using the latest in Computational Fluid Dynamic (CFD) software. Edelbrock Throttle Body Elbows are the best way to adapt LS1, LS2 and Ford 5.0L-based throttle bodies to EFI manifolds with traditional square-bore mounting pads. An internal divider optimizes flow quantity and distribution into the manifold and they can be mounted forward, backward, or sideways on Victor EFI square-bore manifolds. Three versions allow EFI tuners to position the throttle body low for hood clearance or higher for maximum airflow. Available in black powder coated finish. All Edelbrock Throttle Body Elbows include a universal throttle cable bracket. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| finish | Black Powder Coated |
| Flange Angle | 90 |
| Gasket Or Seal Included | Yes |
| height | 6.5 |
| length | 13.5 |
| length | 5.50 |
| LTL | N |
| Material | Aluminum |
| Overall Height | 7.75 |
| Quantity | Sold Individually |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Size | 90 |
| Type | High Flow |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 5.9 |
| width | 6.81 |
