Description

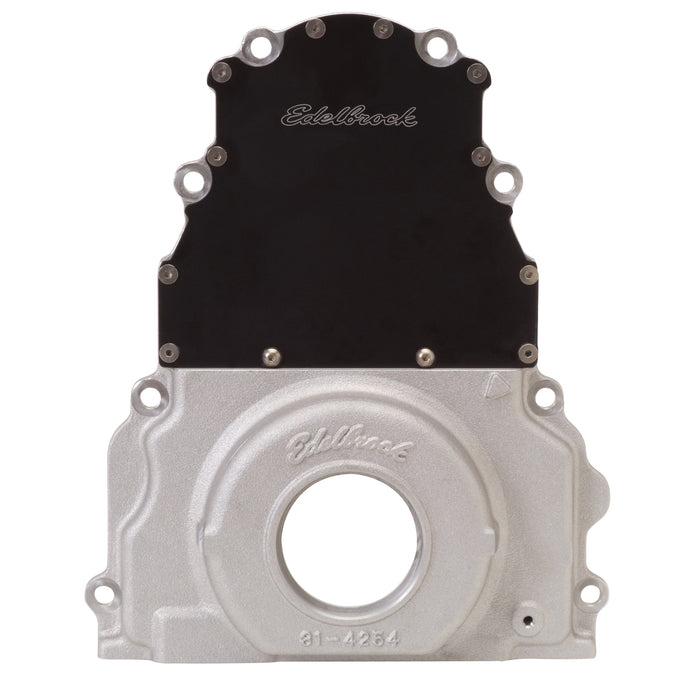

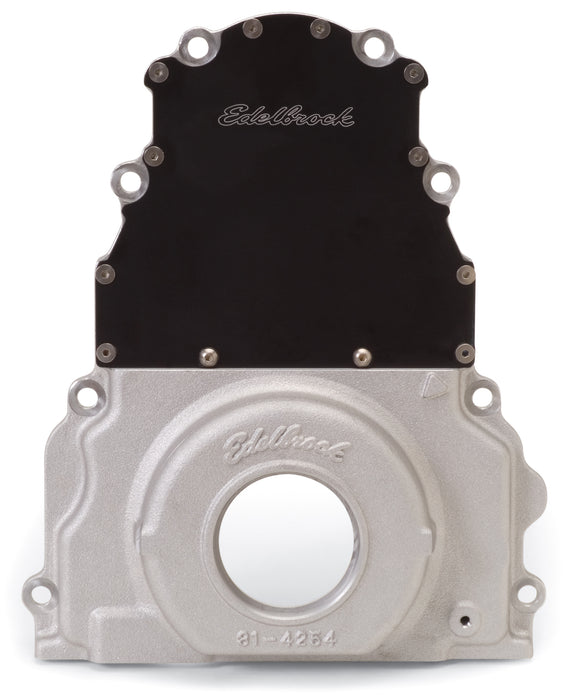

Edelbrock part #4254 With Rear Mounted Cam Sensor (LS1 and Early Model Trucks) These two-piece aluminum timing covers for GM Gen III & IV LS Series allow quick camshaft removal and installation without the need to remove the damper pulley or steering components. The cam can be installed and removed through a window in the front of the cover which is sealed with a plate and O-ring for superior leak prevention. Not for use with a double roller timing chains.
Specifications
| Color | Black |
| Description_ABR | LS1/LS6 Cvr |
| Description_ASM | Chevrolet:Small-Block Gen III LM7:325 (5.3L) |
| Description_ASM | Chevrolet:Small-Block Gen III LM7:325 (5.3L);Chevrolet:Small-Block Gen III LR4:293 (4.8L);Chevrolet:Small-Block Gen III LS1:346 (5.7L);Chevrolet:Small-Block Gen III LS2:364 (6.0L) |
| Description_ASM | Chevrolet:Small-Block Gen III LR4:293 (4.8L) |
| Description_ASM | Chevrolet:Small-Block Gen III LS1:346 (5.7L) |
| Description_ASM | Chevrolet:Small-Block Gen III LS2:364 (6.0L) |
| Description_DEF | Engine Timing Cover |
| Description_DES | TIMING COVER |
| Description_EXT | Edelbrock part #4254 With Rear Mounted Cam Sensor (LS1 and Early Model Trucks) These two-piece aluminum timing covers for GM Gen III & IV LS Series allow quick camshaft removal and installation without the need to remove the damper pulley |
| Description_EXT | Edelbrock part #4254 With Rear Mounted Cam Sensor (LS1 and Early Model Trucks) These two-piece aluminum timing covers for GM Gen III IV LS Series allow quick camshaft removal and installation without the need to remove the damper pulley |
| Description_FAB | Die-Cast Polished Cover |
| Description_FAB | Includes All Necessary Gaskets/Bolts/Seals |
| Description_INV | Edelbrock Gen III LS1/LS6 Timing Cover |
| Description_KEY | Timing Cover; Edelbrock; Valvetrain; Edelbrock Timing Covers; Aluminum Timing Cover; TWO-PIECE ALUMINUM TIMING COVERS; With Rear Mounted Cam Sensor (LS1 and Early Model Trucks); 4254 |
| Description_LAB | Timing Cover 1997-04 GM LS1/LS6 Two Piece |
| Description_MKT | Edelbrock part #4254 With Rear Mounted Cam Sensor (LS1 and Early Model Trucks) These two-piece aluminum timing covers for GM Gen III & IV LS Series allow quick camshaft removal and installation without the need to remove the damper pulley or steering components. The cam can be installed and removed through a window in the front of the cover which is sealed with a plate and O-ring for superior leak prevention. Not for use with a double roller timing chains. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | Remove the front cover and gasket. Edelbrock recommends installing a new front crank seal as it will difficult to remove your stock seal without damaging it. At this time, you should inspect the oil pan gasket for damage |
| Description_TRA | Remove the oil pan and replace the gasket if necessary (See service manual) |
| Description_TRA | Timing Cover #4255 is not compatible with Chevrolet Gen III engines which include LS1, LS6, and others. if you are uncertain of your engine generation |
| Description_TRA | • Timing Cover #4255 is not compatible with Chevrolet Gen III engines which include LS1; LS6; and others. if you are uncertain of your engine generation • Remove the front cover and gasket. Edelbrock recommends installing a new front crank seal as it will difficult to remove your stock seal without damaging it. At this time; you should inspect the oil pan gasket for damage • Remove the oil pan and replace the gasket if necessary (See service manual) |
| finish | Black |
| Gasket Or Seal Included | Yes |
| height | 2.3 |
| length | 13.6 |
| LTL | N |
| Material | Aluminum |
| Mounting Hole Quantity | 8 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| weight | 3.43 |
| width | 10.8 |
