Description

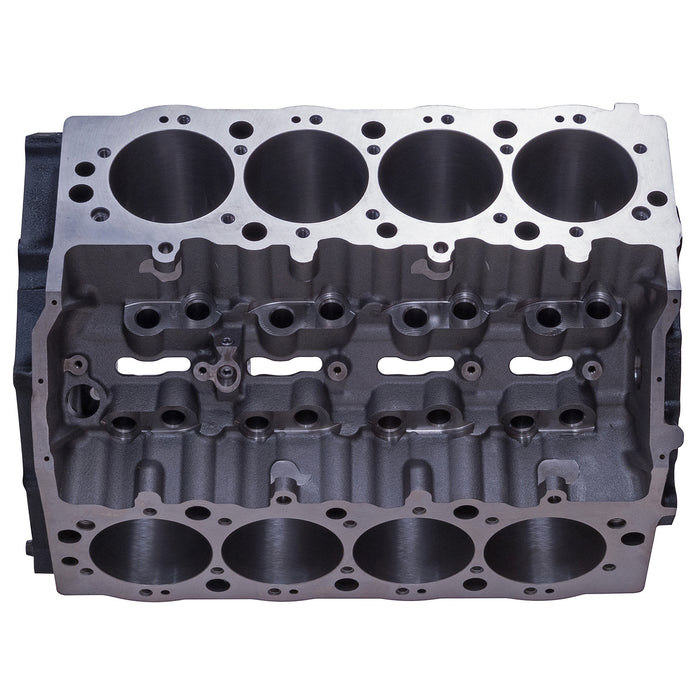

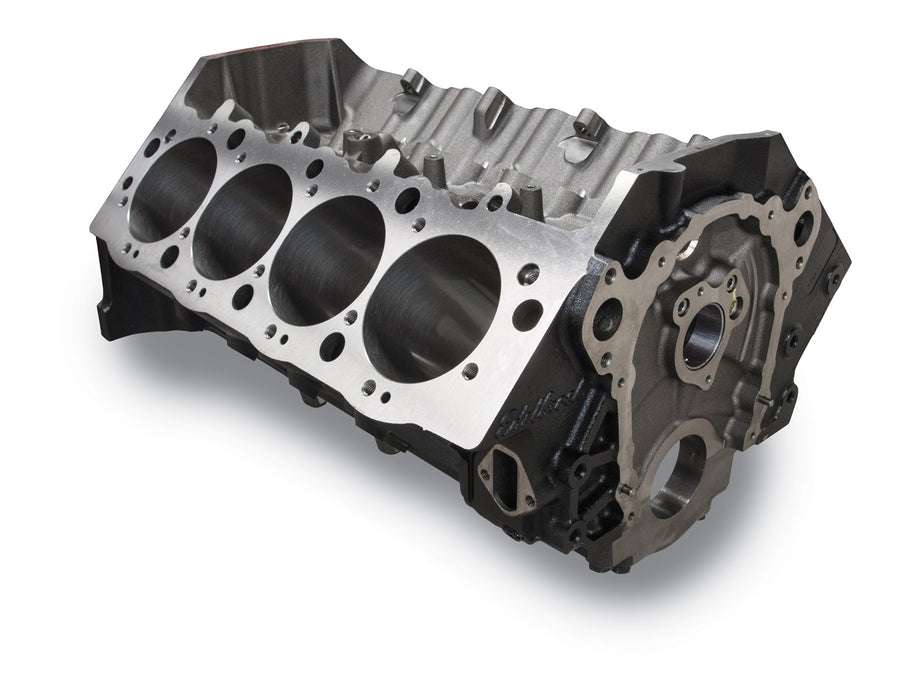

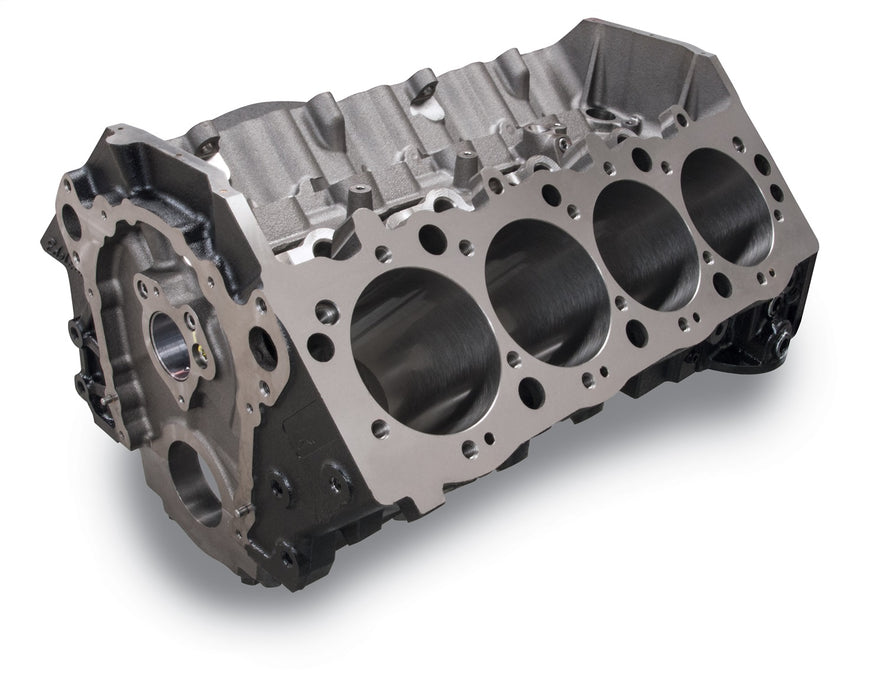

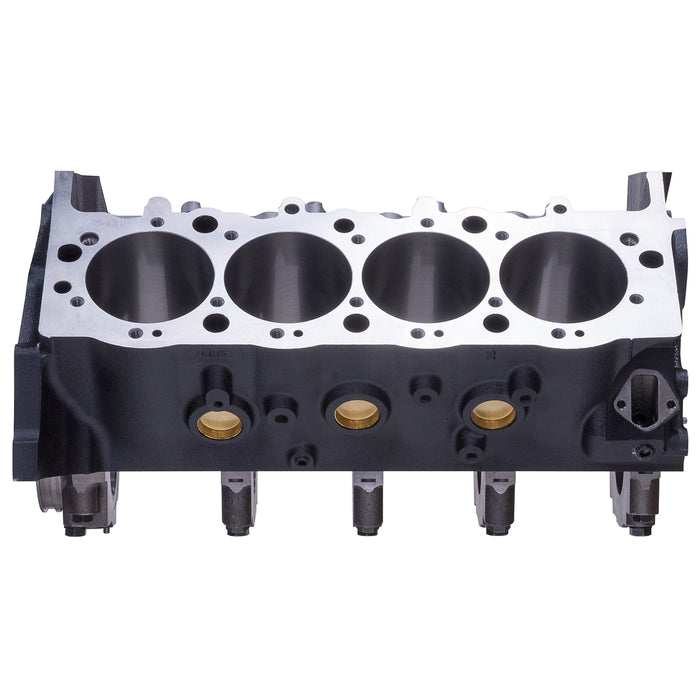

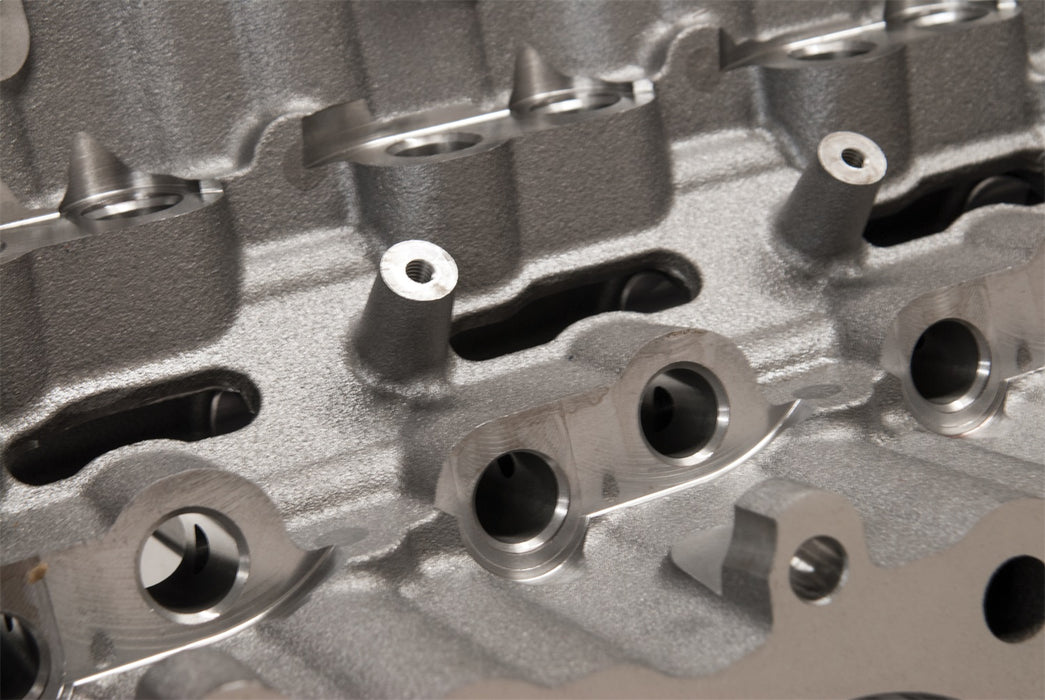

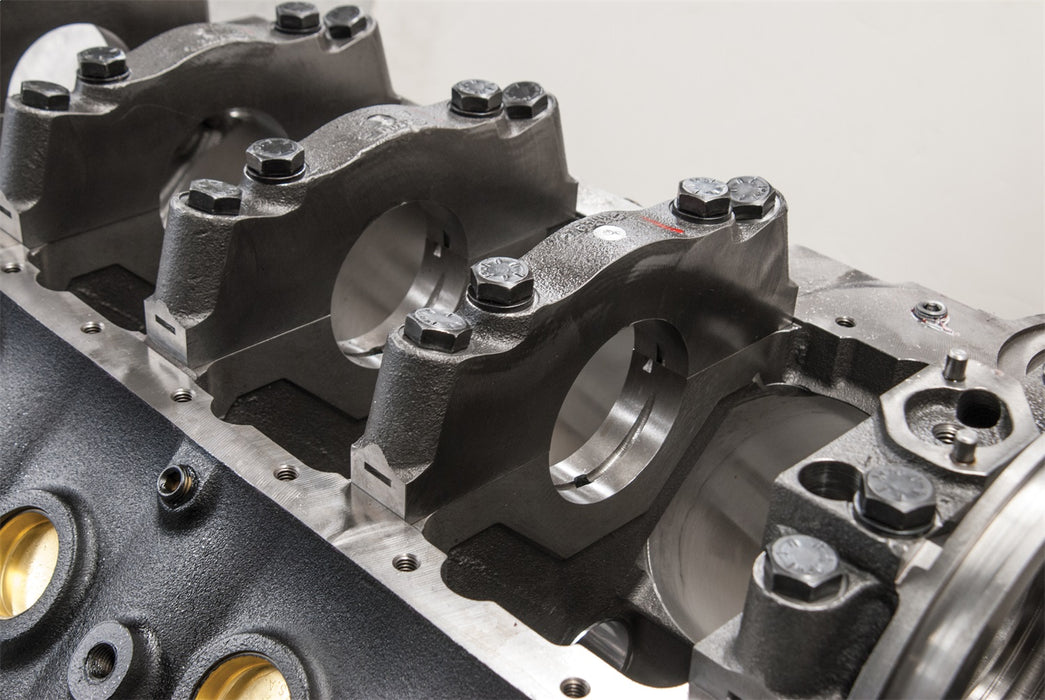

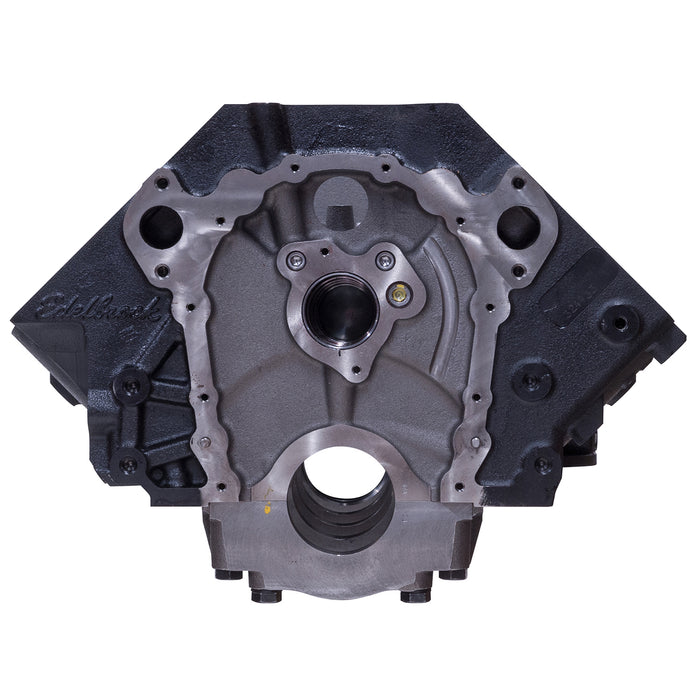

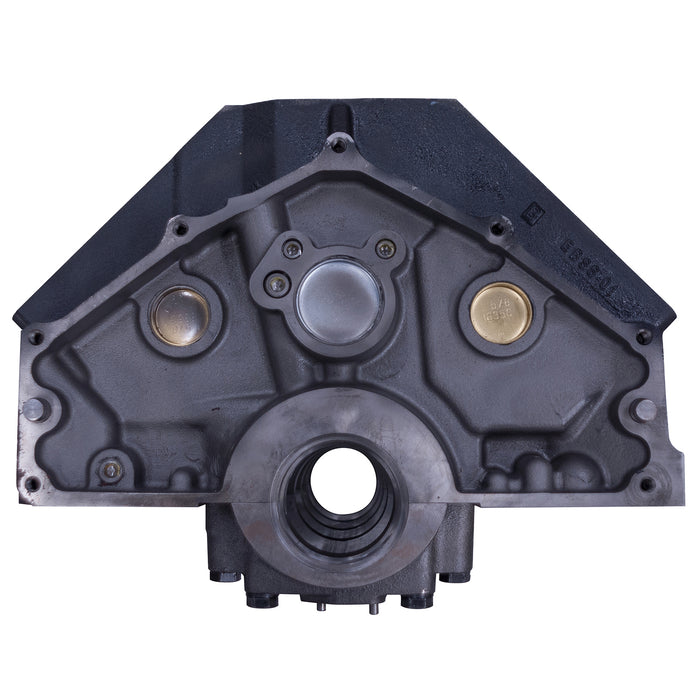

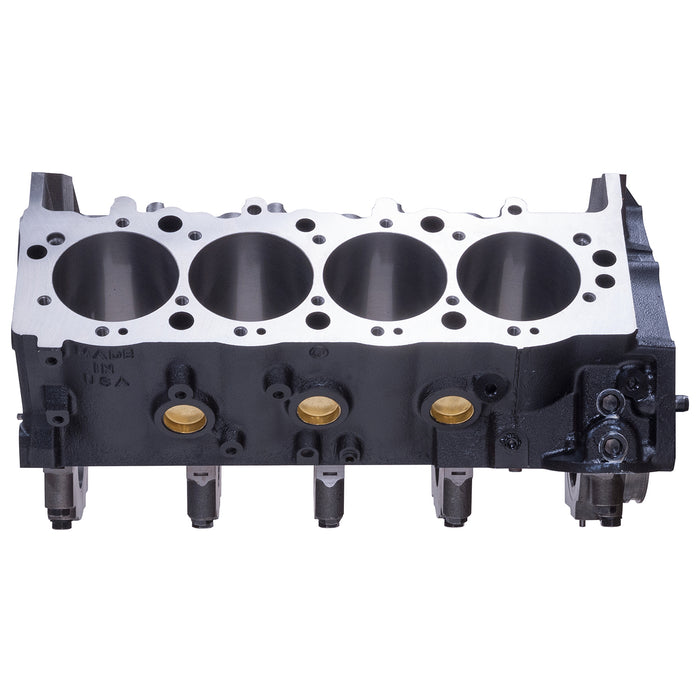

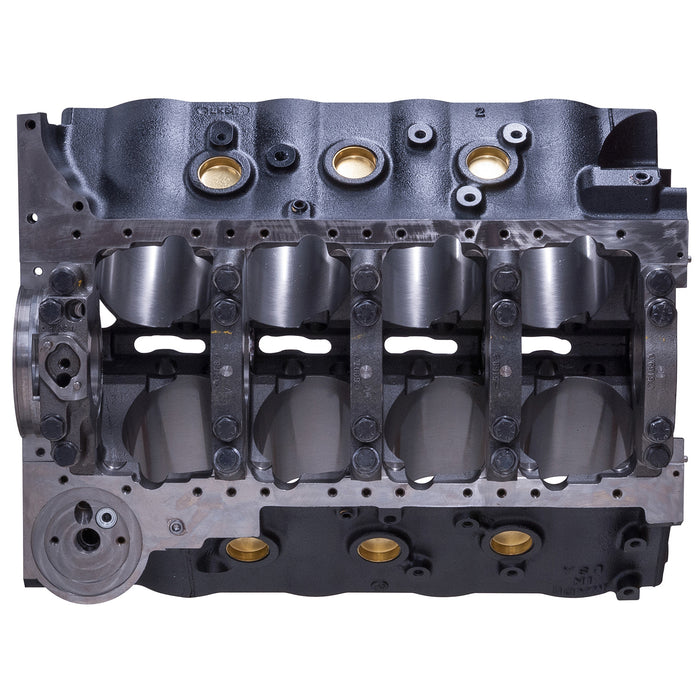

Edelbrock part #450000 Big-Block Chevy Cast Iron Engine Block is cast and machined in the U.S.A. and made to last. Being that Edelbrock engine blocks are cast and machined in the U.S.A. allows us to precision machine them to our very own specifications. Engine block part #450000 is the perfect starting point for any Big-Block Chevy high performance engine build especially when used with an Edelbrock Total Power Package. When it comes to starting with the right base for your engine build.. make sure to choose the one made right here in the U.S.A.Edelbrock part #450000 Big-Block Chevy Cast Iron Engine Block is manufactured to the following specifications:- Block Type: Big-Block Chevy- Block Material: Cast Iron- Cylinder Wall: Siamese- Supplied Bore Size: 4.500"- Supplied Stroke Clearance: 4.500"- Max Recommended Bore: 4.600"- Max Recommended Stroke: 4.500"- Max Recommended C.I.: 598- Deck Height: 9.800"- Cam Bearing Bore ID: 2.120"- Camshaft Position: Standard BBC- Head Bolt Pattern: Standard BBC- Inside Head Stud Bosses: Yes- Lifter Bores: Standard BBC- Main Bearing Size: Standard BBC- Main Bearing Bore: 2.9375"- Main Caps: 4 Bolt Splayed- Oil System: Main Priority- Oil Cooler Holes: Integral to Block- Rear Main Seal: 2-Piece- Hydraulic Roller Provisions: Accepts- Gen V, VI Link Bar- Stud and Bolt Holes: Blind Tapped- Tapped Holes: Standard Thread & Pitch- Timing Chain/Gears: Standard BBC Gen IV, V, VI- Timing Cover: Accepts- Mark IV 10 Bolt- Fuel Pump Boss: Yes- Starter: Standard Location- Clutch Linkage Boss: Yes
Specifications
| Description_ABR | ENGINE BLOCK |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DES | CRATE ENGINE |
| Description_EXT | Edelbrock part #450000 Big Block Chevy Siamese 4.50in. Bore with a 9.80 Deck height; Cast Iron block with a two piece rear main seal |

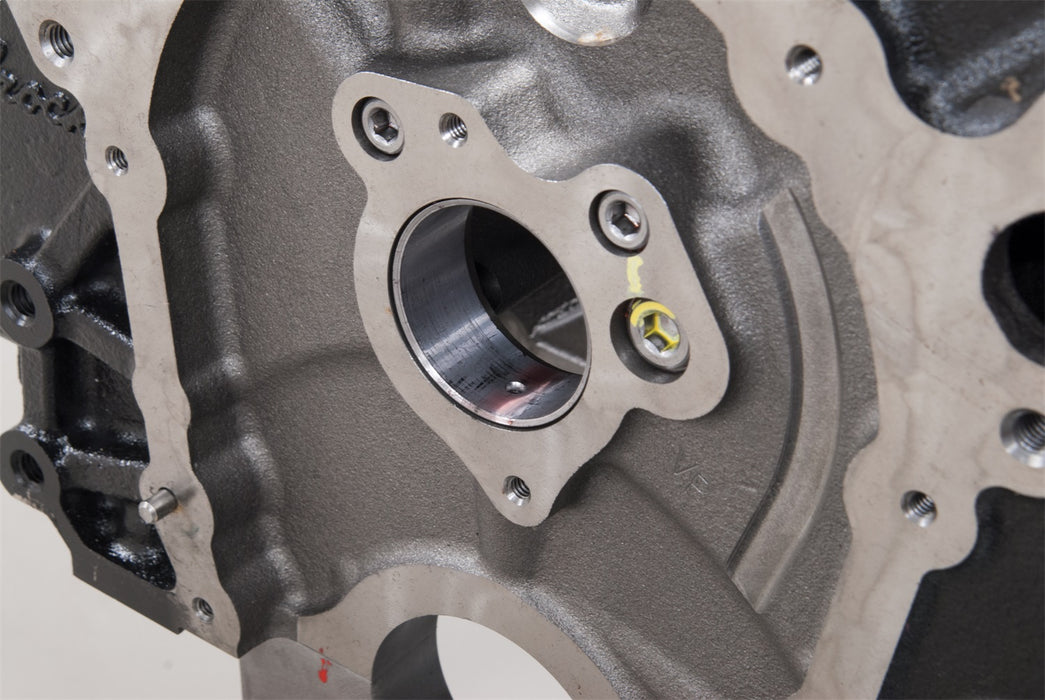

| Description_FAB | Cam Bearing Bore ID 2.120 in. |
| Description_FAB | Cast Iron Cylinder Walls |
| Description_FAB | Designed/Cast/Manufactured In The USA |
| Description_FAB | Max Recommended Bore 4.600 in. |
| Description_FAB | Precision Machined To Our Very Own Specifications |
| Description_INV | Engine Block Bare BBC 4.50 bore 9.8 deck |
| Description_KEY | Engine Block; Big Block Chevy; Cast Iron; Mark IV; Edelbrock; 450000; BBC; Bare |
| Description_LAB | Big-Block Chevy Engine Block with 2-Piece Rear Main Seal |
| Description_MKT | Edelbrock part #450000 Big-Block Chevy Cast Iron Engine Block is cast and machined in the U.S.A. and made to last. Being that Edelbrock engine blocks are cast and machined in the U.S.A. allows us to precision machine them to our very own specifications. Engine block part #450000 is the perfect starting point for any Big-Block Chevy high performance engine build especially when used with an Edelbrock Total Power Package. When it comes to starting with the right base for your engine build.. make sure to choose the one made right here in the U.S.A.Edelbrock part #450000 Big-Block Chevy Cast Iron Engine Block is manufactured to the following specifications:- Block Type: Big-Block Chevy- Block Material: Cast Iron- Cylinder Wall: Siamese- Supplied Bore Size: 4.500"- Supplied Stroke Clearance: 4.500"- Max Recommended Bore: 4.600"- Max Recommended Stroke: 4.500"- Max Recommended C.I.: 598- Deck Height: 9.800"- Cam Bearing Bore ID: 2.120"- Camshaft Position: Standard BBC- Head Bolt Pattern: Standard BBC- Inside Head Stud Bosses: Yes- Lifter Bores: Standard BBC- Main Bearing Size: Standard BBC- Main Bearing Bore: 2.9375"- Main Caps: 4 Bolt Splayed- Oil System: Main Priority- Oil Cooler Holes: Integral to Block- Rear Main Seal: 2-Piece- Hydraulic Roller Provisions: Accepts- Gen V, VI Link Bar- Stud and Bolt Holes: Blind Tapped- Tapped Holes: Standard Thread & Pitch- Timing Chain/Gears: Standard BBC Gen IV, V, VI- Timing Cover: Accepts- Mark IV 10 Bolt- Fuel Pump Boss: Yes- Starter: Standard Location- Clutch Linkage Boss: Yes |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Engine Make/Size | Chevy Big Block 555 |
| finish | Raw |
| Fuel Delivery | Fuel Injection |
| height | 18.0 |
| length | 24.0 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 255.0 |
| width | 21.5 |
