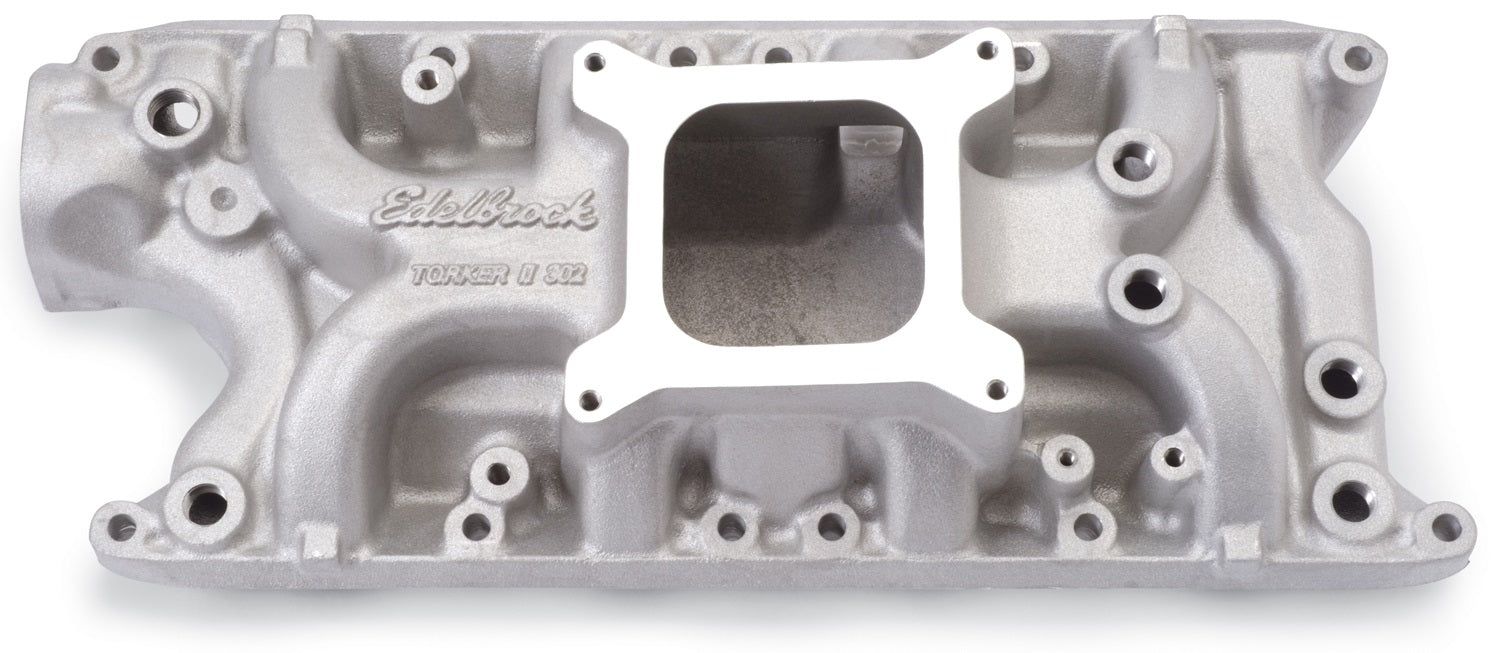

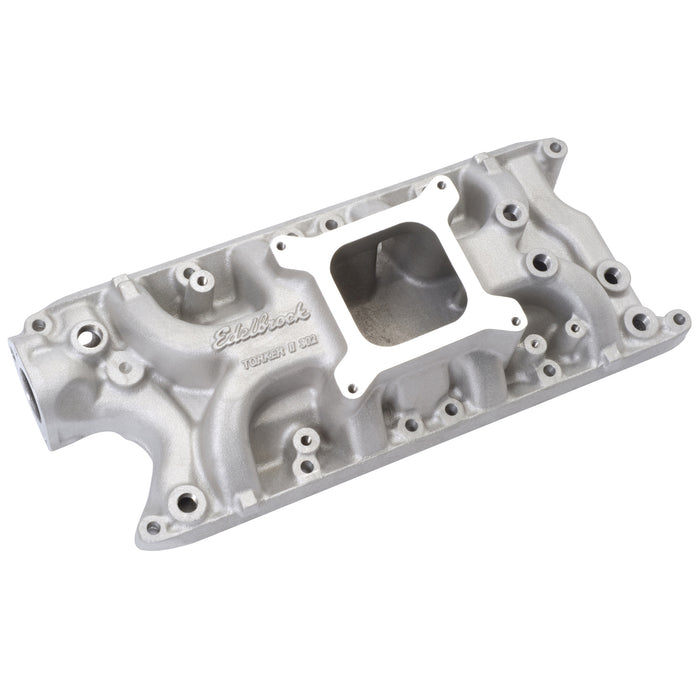

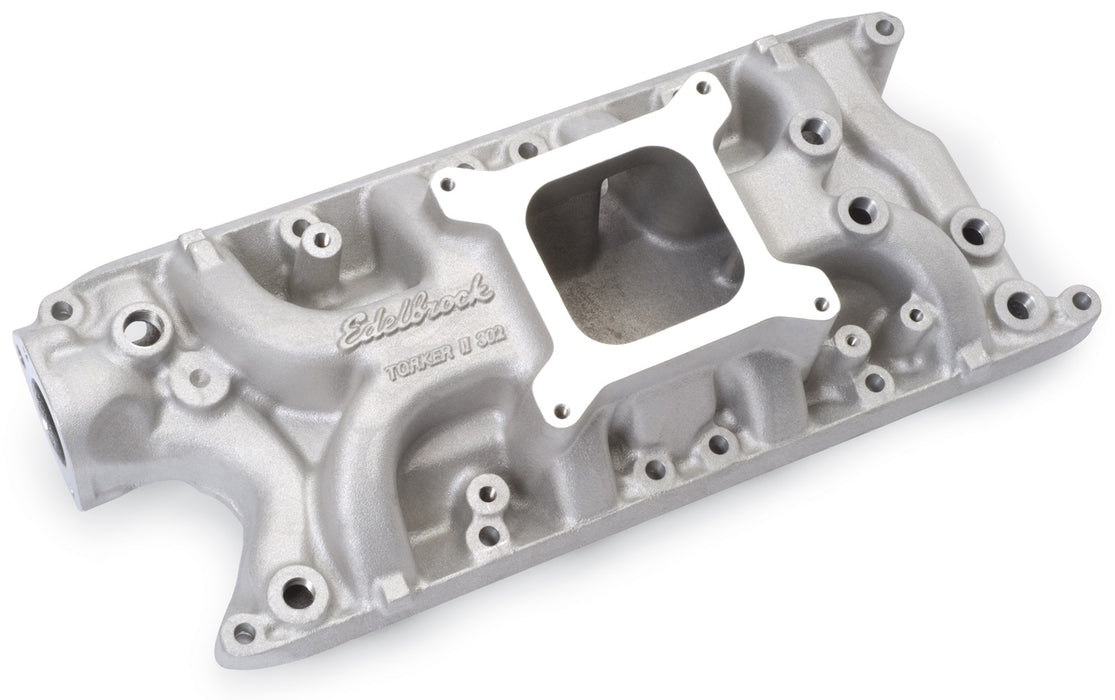

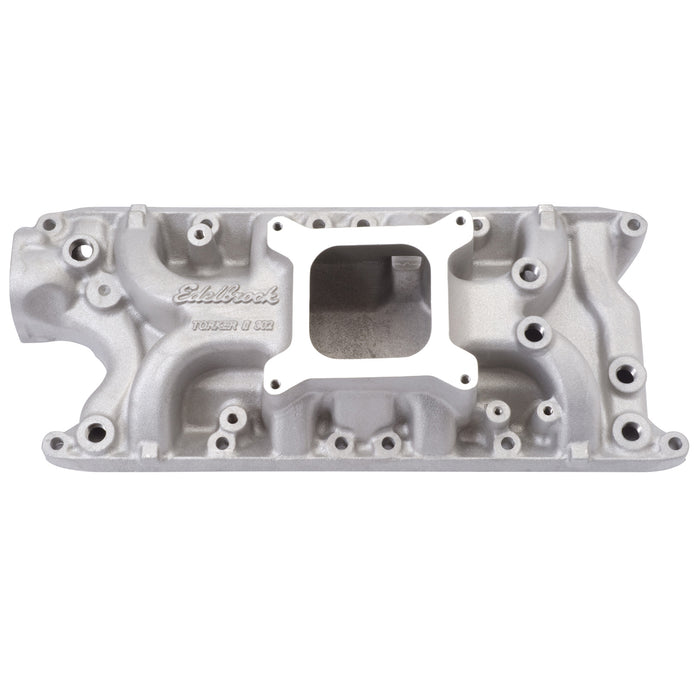

Edelbrock 5021 Edelbrock Torker II 302 Intake Manifold for Ford 289-347 Small-Block V8
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Description
Specifications
Basic Operating RPM Range | 2500-6500 |
Center Maximum Height | 4.590 |
CNC Ported | No |
Color | Satin |
Cylinder Head Type | Standard |
Description_ABR | Intake Mnfld |
Description_ASM | Ford:Small-Block Windsor:260 (4.3L)/289 (4.7L)/302 (5.0L) |
Description_DEF | Engine Intake Manifold |
Description_DES | INTAKE MANIFOLD |
Description_EXT | Edelbrock Torker II 302 Intake Manifold for Ford 289-347 Small-Block V8 |
Description_FAB | 2500 to 6500 RPM High Performance Street Engines |
Description_FAB | For Top-End HP and Adequate Throttle Response |
Description_FAB | Ideal for Applications with Limited Hood Clearance |
Description_FAB | Single-Plane Low-Rise Intake is Good for High RPMs |
Description_INV | Torker 2 SBF Intake Manifold |
Description_KEY | 5021; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Torker II; Torker 2; Satin |
Description_LAB | Torker II 302 Intake Manifold Small-Block Ford |
Description_MKT | Edelbrock part #5021 Torker II 302 intake manifold is designed for street 289-302 c.i.d. Ford V8's. Will not fit Boss 302. Manifold not equipped with EGR. Will not fit 255 c.i.d. Ford V8 engines. Not for heavy vehicles. Edelbrock carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000, for more info call (865) 966-2269 or go to www.lokar.com. |
Description_SHO | { Sellable : Yes } |
Description_SHP | { eo : 7in.} |
Description_TRA | Carb pad height: 4.59" |
Description_TRA | Carb recommendations: Edelbrock AVs2 or Performer Series 600-800 cfm. For automatic transmissions use #1483 and #1490 or #1844. |
Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
Description_TRA | Manifold height: A-4.00", B-5.18" |
Description_TRA | Port exit dimensions: 1.03" x 1.93" |
Description_TRA | Recommended intake gasket: Edelbrock #7220. |
Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
Description_TRA | Will not fit 255 c.i.d. Ford V8 |
Description_TRA | • Will not fit 255 c.i.d. Ford V8 • Recommended intake gasket: Edelbrock # 7220. • Manifold height: A-4.00in.; B-5.18in. • Carb pad height: 4.59in. • Carb recommendations: Edelbrock AVs2 or Performer Series 600-800 cfm. For automatic transmissions use # 1483 and # 1490 or # 1844. • Port exit dimensions: 1.03in. x 1.93in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
EGR Port | No |
Emission | Without EGR |
Engine Make/Size | Ford 260-302 |
Flange Type | 4150 |
Front Maximum Height | 4.000 |
Gasket Or Seal Included | No |
Grade Type | Performance |
height | 5.3 |
length | 22.5 |
LTL | N |
Material | Aluminum |
Number of Carbs | One |
Position | N/A |
Rear Maximum Height | 5.180 |
RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
RPM Range | 2500-6500 |
Series | Torker/Torker II |
Single Or Dual Plane Type | Single |
Usage | Racing |
Vehicle Model | Ford |
WARNING CA Proposition 65 | Yes |
WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
weight | 18.2 |
width | 10.7 |
