Description

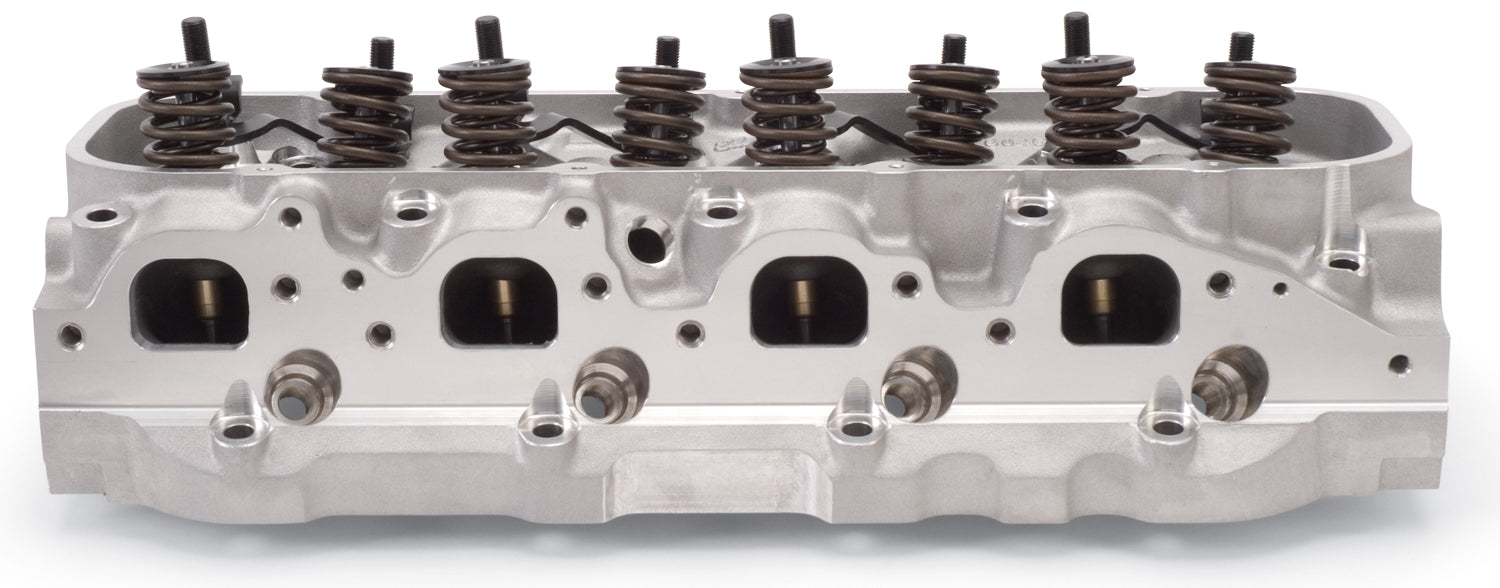

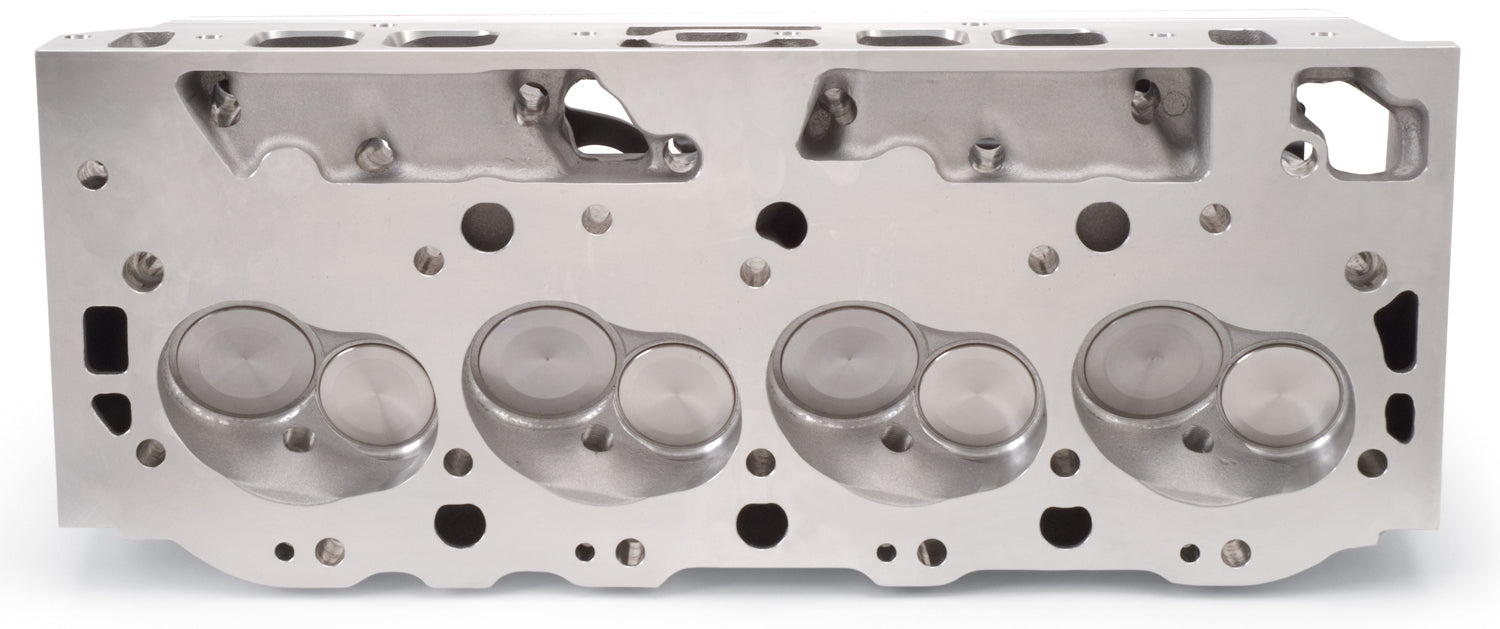

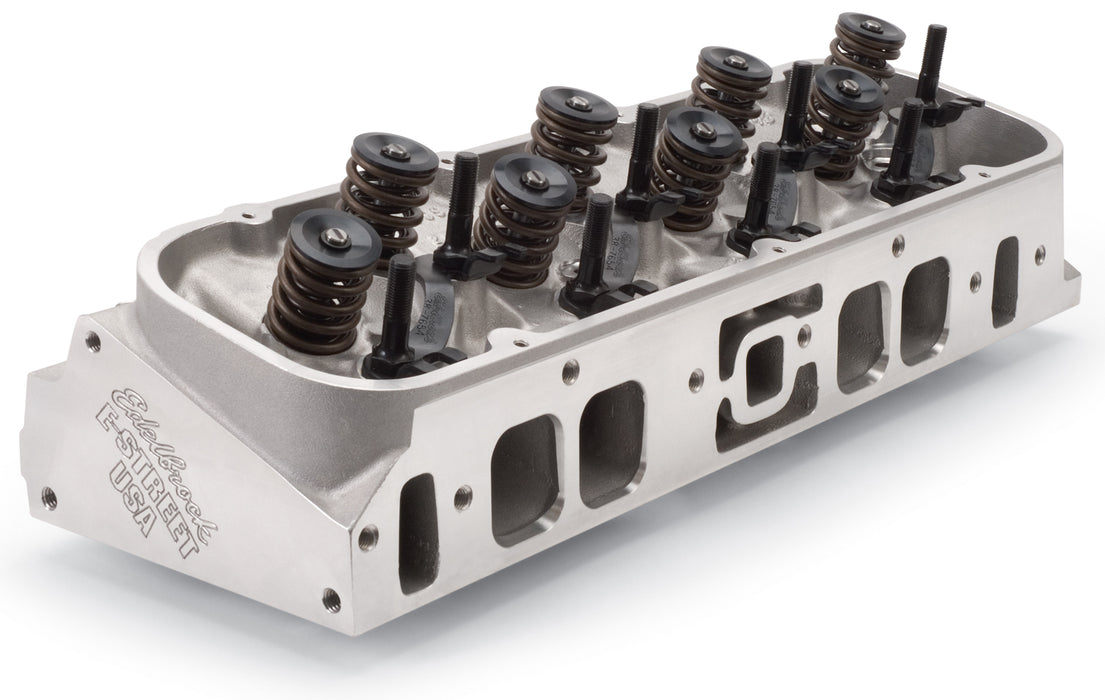

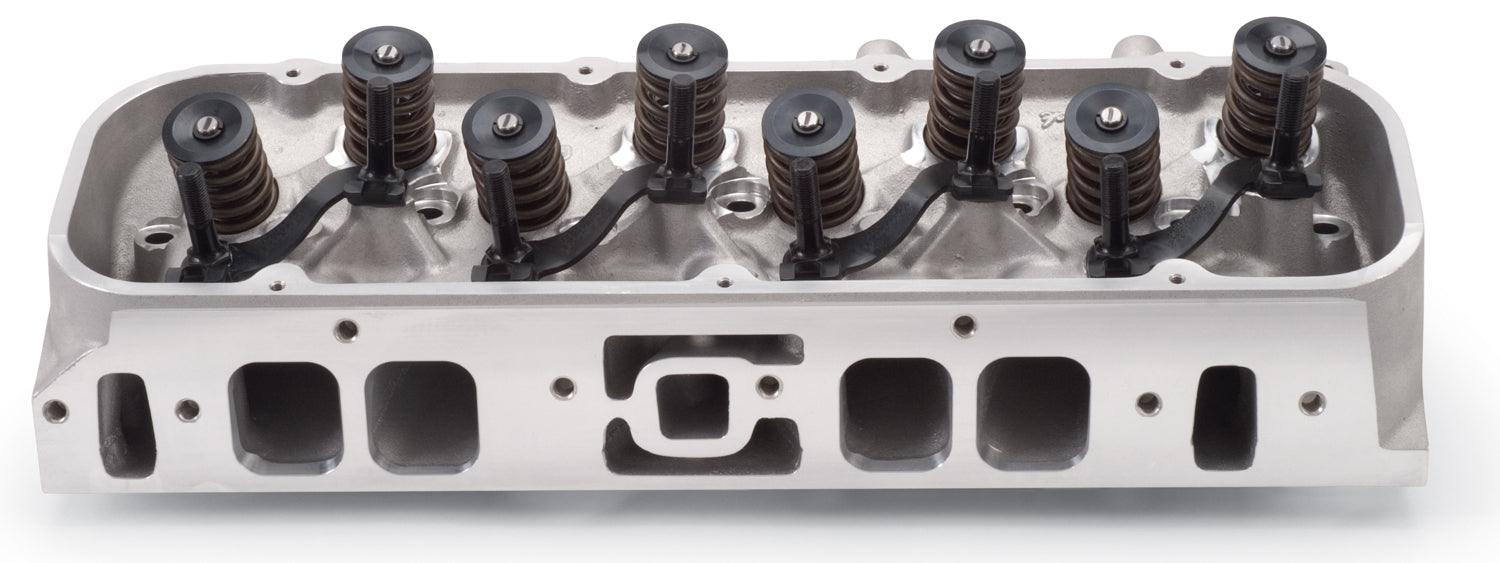

The Edelbrock #50459 E-Street cylinder 290 Oval Port head is designed for Big-Block applications. The Edelbrock E-Street cylinder head offers American made quality and affordable performance. E-Street cylinder head features as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.
Specifications
| Camshaft Type | Flat Tappet |
| CNC Ported | Yes |
| Combustion Chamber Volume | 110 |
| Construction Type | Complete |
| Deck Thickness | 0.5625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | The #50459 E-Street cylinder 290 Oval Port heads are designed for BBChevy applications. American made quality and affordable performance, These heads feature as-cast ports and are designed for entry-level application |
| Description_EXT | The #50459 E-Street cylinder 290 Oval Port heads are designed for BBChevy applications. American made quality and affordable performance; These heads feature as-cast ports and are designed for entry-level application |
| Description_FAB | A356 Aluminum |
| Description_FAB | Affordable Price |
| Description_FAB | Edelbrock Quality And Performance |
| Description_FAB | Entry Level Street Performance Upgrade |
| Description_FAB | Made In The U.S.A. |
| Description_INV | Edelbrock BBC Cylinder Head |
| Description_KEY | Edelbrock; BBC; E-Street; Big Block Chevy Head; Oval Port; BARE; Idle To 5500 RPM; Cylinder Heads; 50459 |
| Description_LAB | E-Street Big-Block ChevyHead Cylinder Head Oval COMPLETE Single |
| Description_MKT | The Edelbrock #50459 E-Street cylinder 290 Oval Port head is designed for Big-Block applications. The Edelbrock E-Street cylinder head offers American made quality and affordable performance. E-Street cylinder head features as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 7in.} |
| Description_TRA | Designed for entry-level street performance engines and ideal for operating in the idle to 5500 rpm range |
| Description_TRA | Includes hardened spring cups and Heli-Coil threaded inserts in the rocker stud bosses for increased strength |
| Description_TRA | Match with Edelbrock head gasket sets. |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat |
| Description_TRA | these are the details that most low-cost competitors leave out of their heads. |
| Description_TRA | These cylinder heads are sold separately and Made in the USA! |
| Description_TRA | • Match with Edelbrock head gasket sets. • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in. reach with flat gasket seat • Designed for entry-level street performance engines and ideal for operating in the idle to 5500 rpm range • Includes hardened spring cups and Heli-Coil® threaded inserts in the rocker stud bosses for increased strength; these are the details that most low-cost competitors leave out of their heads. • These cylinder heads are sold separately and Made in the USA! |
| EGR Port | No |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 110 |
| Exhaust Valve Diameter | 1.88 |
| Family | E-Street |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| Head Casting Number | N/A |
| height | 8.5 |
| Horsepower | 400-500 |
| Intake Runner Volume | 290 |
| Intake Valve Diameter | 2.19 |
| length | 26.0 |
| LTL | N |
| Material | Aluminum |
| Push Rod Diameter | (Suggested) 0.4375 |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | E-Street |
| Valve Angle | 26 |
| Valve Included | Yes |
| Valve Spring Diameter | 1.50 |
| Valve Spring Maximum Lift | 0.700 |
| Valve Springs Included | Yes |
| Valve Stem Diameter | 0.3438 |
| weight | 44.1 |
| width | 11.0 |
