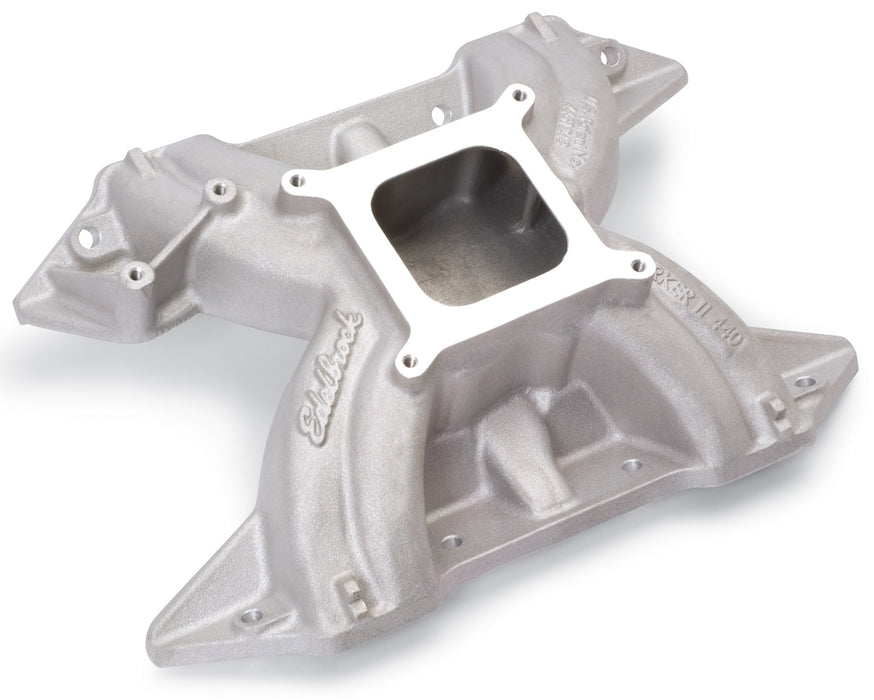

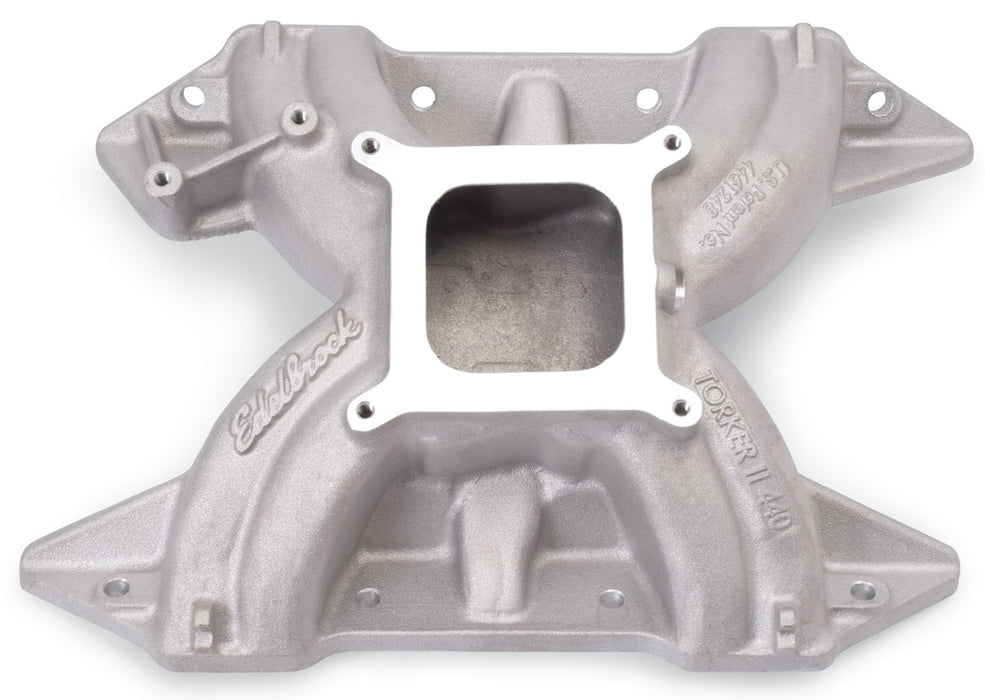

Edelbrock 5091 Edelbrock Torker II Intake Manifold for Chrysler 413-426-440 Big-Block V8
by Edelbrock
SKU ds_BDVJ_5091
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$538.51
-
Original price
$538.51
Original price
$538.51
$538.51
$538.51
-
$538.51
Current price
$538.51
Description
Edelbrock part #5091 Torker II 440 intake manifold is designed for street 413-426-440 c.i.d. Chrysler V8's. They measure 8.75" across block. Manifold not equipped with EGR. Will not fit 1962-64 Max Wedge heads.
Specifications
| Basic Operating RPM Range | 2500-6500 |
| Center Maximum Height | 4.670 |
| CNC Ported | No |
| Color | Satin |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Torker II Intake Manifold for Chrysler 413-426-440 Big-Block V8 |
| Description_FAB | 2500 to 6500 RPM High Performance Street Engines |
| Description_FAB | For Top-End HP and Adequate Throttle Response |
| Description_FAB | Ideal for Applications with Limited Hood Clearance |
| Description_FAB | Single-Plane Low-Rise Intake is Good for High RPMs |
| Description_INV | Torker 2 Chrysler 440 Intake Manifold |
| Description_KEY | 5091; Chrysler; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Torker II; Torker 2; Satin |
| Description_LAB | Torker II Chrysler Big Block RB Intake Manifold |
| Description_MKT | Edelbrock part #5091 Torker II 440 intake manifold is designed for street 413-426-440 c.i.d. Chrysler V8's. They measure 8.75" across block. Manifold not equipped with EGR. Will not fit 1962-64 Max Wedge heads. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Carb pad height: 4.67" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 750-800cfm. Use #1481 or #1843 throttle/transmission lever kit. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-4.15", B-5.20", measured to engine block |
| Description_TRA | Port exit dimensions: 1.10" x 2.17" |
| Description_TRA | Recommended intake gasket: #7225 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: # 7225 • Manifold height: A-4.15in.; B-5.20in.; measured to engine block • Carb pad height: 4.67in. • Carb recommendations: Edelbrock AVS2 or Performer Series 750-800cfm. Use # 1481 or # 1843 throttle/transmission lever kit. • Port exit dimensions: 1.10in. x 2.17in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Flange Type | 4150 |
| Front Maximum Height | 4.150 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 5.200 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Torker/Torker II |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Chrysler |
| weight | 15.75 |
| width | 14.75 |
