Edelbrock 60367 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_60367
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$691.76
-
Original price
$691.76
Original price
$691.76
$691.76
$691.76
-
$691.76
Current price
$691.76
Description

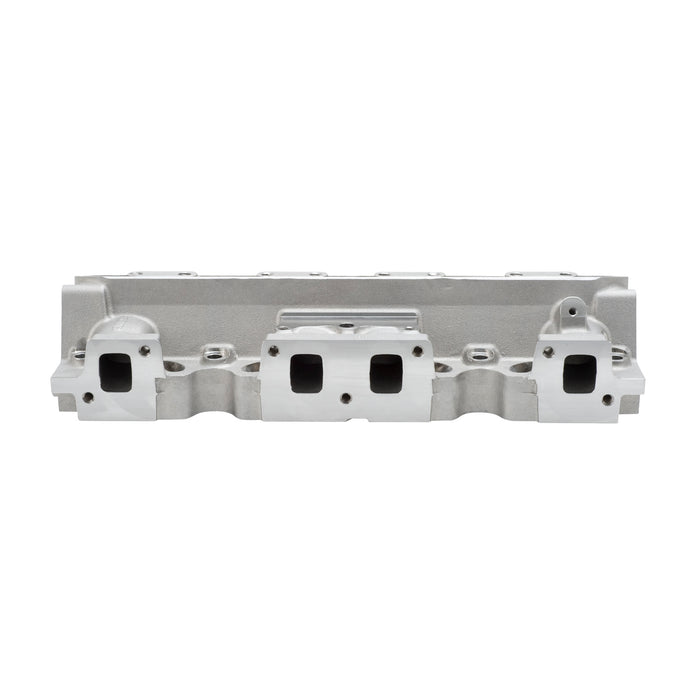

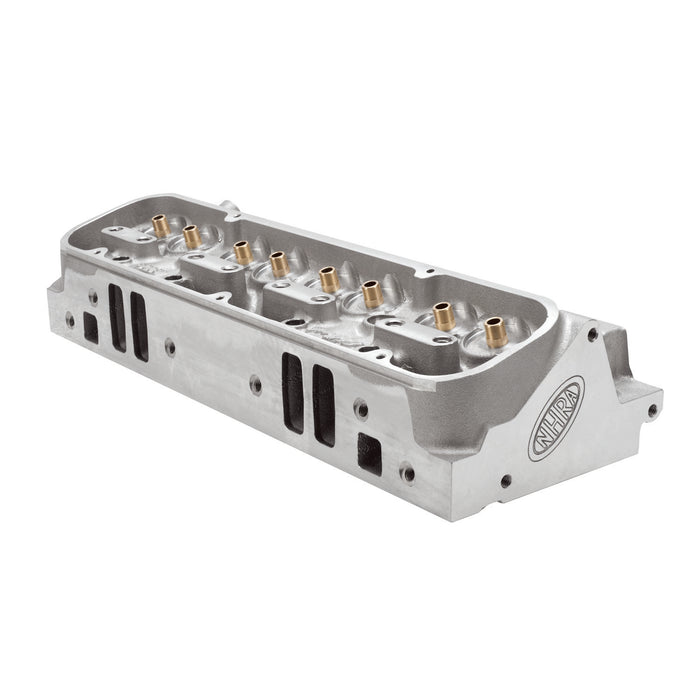

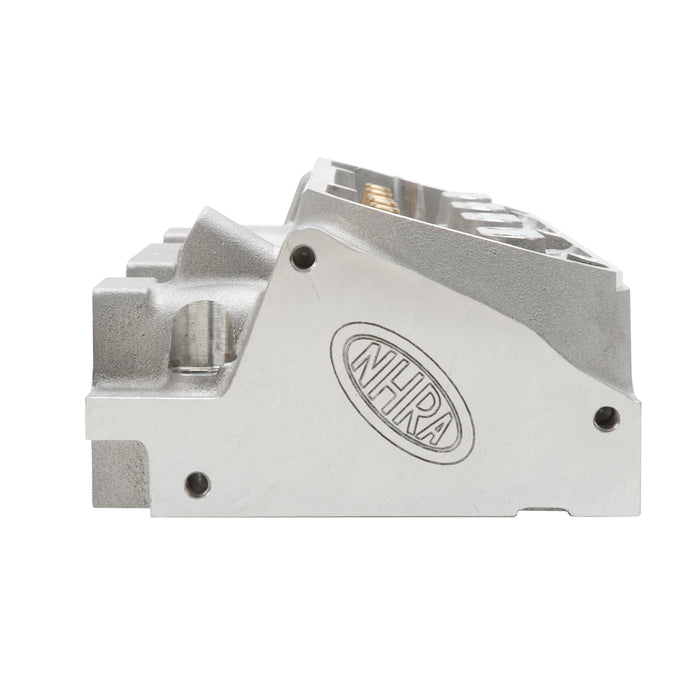

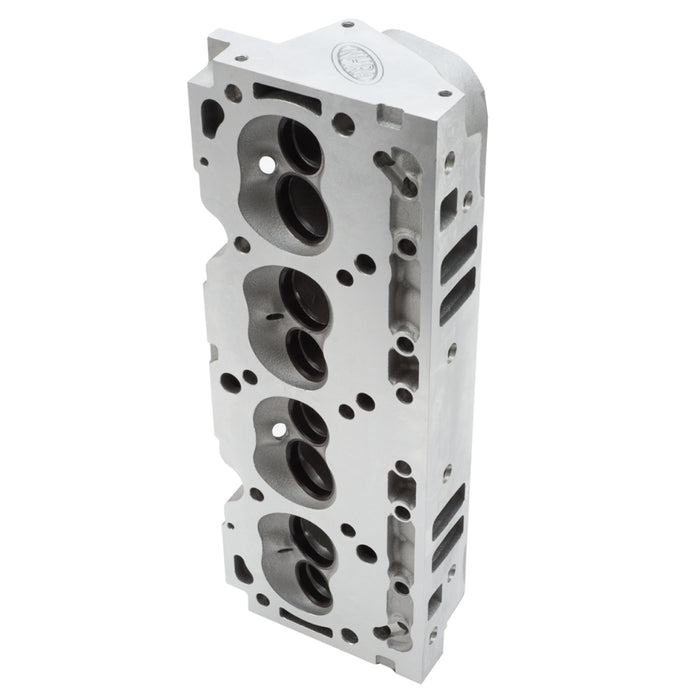

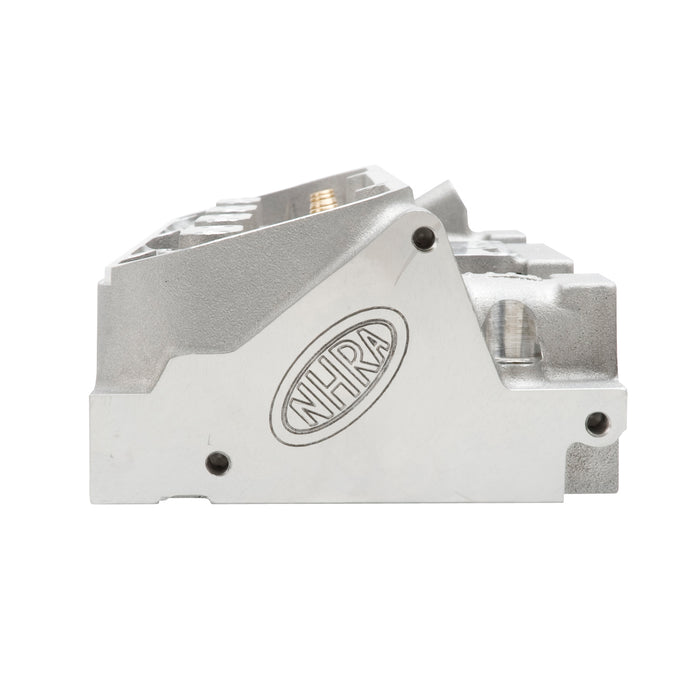

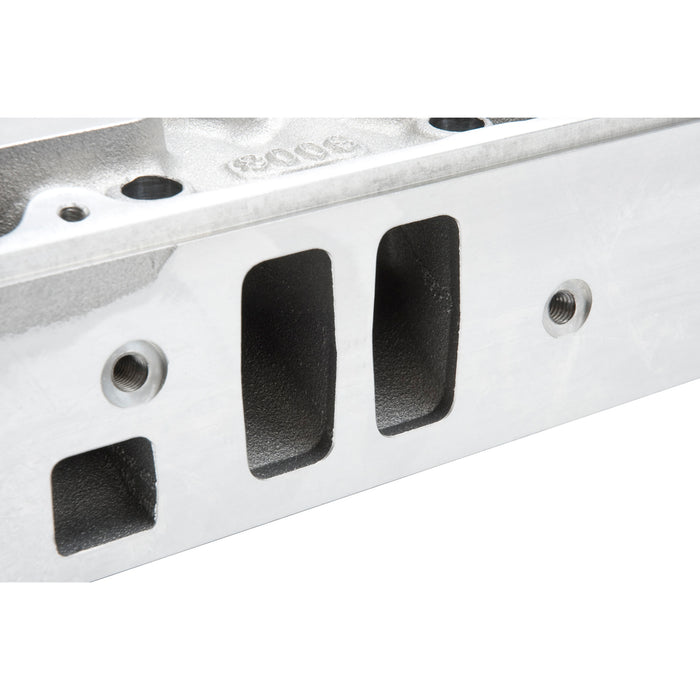

The Edelbrock #60367 Performer NHRA Stock/Super Stock cylinder head is designed for use with 1982-95 50.L & 5.8L V8 applications. Cast and heat treated at the Edelbrock Foundry and machined at Edelbrock's manufacturing facility in the USA, the Edelbrock head is the best in quality and performance. All Edelbrock cylinder head is designed from scratch using the latest in computer technology by our own highly skilled engineer's. Using highly efficient ports and state-of-the-art combustion chamber shapes, Edelbrock cylinder head offers improved performance throughout the rpm range for great throttle response and top-end horsepower. Top-quality features include threaded inserts in rocker stud and exhaust bolt holes for superior strength and durability, and manganese-bronze valve guides with ductile iron valve seats. These are features that some other companies don't include!
Specifications
| CNC Ported | No |
| Combustion Chamber Volume | 60 |
| Construction Type | Bare |
| Cylinder Head Type | Standard |
| Deck Thickness | 0.625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Ford:Small-Block Windsor:302 (5.0L)/351 (5.8L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | The Edelbrock #60367 Performer NHRA Stock/Super Stock Cylinder Heads are designed for use with 1982-95 50.L & 5.8L V8 applications. |
| Description_EXT | The Edelbrock #60367 Performer NHRA Stock/Super Stock Cylinder Heads are designed for use with 1982-95 50.L 5.8L V8 applications. |
| Description_FAB | Out-of-the-Box Bolt-On Performance |
| Description_FAB | Valves Promote Excellent Flow For Streetable Power |
| Description_INV | Edelbrock SBF Cylinder Head |
| Description_KEY | Edelbrock; SBF; 5.0; V8; Cylinder Head; 60367; Ford; Performer; Bare; NHRA |
| Description_LAB | NHRA Legal Small-Block Ford 5.0L/5.8L Cylinder Head |
| Description_MKT | The Edelbrock #60367 Performer NHRA Stock/Super Stock cylinder head is designed for use with 1982-95 50.L & 5.8L V8 applications. Cast and heat treated at the Edelbrock Foundry and machined at Edelbrock's manufacturing facility in the USA, the Edelbrock head is the best in quality and performance. All Edelbrock cylinder head is designed from scratch using the latest in computer technology by our own highly skilled engineer's. Using highly efficient ports and state-of-the-art combustion chamber shapes, Edelbrock cylinder head offers improved performance throughout the rpm range for great throttle response and top-end horsepower. Top-quality features include threaded inserts in rocker stud and exhaust bolt holes for superior strength and durability, and manganese-bronze valve guides with ductile iron valve seats. These are features that some other companies don't include! |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | 289-302 V8's require head bolt bushing #9680 and either head bolt kit #8552 (7/16") or stock bolts |
| Description_TRA | Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. |
| Description_TRA | Match with Edelbrock head gasket sets. |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | Will not accept rail rockers. |
| Description_TRA | • Bare heads will have valve guides and seats installed; but will require final sizing and a valve job to match the valves you will be using. • 289-302 V8ft.s require head bolt bushing #9680 and either head bolt kit #8552 (7/16in.) or stock bolts • Will not accept rail rockers. • Match with Edelbrock head gasket sets. • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in. reach with flat gasket seat. |
| EGR Port | Yes |
| Emission | N/A |
| Engine Make/Size | Ford 5.0L/302 |
| Engine Make/Size | Ford 5.8L/351W |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 60 |
| Family | Performer |
| finish | Cast Aluminum |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plates Included | No |
| height | 7.19 |
| Intake Runner Volume | 170 |
| length | 22.19 |
| Material | Aluminum |
| Preparation | Requires Professional Preparation (Bare) |
| Quantity | Sold Individually |
| Retainer Included | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | Performer |
| Type | Bare |
| Usage | Racing |
| Valve Included | No |
| Valve Springs Included | No |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 26.35 |
| width | 10.12 |
