Description

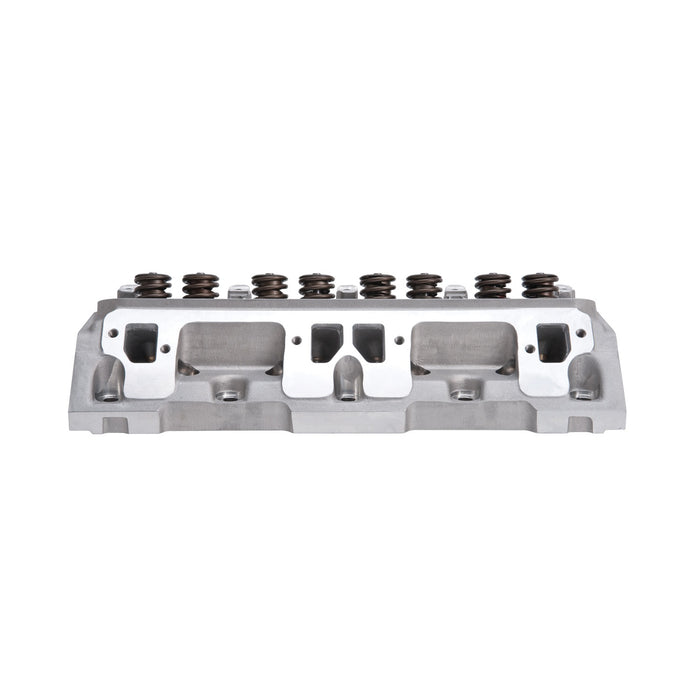

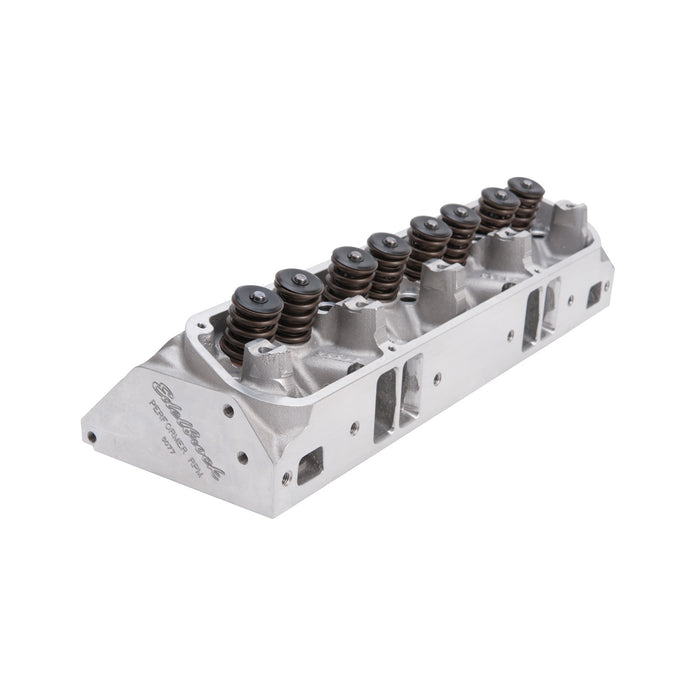

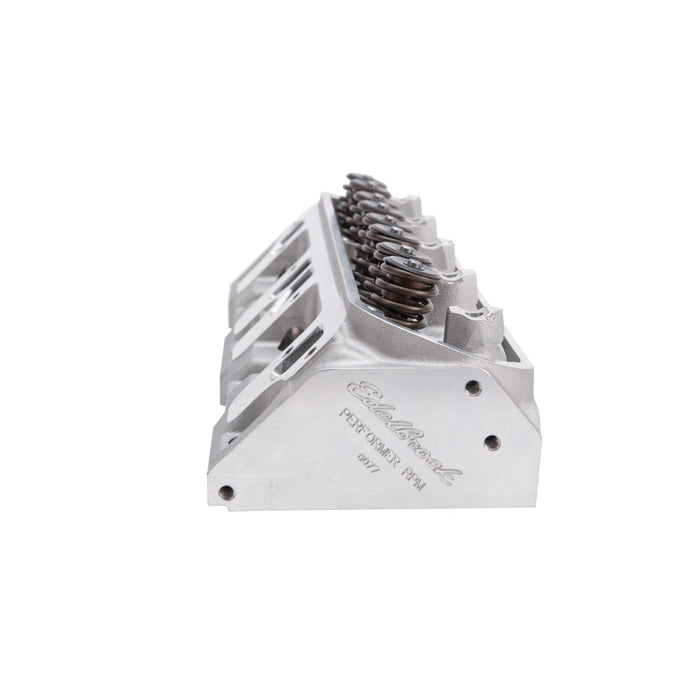

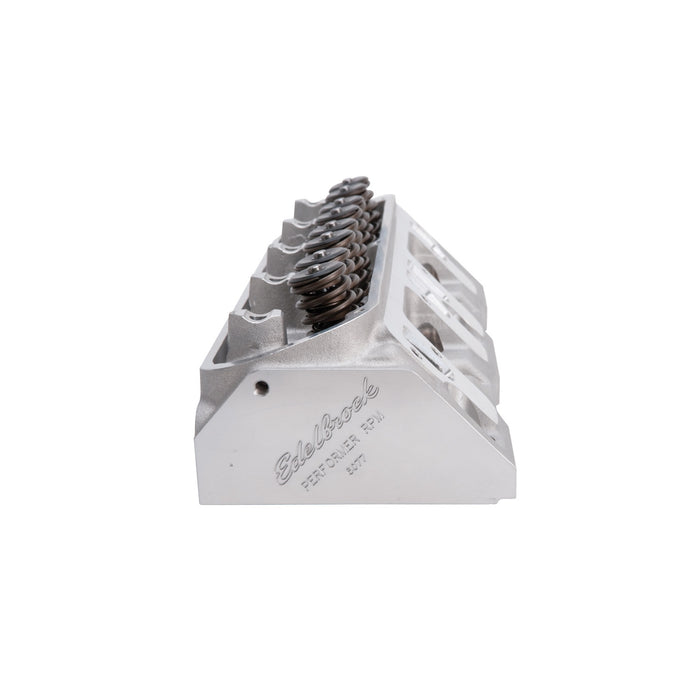

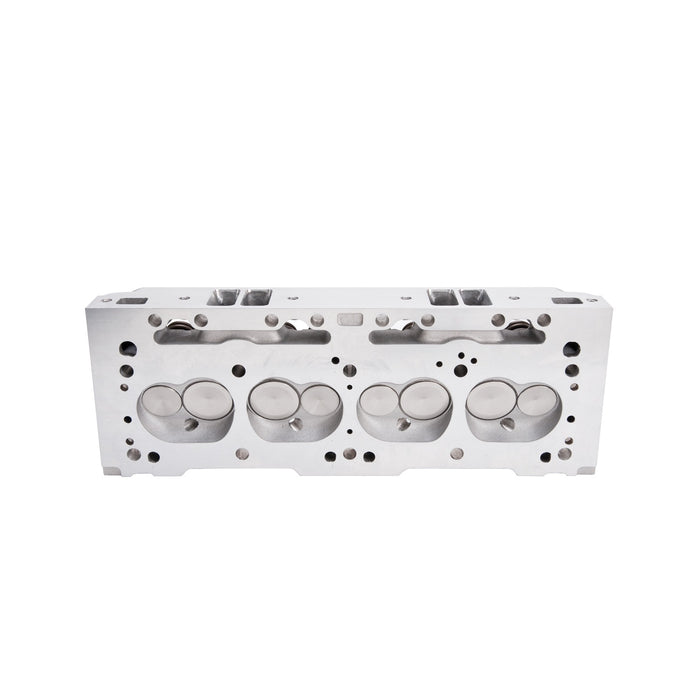

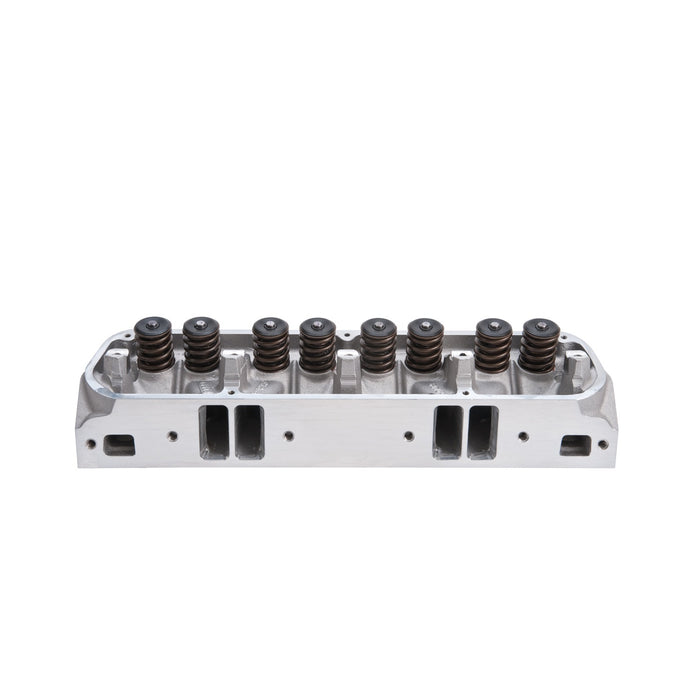

The Edelbrock #60775 Performer RPM head is designed for use with non-emission 1968-91 Chrysler 318-340-360 c.i.d. engine applications. The Edelbrock #60775 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Specifications
| Camshaft Type | Hydraulic Roller |
| CNC Ported | No |
| Combustion Chamber Volume | 63 |
| Construction Type | Complete |
| Cylinder Head Type | Standard |
| Deck Thickness | 0.625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | The Edelbrock #60775 Performer RPM heads are designed for use with non-emission 1968-91 Chrysler 318-340-360 engines. These heads are perfect for street performance, daily drivers and muscle cars where more performance is needed. |
| Description_EXT | The Edelbrock #60775 Performer RPM heads are designed for use with non-emission 1968-91 Chrysler 318-340-360 engines. These heads are perfect for street performance; daily drivers and muscle cars where more performance is needed. |
| Description_FAB | CNC-Matched Intake/Exhaust Ports in Std Location |
| Description_FAB | Hand-Blended Intake and Exhaust Bowls |
| Description_FAB | Out-of-the-Box Bolt-On Performance |
| Description_FAB | Thicker Deck Surfaces Than Other Brands |
| Description_INV | Edelbrock SB Chrysler Cylinder Head |
| Description_KEY | Edelbrock; Small Block Chrysler; 318; 340; 360; V8; Cylinder Heads; 60765; Roller Camshaft |
| Description_LAB | RPM Small-Block Chrysler LA Cylinder Head Hydraulic Roller Cam |
| Description_MKT | The Edelbrock #60775 Performer RPM head is designed for use with non-emission 1968-91 Chrysler 318-340-360 c.i.d. engine applications. The Edelbrock #60775 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Deck thickness: 5/8" |
| Description_TRA | Delivers outstanding performance in non-emission 1967-91 Chrysler 318-340-360 c.i.d. engines |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS |
| Description_TRA | Make 417 horsepower and 397 ft-lbs. of torque on pump gas with an Edelbrock Performer RPM intake manifold and matching camshaft |
| Description_TRA | Pushrod diameter: 5/16" |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | The special valvetrain in the 1970 340 T/A is not compatible with these cylinder heads. Match with Edelbrock head gasket sets. |
| Description_TRA | • EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS • Delivers outstanding performance in non-emission 1967-91 Chrysler 318-340-360 c.i.d. engines • Make 417 horsepower and 397 ft-lbs. of torque on pump gas with an Edelbrock Performer RPM intake manifold and matching camshaft • The special valvetrain in the 1970 340 T/A is not compatible with these cylinder heads. Match with Edelbrock head gasket sets. • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in. reach with flat gasket seat. • Deck thickness: 5/8in. • Pushrod diameter: 5/16in. |
| EGR Port | No |
| Emission | N/A |
| Engine Make/Size | Mopar 318-360 |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 77 |
| Exhaust Valve Diameter | 1.60 |
| Family | Performer RPM |
| finish | Cast Aluminum |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | No |
| Head Casting Number | N/A |
| height | 8.25 |
| Horsepower | 350-450 |
| Intake Runner Volume | 171 |
| Intake Valve Diameter | 2.02 |
| length | 24.75 |
| LTL | N |
| Material | Aluminum |
| Preparation | Bolt On (Not Required) |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | Performer RPM |
| Type | Complete |
| Usage | Street/Hi-Performance |
| Valve Angle | 18 |
| Valve Included | Yes |
| Valve Spring Diameter | 1.46 |
| Valve Spring Maximum Lift | 0.575 |
| Valve Springs Included | Yes |
| Valve Stem Diameter | 0.3438 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 31.4 |
| width | 10.5 |
