Availability:
4+ in stock
Edelbrock 60819 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_60819
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$2,145.43
-
Original price
$2,145.43
Original price
$2,145.43
$2,145.43
$2,145.43
-
$2,145.43
Current price
$2,145.43
Description

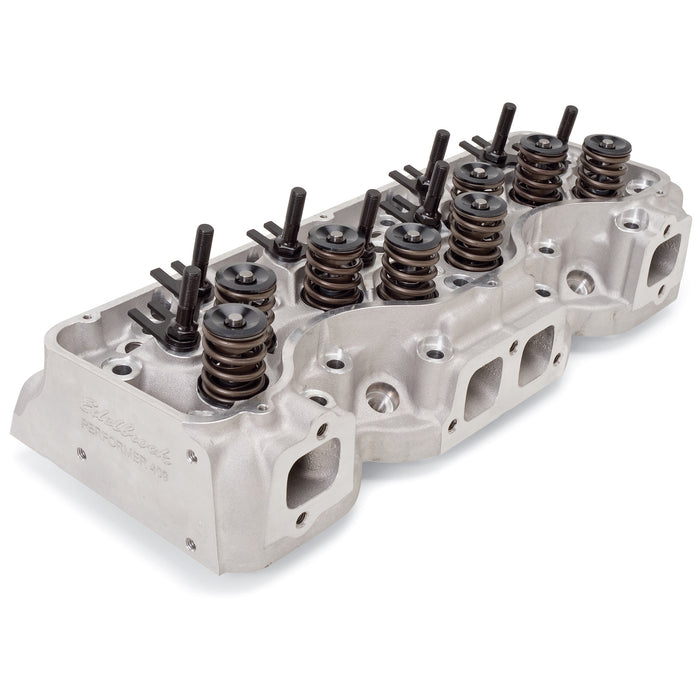

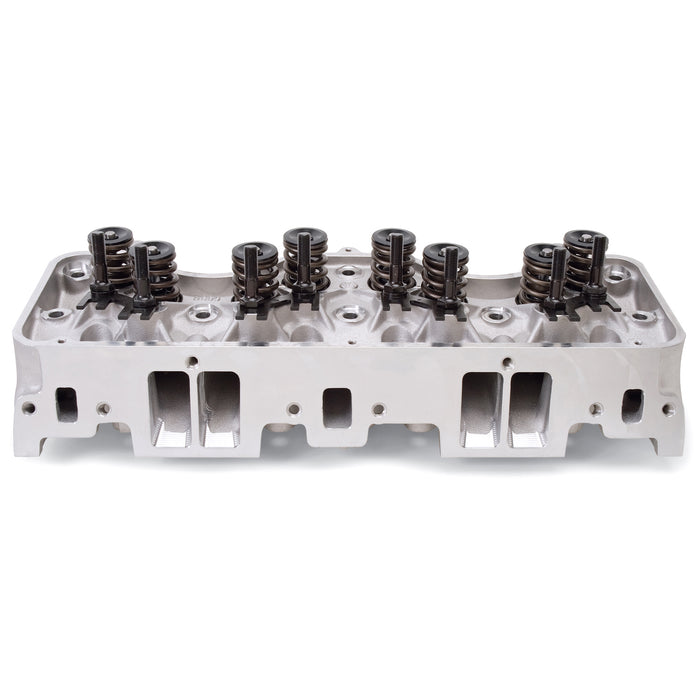

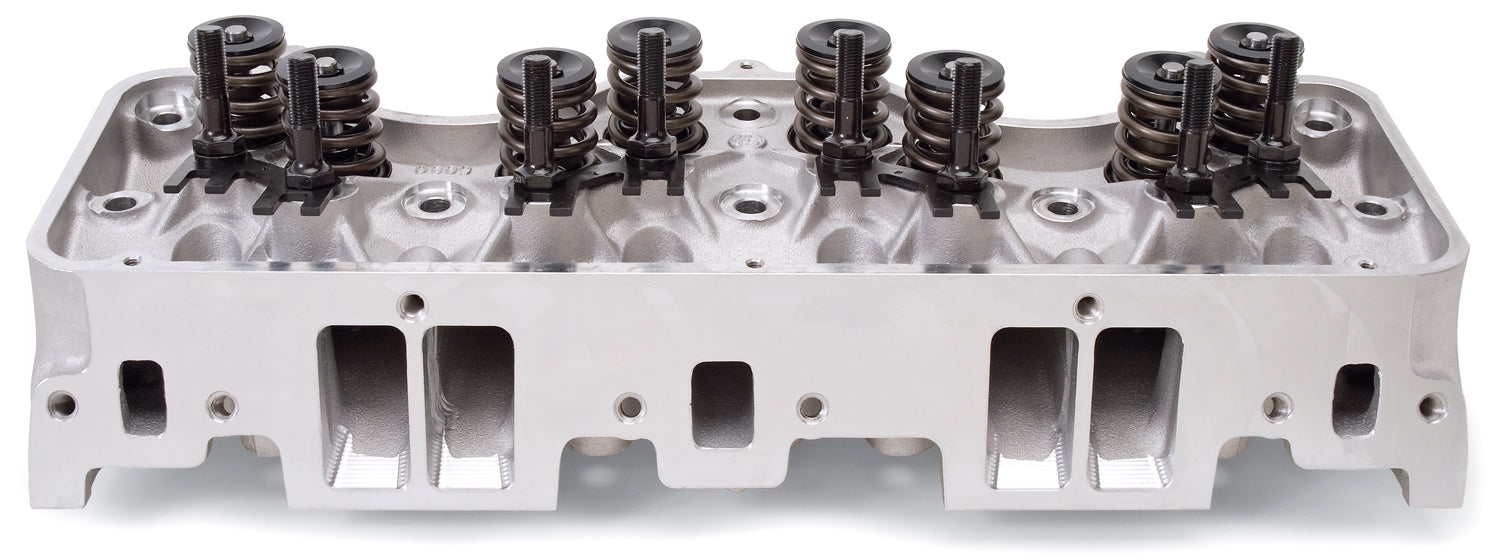

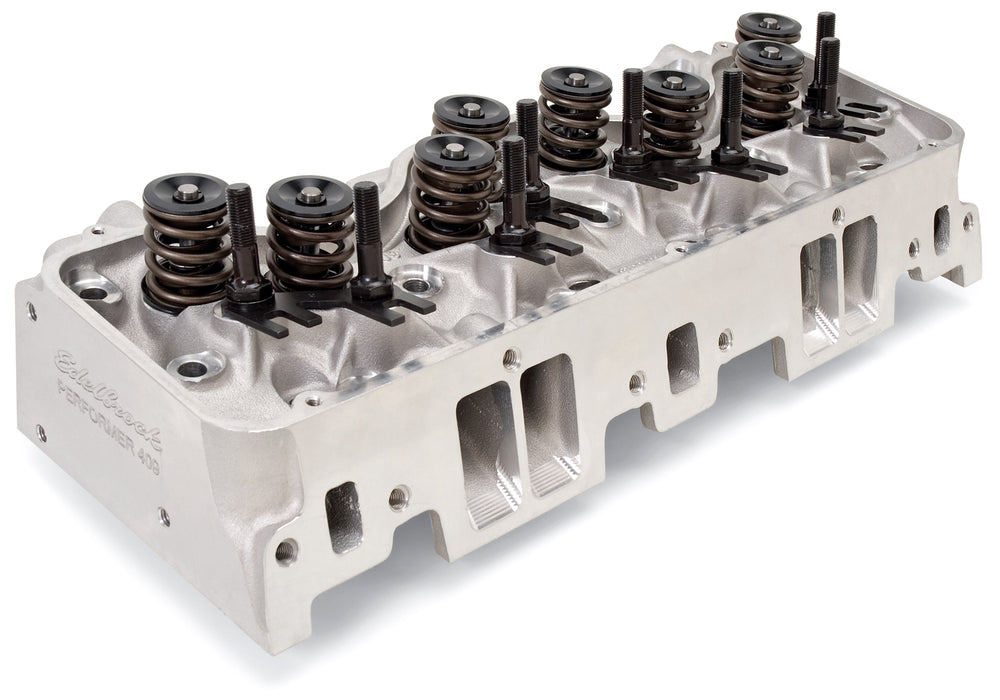

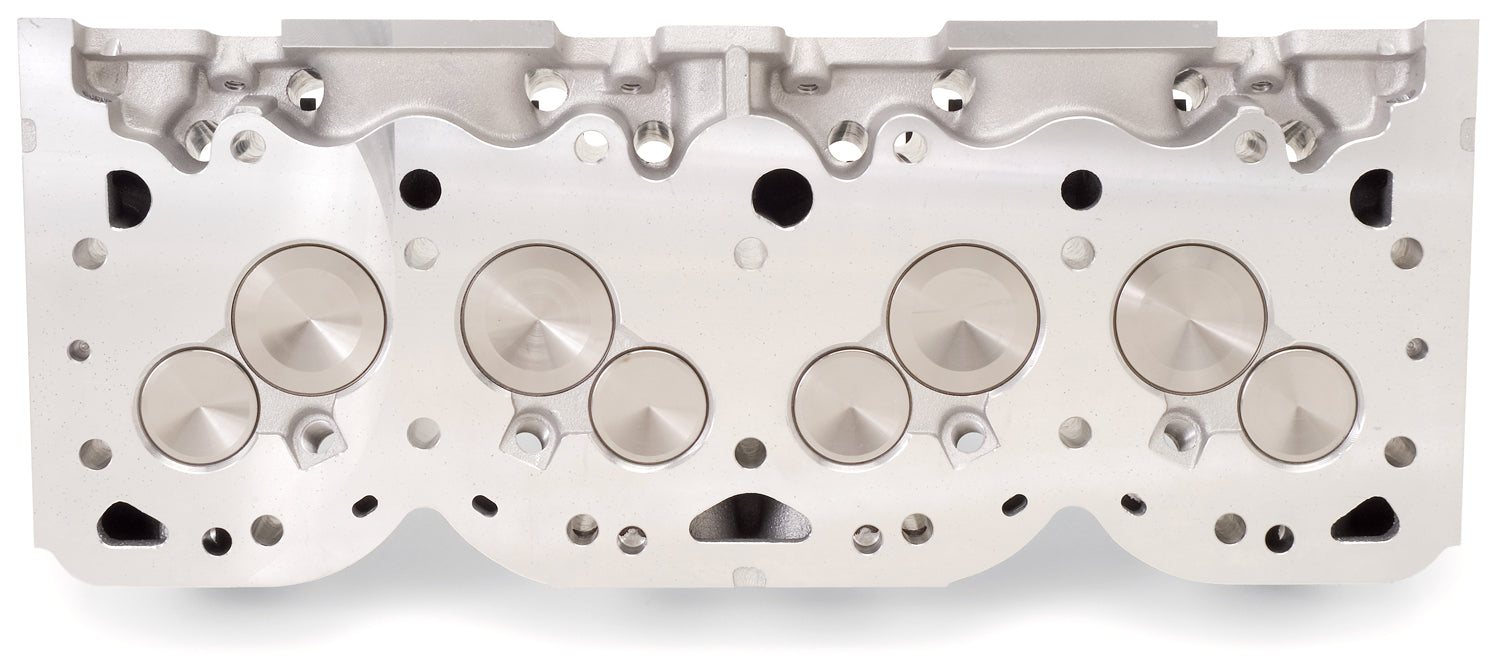

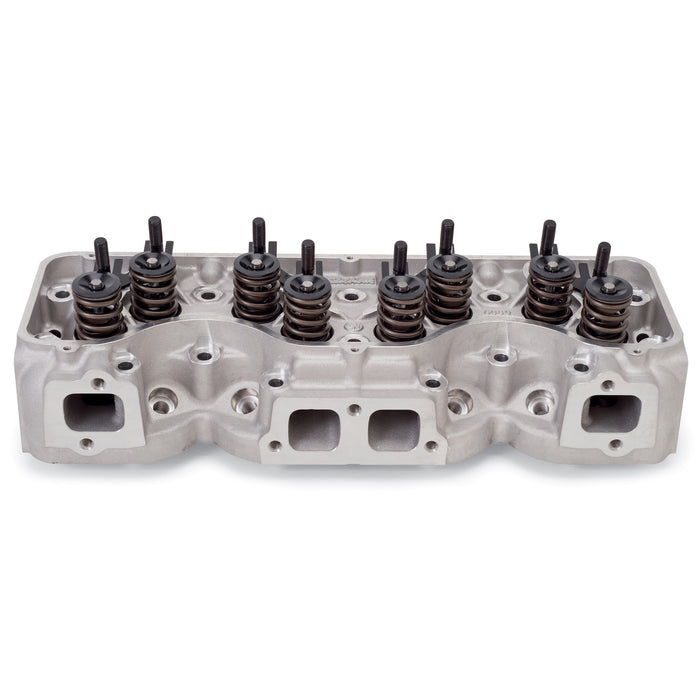

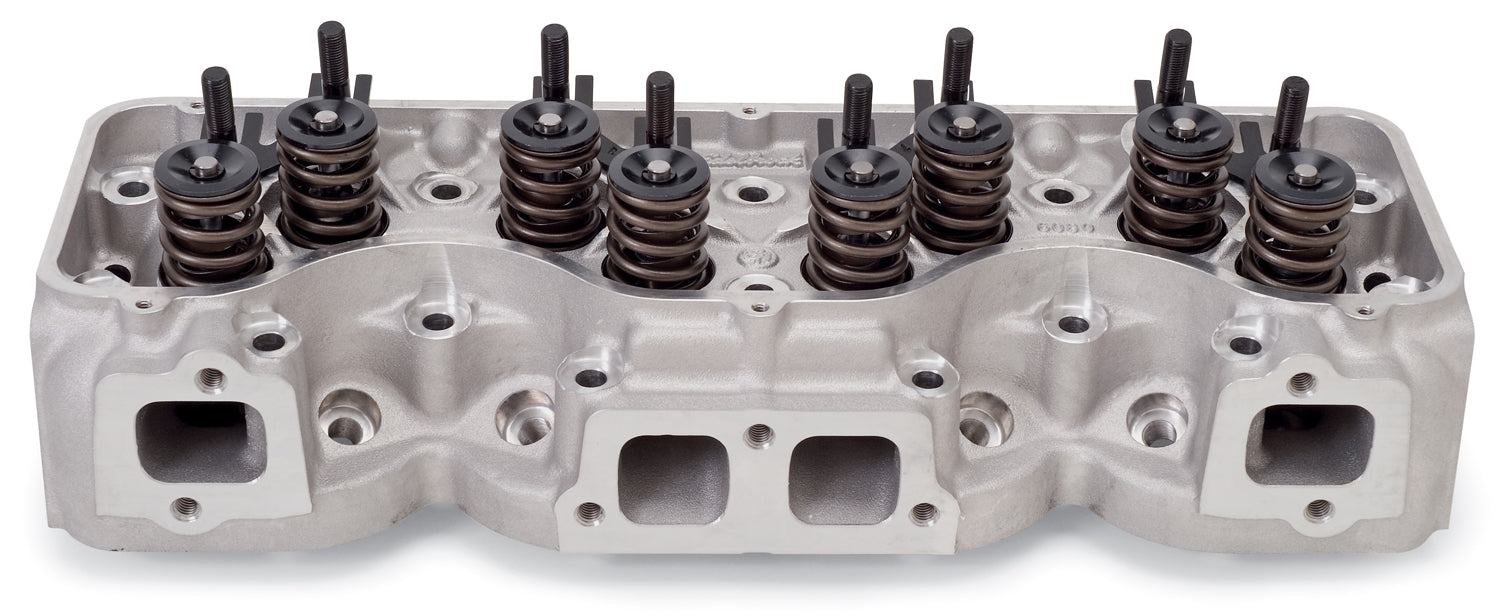

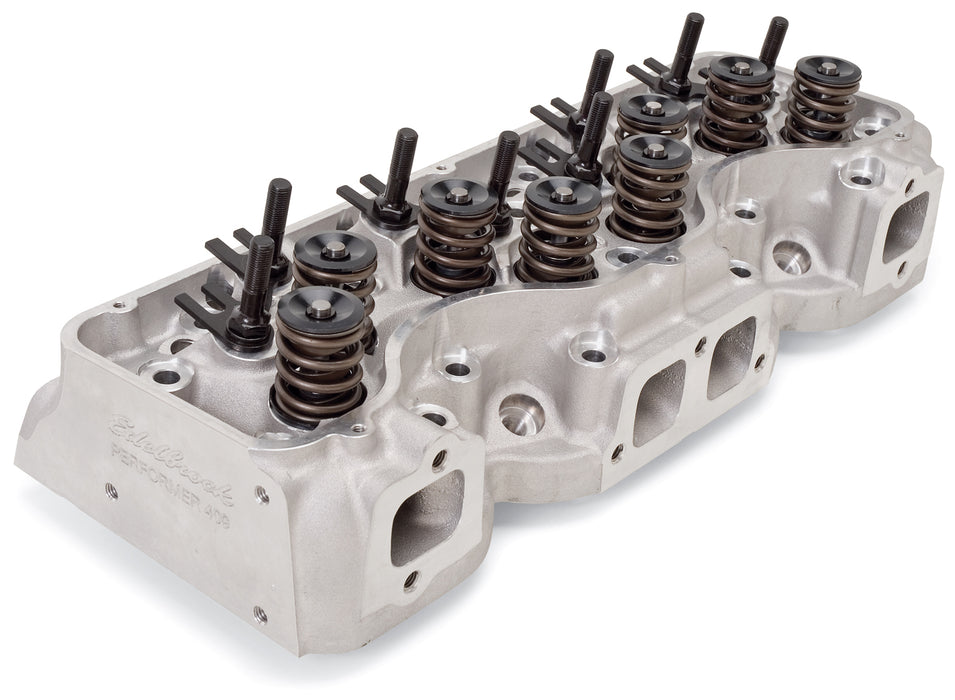

The Edelbrock #60819 Performer RPM cylinder head is designed for 1958-1965 Chevrolet "W" Series 348/409 big-block applications. The Edelbrock #60819 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Specifications
| Camshaft Type | Flat Tappet |
| CNC Ported | Yes |
| Combustion Chamber Volume | 16 |
| Construction Type | Complete |
| Cylinder Head Type | Standard |
| Deck Thickness | 0.5625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:W Big-Block:348 (5.7L)/409 (6.7L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | The Edelbrock #60819 Performer RPM cylinder heads are designed for 1958-1965 Chevrolet "W" Series 348/409 engines. The Performer RPM heads are perfect for street performance, daily drivers and muscle cars where more performance is needed. |
| Description_EXT | The Edelbrock #60819 Performer RPM cylinder heads are designed for 1958-1965 Chevrolet W Series 348/409 engines. The Performer RPM heads are perfect for street performance; daily drivers and muscle cars where more performance is needed. |
| Description_FAB | Bolt-On Convenience |
| Description_FAB | Complete Head |
| Description_FAB | Designed For 1961-1965 W-Series 348/409 Big Block |
| Description_FAB | Improved Port Design For More Performance |
| Description_INV | Edelbrock W-Series Cylinder Head |
| Description_KEY | Edelbrock; W-Series; 348;409 Chevy; Hydraulic Flat Tappet Camshaft; 409; V8; Cylinder Heads; 60819 |
| Description_LAB | RPM 348/ 409 Chevy Cylinder Head Hydraulic Roller Camshaft |
| Description_LAB | RPM 348/409 Chevy Cylinder Head Hydraulic Roller Camshaft |
| Description_MKT | The Edelbrock #60819 Performer RPM cylinder head is designed for 1958-1965 Chevrolet "W" Series 348/409 big-block applications. The Edelbrock #60819 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 3in.} |
| Description_TRA | 1958 348 c.i.d. applications will require modifications to cylinder head (contact Edelbrock tech department for detailed information) |
| Description_TRA | CNC port matched 220cc intake and 115cc exhaust ports for optimum flow and power |
| Description_TRA | Deck thickness: 9/16" |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS |
| Description_TRA | Hardened spring cups, screw-in rocker studs and hardened guide plates |
| Description_TRA | Improved port design for more performance |
| Description_TRA | May be used on 348 engines with valve lifts up to .550" only. |
| Description_TRA | Original port locations and valve angles for bolt-on convenience |
| Description_TRA | Proper cylinder wall notching must be checked to ensure exhaust valve to cylinder clearance. |
| Description_TRA | Pushrod diameter: 3/8" (width of slot in guide plate) |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | Rocker stud diameter: 7/16" |
| Description_TRA | These heads will only fit 1958-65 348 c.i.d. "W" engines if an Edelbrock #5409, #7159 or stock large port 409 c.i.d. manifold is used. |
| Description_TRA | Use Edelbrock head gasket sets. |
| Description_TRA | • EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS • Original port locations and valve angles for bolt-on convenience • CNC port matched 220cc intake and 115cc exhaust ports for optimum flow and power • Improved port design for more performance • Hardened spring cups; screw-in rocker studs and hardened guide plates • 1958 348 c.i.d. applications will require modifications to cylinder head (contact Edelbrock tech department for detailed information) • Use Edelbrock head gasket sets. • May be used on 348 engines with valve lifts up to .550in. only. • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in. reach with flat gasket seat. • These heads will only fit 1958-65 348 c.i.d. W engines if an Edelbrock #5409; #7159 or stock large port 409 c.i.d. manifold is used. • Proper cylinder wall notching must be checked to ensure exhaust valve to cylinder clearance. • Deck thickness: 9/16in. • Rocker stud diameter: 7/16in. • Pushrod diameter: 3/8in. (width of slot in guide plate) |
| EGR Port | No |
| Emission | Non-Emissions |
| Engine Make/Size | Chevy 348-409 |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 115 |
| Exhaust Valve Diameter | 1.72 |
| Family | Performer RPM |
| finish | Cast Aluminum |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| Head Casting Number | N/A |
| height | 8.5 |
| Horsepower | 400-600 |
| Intake Runner Volume | 220 |
| Intake Valve Diameter | 2.19 |
| length | 26.25 |
| LTL | N |
| Material | Aluminum |
| Preparation | Factory CNC Ported |
| Push Rod Diameter | (Suggested) 0.375 |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | Performer RPM |
| Type | Complete |
| Usage | Street/Hi-Performance |
| Valve Angle | 0 |
| Valve Included | Yes |
| Valve Spring Diameter | 1.55 |
| Valve Spring Maximum Lift | 0.600 |
| Valve Springs Included | Yes |
| Valve Stem Diameter | 0.3438 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 36.4 |
| width | 11.0 |
