Description

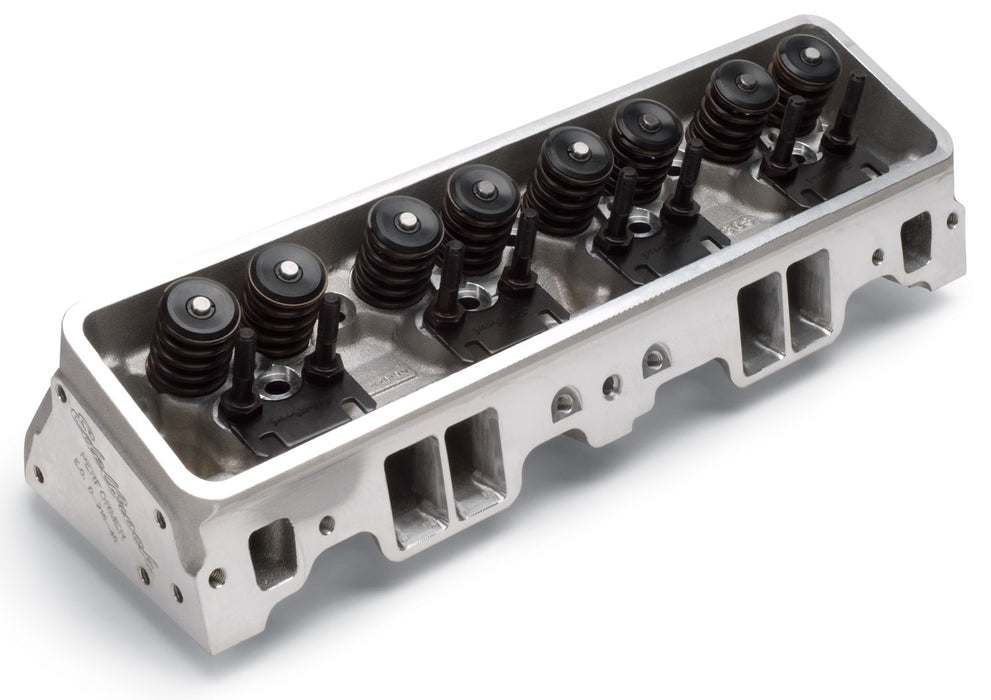

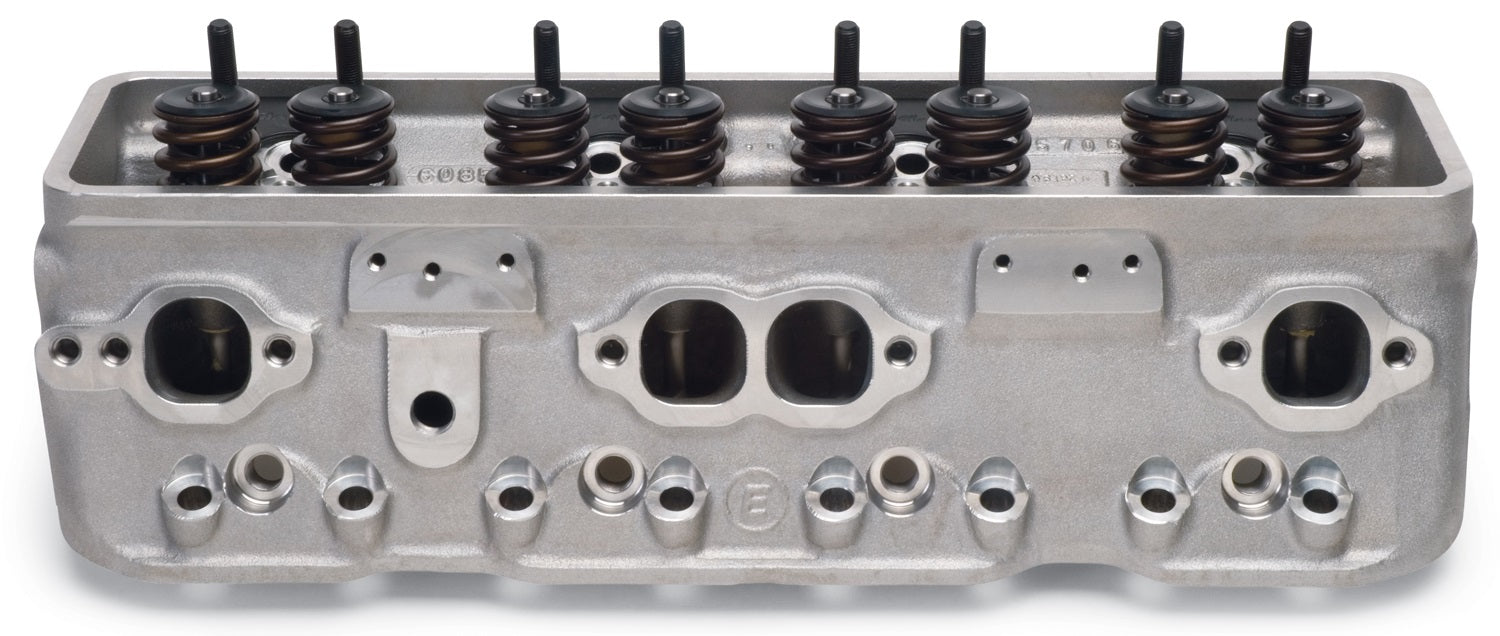

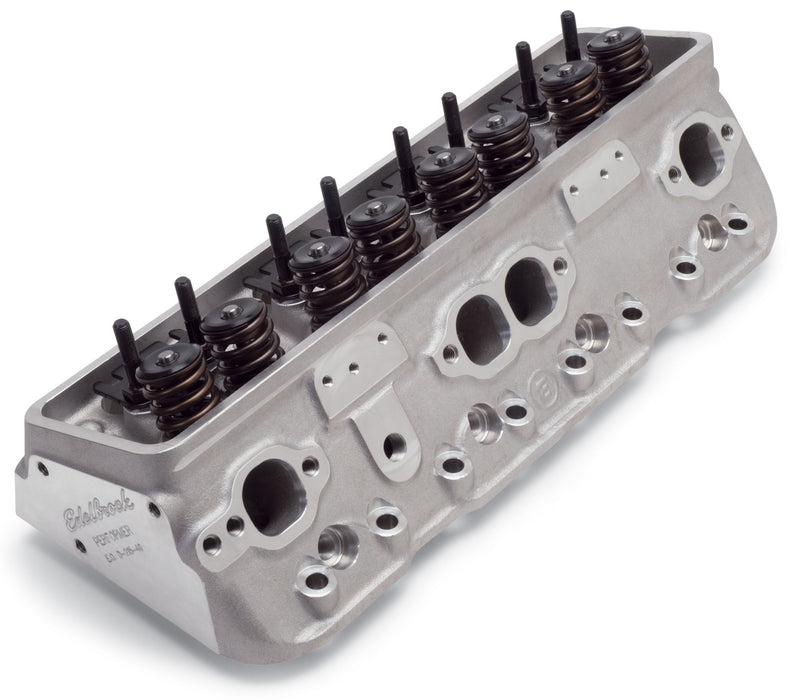

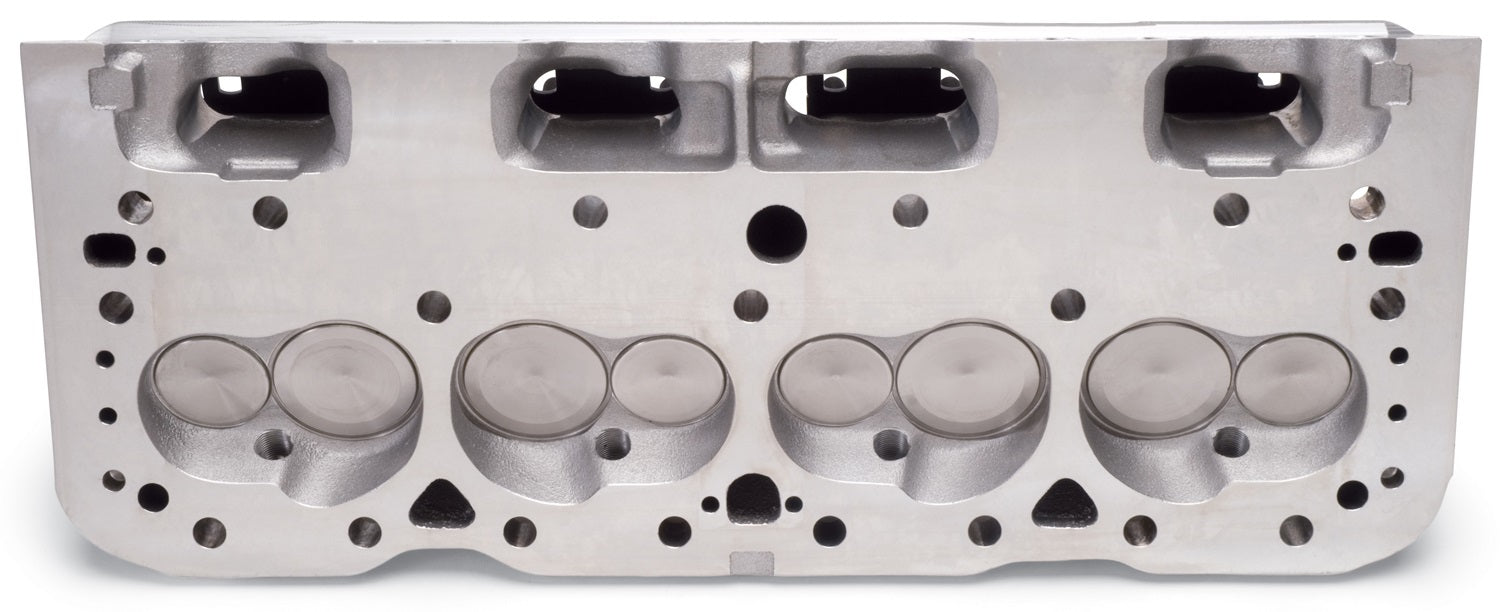

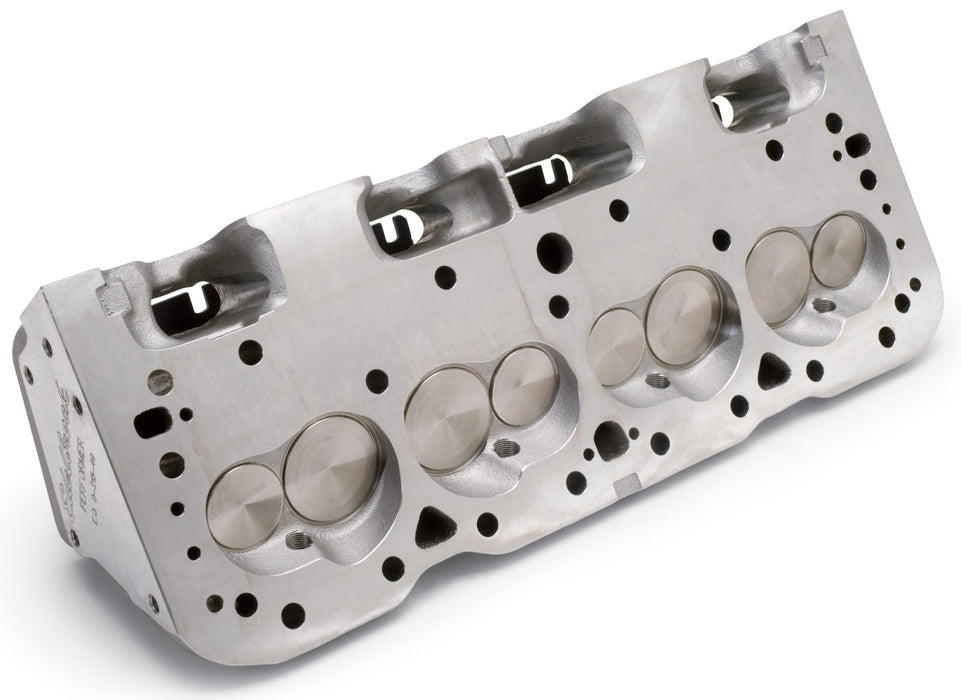

The Edelbrock #60859 Small-block Chevy cylinder head is designed for 1987-95 Throttle Body Injected (T.B.I.) and Tuned Port Injected (T.P.I.) 5.7L S/B Chevy engines originally equipped with center bolt valve covers. Performer center bolt cylinder head is 50-state street legal and accept factory center bolt valve covers. The intake bolt pattern utilizes the 1987-95, 73deg angle on the two center bolts. Will maintain stock compression ratio when used with the recommended head gasket. The Edelbrock Performer head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs.
Specifications
| Camshaft Type | Flat Tappet |
| CNC Ported | No |
| Combustion Chamber Volume | 60 |
| Construction Type | Complete |
| Cylinder Head Type | Center Bolt (87-95) |
| Deck Thickness | 0.625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | The Edelbrock #60859 Small-block Chevy cylinder head is designed for 1987-95 Throttle Body Injected (T.B.I.) and Tuned Port Injected (T.P.I.) 5.7L S/B Chevy engines originally equipped with center bolt valve covers. |
| Description_FAB | 50-State Street Legal Aluminum Cylinder Head |
| Description_FAB | Accepts Edelbrock Aluminum Valve Covers |
| Description_FAB | Accepts Stock Center Bolt Valve Covers |
| Description_FAB | Maintains Stock Compression Ratio |
| Description_FAB | Out-of-the-Box Bolt-On Performance |
| Description_INV | Edelbrock SBC Cylinder Head |
| Description_KEY | Edelbrock; SBC; Small Block; Chevy; V8; Cylinder Heads; 60849; Center Bolt; Hydraulic Flat Tappet |
| Description_LAB | Performer Small-Block Chevy Cylinder Head Hydraulic Flat Tappet Cam |
| Description_MKT | The Edelbrock #60859 Small-block Chevy cylinder head is designed for 1987-95 Throttle Body Injected (T.B.I.) and Tuned Port Injected (T.P.I.) 5.7L S/B Chevy engines originally equipped with center bolt valve covers. Performer center bolt cylinder head is 50-state street legal and accept factory center bolt valve covers. The intake bolt pattern utilizes the 1987-95, 73deg angle on the two center bolts. Will maintain stock compression ratio when used with the recommended head gasket. The Edelbrock Performer head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 1in.; eo_carb_number : D-215-94in.; eo_carb_link : https:/ww3.arb.ca.gov/msprog/aftermkt/devices/eo/d-215-94.pdf } |
| Description_TRA | Match with Edelbrock head gasket sets. |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | • Match with Edelbrock head gasket sets. • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in. reach with flat gasket seat. |
| EGR Port | Yes |
| Emission | 50 State Legal |
| Engine Make/Size | Chevy Small Block (262-400) |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 65 |
| Exhaust Valve Diameter | 1.60 |
| Family | Performer |
| finish | Satin |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| Head Casting Number | N/A |
| height | 8.75 |
| Horsepower | 250-425 |
| Intake Runner Volume | 165 |
| Intake Valve Diameter | 2.02 |
| length | 25.75 |
| LTL | N |
| Material | Aluminum |
| Preparation | Bolt On (Not Required) |
| Push Rod Diameter | (Suggested) 0.3125 |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rotor Center Bore Inside Diameter | Straight |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | Performer |
| Type | Complete |
| Usage | Street/Performance |
| Valve Angle | 23 |
| Valve Included | Yes |
| Valve Spring Diameter | 1.46 |
| Valve Spring Maximum Lift | 0.575 |
| Valve Springs Included | Yes |
| Valve Stem Diameter | 0.3438 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 30.1 |
| width | 11.0 |
