Description

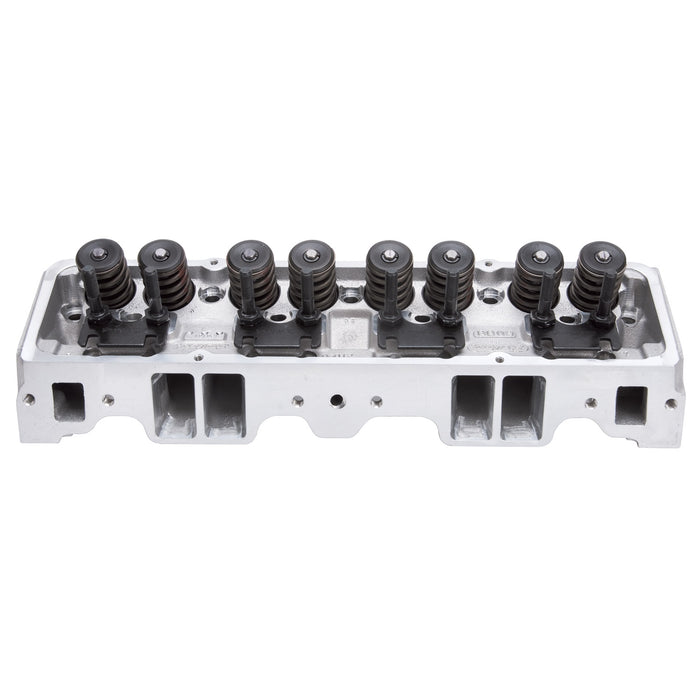

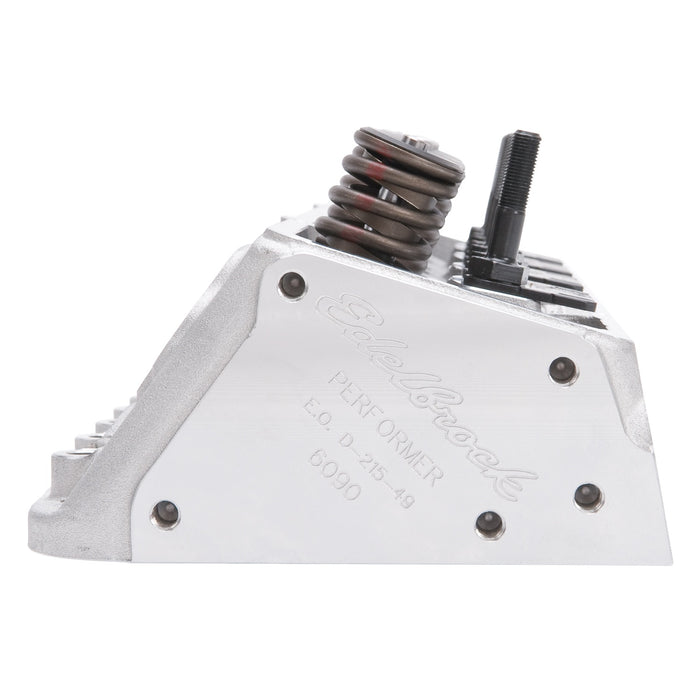

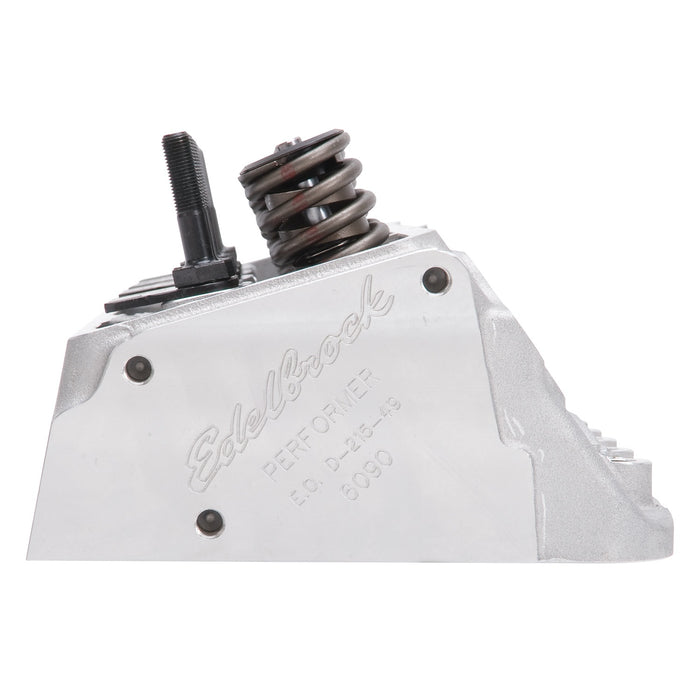

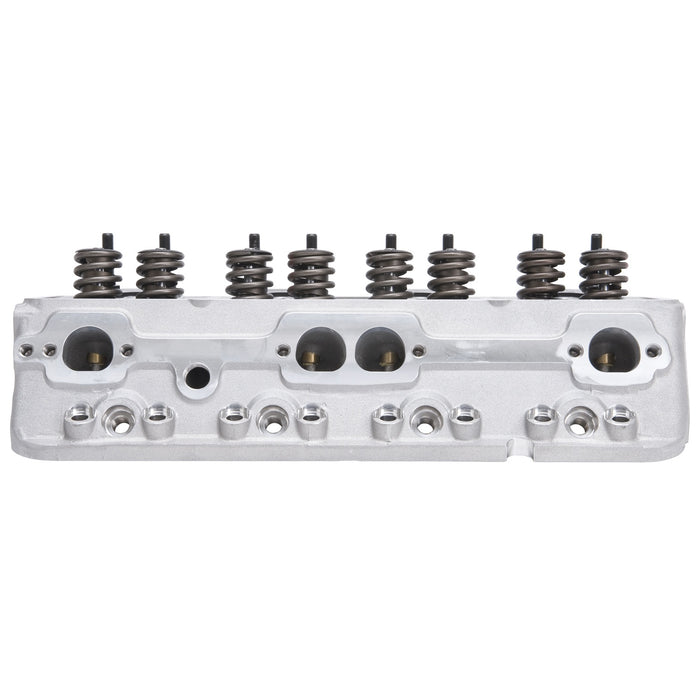

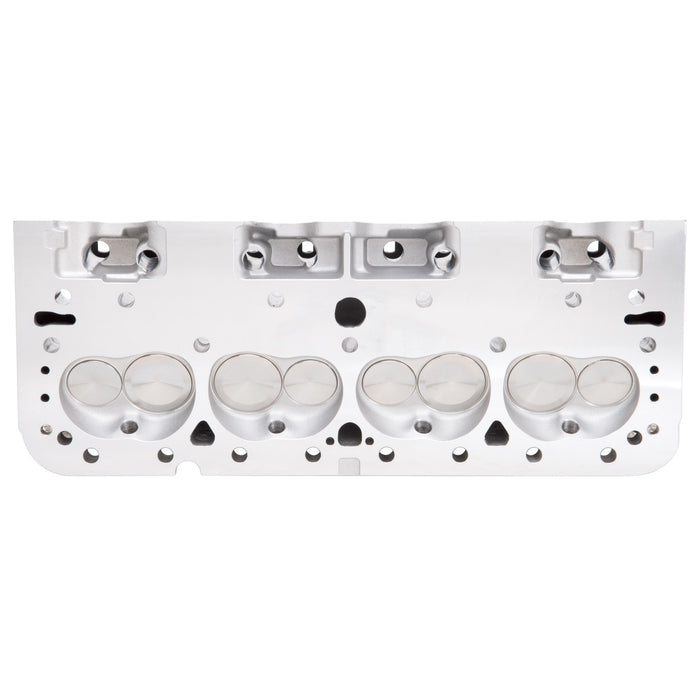

The Edelbrock #60909 Performer cylinder head is designed for 302, 327, 350 and 400 cid small-block Chevy engines up to 1986. This cylinder head includes your choice of 64cc (In order to retain stock compression ratio on 1970 and earlier small-blocks) or 70cc combustion chambers and high flow intake and exhaust ports. A Complete head includes larger-than-stock 1.46" valve springs to handle most high-lift cams. This head retains the stock intake port location for compatibility with standard manifolds and headers. Heat crossover is machined for 50-state emissions legal performance.
Specifications
| Camshaft Type | Flat Tappet |
| CNC Ported | No |
| Combustion Chamber Volume | 64 |
| Construction Type | Complete |
| Cylinder Head Type | Standard |
| Deck Thickness | 0.5625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | The Edelbrock #60909 Performer Cylinder Heads are designed for 302-400 cid small-block Chevy engines up to 1986. These cylinder heads include your choice of 64cc or 70cc combustion chambers and high flow intake and exhaust ports. |
| Description_FAB | 50-State Street Legal Aluminum Cylinder Head |
| Description_FAB | 64cc Combustion Chambers Improve Performance |
| Description_FAB | Out-of-the-Box Bolt-On Performance |
| Description_FAB | Retain Stock Compression Ratio |
| Description_INV | Edelbrock SBC Cylinder Head |
| Description_KEY | Edelbrock; SBC Head; 64cc Hydraulic Flat Tappet; V8; Cylinder Heads; 60909; Small Block Chevy |
| Description_LAB | Performer Small-Block Chevy Cylinder Head 64cc Hydraulic Flat Tappet |
| Description_MKT | The Edelbrock #60909 Performer cylinder head is designed for 302, 327, 350 and 400 cid small-block Chevy engines up to 1986. This cylinder head includes your choice of 64cc (In order to retain stock compression ratio on 1970 and earlier small-blocks) or 70cc combustion chambers and high flow intake and exhaust ports. A Complete head includes larger-than-stock 1.46" valve springs to handle most high-lift cams. This head retains the stock intake port location for compatibility with standard manifolds and headers. Heat crossover is machined for 50-state emissions legal performance. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 1in.; eo_carb_number : D-215-94in.; eo_carb_link : https:/ww3.arb.ca.gov/msprog/aftermkt/devices/eo/d-215-94.pdf } |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS |
| Description_TRA | Match with Edelbrock head gasket |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | When using hot air choke Q-Jet carbs and Performer manifold with above heads, choke kit #1932 is required. |
| Description_TRA | • EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS • Match with Edelbrock head gasket • When using hot air choke Q-Jet carbs and Performer manifold with above heads; choke kit #1932 is required. • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in. reach with flat gasket seat. |
| EGR Port | Yes |
| Emission | 50 State Legal |
| Engine Make/Size | Chevy Small Block (262-400) |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 65 |
| Exhaust Valve Diameter | 1.60 |
| Family | Performer |
| finish | Cast |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| Head Casting Number | N/A |
| height | 8.75 |
| Horsepower | 300-450 |
| Intake Runner Volume | 185 |
| Intake Valve Diameter | 2.02 |
| length | 25.75 |
| LTL | N |
| Material | Aluminum |
| Preparation | Bolt On (Not Required) |
| Push Rod Diameter | (Suggested) 0.3125 |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rotor Center Bore Inside Diameter | Straight |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | Performer |
| Type | Complete |
| Usage | Street/Performance |
| Valve Angle | 23 |
| Valve Included | Yes |
| Valve Spring Diameter | 1.46 |
| Valve Spring Maximum Lift | 0.575 |
| Valve Springs Included | Yes |
| Valve Stem Diameter | 0.3438 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 30.2 |
| width | 11.0 |
