Description

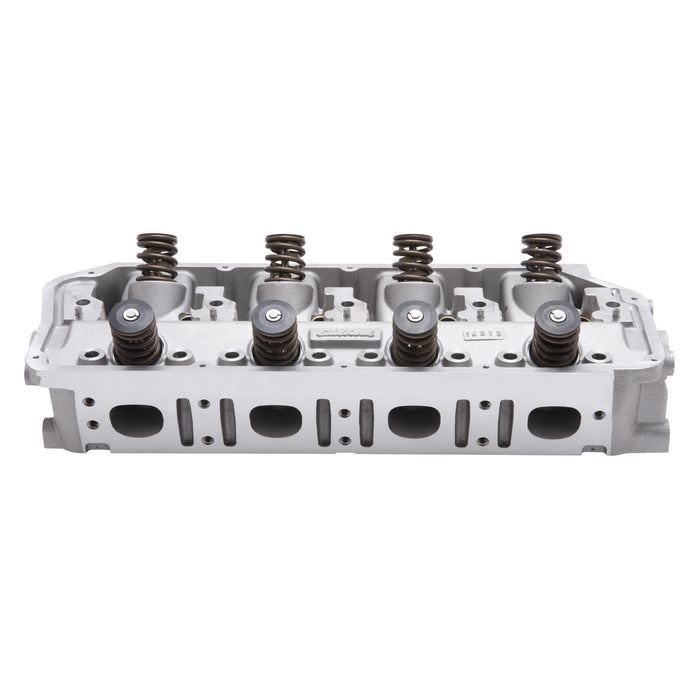

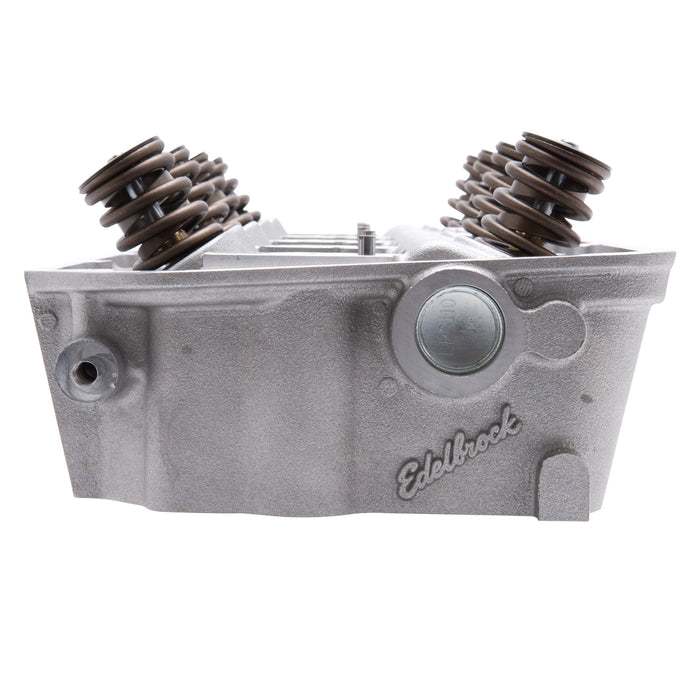

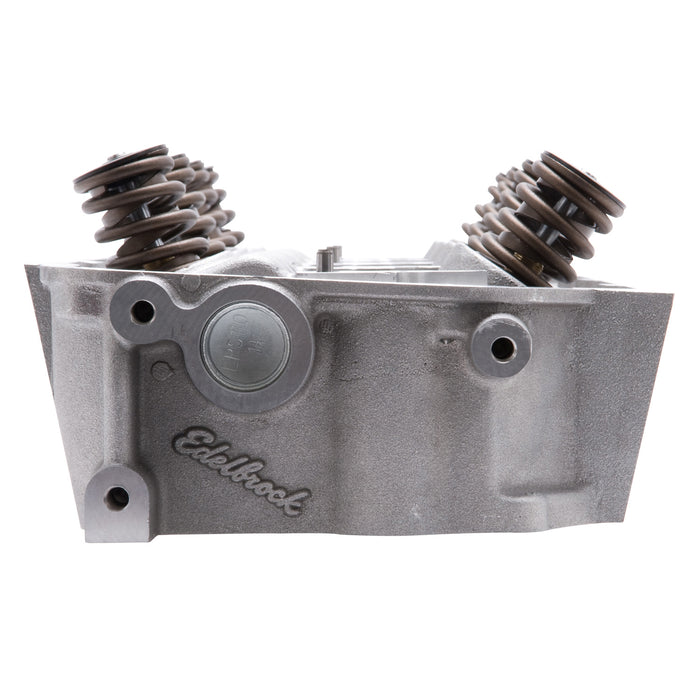

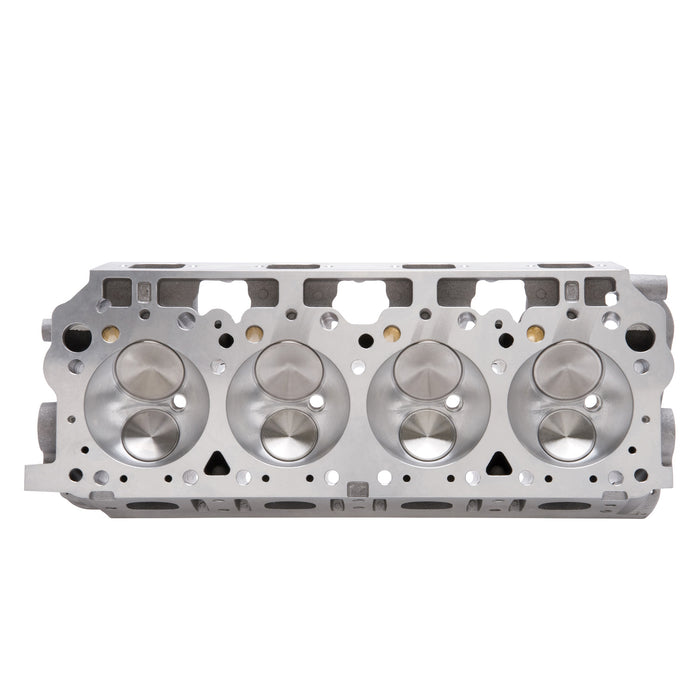

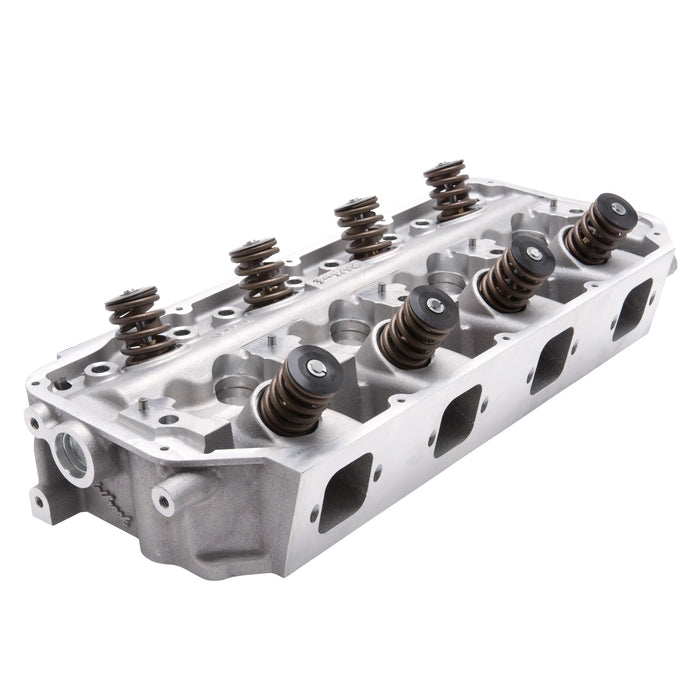

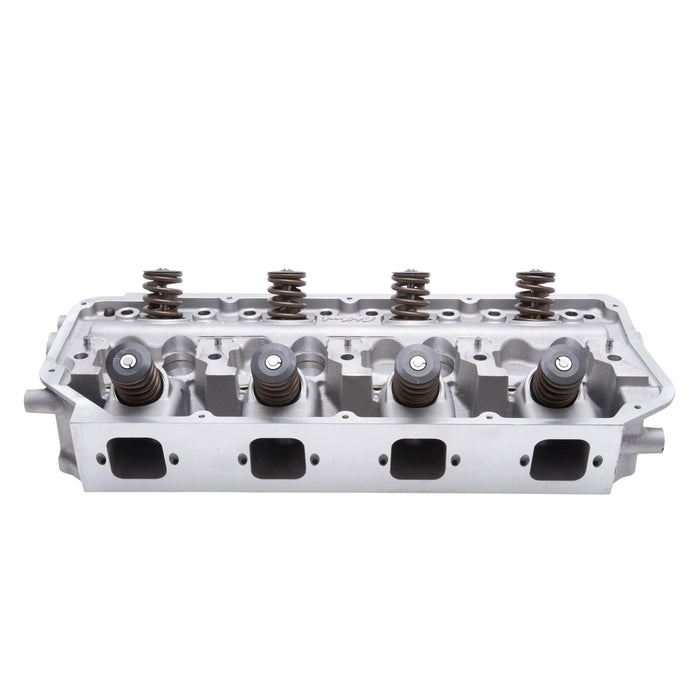

Our new Edelbrock #61175 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.
Specifications
| Description_ABR | Cyl. Head |
| Description_ASM | Chrysler:Big-Block Gen II HEMI:426 (7.0L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | Our new Edelbrock #61175 Victor Jr. Cylinder Heads are designed for high output 650+ hp Chrysler 426-572 HEMI engines. Fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. |
| Description_EXT | Our new Edelbrock #61175 Victor Jr. Cylinder Heads are designed for high output 650+hp Chrysler 426-572 HEMI engines. Fully CNC d combustion chambers and CNC blended seats for optimal air flow performance. |
| Description_FAB | Affordable; Top Quality |
| Description_FAB | CNC Chambers |
| Description_FAB | Revised Exhaust Valve Angle |
| Description_INV | Edelbrock HEMI GEN II Cylinder Head |
| Description_KEY | Edelbrock; HEMI; V8; Cylinder Heads; 61175; Chrysler |
| Description_LAB | Victor Jr Gen II HEMI Chrysler Cylinder Head Hydraulic Roller Camshaft |
| Description_MKT | Our new Edelbrock #61175 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | Victor Jr. CNC cylinder heads #61175 are complete and ready to run right out of the box. |
| Description_TRA | • EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS • Victor Jr. CNC cylinder heads #61175 are complete and ready to run right out of the box. • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in. reach with flat gasket seat. |
| height | 8.75 |
| length | 26.25 |
| LTL | N |
| weight | 35.05 |
| width | 11.12 |
