Description

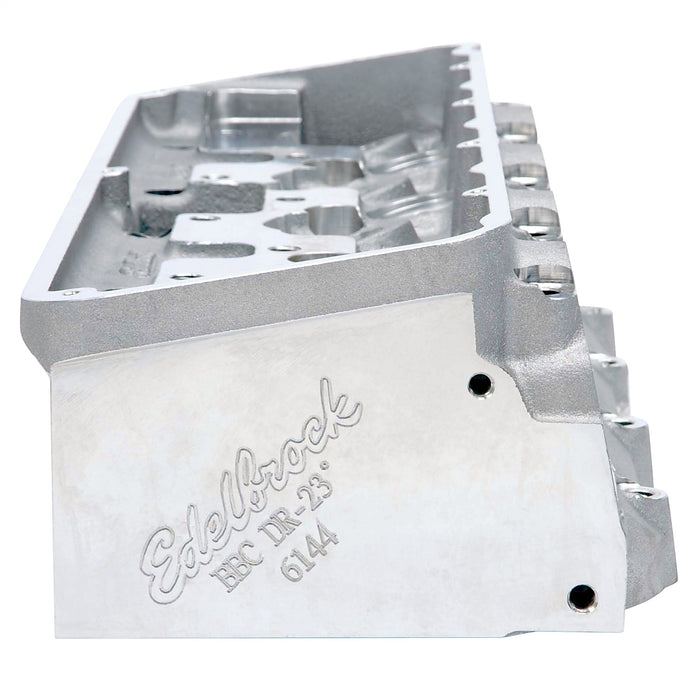

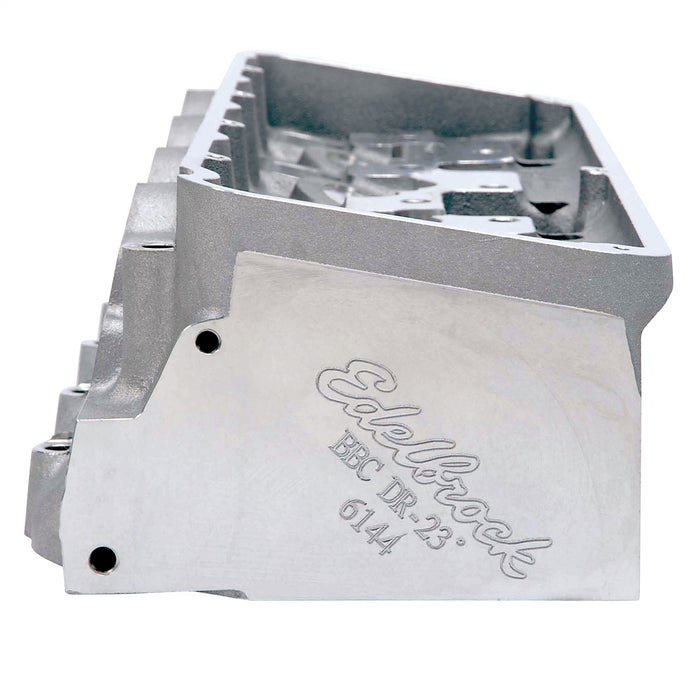

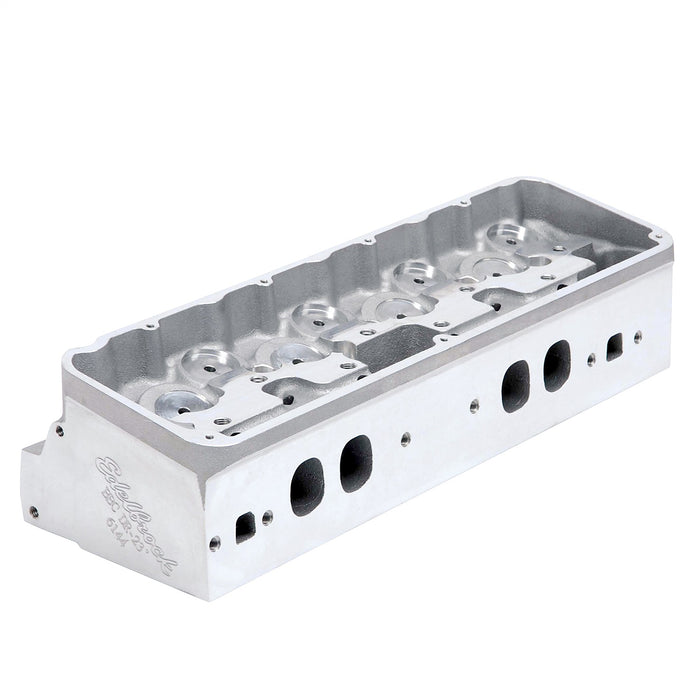

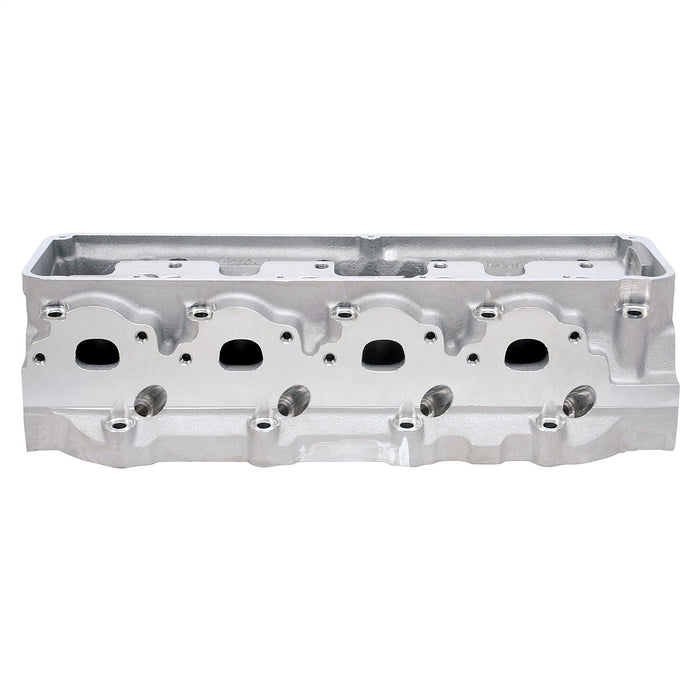

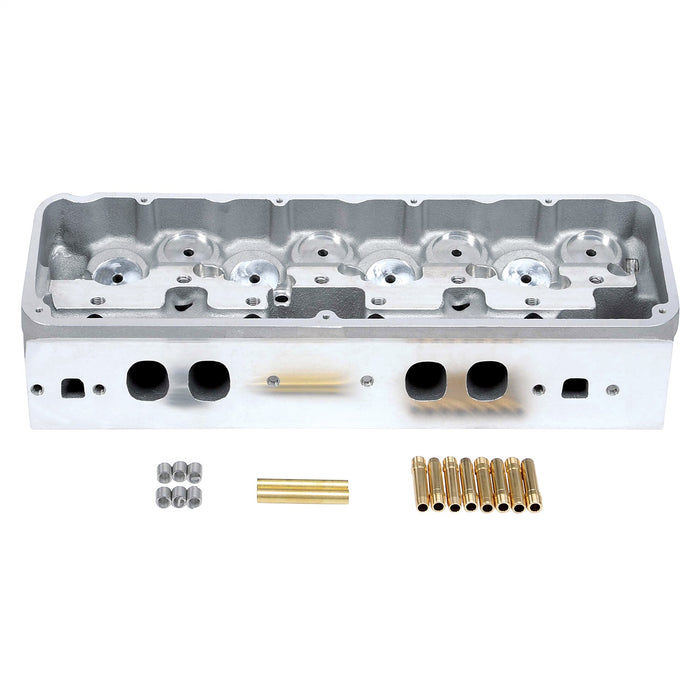

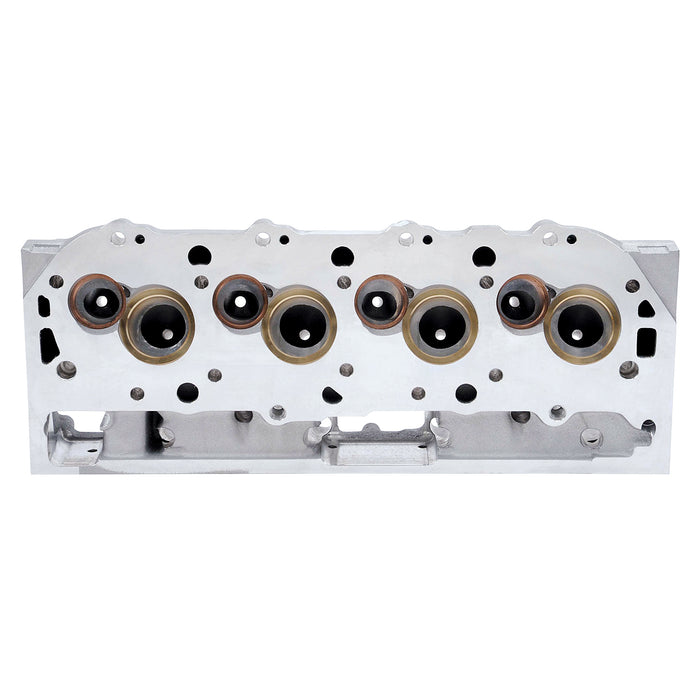

These unported versions of race-winning Edelbrock Victor Series CNC heads are designed specifically for the professional cylinder head porter and engine builder. Like all other Edelbrock Cylinder heads, Pro-Port cylinder heads are also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: These heads can not be used without professional head preparation.
Specifications
| CNC Ported | No |
| Combustion Chamber Volume | N/A |
| Construction Type | Pro-Port Raw |
| Deck Thickness | 0.5625 |
| Description_ABR | DR23 Cyl Hd |
| Description_ASM | Chevrolet:Big-Block Race |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | The Victor DR23 Cylinder Head #614469 for Chevy Big-Block engines is Edelbrock s third generation evolution that has a race-oriented design for those who demand a high-performance head with durability that they can rely on. |
| Description_EXT | The Victor DR23 Cylinder Head #614469 for Chevy Big-Block engines is Edelbrock's third generation evolution that has a race-oriented design for those who demand a high-performance head with durability that they can rely on. |
| Description_FAB | Cast In The USA |
| Description_FAB | Extra Thick Walls To Allow For Custom CNC Porting |
| Description_INV | Edelbrock Victor DR23 Cylinder Head |
| Description_KEY | Edelbrock Cylinder Head; Victor Cylinder Head; E-CNC; CNC Ported; Cylinder Heads; High-Performance Heads; Chevy Big-Block Heads; Edelbrock 614468 Heads; DR23 Heads; CNC Heads; Drag Racing Heads for Chevy Big-Block; AFR Heads; Airflow Research heads; Chevr |
| Description_LAB | Victor Pro-Port Bare Cylinder Head #614469 For Chevy Big-Block, HIP |
| Description_LAB | Victor Pro-Port Bare Cylinder Head #614469 For Chevy Big-Block; HIP |
| Description_MKT | These unported versions of race-winning Edelbrock Victor Series CNC heads are designed specifically for the professional cylinder head porter and engine builder. Like all other Edelbrock Cylinder heads, Pro-Port cylinder heads are also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: These heads can not be used without professional head preparation. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| EGR Port | No |
| Exhaust Valve Diameter | (Suggested) 1.94 |
| Family | Victor |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plates Included | No |
| Head Casting Number | N/A |
| height | 12.13 |
| Intake Valve Diameter | (Suggested) 2.42 |
| length | 26.5 |
| LTL | N |
| Material | Aluminum |
| Quantity | Sold Individually |
| Retainer Included | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | Pro-Port |
| Specialty | Hot Isostatic Pressing (HIP) Processing |
| Valve Angle | 23 |
| Valve Included | No |
| Valve Springs Included | No |
| weight | 70.0 |
| width | 9.0 |
