Availability:
Only 3 left!
Edelbrock 61569 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_61569
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$1,636.87
-
Original price
$1,636.87
Original price
$1,636.87
$1,636.87
$1,636.87
-
$1,636.87
Current price
$1,636.87
Description

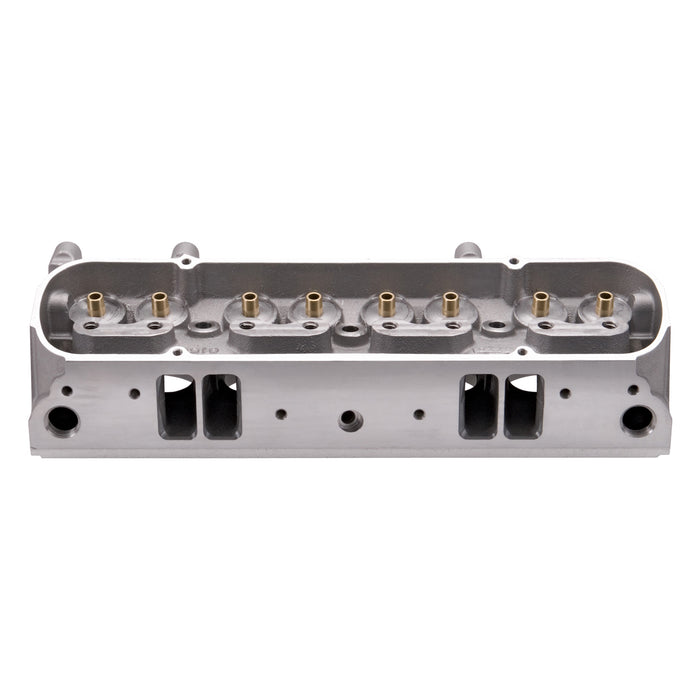

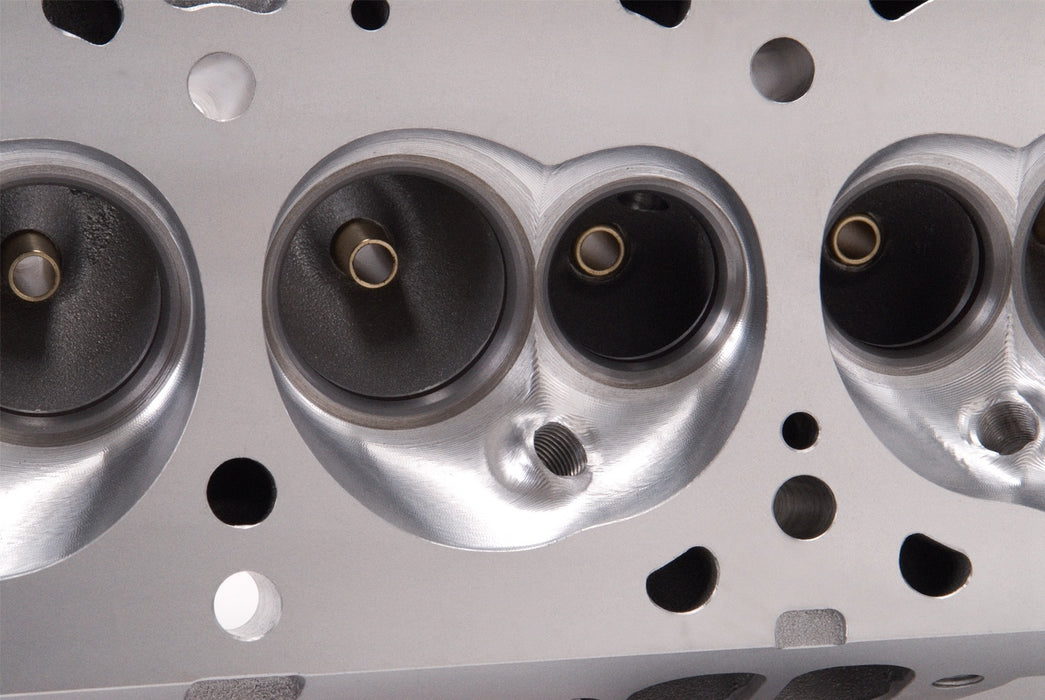

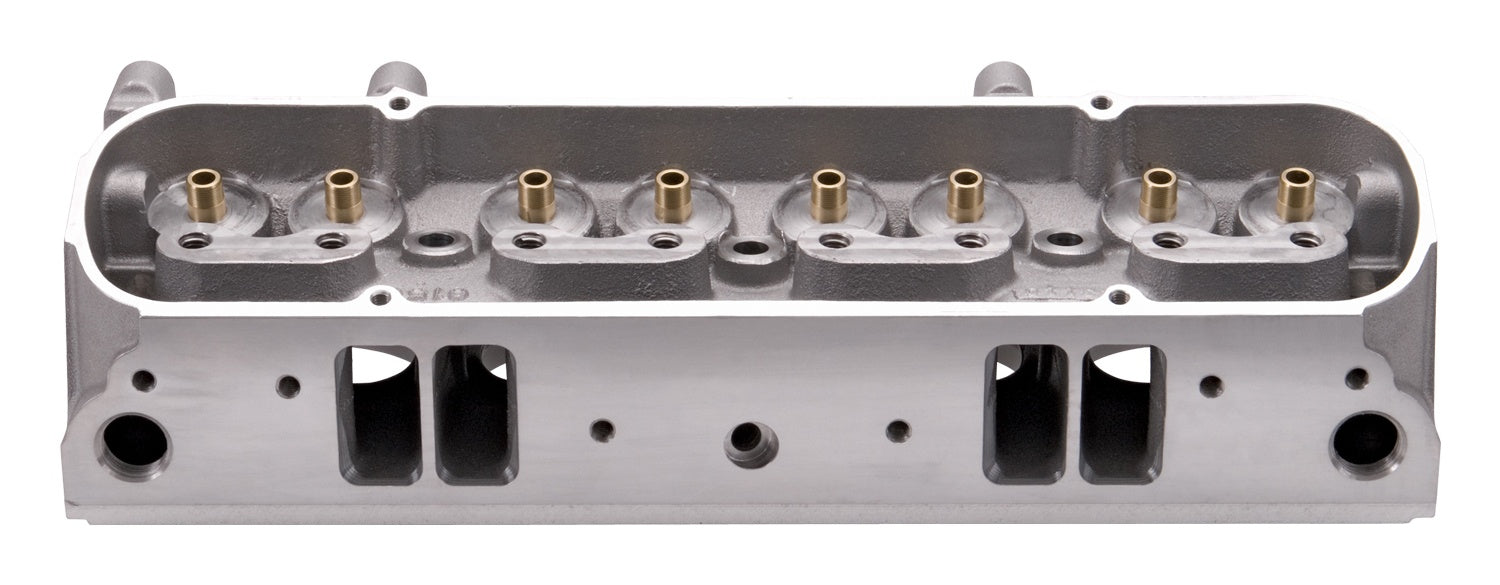

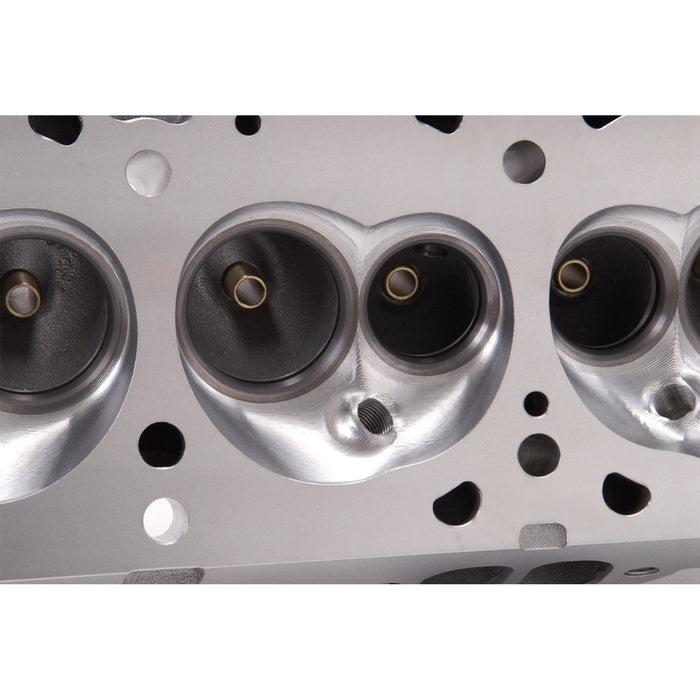

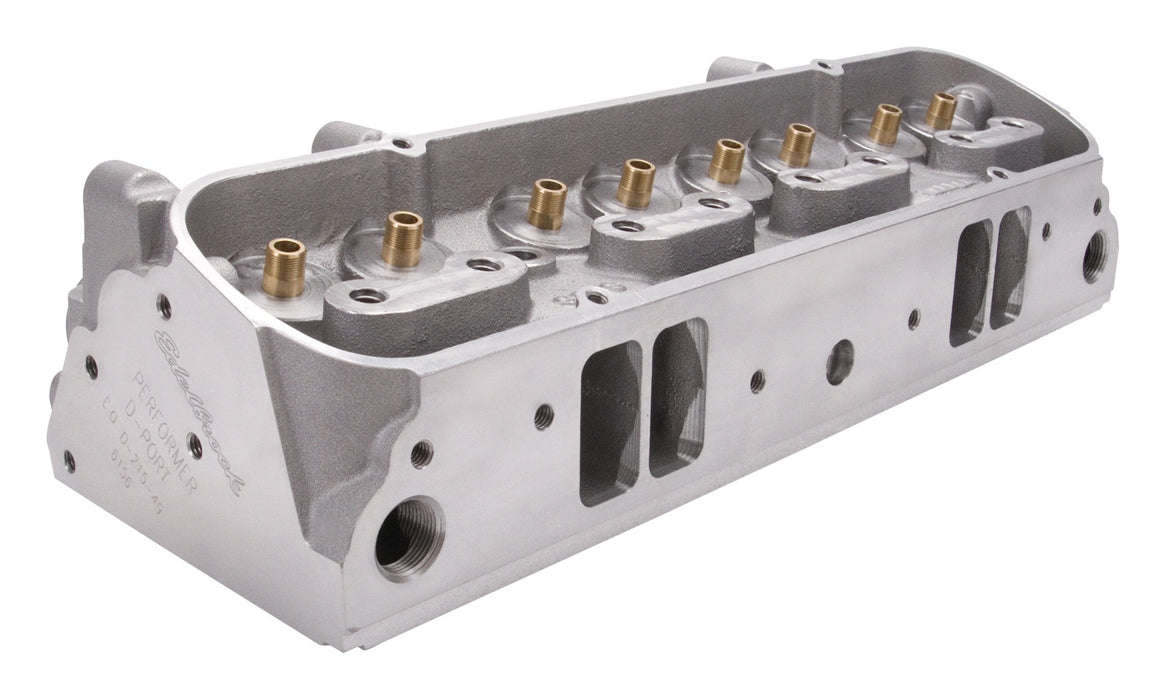

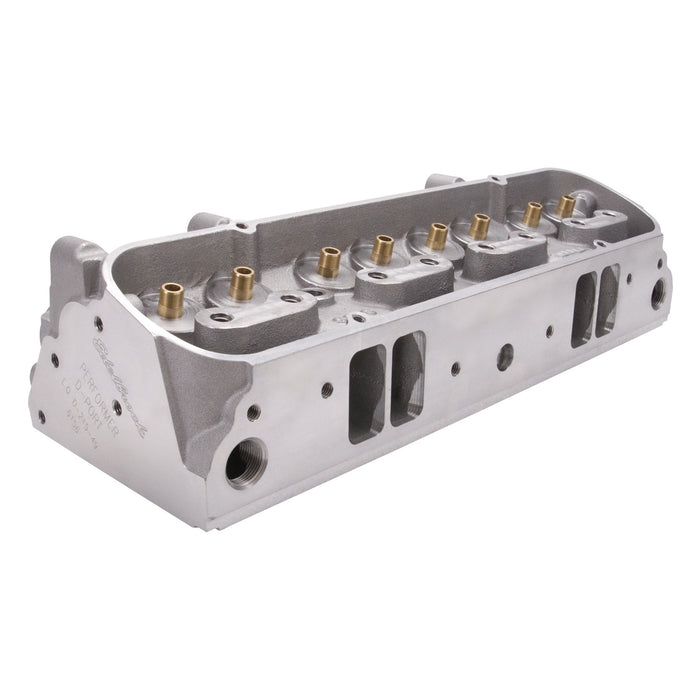

The Edelbrock #61569 Performer Pontiac Bare Cylinder Head utilizes a D-Port exhaust port configuration for use with standard D-port exhaust systems. They are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow. The spark plug has been relocated closer to the exhaust valve for improved performance. This head is cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting. Complete cylinder head includes guide plates, rocker studs and high quality valvetrain for direct bolt-on application. Heat crossover is machined for 50-state emissions legal performance.
Specifications
| CNC Ported | Yes |
| Combustion Chamber Volume | 87 |
| Construction Type | Bare |
| Cylinder Head Type | Pontiac D-Port |
| Deck Thickness | 0.625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | Edelbrock part #61569 Performer Pontiac D-Port Bare Cylinder Heads are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. |
| Description_EXT | Edelbrock part #61569 Performer Pontiac D-Port Bare Cylinder Heads are designed for 1962-79 389; 400; 421; 428 and 455 c.i.d. V8 Pontiac engines with a 4.060in. or larger bore. |
| Description_FAB | 5/8 in. Thick Deck Surface |
| Description_FAB | 50-State Emissions Legal Performance |
| Description_FAB | For Improved Flow |
| Description_FAB | Machined And Assembled In The U.S.A. |
| Description_FAB | Manufactured w/Optimized Oil Return Passages |
| Description_FAB | Optimum Spark Plug Location Reduces Heat Loss |
| Description_FAB | Rocker Studs And Accessory Bosses |
| Description_FAB | Will Accept Factory Pushrod Guide Plates |
| Description_INV | Edelbrock Pontiac Cylinder Head |
| Description_KEY | Edelbrock; Pontiac; Head; Cylinder Heads; 87cc; Bare; V8; 61569 |
| Description_LAB | RPM CNC Pontiac D-Port Cylinder Head 87cc Bare |
| Description_MKT | The Edelbrock #61569 Performer Pontiac Bare Cylinder Head utilizes a D-Port exhaust port configuration for use with standard D-port exhaust systems. They are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow. The spark plug has been relocated closer to the exhaust valve for improved performance. This head is cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting. Complete cylinder head includes guide plates, rocker studs and high quality valvetrain for direct bolt-on application. Heat crossover is machined for 50-state emissions legal performance. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 1in.; eo_carb_number : D-215-94in.; eo_carb_link : https:/ww3.arb.ca.gov/msprog/aftermkt/devices/eo/d-215-94.pdf } |
| Description_TRA | 350 c.i.d. engines may require notching the block for valve clearance. |
| Description_TRA | Bare heads will have valve guides & seats installed, but will require final sizing & a valve job to match the valves you will be using. |
| Description_TRA | Combustion Chamber: 87cc |
| Description_TRA | Deck thickness: 5/8" |
| Description_TRA | Pushrod diameter: 5/16" (width of slot in guide plate). |
| Description_TRA | Rocker stud diameter: 7/16" |
| Description_TRA | Three head bolt bosses are raised higher than the standard D-port heights and will require head bolt kit #8561 to install these heads. |
| Description_TRA | • Bare heads will have valve guides seats installed; but will require final sizing a valve job to match the valves you will be using. • Combustion Chamber: 87cc • 350 c.i.d. engines may require notching the block for valve clearance. • Three head bolt bosses are raised higher than the standard D-port heights and will require head bolt kit #8561 to install these heads. • Deck thickness: 5/8in. • Rocker stud diameter: 7/16in. • Pushrod diameter: 5/16in. (width of slot in guide plate). |
| EGR Port | Yes |
| Emission | 50 State Legal |
| Engine Make/Size | Pontiac 389 |
| Engine Make/Size | Pontiac 400 |
| Engine Make/Size | Pontiac 421 |
| Engine Make/Size | Pontiac 428 |
| Engine Make/Size | Pontiac 455 |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 145 |
| Family | Performer |
| finish | Cast Aluminum |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| Head Casting Number | N/A |
| height | 8.5 |
| Horsepower | 400-500 |
| Intake Runner Volume | 204 |
| length | 26.0 |
| LTL | N |
| Material | Aluminum |
| Preparation | Requires Professional Preparation (Bare) |
| Quantity | Sold Individually |
| Retainer Included | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | Performer |
| Type | Bare |
| Usage | Street/Performance |
| Valve Angle | 14 |
| Valve Included | No |
| Valve Springs Included | No |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 31.4 |
| width | 11.5 |
