Availability:
Only 4 left!
Edelbrock 61595 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_61595
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$2,387.73
-
Original price
$2,387.73
Original price
$2,387.73
$2,387.73
$2,387.73
-
$2,387.73
Current price
$2,387.73
Description

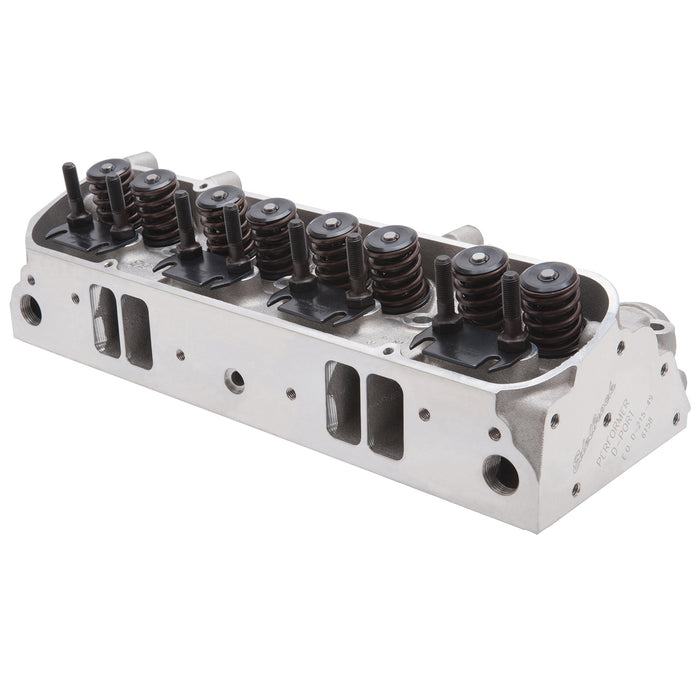

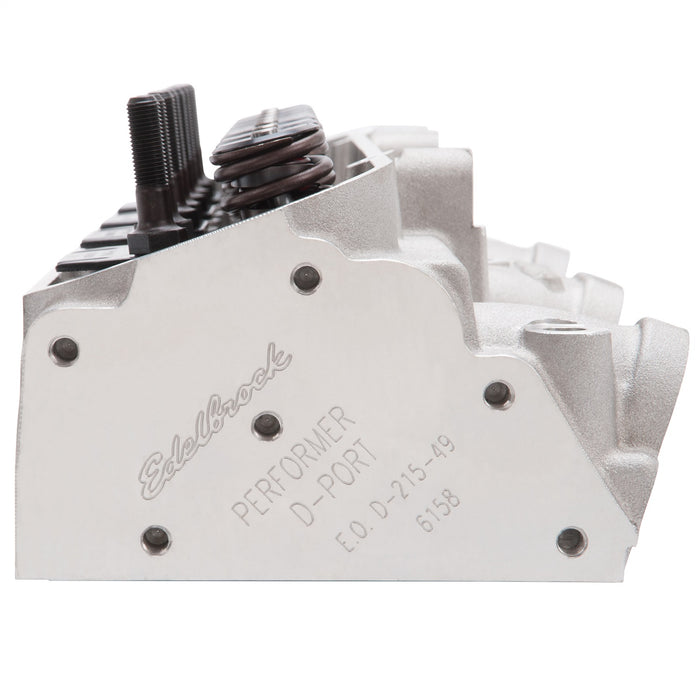

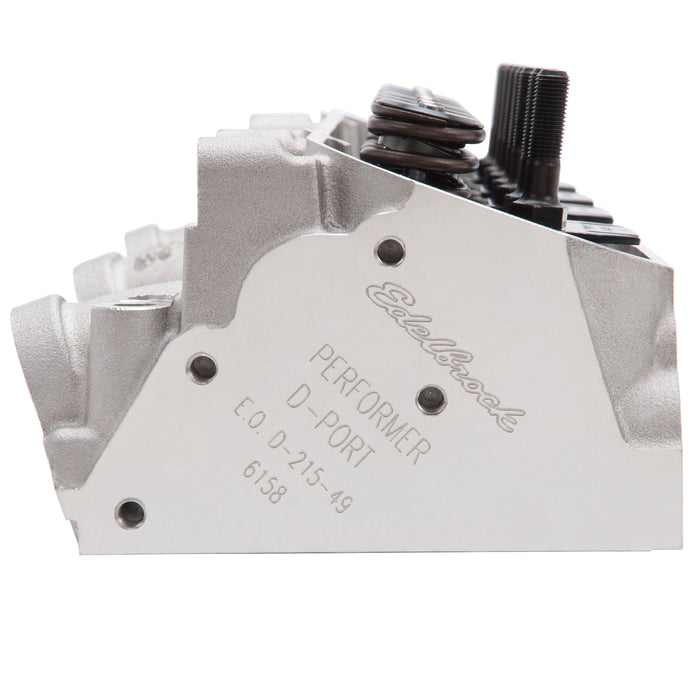

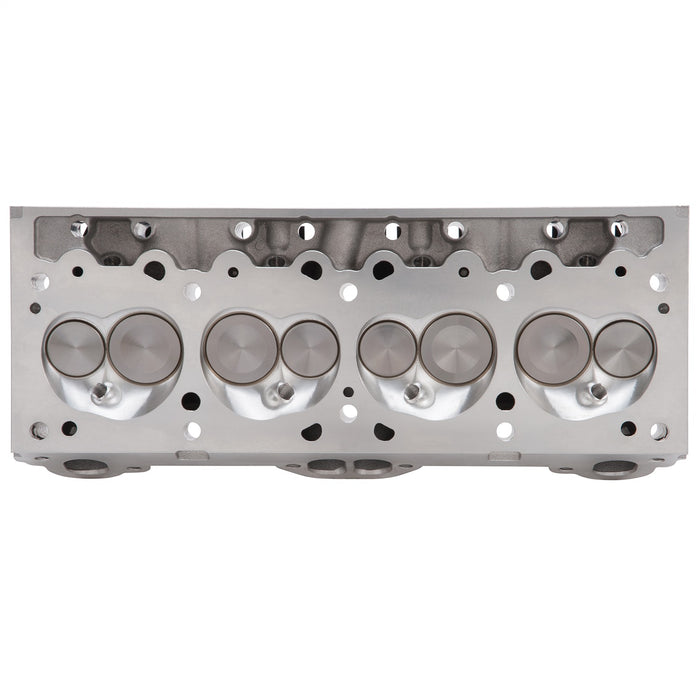

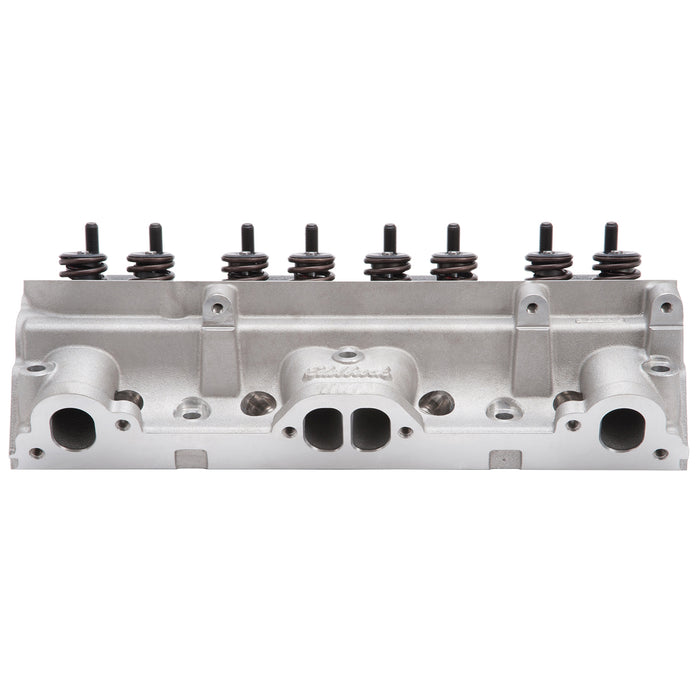

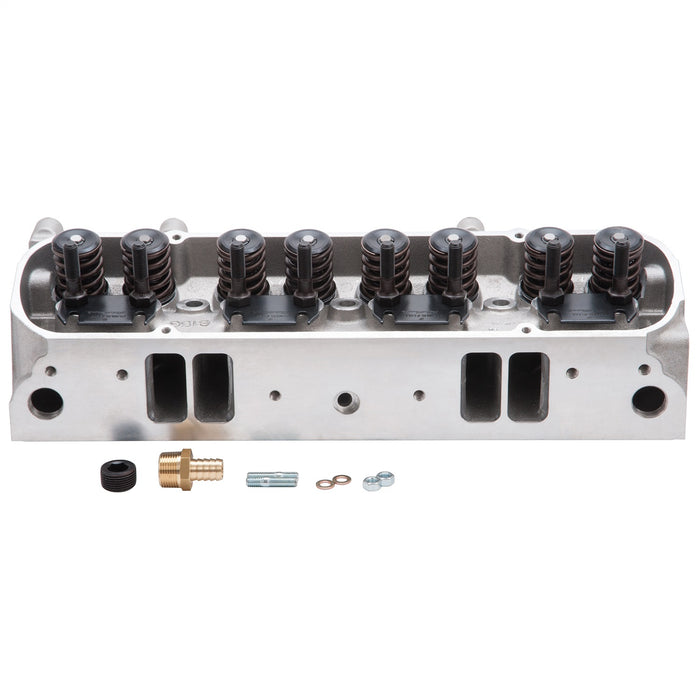

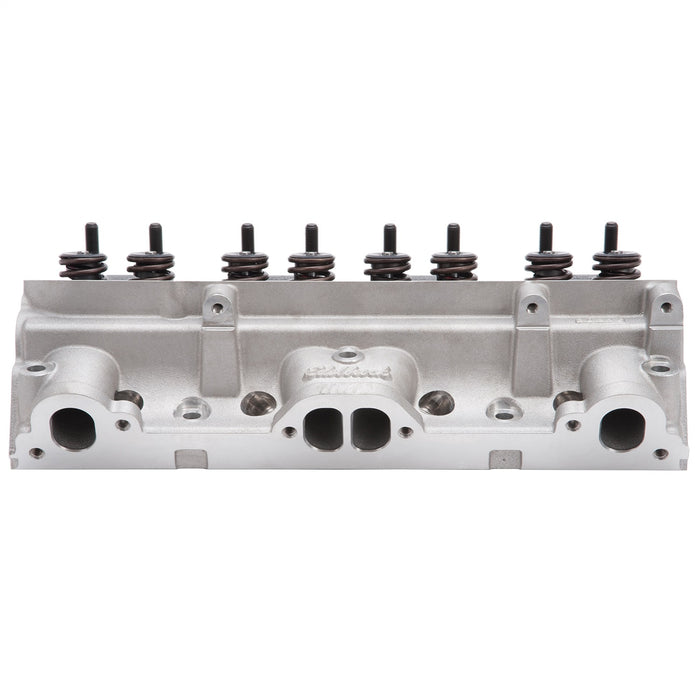

The Edelbrock #61595 Performer Pontiac Cylinder Head utilize a D-Port exhaust port configuration for use with standard D-port exhaust systems. They are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow. The spark plug has been relocated closer to the exhaust valve for improved performance. This head is cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting. Complete cylinder head includes guide plates, rocker studs and high quality valvetrain for direct bolt-on application. Heat crossover is machined for 50-state emissions legal performance.
Specifications
| Camshaft Type | Hydraulic Roller |
| CNC Ported | Yes |
| Combustion Chamber Volume | 72 |
| Construction Type | Complete |
| Deck Thickness | 0.625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | Edelbrock part #61595 Performer Pontiac D-Port Cylinder Heads are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow. |
| Description_EXT | Edelbrock part #61595 Performer Pontiac D-Port Cylinder Heads are designed for 1962-79 389; 400; 421; 428 and 455 c.i.d. V8 Pontiac engines with a 4.060in. or larger bore. They feature optimized oil return passages for increased oil flow. |
| Description_FAB | CNC-Matched Intake/Exhaust Ports in Std Location |
| Description_FAB | Out-of-the-Box Bolt-On Performance |
| Description_FAB | Thicker Deck Surfaces Than Other Brands |
| Description_FAB | Valves Promote Excellent Flow For Streetable Power |
| Description_INV | Edelbrock Pontiac Cylinder Head |
| Description_KEY | Edelbrock; Pontiac; Head; Cylinder Heads; 72cc; Hydraulic Roller Camshaft; Made In The USA; T-6; V8; Cylinder Heads; 61595 |
| Description_LAB | RPM CNC Pontiac D-Port Cylinder Head 72cc Hydraulic Roller Camshaft |
| Description_MKT | The Edelbrock #61595 Performer Pontiac Cylinder Head utilize a D-Port exhaust port configuration for use with standard D-port exhaust systems. They are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow. The spark plug has been relocated closer to the exhaust valve for improved performance. This head is cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting. Complete cylinder head includes guide plates, rocker studs and high quality valvetrain for direct bolt-on application. Heat crossover is machined for 50-state emissions legal performance. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 1in.; eo_carb_number : D-215-94in.; eo_carb_link : https:/ww3.arb.ca.gov/msprog/aftermkt/devices/eo/d-215-94.pdf } |
| Description_TRA | 350 c.i.d. engines may require notching the block for valve clearance. |
| Description_TRA | Combustion Chamber: 72cc |
| Description_TRA | Deck thickness: 5/8" |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS |
| Description_TRA | Pushrod diameter: 5/16" (width of slot in guide plate). |
| Description_TRA | Rocker stud diameter: 7/16" |
| Description_TRA | Three head bolt bosses are raised higher than the standard D-port heights and will require head bolt kit #8561 to install these heads. |
| Description_TRA | • EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS • Combustion Chamber: 72cc • 350 c.i.d. engines may require notching the block for valve clearance. • Three head bolt bosses are raised higher than the standard D-port heights and will require head bolt kit #8561 to install these heads. • Deck thickness: 5/8in. • Rocker stud diameter: 7/16in. • Pushrod diameter: 5/16in. (width of slot in guide plate). |
| EGR Port | Yes |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 145 |
| Exhaust Valve Diameter | 1.66 |
| Family | Performer |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| Head Casting Number | N/A |
| height | 8.25 |
| Horsepower | 400-500 |
| Intake Runner Volume | 204 |
| Intake Valve Diameter | 2.11 |
| length | 24.75 |
| LTL | N |
| Material | Aluminum |
| Push Rod Diameter | (Suggested) 0.3125 |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | Performer |
| Valve Angle | 14 |
| Valve Included | Yes |
| Valve Spring Diameter | 1.46 |
| Valve Spring Maximum Lift | 0.575 |
| Valve Springs Included | Yes |
| Valve Stem Diameter | 0.3438 |
| weight | 36.95 |
| width | 10.5 |
