Edelbrock 7078 Edelbrock Victor Ram 2R Top Intake Manifold Big Block Chevy Rec. Port
by Edelbrock
SKU ds_BDVJ_7078
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$253.43
-
Original price
$253.43
Original price
$253.43
$253.43
$253.43
-
$253.43
Current price
$253.43
Description

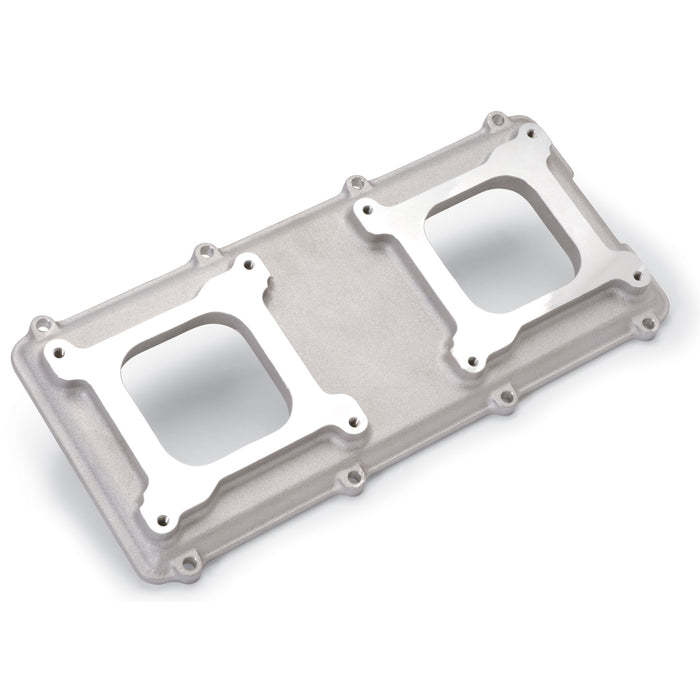

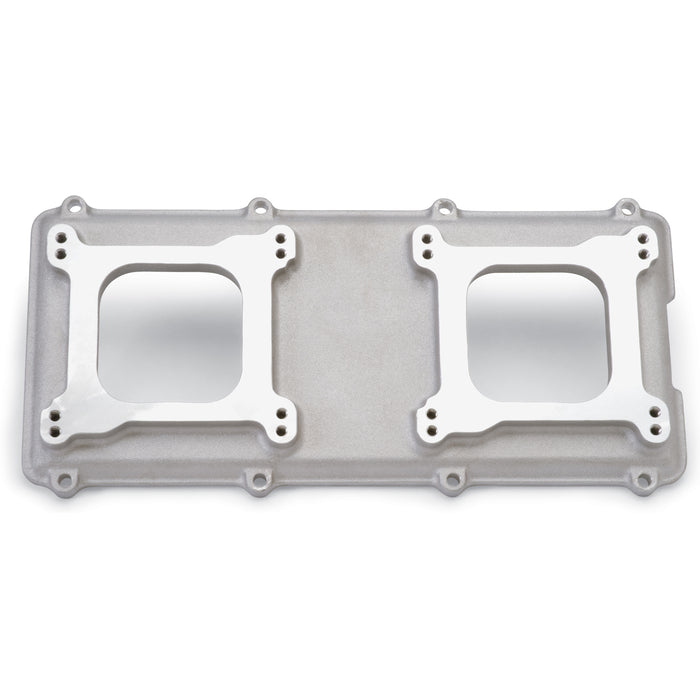

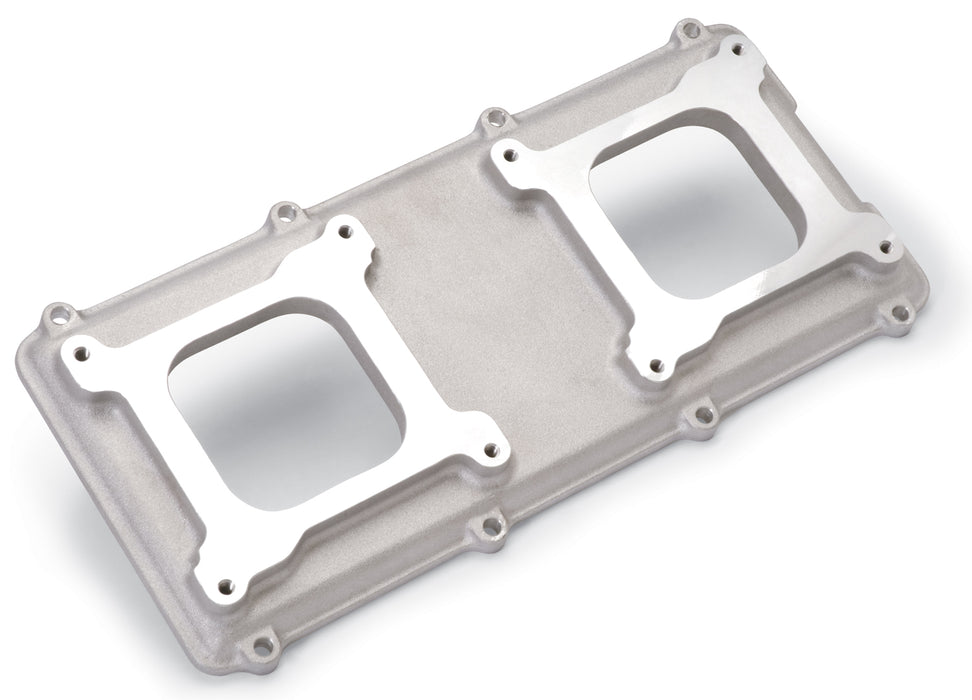

Edelbrock part #7078 Victor Tunnel Ram top is for use with standard flange carburetors (mounted in-line) and our Victor Tunnel Ram base manifold only on Big-Block Chevy applications. The Edelbrock Victor Tunnel Ram top also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA.
Specifications
| Cylinder Head Type | Rectangular Port |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Victor Ram 2R Top Intake Manifold Big Block Chevy Rec. Port |
| Description_FAB | Carburetor Center-to-Center Dimensions 9.38 in. |
| Description_FAB | For Standard Flange Holley Carbs Need (2) PN[2694] |
| Description_FAB | For Two Sideways Mounted 4500-Series Carburetors |
| Description_FAB | Includes Top Gasket PN[6989] |
| Description_FAB | Top Intake for Victor Ram 2-R PN[7075] |
| Description_FAB | Use Matching Throttle Linkage PN[7097] |
| Description_INV | Victor Tunnel Ram 2R Top BBC Intake |
| Description_KEY | 7078; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Tunnel-Ram; Satin |
| Description_LAB | Victor Ram 2R Big Block Chevy Top Intake Manifold |
| Description_MKT | Edelbrock part #7078 Victor Tunnel Ram top is for use with standard flange carburetors (mounted in-line) and our Victor Tunnel Ram base manifold only on Big-Block Chevy applications. The Edelbrock Victor Tunnel Ram top also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | #2694 sideways mount carb adaptors require #7077 throttle linkage |
| Description_TRA | Distance from carb center to carb center: 9.38" |
| Description_TRA | For sideways mount carbs use Edelbrock sideways mount carb adaptors #2694 |
| Description_TRA | GM H.E.I ignition will not clear manifold |
| Description_TRA | Includes Edelbrock top gasket #6989 |
| Description_TRA | Manifold top with manifold bottom height: 10.40" |
| Description_TRA | Top only |
| Description_TRA | • Top only • Includes Edelbrock top gasket # 6989 • Distance from carb center to carb center: 9.38in. • Manifold top with manifold bottom height: 10.40in. • GM H.E.I ignition will not clear manifold • For sideways mount carbs use Edelbrock sideways mount carb adaptors # 2694 • # 2694 sideways mount carb adaptors require # 7077 throttle linkage |
| Emission | Without EGR |
| Engine Make/Size | Chevy Big Block (396-502) |
| height | 7.5 |
| length | 23.62 |
| Number of Carbs | One |
| Position | Upper |
| RPM Range | 6500-10000 |
| Usage | Racing |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 6.6 |
| width | 14.75 |
