Edelbrock 7085 INTAKE MANIFOLD BASE
by Edelbrock
SKU ds_BDVJ_7085
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$1,180.50
-
Original price
$1,180.50
Original price
$1,180.50
$1,180.50
$1,180.50
-
$1,180.50
Current price
$1,180.50
Description

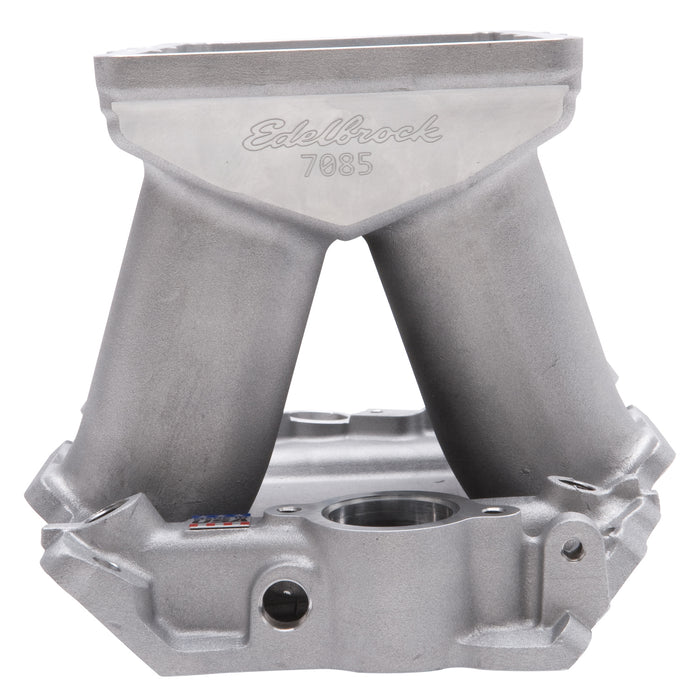

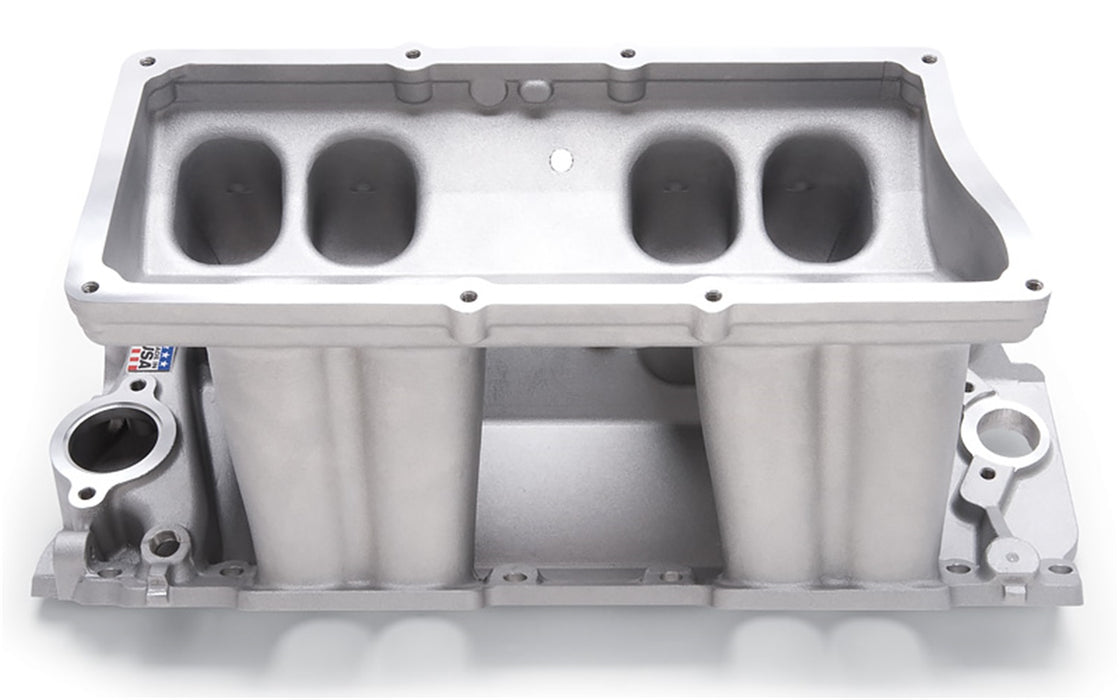

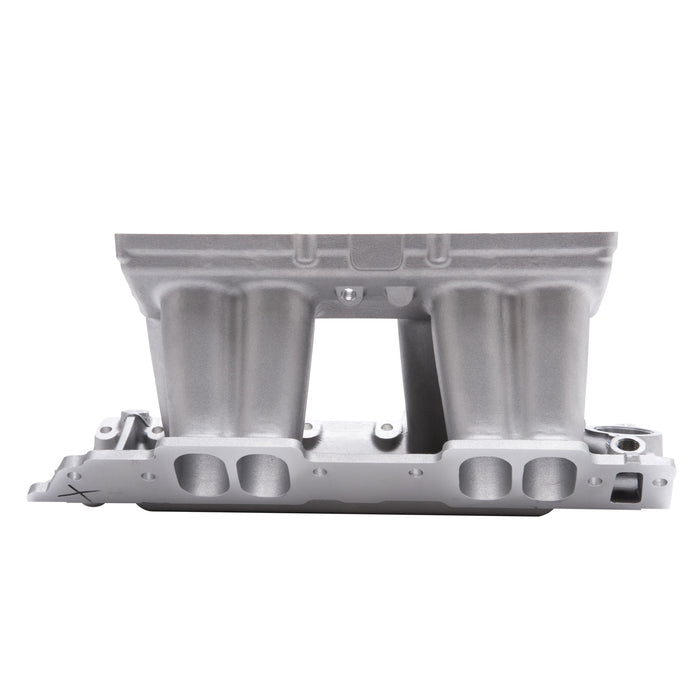

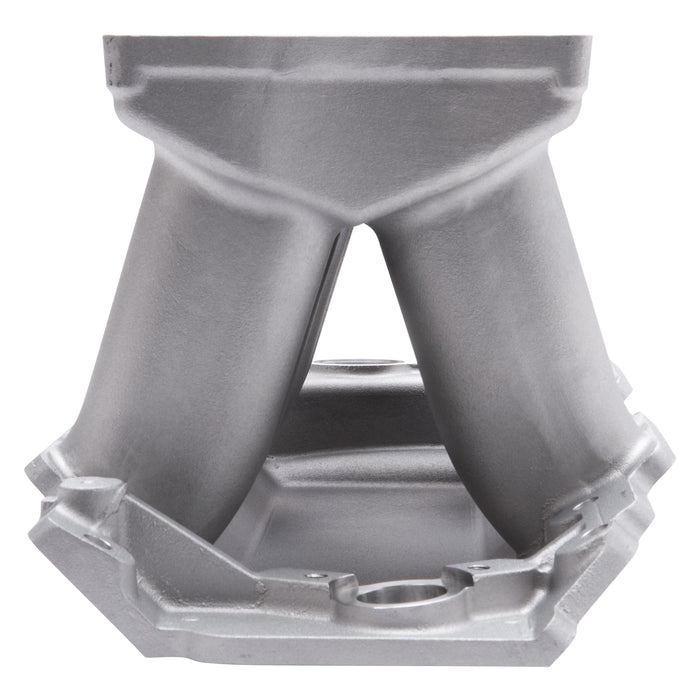

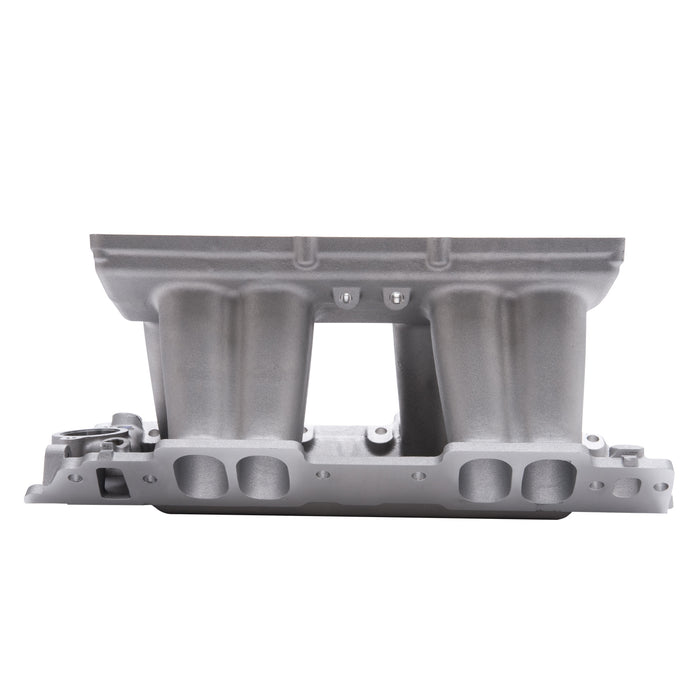

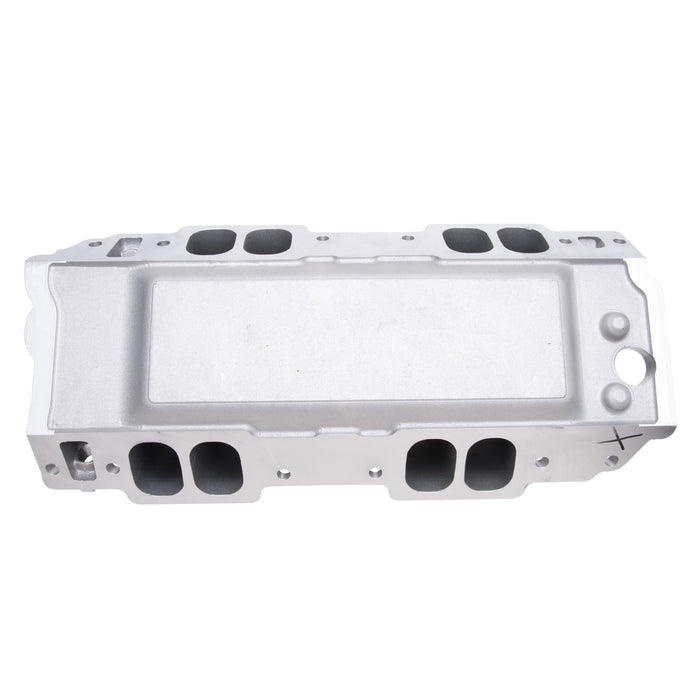

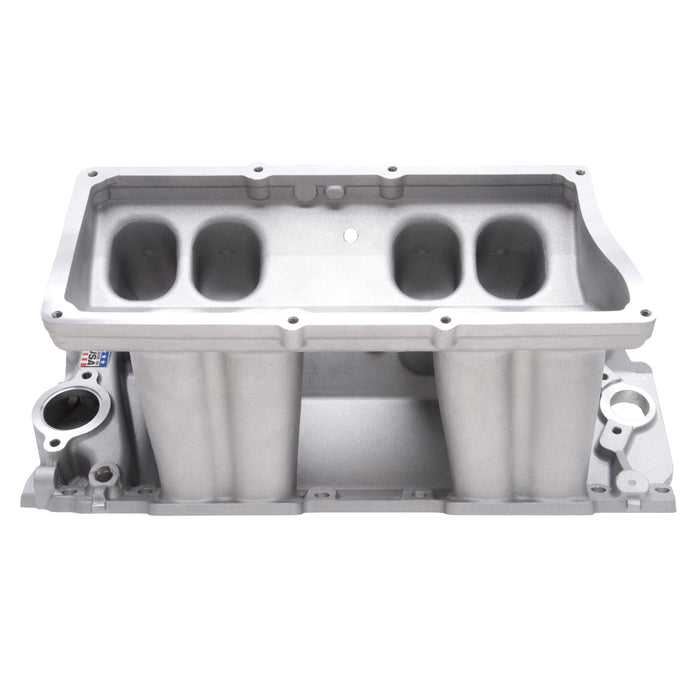

Edelbrock part #7085 Victor Carbureted Tunnel Ram base is designed for use with 468-582 c.i.d. standard-deck Chevrolet V8 engines with conventional rectangular port cylinder heads. This Tunnel Ram Base is a modern updated design to our very successful Victor Ram 2-R Tunnel Ram, which was first released over 35 years ago. It's designed for use with 468-582 c.i.d. standard-deck Chevrolet V8 engines with conventional rectangular port cylinder heads. This new and improved design has 7" long runners with close to 5.5 square-inches at the plenum, making it 25% larger than our current Victor Ram 2-R Tunnel Ram base! This is the ideal intake manifold for any modern high horsepower demanding application. Will fit Edelbrock Victor series race cylinder heads #77409, #77459 and #77609. Available for carbureted and fuel injected applications.
Specifications
| Basic Operating RPM Range | 4500-8500 |
| Center Maximum Height | 10.750 |
| CNC Ported | No |
| Color | Satin |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Race |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD BASE |
| Description_EXT | Edelbrock Victor Ram 2-R Intake Manifold Base for Carbureted Applications 468-582 Big-Block Chevy |
| Description_FAB | Available For Carbureted And Fuel Injected Applications |
| Description_FAB | Ideal Modern High-Power Engines |
| Description_FAB | Machined Fuel Rail Ends |
| Description_INV | Victor Tunnel Ram Base BBC Intake |
| Description_KEY | 7085; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Tunnel-Ram; Satin |
| Description_LAB | Victor Ram 2-R Big Block Chevy Intake Manifold Base for Carbureted Applications |
| Description_MKT | Edelbrock part #7085 Victor Carbureted Tunnel Ram base is designed for use with 468-582 c.i.d. standard-deck Chevrolet V8 engines with conventional rectangular port cylinder heads. This Tunnel Ram Base is a modern updated design to our very successful Victor Ram 2-R Tunnel Ram, which was first released over 35 years ago. It's designed for use with 468-582 c.i.d. standard-deck Chevrolet V8 engines with conventional rectangular port cylinder heads. This new and improved design has 7" long runners with close to 5.5 square-inches at the plenum, making it 25% larger than our current Victor Ram 2-R Tunnel Ram base! This is the ideal intake manifold for any modern high horsepower demanding application. Will fit Edelbrock Victor series race cylinder heads #77409, #77459 and #77609. Available for carbureted and fuel injected applications. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Base Only |
| Description_TRA | Carbureted Applications ONLY |
| Description_TRA | Distance from carb center to carb center: 9.40" |
| Description_TRA | F=1.06" |
| Description_TRA | Generously sized port exits |
| Description_TRA | H=2.50" |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: 10.75" |
| Description_TRA | Port exit dimensions: 1.78" x 2.50" |
| Description_TRA | R=1.44" |
| Description_TRA | Recommended intake gasket: Edelbrock #7208 or Fel-Pro #1275. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | W=1.78" |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7208 or Fel-Pro # 1275. • Distance from carb center to carb center: 9.40in. • Carbureted Applications ONLY • Base Only • Manifold height: 10.75in. • Port exit dimensions: 1.78in. x 2.50in. • Generously sized port exits; R=1.44in.; F=1.06in.; W=1.78in.; H=2.50in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Front Maximum Height | 10.750 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 14.0 |
| length | 24.12 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 10.750 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Dual-Quad/Multi Carb |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Chevrolet |
| weight | 26.05 |
| width | 12.25 |
